AIR BREATHER HOSE

TM-19

< REMOVAL AND INSTALLATION >

[FS5R30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000009480417

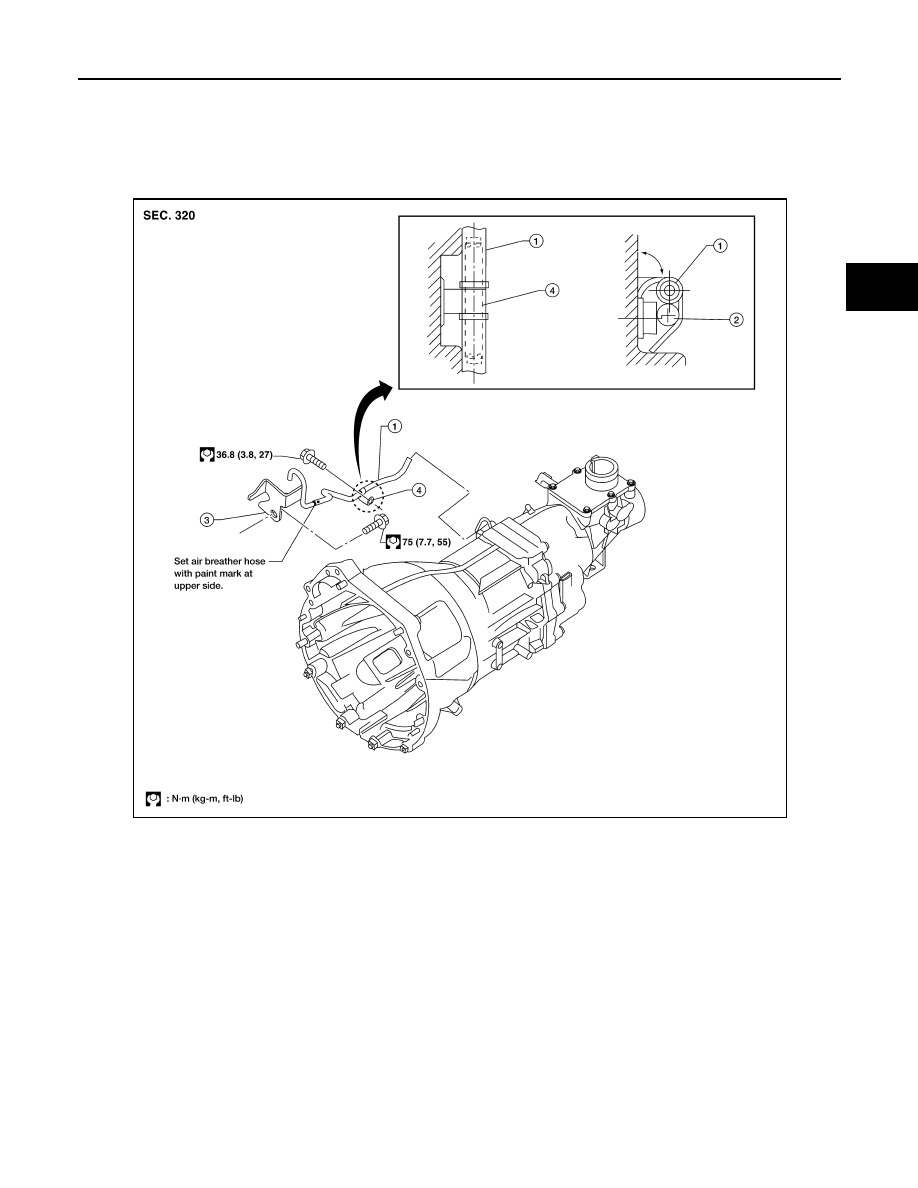

COMPONENTS

REMOVAL

1. Disconnect air breather hose from breather tube and transmission harness connector.
2. Bend the clip away from the transmission housing and remove air breather hose.
3. Remove the clip bolt and remove the clip from the transmission housing, if necessary.
4. Remove the breather tube bolt and the breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Make sure there are no pinched or blocked areas on the air breather hose after installation.

• When inserting the air breather hose, be sure to insert it fully until its end reaches the end of the tube

radius.

• Install the air breather hose with the paint mark side up.

• Install the air breather hose and harness to the clip to prevent separation.

1.

Air breather hose

2.

Harness

3.

Breather tube

4.

Clip

LCIA0380E

TM-20

< REMOVAL AND INSTALLATION >

[FS5R30A]

AIR BREATHER HOSE

• Push the clip so that the harness contacts the clip bolt.

TRANSMISSION ASSEMBLY

TM-21

< UNIT REMOVAL AND INSTALLATION >

[FS5R30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSMISSION ASSEMBLY

Removal and Installation from Vehicle

INFOID:0000000009480418

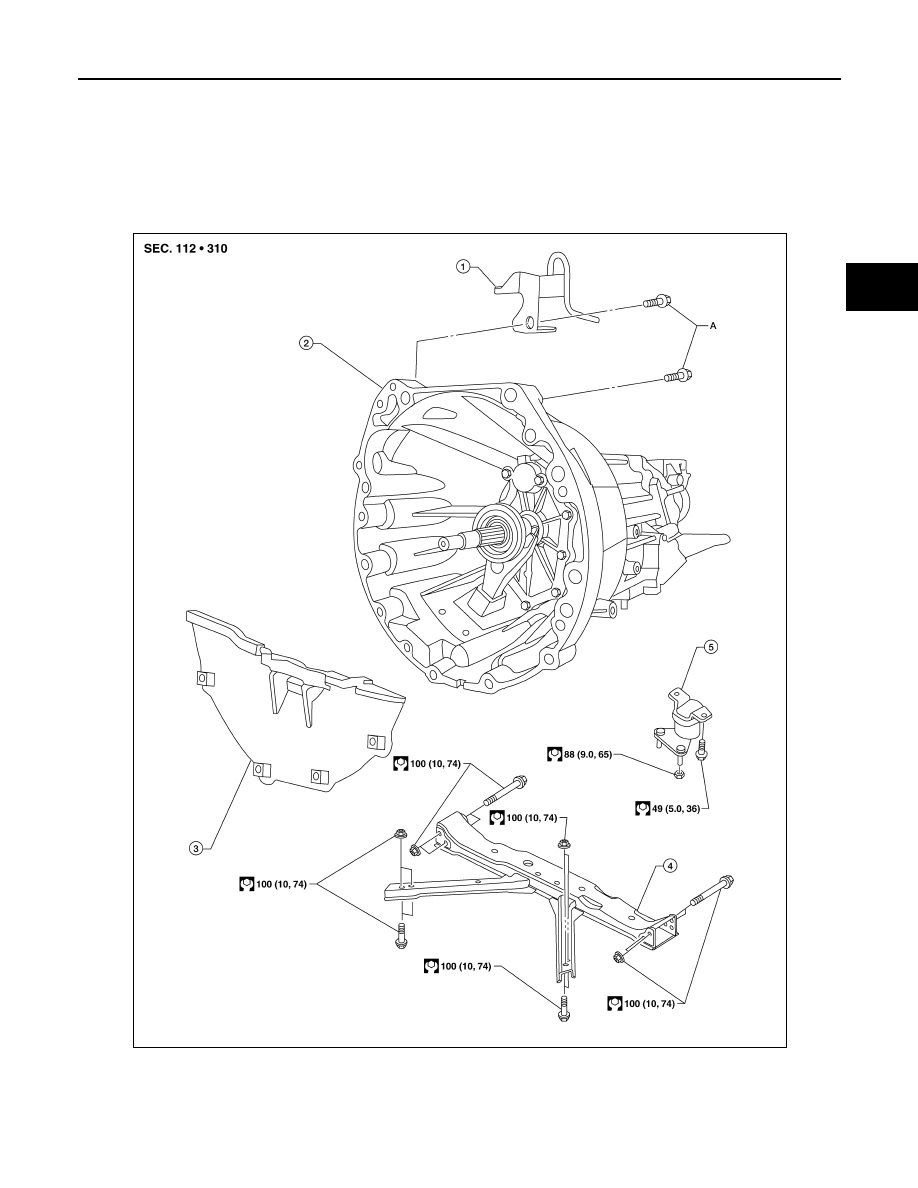

COMPONENTS

NOTE:

1.

Breather hose

2.

Transmission assembly

3.

Dust cover

4.

Crossmember

5.

Insulator

A.

Refer to INSTALLATION

AWDIA0627GB

TM-22

< UNIT REMOVAL AND INSTALLATION >

[FS5R30A]

TRANSMISSION ASSEMBLY

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove the shift selector assembly. Refer to

TM-17, "Removal and Installation"

.

3. Remove the rear propeller shaft. Refer to

DLN-174, "Removal and Installation"

.

4. Remove the gusset.
5. Disconnect harness connector from the heated oxygen sensor and remove wire harness from transmis-

sion.

6. Disconnect harness connectors from the back-up lamp switch and park/neutral position (PNP) switch.
7. Remove the clutch operating cylinder from the transmission. Refer to

CL-14, "5M/T : Removal and Instal-

lation"

.

8. Remove the starter motor. Refer to

STR-35, "Removal and Installation (QR25DE)"

.

9. Support the transmission using a suitable jack.
10. Remove the transmission dust cover.
11. Remove the transmission to engine bolts.
12. Remove the nuts securing the insulator to the crossmember.
13. Remove the transmission crossmember using power tool.

WARNING:

Support the transmission using suitable jack.

14. Remove the air breather hose and breather tube. Refer to

TM-19, "Removal and Installation"

.

15. Separate the transmission from the engine and remove it from the vehicle.

WARNING:

Support manual transmission while removing it using suitable jack.

INSTALLATION

Installation is in the reverse order of removal.

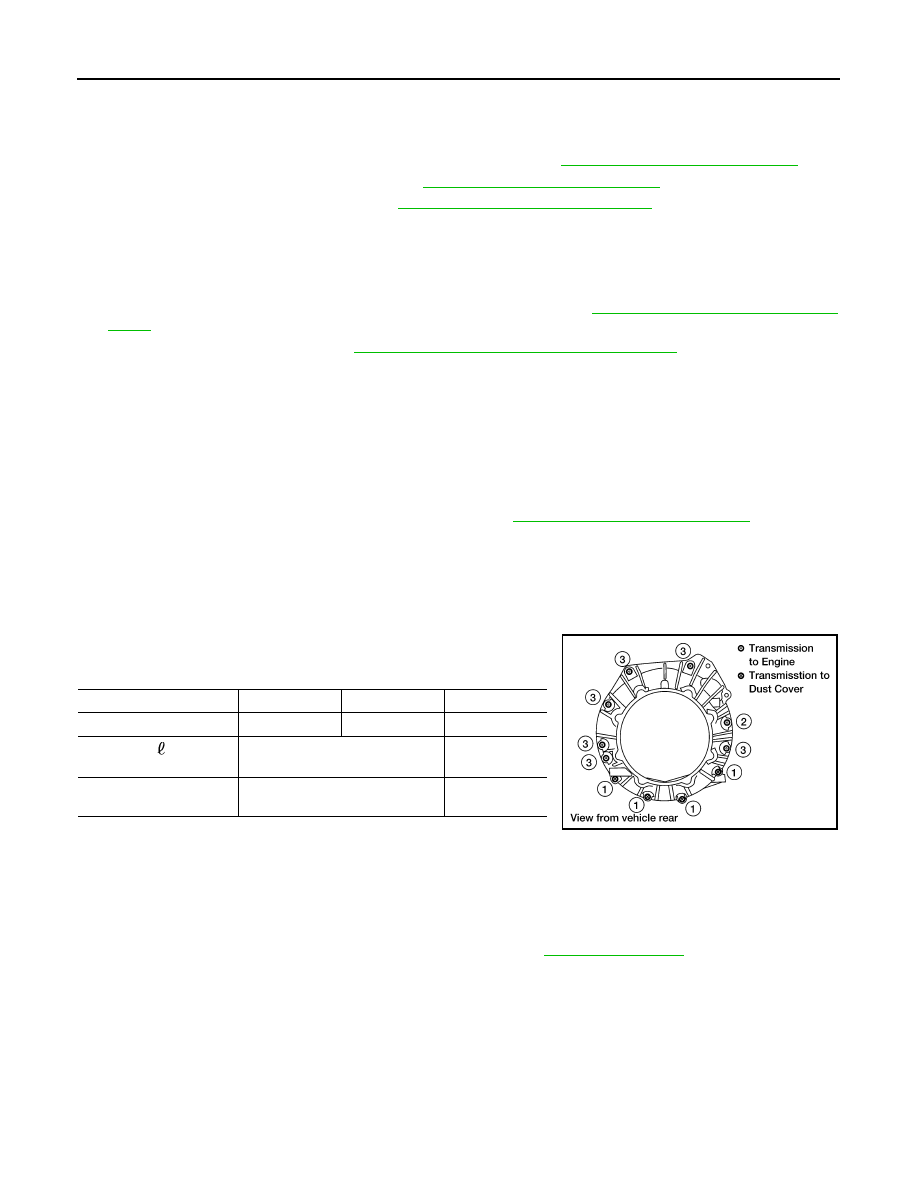

• When installing the transmission to the engine, install the bolts in

accordance with the standard below.

CAUTION:

• When installing be careful to avoid interference between transmission main drive gear and clutch

cover.

• When replacing an engine or transmission you must make sure the dowels are installed correctly

during re-assembly.

• Improper alignment caused by missing dowels may cause vibration oil leaks or breakage of driv-

etrain components.

• After installation, check for oil leakage and oil level. Refer to

TM-14, "Checking"

.

Bolt  No.

1

2

3

Quantity

4

1

6

Bolt length “ ”
mm (in)

60 (2.36)

65 (2.56)

Tightening torque
N·m (kg-m, ft-lb)

 35 (3.6, 26)

 75 (7.7, 55)

WCIA0505E
