BRC-8

< BASIC INSPECTION >

[TYPE 1]

DIAGNOSIS AND REPAIR WORKFLOW

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009479226

PRECAUTIONS FOR DIAGNOSIS

If steering angle sensor, steering system parts, suspension system parts, ABS actuator and electric unit (con-

trol unit) or tires have been replaced, or if wheel alignment has been adjusted, be sure to adjust neutral posi-

tion of steering angle sensor before driving. Refer to

BRC-12, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Description"

.

DIAGNOSIS AND REPAIR WORKFLOW

BRC-9

< BASIC INSPECTION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

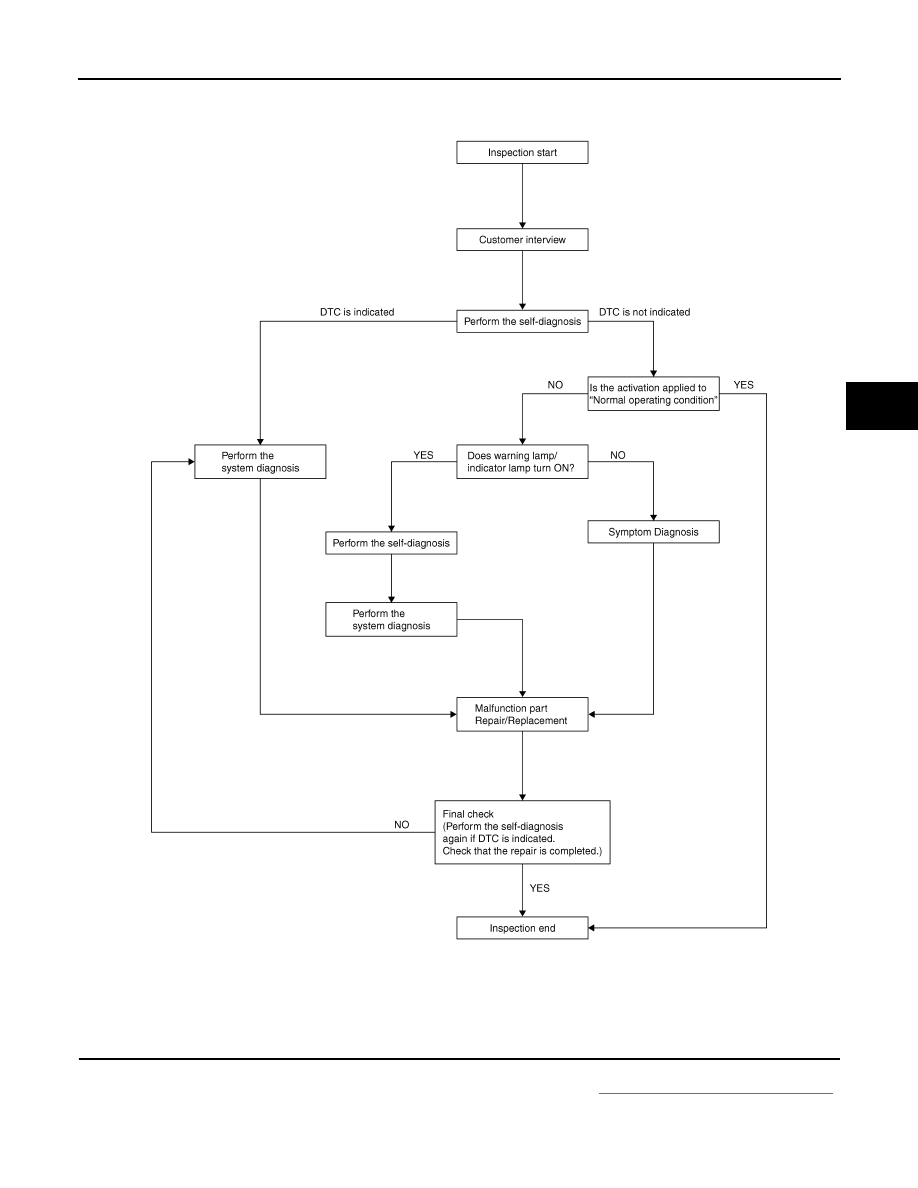

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using the diagnosis worksheet. Refer to

BRC-11, "Diagnostic Work Sheet"

.

>> GO TO 2

JSFIA0010GB

BRC-10

< BASIC INSPECTION >

[TYPE 1]

DIAGNOSIS AND REPAIR WORKFLOW

2.

PERFORM THE SELF-DIAGNOSIS

Check the DTC display with the self-diagnosis function. Refer to

BRC-29, "CONSULT Function (ABS)"

.

Is there any DTC displayed?

YES

>> GO TO 3

NO

>> GO TO 4

3.

PERFORM THE SYSTEM DIAGNOSIS

Perform the diagnosis applicable to the displayed DTC. Refer to

BRC-90, "DTC No. Index"

.

>> GO TO 7

4.

CHECK THE SYMPTOM THAT IS NOT CONSIDERED A SYSTEM MALFUNCTION

Check that the symptom is a normal operation that is not considered a system malfunction. Refer to

BRC-108,

"Description"

.

Is the symptom a normal operation?

YES

>> Inspection End

NO

>> GO TO 5

5.

CHECK THE WARNING LAMP AND INDICATOR LAMP FOR ILLUMINATION

Check that the warning lamp and indicator lamp illuminate.

• ABS warning lamp: Refer to

BRC-80, "Description"

.

• Brake warning lamp: Refer to

BRC-81, "Description"

.

• VDC OFF indicator lamp: Refer to

BRC-82, "Description"

.

• SLIP indicator lamp: Refer to

BRC-84, "Description"

.

Is ON/OFF timing normal?

YES

>> GO TO 6

NO

>> GO TO 2

6.

PERFORM THE DIAGNOSIS BY SYMPTOM

Perform the diagnosis applicable to the symptom.

>> GO TO 7

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 8

8.

FINAL CHECK

Perform the self-diagnosis again, and check that the malfunction is repaired completely. After checking, erase

the self-diagnosis memory. Refer to

BRC-29, "CONSULT Function (ABS)"

.

Is no other DTC present and the repair completed?

YES

>> Inspection End

NO

>> GO TO 3

DIAGNOSIS AND REPAIR WORKFLOW

BRC-11

< BASIC INSPECTION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

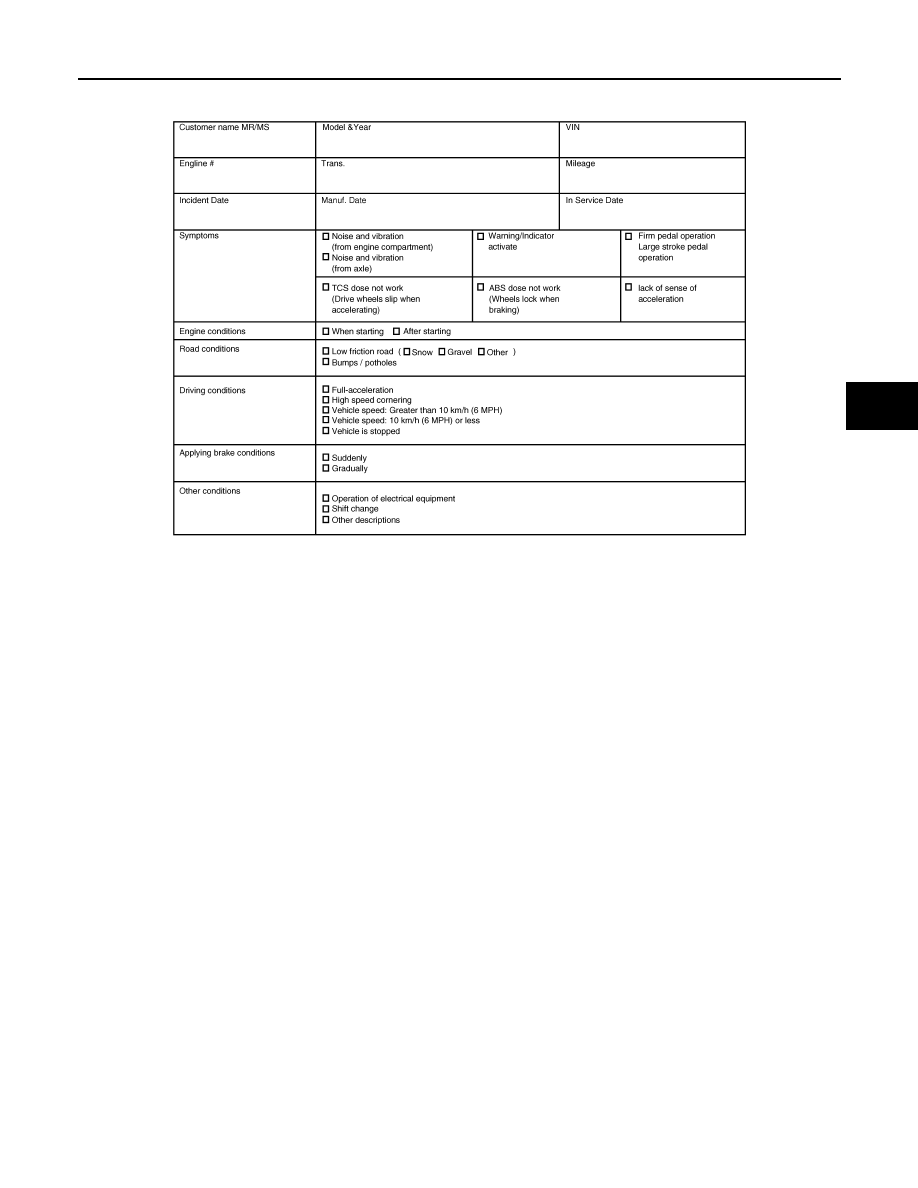

Diagnostic Work Sheet

INFOID:0000000009479227

AWFIA1029GB
