STARTING SYSTEM

ABBIA1212GB

STARTING SYSTEM

STR-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA1560GB

STR-34

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000009482303

Symptom

Reference

No normal cranking

Refer to

STR-6, "Work Flow (With GR8-1200 NI)"

 or

STR-10,

"Work Flow (Without GR8-1200 NI)"

.

Starter motor does not rotate

STARTER MOTOR

STR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

Removal and Installation (QR25DE)

INFOID:0000000009482304

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove the air cleaner cover and the air cleaner to intake manifold collector duct. Refer to

EM-25,

"Exploded View"

.

3. Remove terminal "1" (S) and terminal "2" (B) nuts.
4. Remove the two starter motor bolts, using power tools.
5. Remove the starter motor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to tighten terminal nuts carefully.

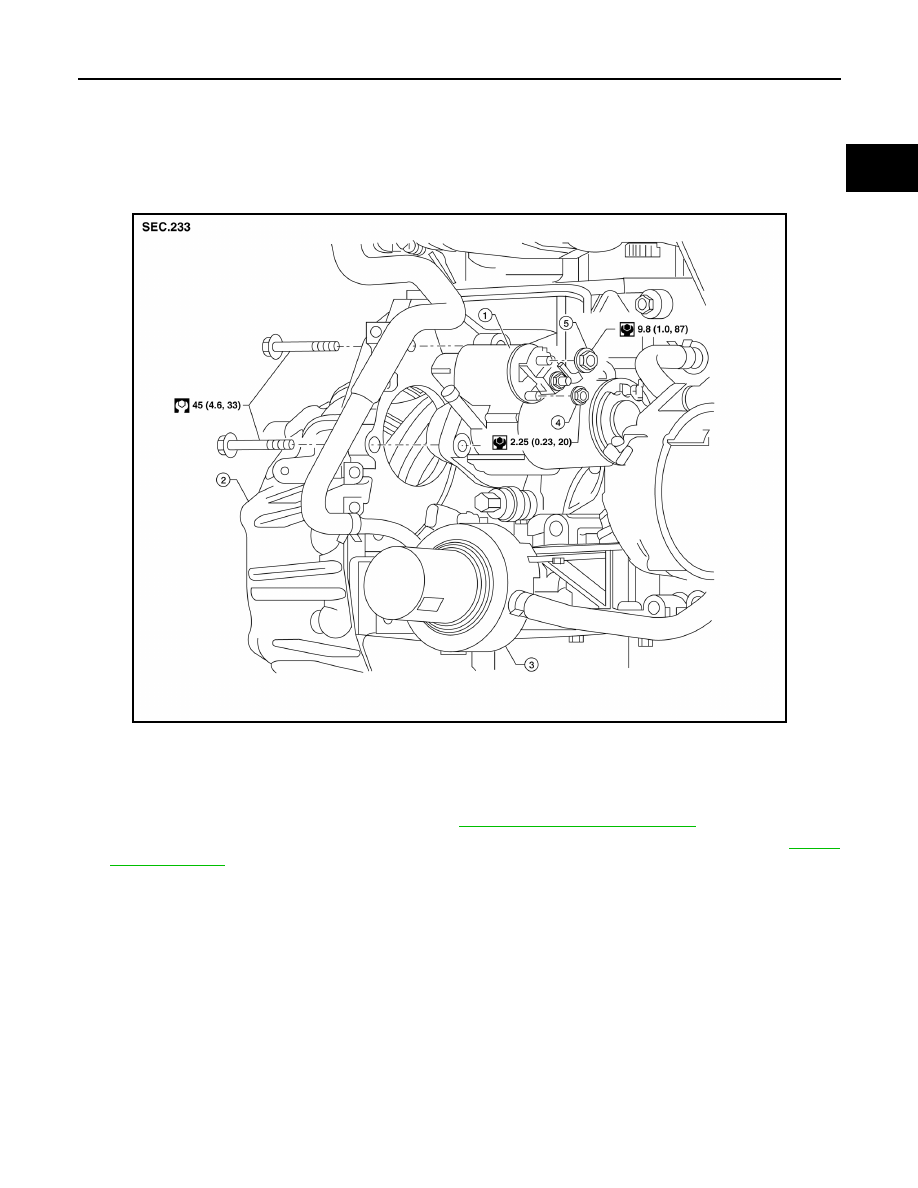

AWBIA0994ZZ

1.

Starter motor assembly

2.

Transmission housing

3.

Engine oil cooler

4.

Terminal "1" (S) nut

5.

Terminal "2" (B) nut
