REAR DISC BRAKE

REAR DISC BRAKE

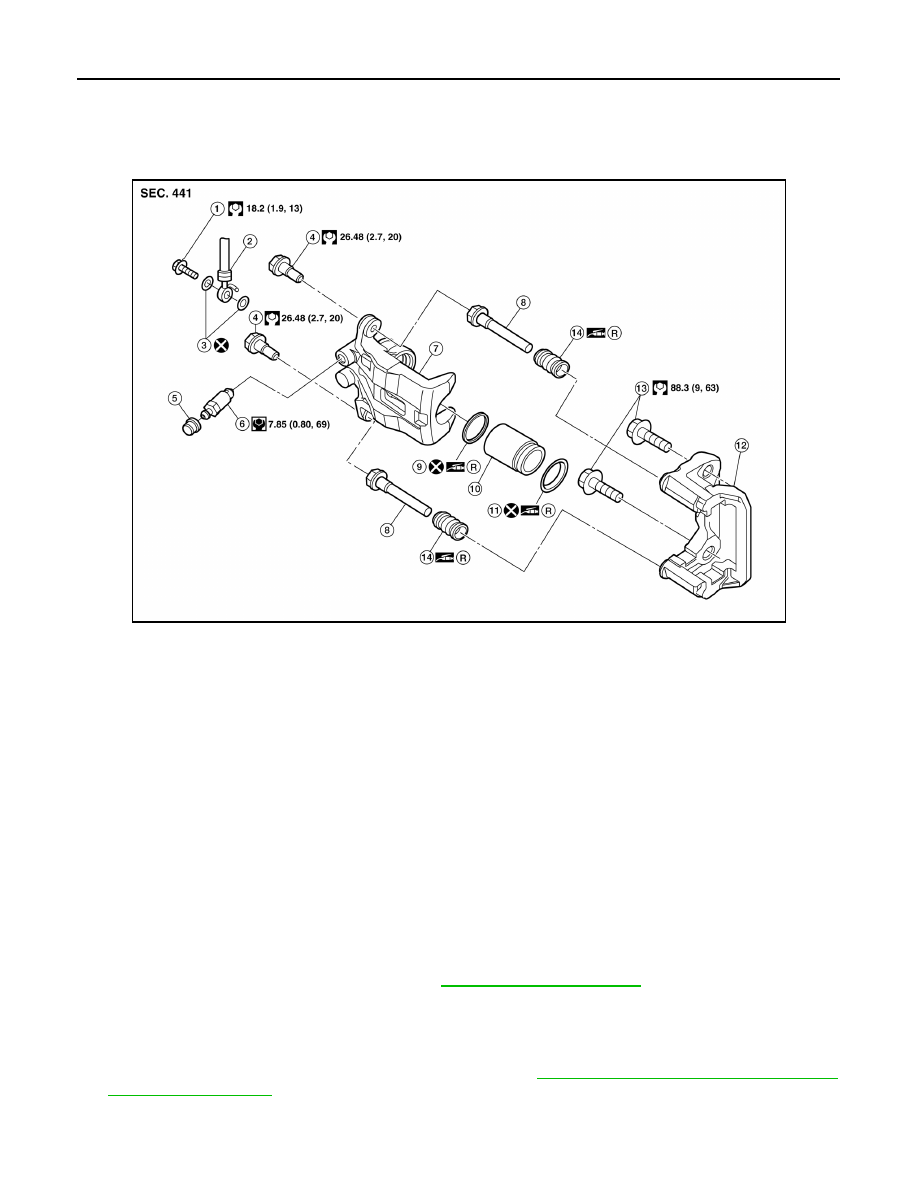

Exploded View of Brake Caliper

INFOID:0000000009478767

Rear Disc Brake Caliper

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne

particles or other materials.

CAUTION:

• While removing caliper body, do not depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper body. In this case, hang caliper body with a wire so as not to stretch the brake

hose.

• Do not damage the piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace shim and shim cover as a set when replacing brake pads.

• Keep rotors free from grease and brake fluid.

• Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage. Refer to

BR-39, "Brake Burnishing"

.

Disassembly and Assembly

INFOID:0000000009478768

DISASSEMBLY

1. Remove the caliper body from the torque member. Refer to

BR-40, "Removal and Installation of Brake

Caliper and Disc Rotor"

.

2. Remove the sliding pins and boots from the torque member.

AWFIA0745GB

1.

Union bolt

2.

Brake hose

3.

Copper sealing washers

4.

Sliding pin bolt

5.

Cap

6.

Bleed valve

7.

Caliper body

8.

Sliding pin

9.

Piston seal

10. Piston

11. Piston boot

12. Torque member

13. Torque member bolt

14. Sliding pin boot

R.

Rubber grease

REAR DISC BRAKE

BR-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

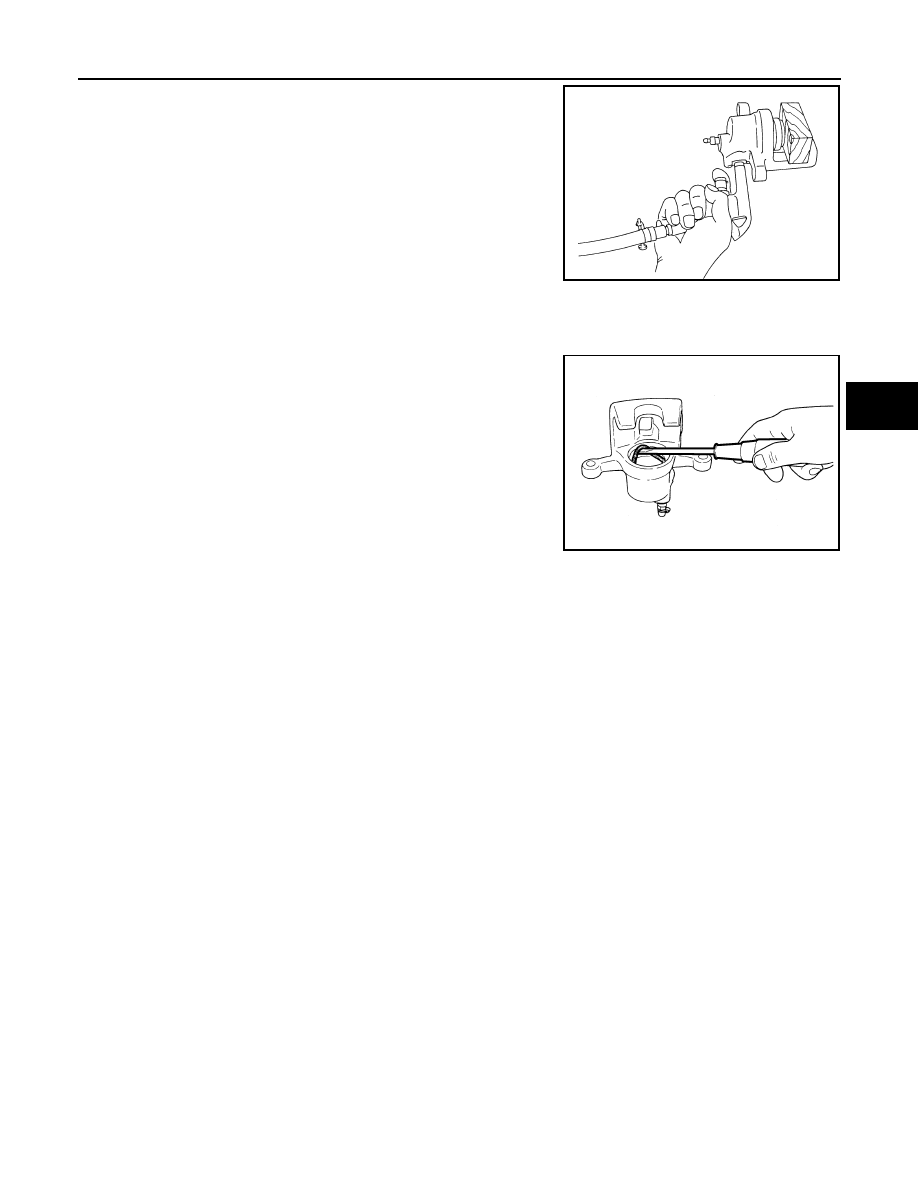

3. Place a wooden block in the cylinder body and blow air into the

union bolt hole to remove the piston and piston boot as shown.

WARNING:

Do not get your fingers caught between the piston and

wooden block.

4. Remove the piston boot from the piston.

CAUTION:

Do not reuse piston boot.

5. Remove piston seal from cylinder body, using a suitable tool.

CAUTION:

Be careful not to damage cylinder body inner wall.

6. Remove the bleed valve and cap.

CALIPER INSPECTION

Cylinder Body

• Check inside surface of cylinder for score, rust wear, damage or foreign materials. If any of the above condi-

tions are observed, replace cylinder body.

• Minor damage from rust or foreign materials may be eliminated by polishing surface with a fine emery paper.

Replace cylinder body if necessary.

CAUTION:

• Use new brake fluid for cleaning. Do not use mineral oils such as gasoline or kerosene.

Torque Member

Check the torque member for wear, cracks, and damage. If damage or deformation is present, replace the

torque member.

Piston

Check the piston for score, rust, wear, damage or presence of foreign materials. Replace if any of the above

conditions are observed.

CAUTION:

Piston sliding surface is plated, do not polish with emery paper even if rust or foreign materials are

stuck to sliding surface.

Sliding Pin Bolts and Sliding Pin Boots

Check the sliding pins and sliding pin boots for wear, damage, and cracks. If damage or deformation is

present, replace the affected part.

ASSEMBLY

CAUTION:

Use NISSAN Rubber Grease when assembling.
1. Install the bleed valve and cap.

BRD0041D

JPFIA0038ZZ

BR-50

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR DISC BRAKE

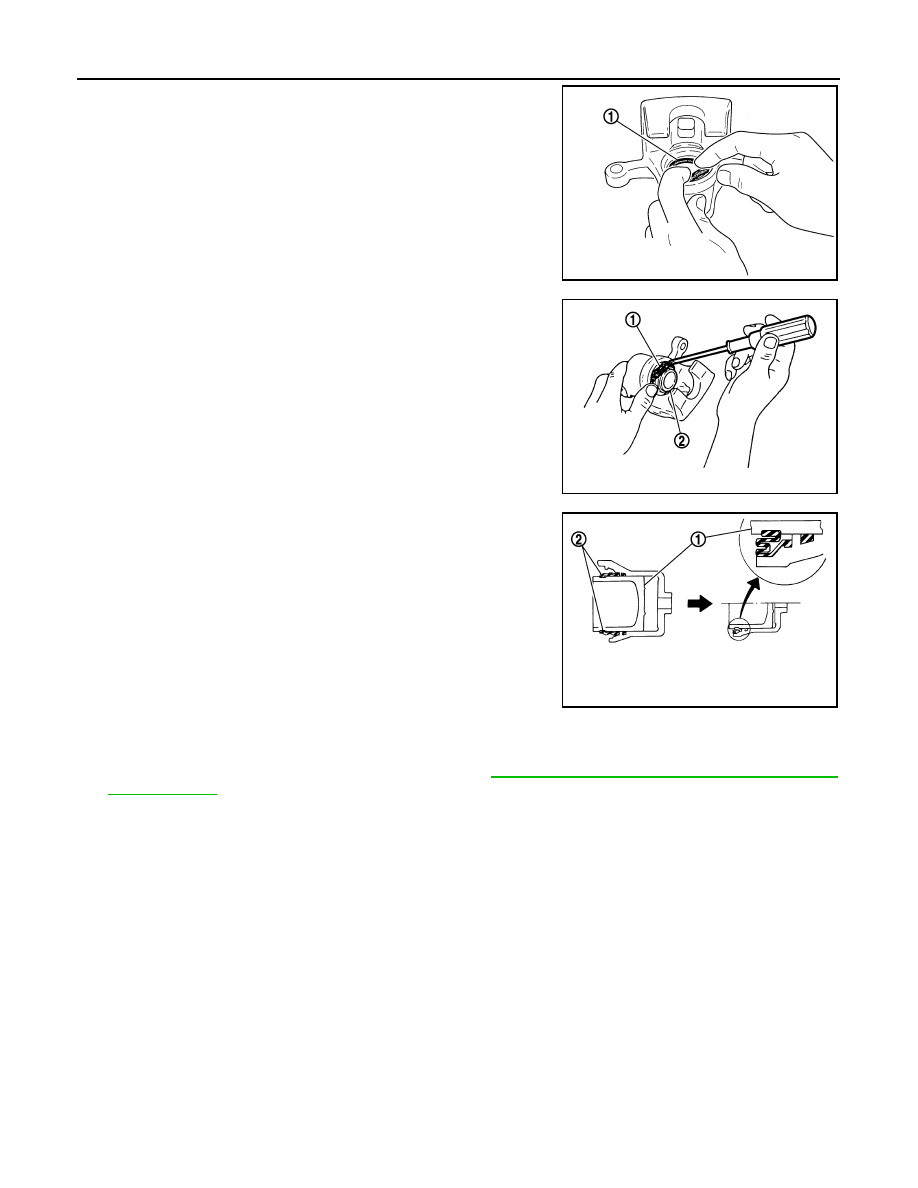

2. Apply rubber grease to the new piston seal (1) and insert the

new piston seal (1) into the groove on the cylinder body.

CAUTION:

Do not reuse piston seal.

3. Apply rubber grease to the new piston boot (1). Cover the piston

end (2) with the piston boot (1), and then install the cylinder side

lip on the piston boot (1) securely into the groove on the cylinder

body.

CAUTION:

• Do not reuse piston boot.

• Press pistons in evenly and vary the pressing points to

prevent the cylinder inner wall from being damaged.

4. Install the piston (1) into the cylinder body and insert the piston

boot (2) side lip into the piston groove as shown.

CAUTION:

Press pistons in evenly and vary the pressing points to pre-

vent the cylinder inner wall from being damaged.

5. Apply rubber grease to the sliding pin boots, then install sliding pins and sliding pin boots on the torque

member.

6. Install the caliper body on the torque member. Refer to

BR-40, "Removal and Installation of Brake Caliper

and Disc Rotor"

.

JPFIA0039ZZ

JPFIA0040ZZ

JPFIA0041ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009478769

Unit: mm (in)

Brake Pedal

INFOID:0000000009478770

Unit: mm (in)

Engine Type

QR25DE

VQ40DE

Front brake

Brake model

CLZ33VA

Rotor outer diameter

× thickness

283

× 28 (11.142 × 1.102)

296

× 28 (11.654 × 1.102)

Pad Length × width × thickness

140 × 50.5 × 10 (5.51 × 1.99 × 0.39)

Cylinder bore diameter (each)

46.4 (1.83)

Rear brake

Brake model

CLZ14VA

Rotor outer diameter

× thickness

286

× 18 (11.260 × 0.709)

Pad length

× width × thickness

87.6

× 35.5 × 11.0 (3.449 × 1.398 × 0.433)

Cylinder bore diameter

38.1 (1.50)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

C215T

Diaphragm diameter

215 (8.465)

Recommended brake fluid

Refer to

MA-16, "FOR USA AND CANADA : Fluids and Lubri-

cants"

 (United States and Canada) and

MA-18, "FOR MEXICO :

Fluids and Lubricants"

 (Mexico).

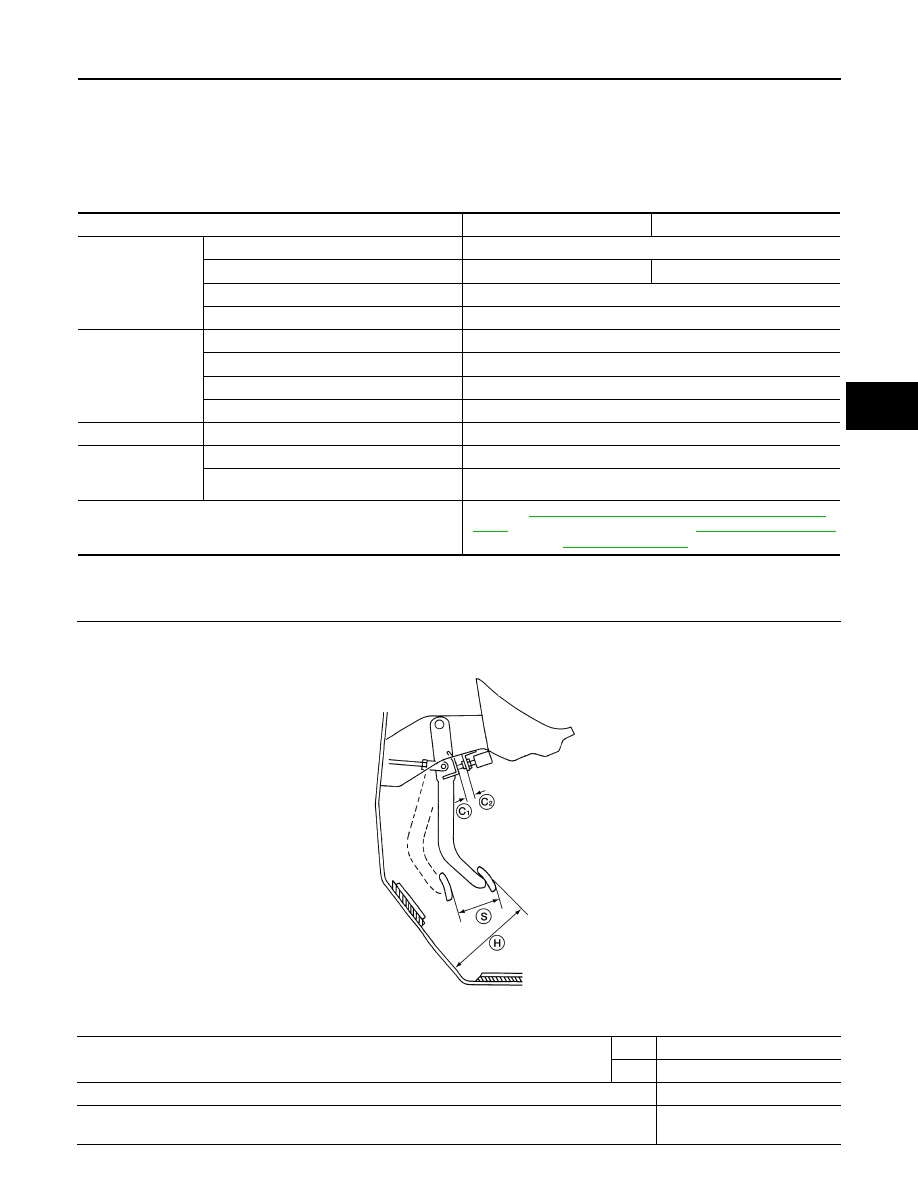

Pedal free height (H)

M/T

174.7 +10/-0 (6.88 +0.39/-0)

A/T

182.1 +10/-0 (7.17 +0.39/-0)

Pedal full stroke (S)

153 (6.02)

Clearance between pedal stopper(C

1

) and threaded end of stop lamp switch and ASCD cancel switch

(C

2

) (if equipped)

0.74 - 1.96 (0.029 - 0.077)

AWFIA0557ZZ
