Nissan Frontier. Manual - part 1146

SN

SN-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

SN

A

O

P

CONTENTS

SONAR SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Work Flow  .................................................................

2

INSPECTION AND ADJUSTMENT .....................

4

Preliminary Check  .....................................................

4

SYSTEM DESCRIPTION  ..............................

5

REAR SONAR SYSTEM  .....................................

5

System Diagram ........................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

6

Component Description .............................................

6

Self-Diagnosis Function  ............................................

7

DTC/CIRCUIT DIAGNOSIS  ..........................

9

POWER SUPPLY AND GROUND CIRCUIT .......

9

Diagnosis Procedure .................................................

9

SONAR SENSOR CIRCUIT INSPECTION  ........

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

SONAR BUZZER CIRCUIT INSPECTION .........

11

Description ..............................................................

11

Diagnosis Procedure ...............................................

11

Component Inspection  ............................................

11

SONAR SYSTEM OFF SWITCH CIRCUIT IN-
SPECTION ..........................................................

12

Description ..............................................................

12

Diagnosis Procedure ...............................................

12

Component Inspection .............................................

13

ECU DIAGNOSIS INFORMATION ..............

14

SONAR CONTROL UNIT ..................................

14

Reference Value ......................................................

14

DTC Index  ...............................................................

15

WIRING DIAGRAM ......................................

16

SONAR SYSTEM  ..............................................

16

Wiring Diagram ........................................................

16

SYMPTOM DIAGNOSIS  ..............................

22

SONAR SYSTEM SYMPTOMS  ........................

22

Symptom Table  .......................................................

22

PRECAUTION ..............................................

24

PRECAUTION ...................................................

24

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

24

UNIT REMOVAL AND INSTALLATION ......

25

SONAR SENSOR ..............................................

25

Removal and Installation  .........................................

25

SONAR CONTROL UNIT ..................................

26

Removal and Installation  .........................................

26

BUZZER ............................................................

27

Removal and Installation  .........................................

27

SN-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009480097

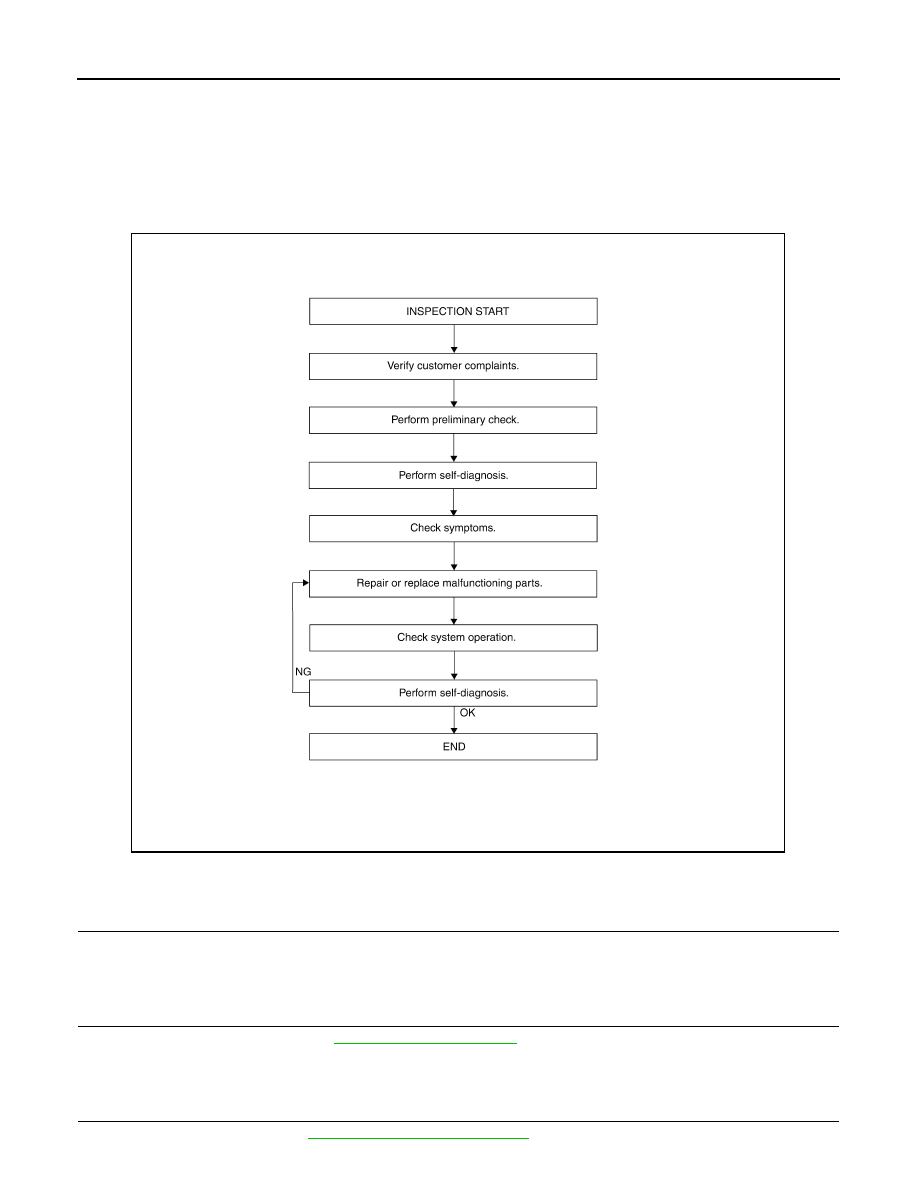

WORK FLOW

DETAILED FLOW

1.

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SN-4, "Preliminary Check"

.

>> GO TO 3

3.

SELF-DIAGNOSIS

Perform self-diagnosis.  Refer to

SN-7, "Self-Diagnosis Function"

.

AWNIA0199GB

SN

DIAGNOSIS AND REPAIR WORKFLOW

SN-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

>> GO TO 4

4.

SYMPTOM

Check for symptoms.  Refer to

SN-22, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

SYSTEM OPERATION

Check system operation.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform self-diagnosis.
Are any fault codes displayed?

YES

>> GO TO 5

NO

>> Inspection End.

SN-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000009480098

DESCRIPTION

The purpose of the sonar sensor preliminary check is to confirm that there are no outside factors affecting the

sonar system.

CONDITIONS

• Ignition switch ON

• No obstructions within 3.0 m (10 ft.) of sonar sensors

SONAR SENSOR STATUS CHECK

• Check that the sonar sensors are properly aligned (no deformation in sensor mounting areas).

• Check that snow, mud or other foreign objects are not adhering to the sonar sensors.

• Check that there is no deformation, scratches or other damage to the sonar sensors.

• Check that water has not accumulated in the sonar sensors.

CAUTION:

Use water, cotton swab, or other soft material for cleaning the sensors.

1. Inspect for the following:

-

Physical damage to wiring

-

Physical damage to harness connectors

-

Loose or disconnected harness connectors

-

Physical damage to system components

2. Check that there are no obstacles within each sonar sensor's detection range.

3. Check that there are no nearby ultrasound sources such as the sounds of vehicle horns, motorcycle

engines or truck air brakes.

4. Check that the vehicle is on a level surface.

Sonar sensors

Detection range

Rear

Approx. 1.8 m (5.9 ft.) maximum
