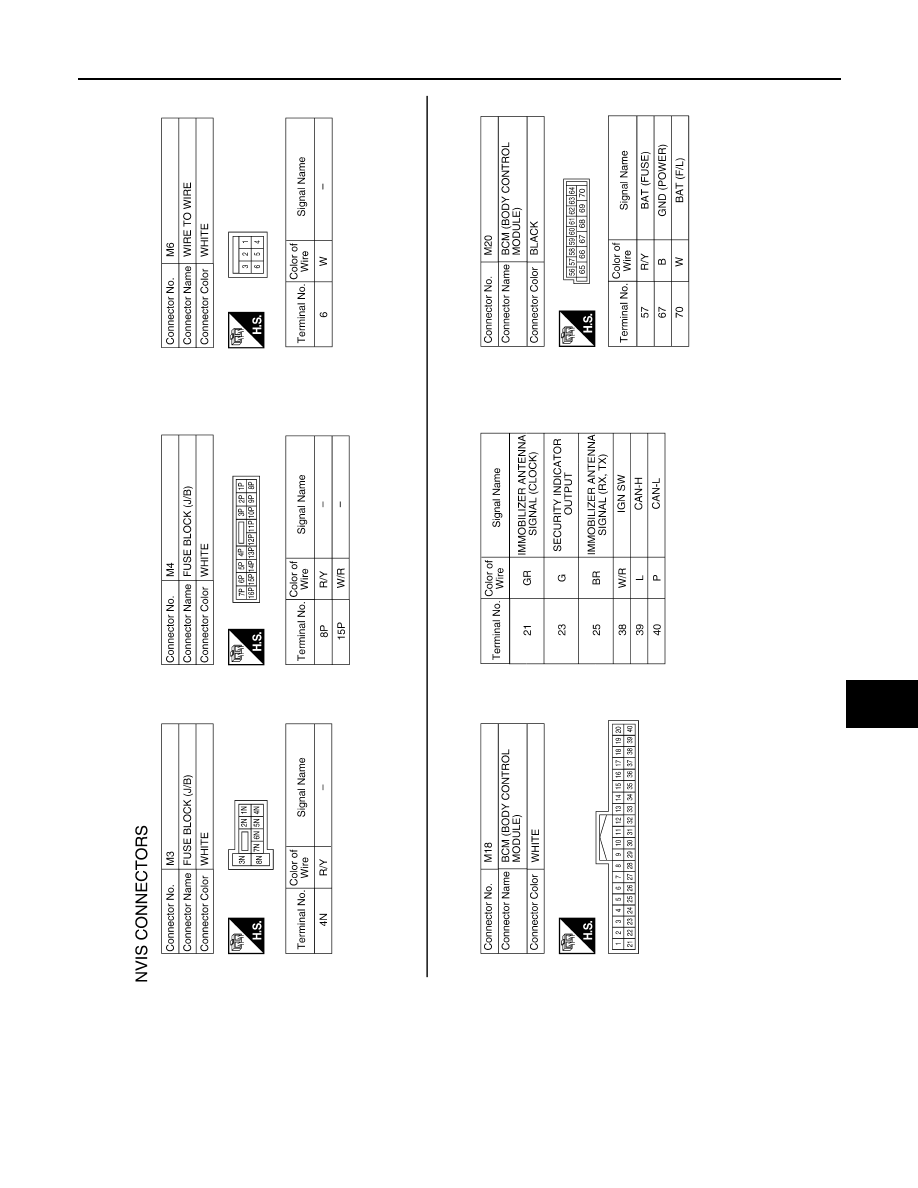

NVIS

SEC-73

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ABKIA4354GB

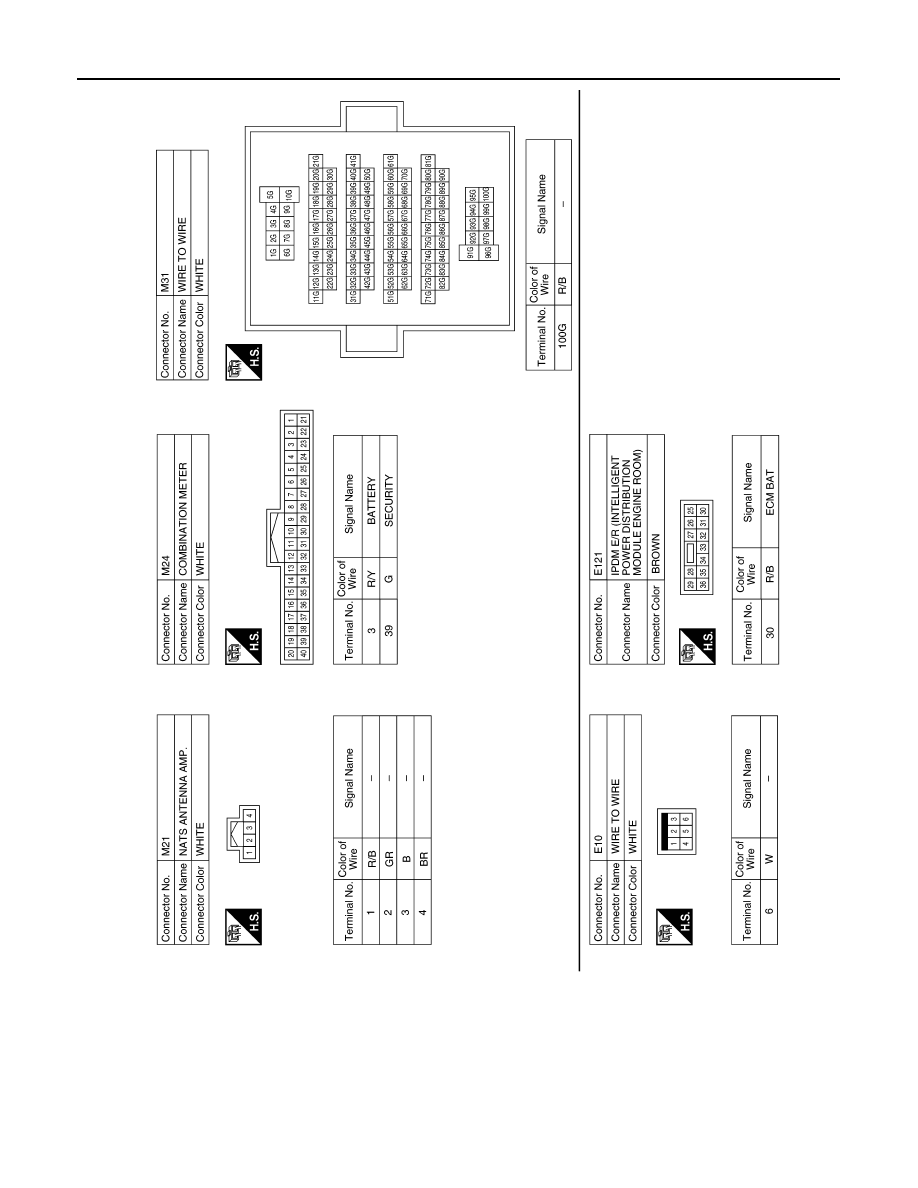

SEC-74

< WIRING DIAGRAM >

NVIS

ABKIA5211GB

NVIS

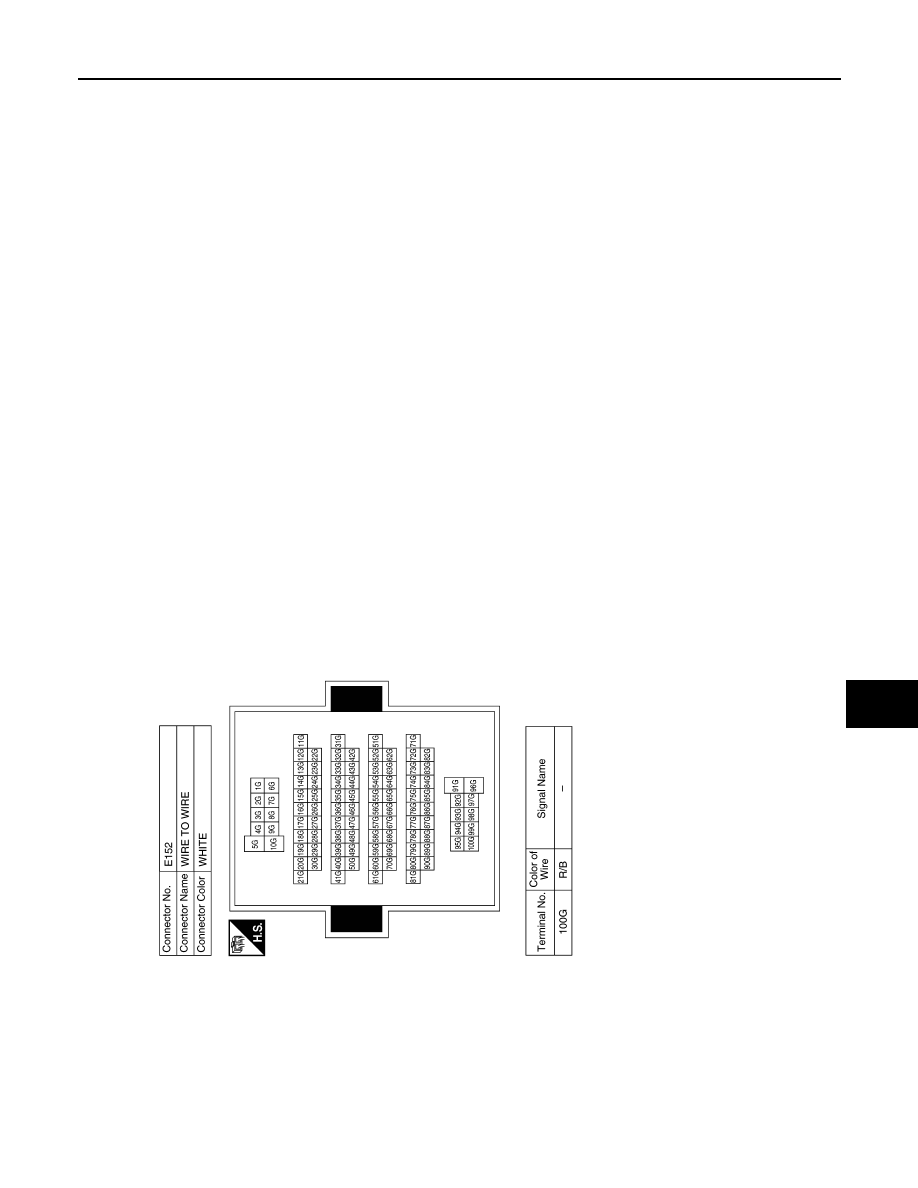

SEC-75

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ABKIA5212GB

SEC-76

< SYMPTOM DIAGNOSIS >

VEHICLE SECURITY SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

VEHICLE SECURITY SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009479075

*: Check the system is in the armed phase.

Procedure

Diagnostic procedure

Refer to page

Symptom

1

Vehicle security sys-
tem cannot be set by
····

All items

Check door switch (king cab)

DLK-27

Check door switch (crew cab)

DLK-29

Replace BCM

BCS-49

Door lock/unlock switch

Check door lock/unlock switch (king cab)

DLK-32

Check door lock/unlock switch (crew cab)

DLK-35

Key cylinder switch

Check key cylinder switch (driver)

SEC-28

—

Check Intermittent Incident

GI-42

Security indicator does not turn ON.

Check vehicle security indicator

SEC-32

Check Intermittent Incident

GI-42

2

* Vehicle security
system does not
sound alarm when ····

Any door is opened.

Check door switch (king cab)

DLK-27

Check door switch (crew cab)

DLK-35

—

Check Intermittent Incident

GI-42

3

Vehicle security
alarm does not acti-
vate.

Horn alarm

Check horn operation

SEC-31

Check Intermittent Incident

GI-42

Headlamp alarm

Check headlamp function

DLK-57

Check Intermittent Incident

GI-42

4.

Vehicle security sys-
tem cannot be can-
celled by ····

Key cylinder switch

Check key cylinder switch (driver)

SEC-28

Check Intermittent Incident

GI-42

Keyfob

Check RKE function

DLK-49

Replace BCM

BCS-49
