REAR SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

Removal and Installation

INFOID:0000000009479575

JUMP SEAT (KING CAB)

Removal

1. Remove seat base trim panel.

2. Remove the seat cushion bolts and assembly.

3. Remove the bolt, lift and remove the seatback assembly.

Installation

Installation is in the reverse order of removal.

BENCH SEAT LH (CREW CAB)

Removal

1. Remove the seat hinge finishers.

LIIA1950E

LIIA1951E

LIIA1952E

SE-34

< REMOVAL AND INSTALLATION >

REAR SEAT

2. Release the seatback latch and tilt the seatback down. Remove

the nuts.

3. Raise the seatback.
4. Tilt the seat cushion up.
5. Remove the seat bolts.
6. Remove the seat.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure the washers are on the rear studs prior to seat assembly installation.

BENCH SEAT RH (CREW CAB)

Removal

1. Remove the seat hinge finishers.
2. Release the seatback latch and tilt the seatback down. Remove

the nuts.

3. Raise the seatback.

LIIA1953E

LIIA1954E

Seat nuts

: 45 N·m (4.6 kg-m, 33 ft-lb)

Seat bolts

: 45 N·m (4.6 kg-m, 33 ft-lb)

LIIA1955E

REAR SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

4. Remove the seat belt buckle from the cushion.
5. Remove the seat bolts.
6. Remove the seat assembly.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure the washers are on the rear studs prior to seat assembly installation.

LIIA1956E

SE-36

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Component

INFOID:0000000009479576

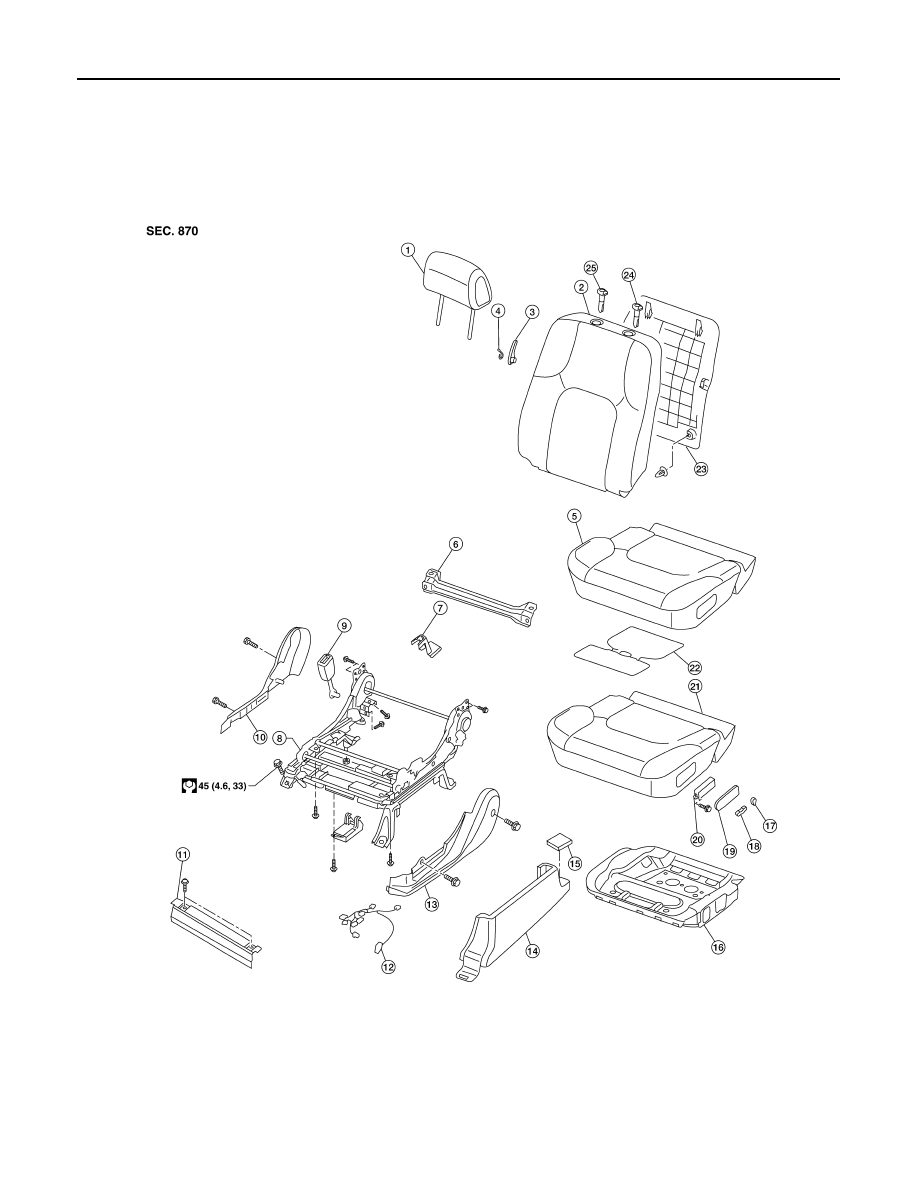

Power Driver Seat

AWJIA0466GB
