SUNROOF SYSTEM

SYSTEM DESCRIPTION

SUNROOF SYSTEM

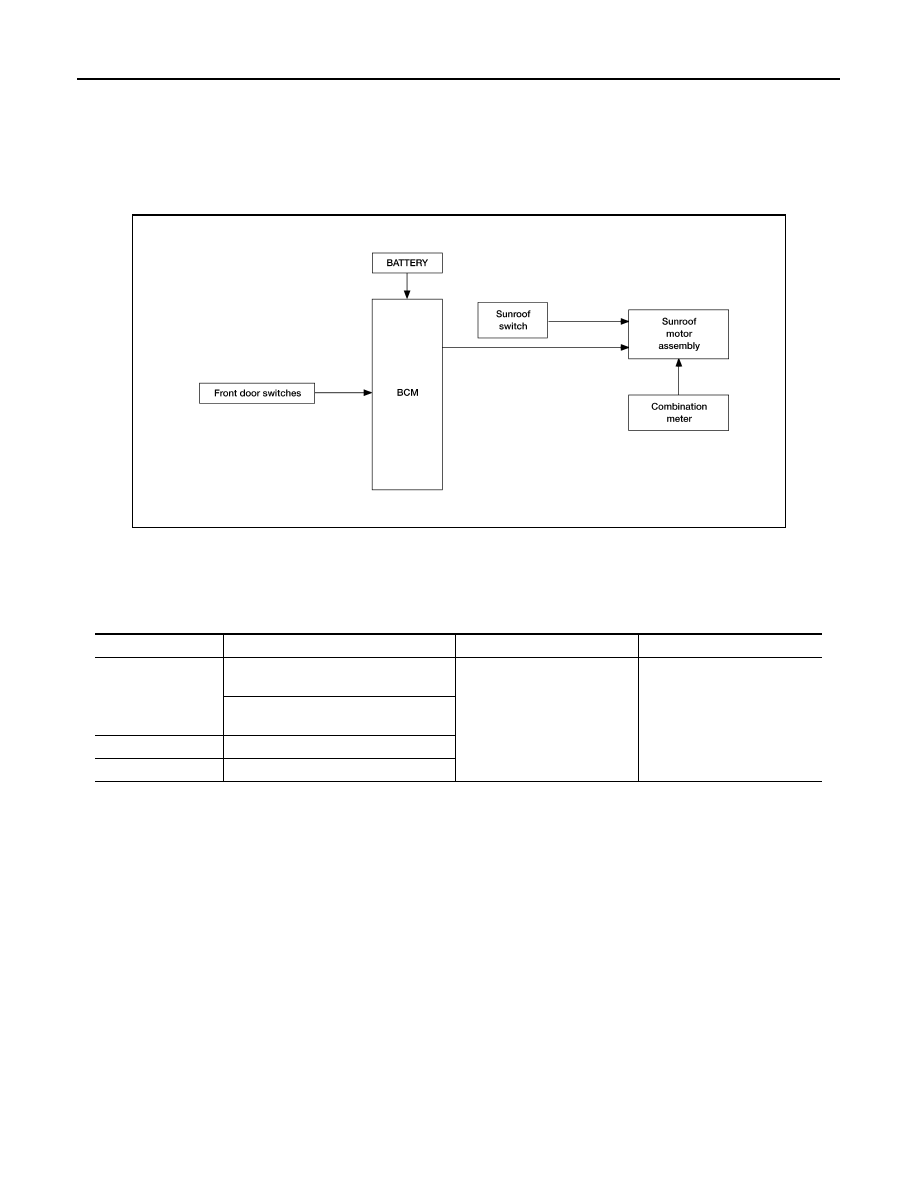

System Diagram

INFOID:0000000009482338

SUNROOF

System Description

INFOID:0000000009482339

SUNROOF SYSTEM

INPUT/OUTPUT SIGNAL CHART

SUNROOF OPERATION

• The sunroof motor assembly operates with a power supply that is output from the BCM while the ignition

switch is ON or retained power is operating.

• The tilt up/down & slide open/close signals from the sunroof switch enable the sunroof motor to move arbi-

trarily.

AUTO OPERATION

The sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the sunroof

without holding the sunroof switch in the slide open/tilt down or slide close/tilt up position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables the sunroof system to operate

up to 45 seconds after the ignition switch is turned OFF.

Retained power function cancel conditions

• When a front door is opened (door switch ON)

• When ignition switch is turned ON again.

• When 45 seconds elapse on the timer.

AWKIA1405GB

Item

Input signal to sunroof motor assembly

Sunroof motor function

Actuator

Sunroof switch

Sunroof switch signal (tilt down or slide
open)

Sunroof control

Sunroof motor

Sunroof switch signal (tilt up or slide
close)

BCM

RAP signal

Combination meter

Vehicle speed signal

SUNROOF SYSTEM

RF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Component Parts Location

INFOID:0000000009482340

Component Description

INFOID:0000000009482341

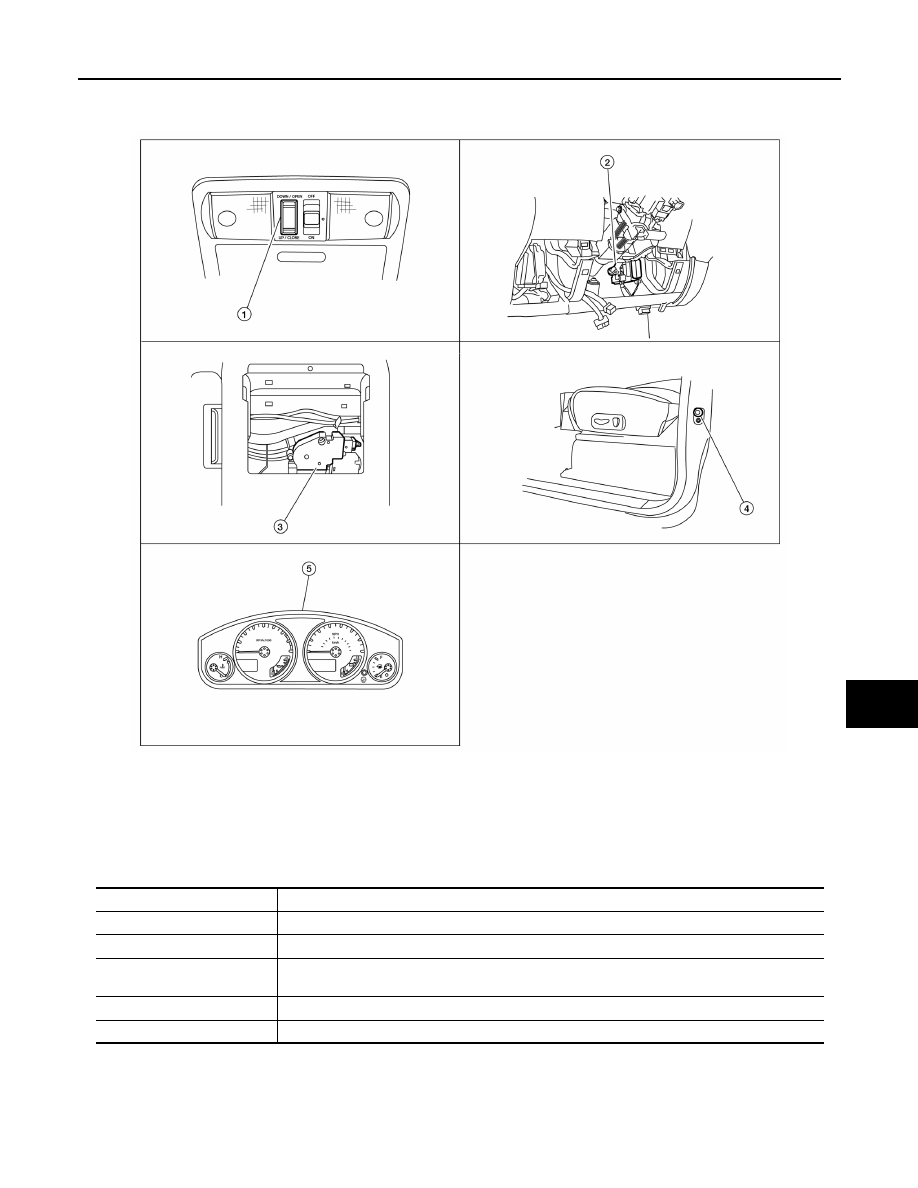

ABKIA2900ZZ

1.

Sunroof switch R4

2.

BCM M18, M19, M20
(View with lower instrument panel LH removed)

3.

Sunroof motor assembly B83

4.

Front door switch LH B8, RH B108 5.

Combination meter M24

Component

Function

BCM

Supplies power to the sunroof motor assembly.

Sunroof switch

Transmits tilt up/down & slide open/close operation signal to sunroof motor assembly.

Sunroof motor assembly

The sunroof motor and integrated CPU enables tilt up/down & slide open/close as requested by
the sunroof switch.

Front door switch

Detects door open/close condition and transmits to BCM.

Combination meter

Transmits vehicle speed signal to sunroof motor assembly.

RF-8

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010217274

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

RETAINED PWR

Direct Diagnostic Mode

Description

ECU Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

C

U Ide

nt

ifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

RF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000010217275

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

*: Initial setting

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

Test Item

Description

RETAINED PWR

This test is able to check retained power operation [Off/On].

Support Item

Setting

Description

RETAINED PWR SET

MODE3

2 min

Sets the retained accessory power operating time.

MODE2

OFF

MODE1*

45 sec
