AXLE SHAFT

Removal and Installation

INFOID:0000000009478709

CAUTION:

Before removing the rear axle, disconnect the wheel sensor from the assembly. Then move it away

from the axle. Failure to do so may result in damage to the sensor wires and the sensor becoming

inoperative.

• Wheel bearing does not require maintenance.

• If growling noise is emitted from wheel bearing during operation, replace wheel bearing assembly.

• If the wheel bearing assembly is removed, it must be replaced. The old assembly must not be re-used.

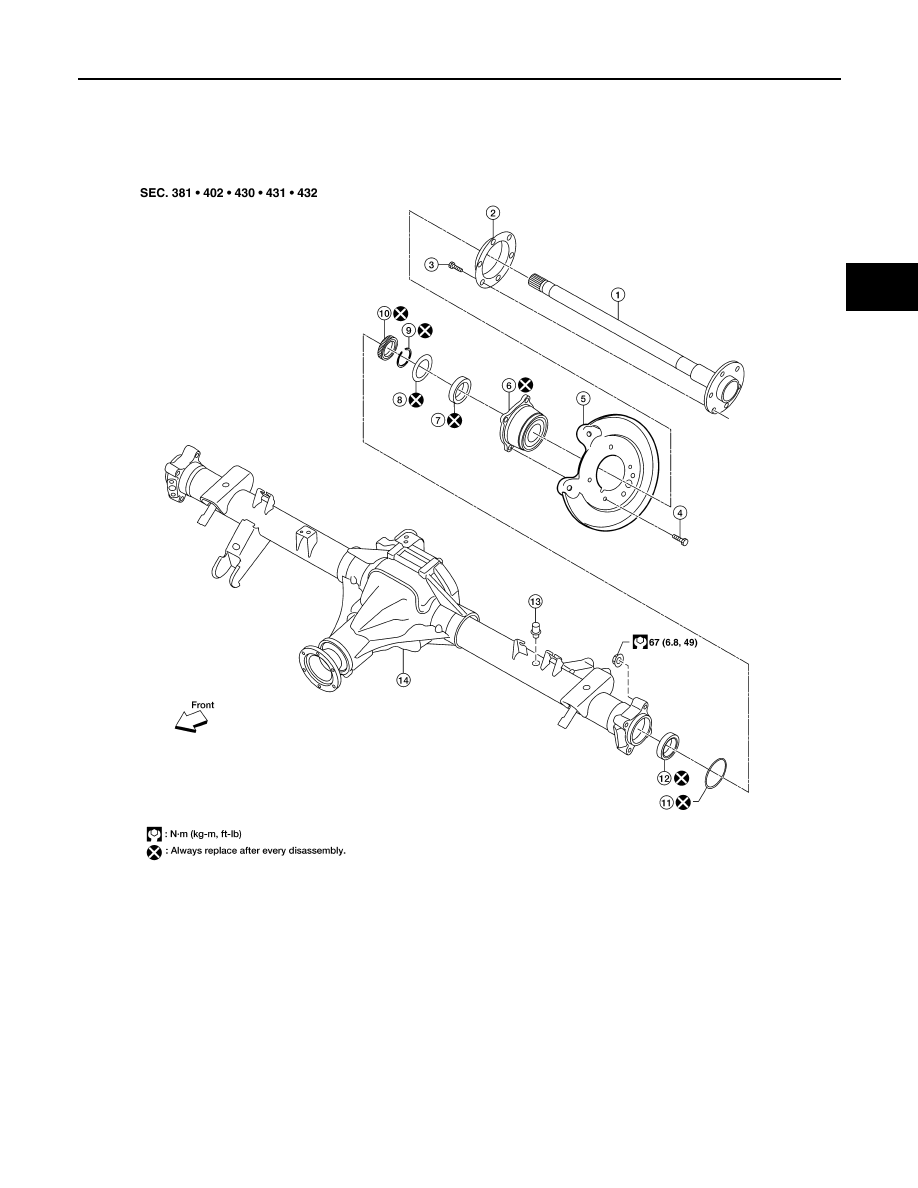

1.

Axle shaft

2.

Grease catcher

3.

Wheel stud

4.

Axle bearing stud

5.

Back plate and torque member

6.

Axle bearing

7.

Bearing ring retainer

8.

Shim washer

9.

Snap ring

10. Wheel sensor rotor

11. O-ring

12. Axle oil seal

13. Breather

14. Rear final drive

WDIA0280E

RAX-8

< SERVICE INFORMATION >

[C200]

AXLE SHAFT

REMOVAL

1. Remove the wheel sensor from the axle case and reposition out of the way. Refer to

BRC-113, "Removal

and Installation"

 (Type 1),

BRC-234, "Removal and Installation"

 (Type 2).

2. Remove the wheel and tire from the vehicle using power tool. Refer to

WT-48, "Adjustment"

.

3. Without disassembling the hydraulic lines, remove the brake caliper using power tool. Position it aside

with wire. Refer to

BR-40, "Removal and Installation of Brake Caliper and Disc Rotor"

.

4. Put alignment marks on the disc rotor and wheel hub and bearing assembly, then remove the disc rotor.
5. Remove the parking brake assembly from the back plate and torque member. Refer to

PB-6, "Removal

and Installation"

.

6. Remove the axle bearing nuts securing the axle shaft assembly to the axle case.
7. Draw the axle shaft assembly out of the axle case using suitable tool.
8. Remove the O-ring.

CAUTION:

Do not reuse O-ring.

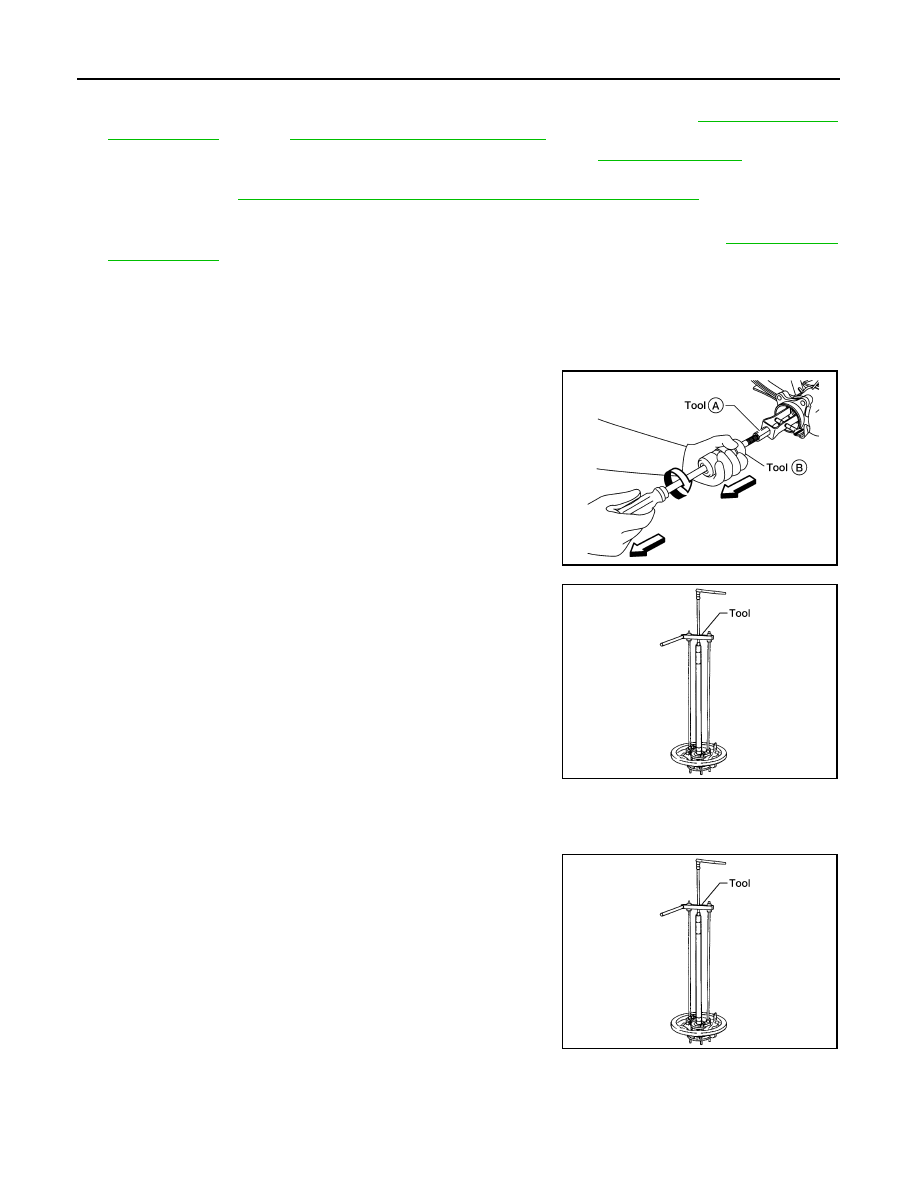

9. Remove the axle oil seal using Tools as shown. Apply a constant

pressure on the slide hammer while turning the slide hammer

180

° degrees periodically while pulling the axle oil seal out.

CAUTION:

Do not reuse the axle oil seal.

10. Remove the wheel sensor rotor using Tool. Discard the wheel

sensor rotor.

CAUTION:

Do not reuse the wheel sensor rotor.

11. Remove the snap ring and shim washer. Discard the snap ring and shim washer.

CAUTION:

Do not reuse the snap ring and shim washer.

12. Remove the bearing ring retainer from the axle shaft using Tool

as shown. Discard the bearing ring retainer.

CAUTION:

Do not reuse the bearing ring retainer.

13. Remove the back plate and torque member with the axle bearing attached from the axle shaft using a suit-

able press.

14. Remove the axle bearing studs to release the axle bearing from the back plate and torque member using

a suitable hammer or press.

Tool number

(A):  — (J-26941 part of J-46215)
(B): — (J-23907)

LDIA0030E

Tool number

: KV40106500 (J-45073)

LDIA0031E

Tool number

: KV40106500 (J-45073)

LDIA0031E

AXLE SHAFT

RAX-9

< SERVICE INFORMATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

15. Remove the wheel studs using a suitable hammer or press.
16. Remove the grease catcher from the axle shaft.

INSPECTION AFTER REMOVAL

Axle Shaft

• Check axle shaft for straightness, cracks, damage, wear and distortion. Replace if necessary.

Axle Case

• Check axle case for yield, deformation and cracks. Replace if necessary. Refer to

DLN-225, "Disassembly

and Assembly"

.

INSTALLATION

1. Install the grease catcher on the axle shaft.
2. Install the wheel studs through the grease catcher into the axle shaft using a suitable press.

NOTE:

All six wheel studs must be pressed on at the same time and are flush with the grease catcher when

installed.

3. Position the axle bearing on the back plate and torque member.
4. Install the axle bearing studs using a suitable press to attach the axle bearing to the back plate and torque

member.

CAUTION:

Do not reuse the axle bearing.

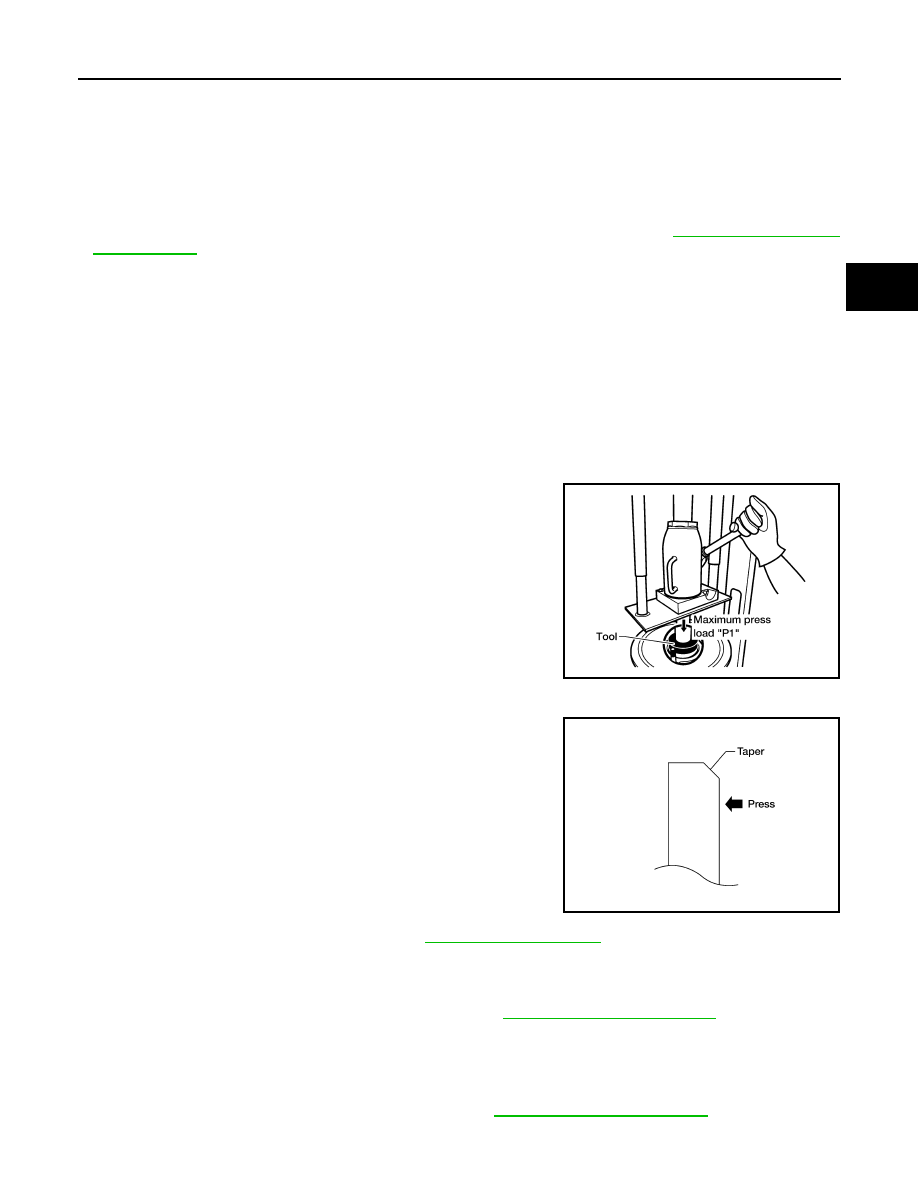

5. Install the back plate and torque member, new axle bearing and

new bearing ring retainer on the axle shaft using a suitable

press.

CAUTION:

• Press the new bearing ring retainer on the axle shaft with

the taper side positioned as shown.

• Do not reuse the bearing ring retainer.

6. Select the correct size shim washer. Refer to

RAX-14, "Shim Washers"

.

• Select the size of shim washer so that the installed snap ring to shim washer clearance is within specifi-

cation.

7. Install a new snap ring on the axle shaft.

• Do not over spread the snap ring when installing, measure the outer diameter of the snap ring after

installation and replace if the snap ring outer diameter exceeds specification.

CAUTION:

Maximum press load “P1”

: 98 kN (10 ton, 11.0 US
ton, 9.8 Imp ton)

LDIA0038E

LDIA0189E

Snap ring to shim washer clearance

: Refer to

RAX-14, "Axle Specification"

.

Snap ring outer diameter installed

: Refer to

RAX-14, "Axle Specification"

.

RAX-10

< SERVICE INFORMATION >

[C200]

AXLE SHAFT

Do not reuse the snap ring.

8. Check the snap ring to shim washer clearance, repeat steps 7 and 8 as necessary until the installed snap

ring to shim washer clearance is within specification.

9. Perform break-in rotation of the wheel bearing.
a. Rotate the wheel bearing in the forward direction for a minimum of 10 revolutions at 50-70 RPM.
b. Rotate the wheel bearing in the reverse direction for a minimum of 10 revolutions at 50-70 RPM.
10. Measure the rotational torque of the wheel bearing.

11. Inspect that the wheel bearing is free from axial play relative to the axle shaft.

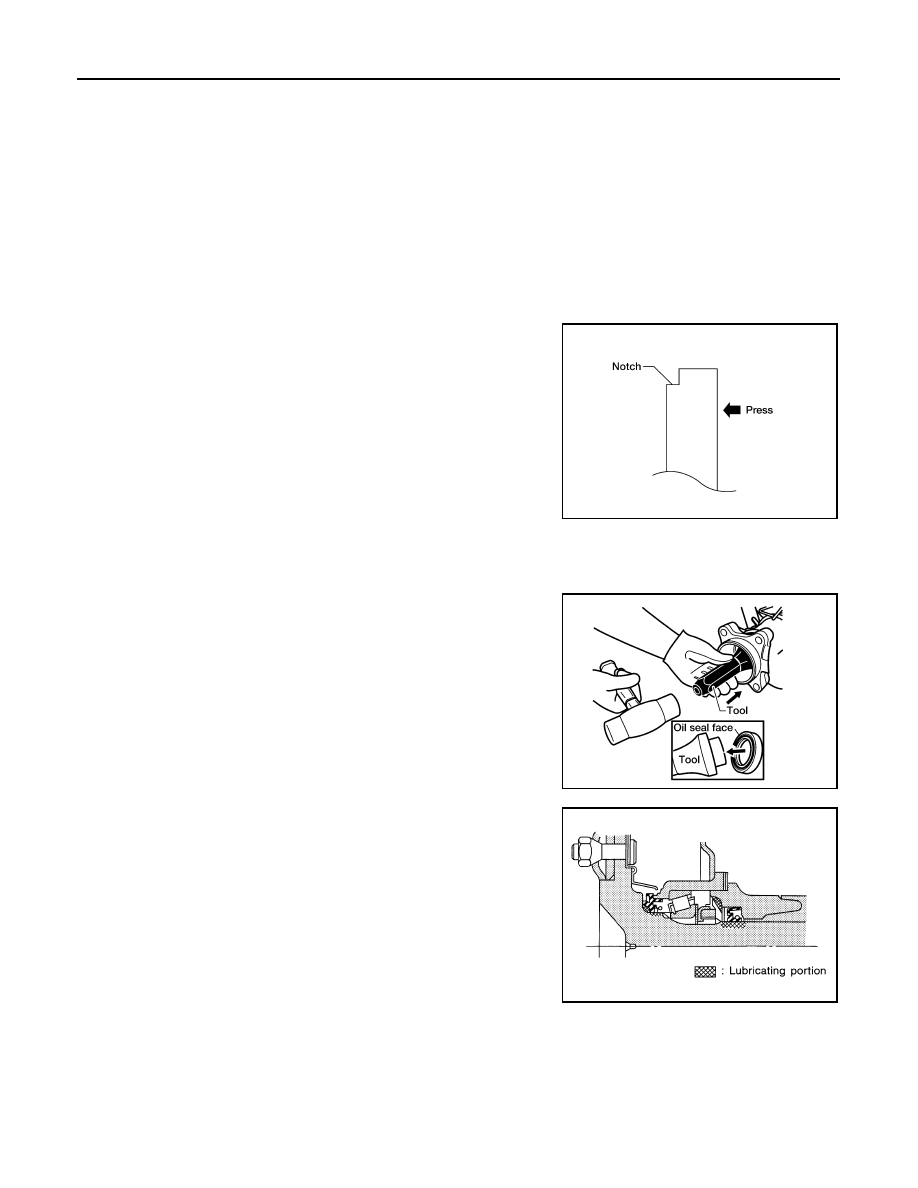

12. Install a new wheel sensor rotor on the axle shaft using a suit-

able press.

CAUTION:

• Press the new wheel sensor rotor on the axle shaft with

the notch side positioned as shown.

• Do not reuse the wheel sensor rotor.

13. Install a new O-ring.

CAUTION:

Do not reuse the O-ring.

14. Install the new axle seal into the axle case using Tool as shown.

• After installing the new oil seal, coat the sealing lip with oil.

• Install the new oil seal with the seal facing outwards and the

so that the seal is fully seated in the axle case.

CAUTION:

Do not reuse the axle oil seal.

15. Apply multi-purpose grease to the recess of axle case end as

shown.

16. Apply gear oil to the spline of axle shaft. Coat the axle oil seal

surface of axle shaft with multi-purpose grease as shown.

Rotational speed

: 8-12 RPM

Rotational torque

: 1.8 N·m (0.18 kg-m, 16 in-lb)

LDIA0190E

Tool number

:  — (J-34115 part of J-46215)

WDIA0243E
