Nissan Frontier. Manual - part 1085

PWC-72

< REMOVAL AND INSTALLATION >

POWER WINDOW MAIN SWITCH

REMOVAL AND INSTALLATION

POWER WINDOW MAIN SWITCH

Removal and Installation

INFOID:0000000009482445

REMOVAL

1. Using a suitable tool, release the metal clip and pawls, then lift

upward the main power window/door lock switch and finisher (2)

as an assembly.

: Metal clip
: Pawl

2. Disconnect the harness connectors.
3. Remove the main power window/door lock switch and finisher

(2) assembly from the front door finisher.

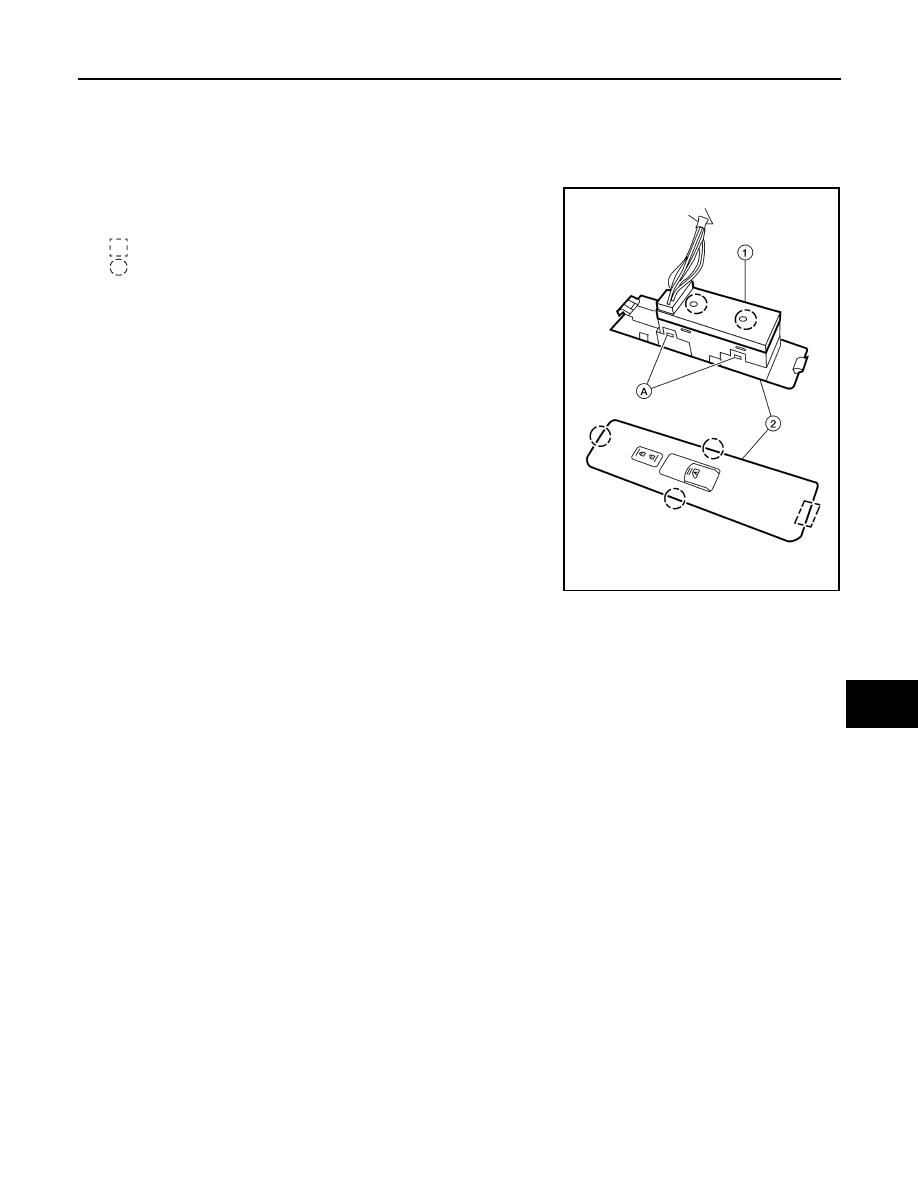

4. Remove the three screws (A) from the main power window/door

lock switch (1).

5. Remove the main power window/door lock switch (1) from the

main power window/door lock switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1097ZZ

FRONT POWER WINDOW SWITCH

PWC-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FRONT POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000009482446

REMOVAL

1. Using a suitable tool, release the metal clip and pawls, then lift

upward the front power window/door lock switch and finisher (2)

as an assembly.

: Metal clip
: Pawl

2. Disconnect the harness connector.
3. Remove the front power window/door lock switch and finisher

(2) assembly from the front door finisher.

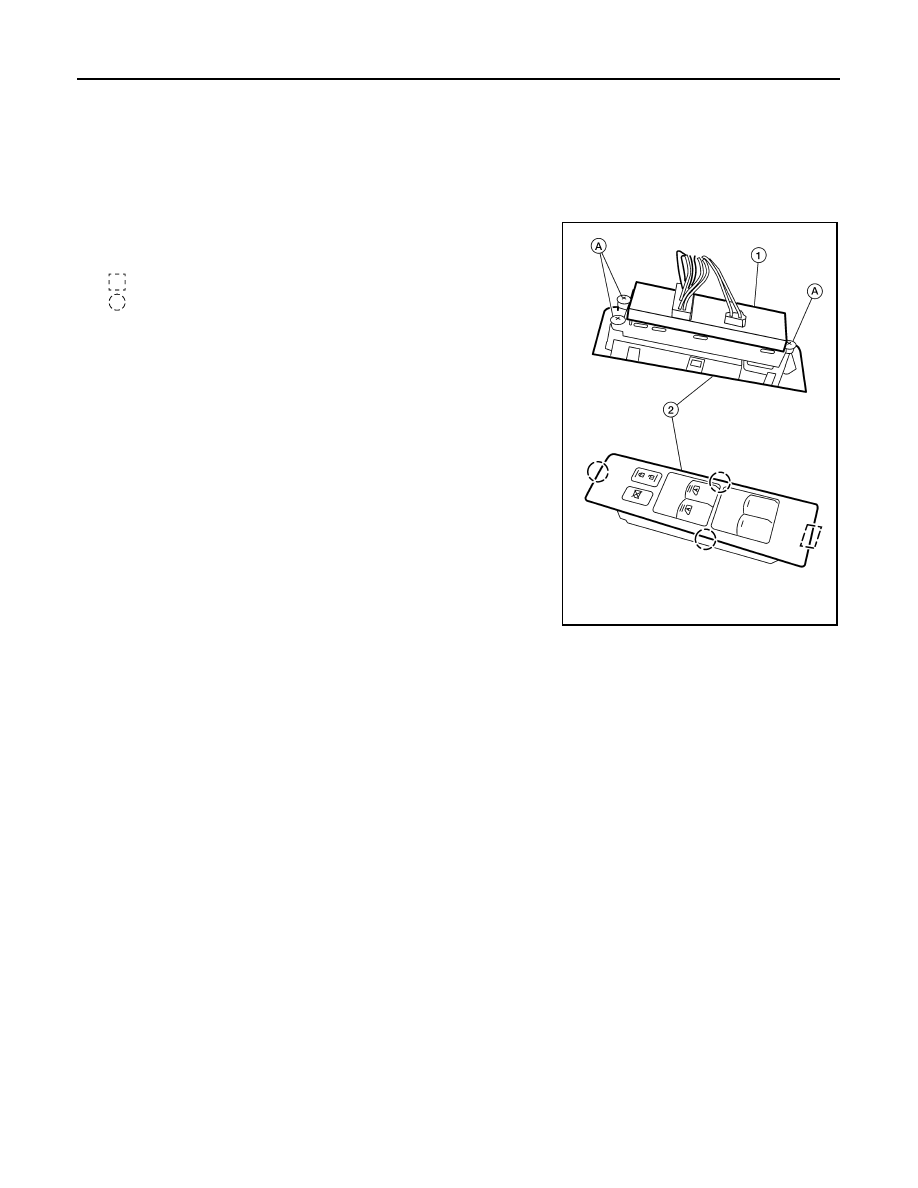

4. Release the four tabs (A), two on each side, then separate the

front power window/door lock switch (1) from the front power

window/door lock switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1098ZZ

PWC-74

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000009482447

REMOVAL

1. Using a suitable tool, release the metal clip and pawls, then lift

upward the rear power window switch and finisher (2) as an

assembly.

: Metal cli
: Pawl

2. Disconnect the harness connector.
3. Remove the rear power window switch and finisher (2) assem-

bly from the rear door finisher.

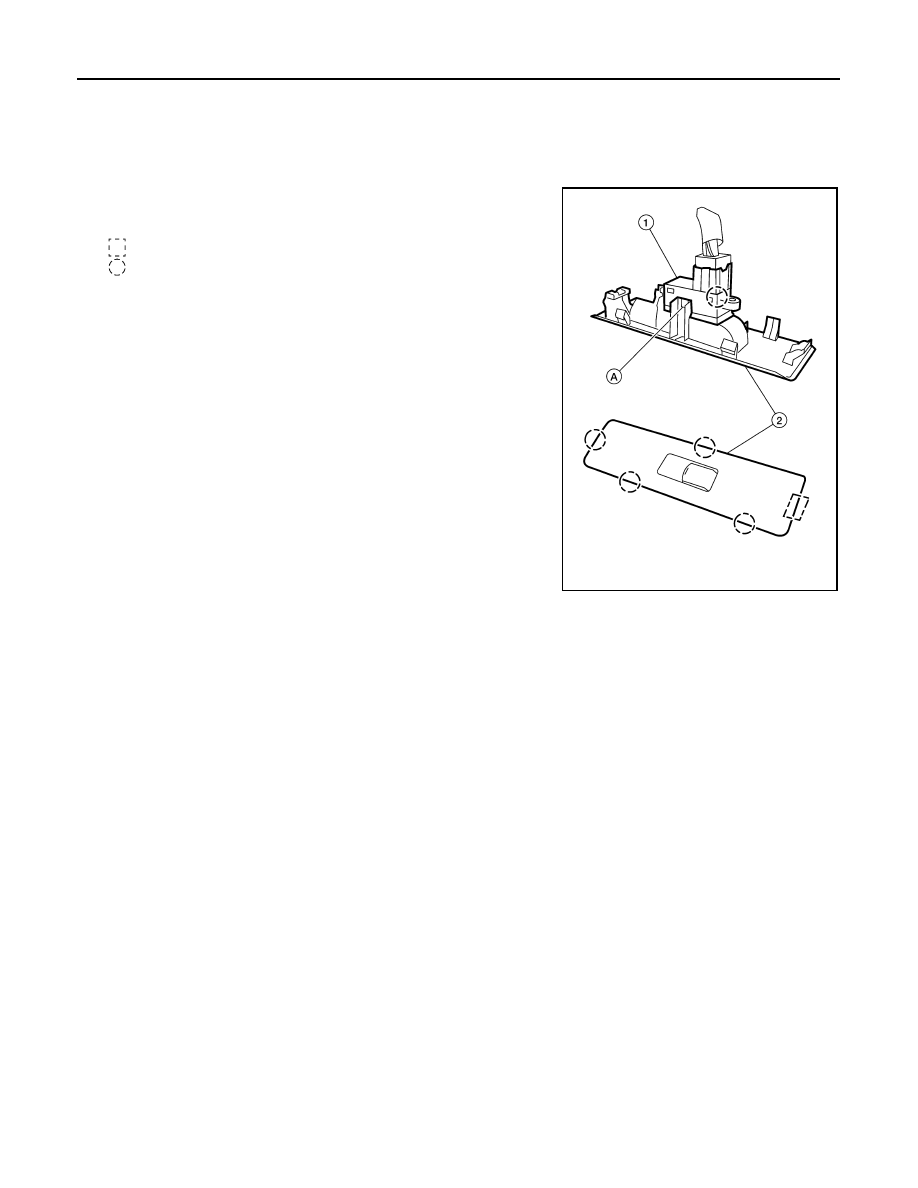

4. Release the two tabs (A), one on each side, then separate the

rear power window switch (1) from the rear power window

switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1099ZZ

PWO
