PWC-60

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA5269GB

POWER WINDOW SYSTEM

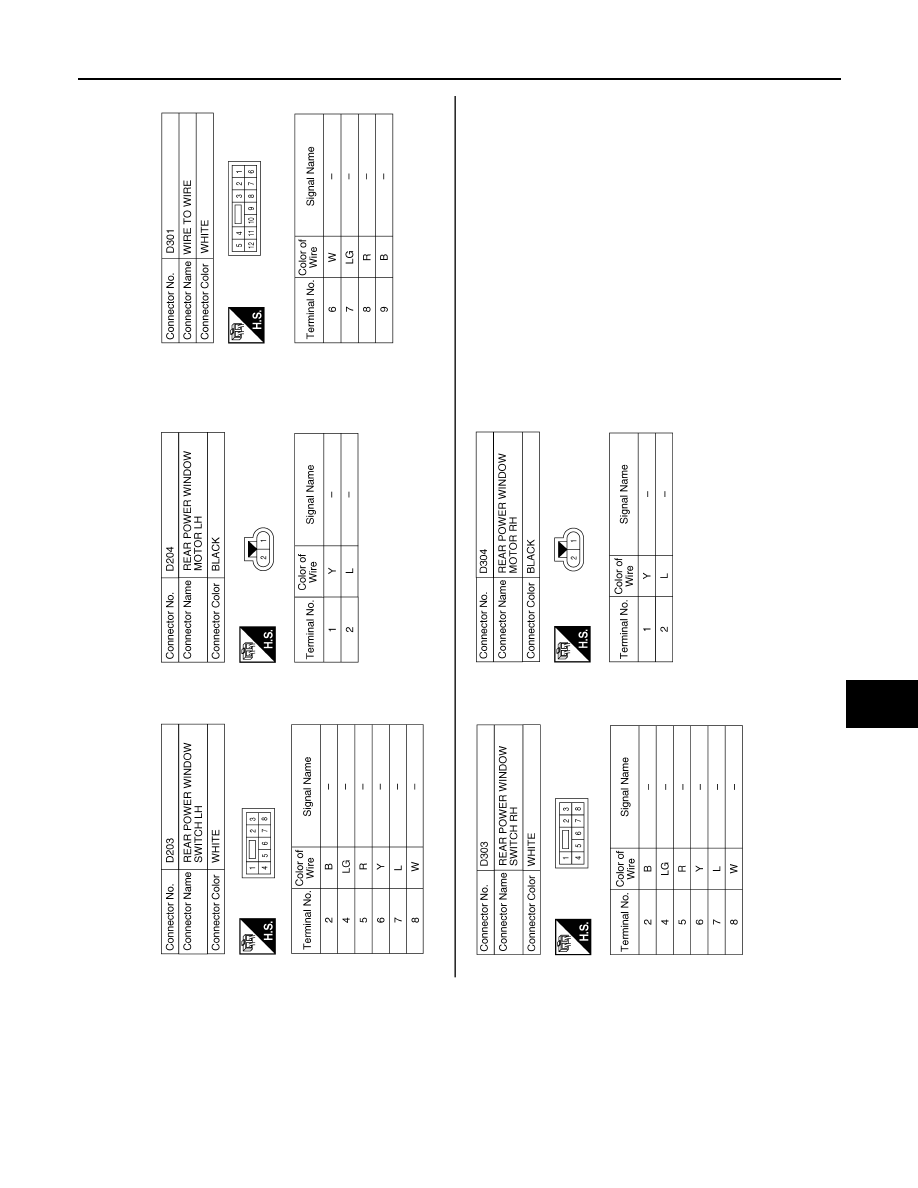

PWC-61

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA5270GB

PWC-62

< SYMPTOM DIAGNOSIS >

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY SWITCH

SYMPTOM DIAGNOSIS

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY
SWITCH

Diagnosis Procedure

INFOID:0000000009482434

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

BCS-27, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window switch.

Refer to

PWC-14, "POWER WINDOW MAIN SWITCH (CREW CAB) : Component Inspection"

 or

PWC-18,

"POWER WINDOW MAIN SWITCH (KING CAB) : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-72, "Removal and Instal-

lation"

.

3.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY AND

GROUND CIRCUIT
Check power window switch main power supply and ground circuit.

Refer to

PWC-11, "POWER WINDOW MAIN SWITCH (CREW CAB) : Component Function Check"

 or

PWC-

16, "POWER WINDOW MAIN SWITCH (KING CAB) : Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

PWC-63

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000009482435

1.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window switch.

Refer to

PWC-14, "POWER WINDOW MAIN SWITCH (CREW CAB) : Component Inspection"

 or

PWC-18,

"POWER WINDOW MAIN SWITCH (KING CAB) : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-72, "Removal and Instal-

lation"

.

2.

 CHECK FRONT POWER WINDOW MOTOR LH

Check front power window motor LH.

Refer to

PWC-24, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.
