PWC-4

< SYSTEM DESCRIPTION >

POWER WINDOW SYSTEM

SYSTEM DESCRIPTION

POWER WINDOW SYSTEM

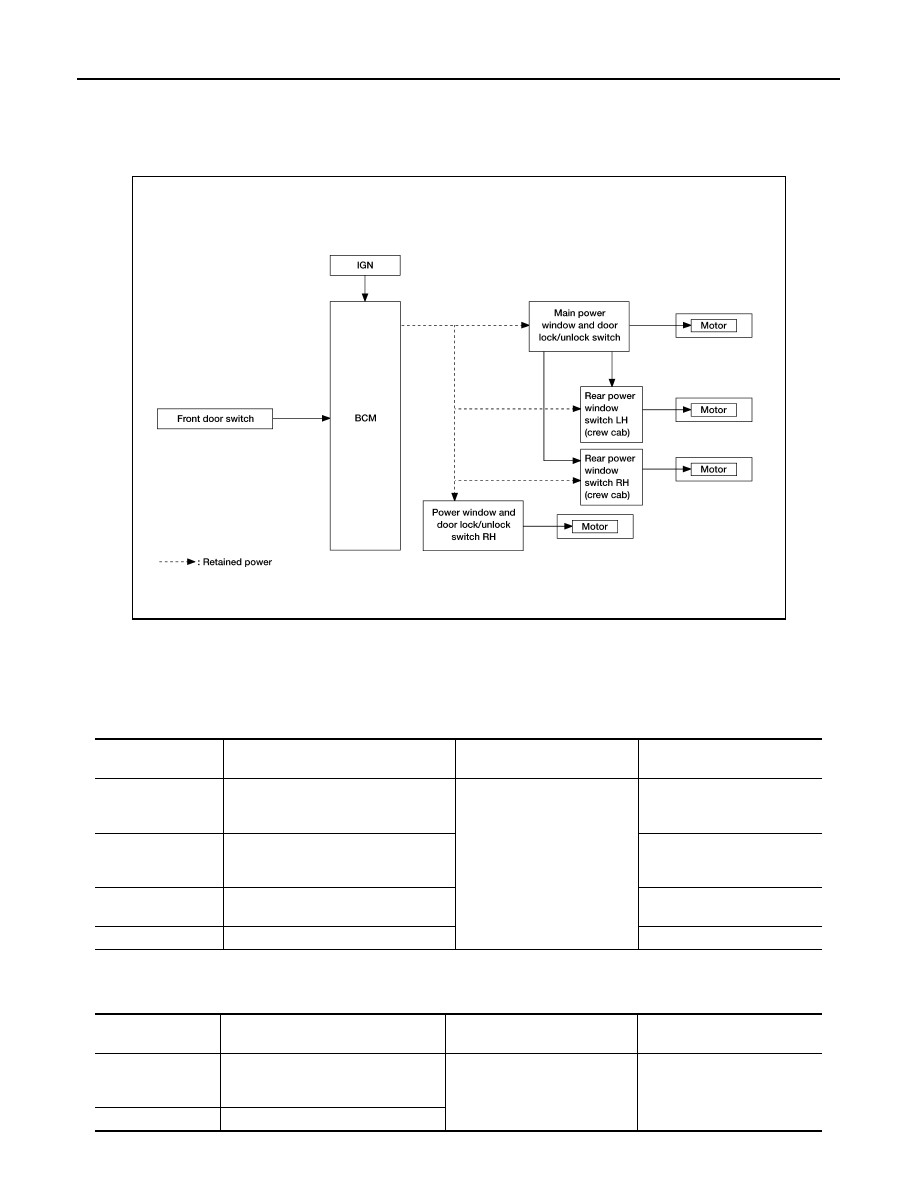

System Diagram

INFOID:0000000009482377

System Description

INFOID:0000000009482378

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

INPUT/OUTPUT SIGNAL CHART

ALKIA1390GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Main power window
and door lock/unlock
switch

All power window motor UP/DOWN
signal

Power window control

Power window motors

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Front power window motor RH

Rear power window
switch (crew cab)

Rear power window motor UP/DOWN
signal

Rear power window motor

BCM

RAP signal

Power window motors

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Power window control

Front power window motor RH

BCM

RAP signal

POWER WINDOW SYSTEM

PWC-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.

• Power window and door lock unlock switch RH & rear power window switches LH and RH (crew cab) can

open/close the corresponding windows.

POWER WINDOW AUTO DOWN OPERATION (FRONT LH)

• AUTO DOWN operation can be performed when main power window turns to AUTO.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON.

• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock

switch is ON. This inhibits power window switch operation except with the main power window and door lock/

unlock switch.

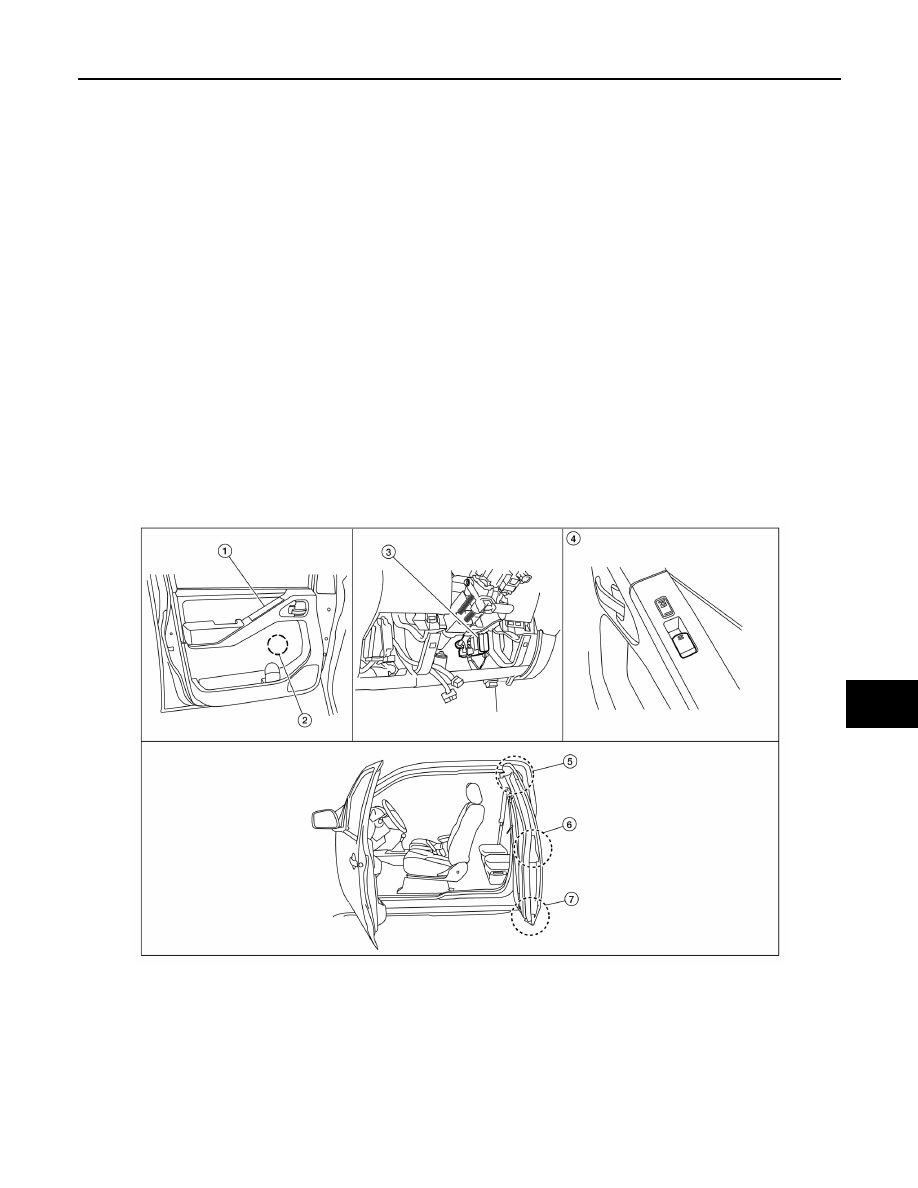

Component Parts Location - King Cab

INFOID:0000000009482379

ABKIA2916ZZ

1.

Main power window and door lock/
unlock switch D7

2.

Front power window motor LH D9,
RH D104

3.

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

4.

Power window and door lock/unlock
switch RH D105

5.

Rear door switch upper LH D211, RH
D312

6.

Front door switch LH D213, RH
D314

7.

Rear door switch lower D212, RH
D313

PWC-6

< SYSTEM DESCRIPTION >

POWER WINDOW SYSTEM

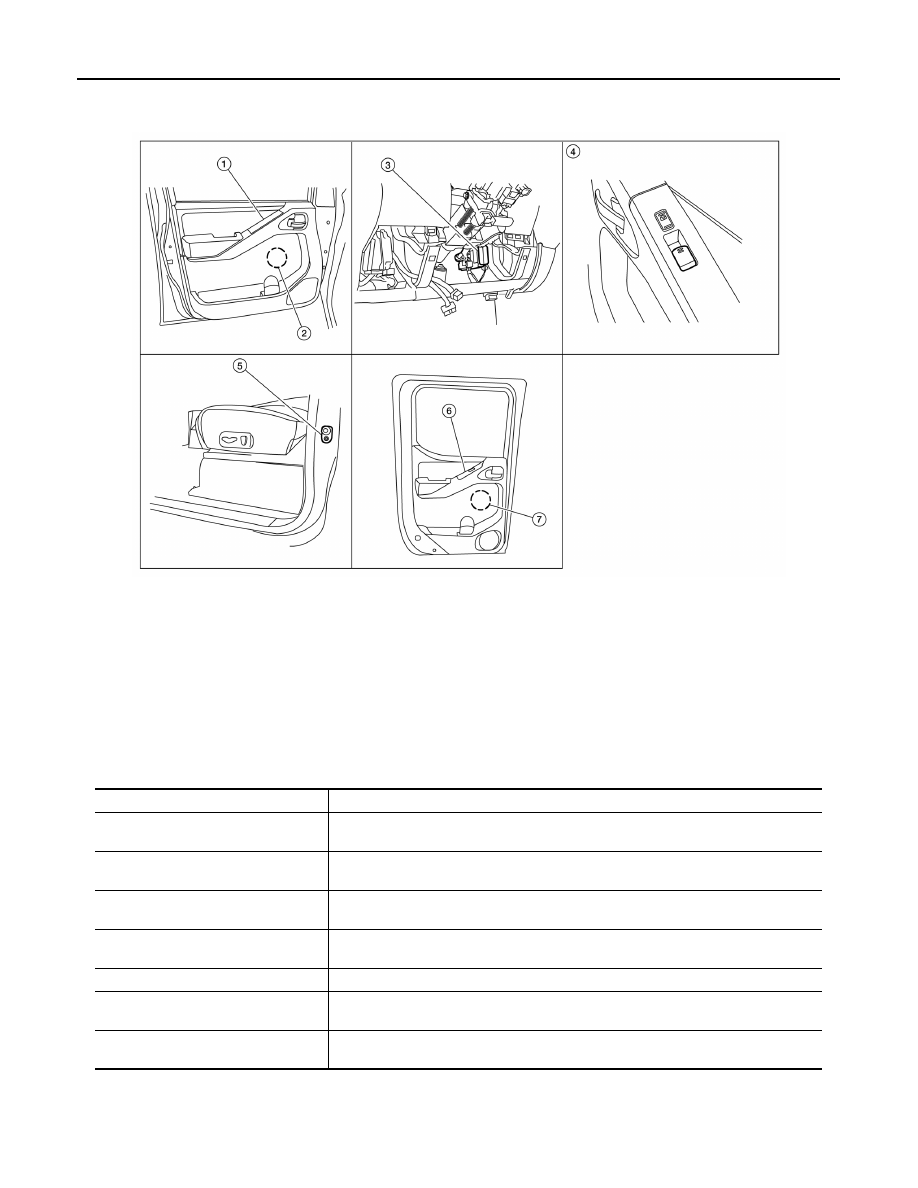

Component Parts Location - Crew Cab

INFOID:0000000009482380

Component Description

INFOID:0000000009482381

POWER WINDOW SYSTEM

ABKIA2917ZZ

1.

Main power window and door lock/
unlock switch D7

2.

Front power window motor LH D9,
RH D104

3.

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

4.

Power window and door lock/unlock
switch RH D105

5.

Front door switch LH B8, RH B108

6.

Rear power window switch LH D203,
RH D303

7.

Rear power window motor LH D204,
RH D304

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Main power window and door lock/un-
lock switch

Directly controls all power window motor of all doors.

Power window and door lock/unlock
switch RH

Controls front power window motor RH.

Rear power window switch LH or RH
(crew cab)

Controls rear power window motors LH and RH.

Front power window motor LH

Starts operating with signals from main power window and door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Rear power window motor LH or RH
(crew cab)

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

POWER WINDOW SYSTEM

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Rear door switch upper LH or RH (king
cab)

Detects door open/close condition and transmits to BCM.

Rear door switch lower LH or RH (king
cab)

Front door switch LH or RH

Component

Function
