PG-36

< WIRING DIAGRAM >

GROUND

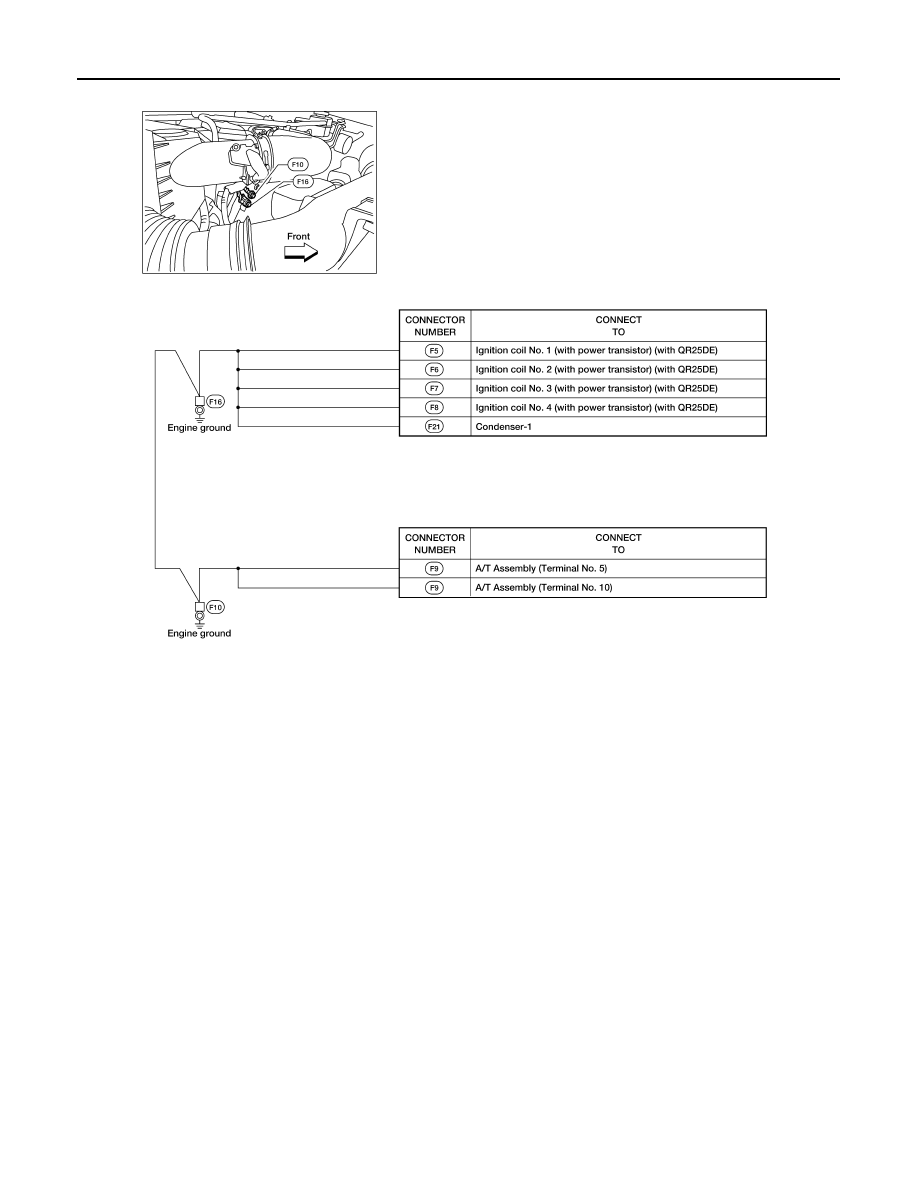

ENGINE CONTROL HARNESS (QR25DE MODELS)

ABMIA0373GB

PG

GROUND

PG-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

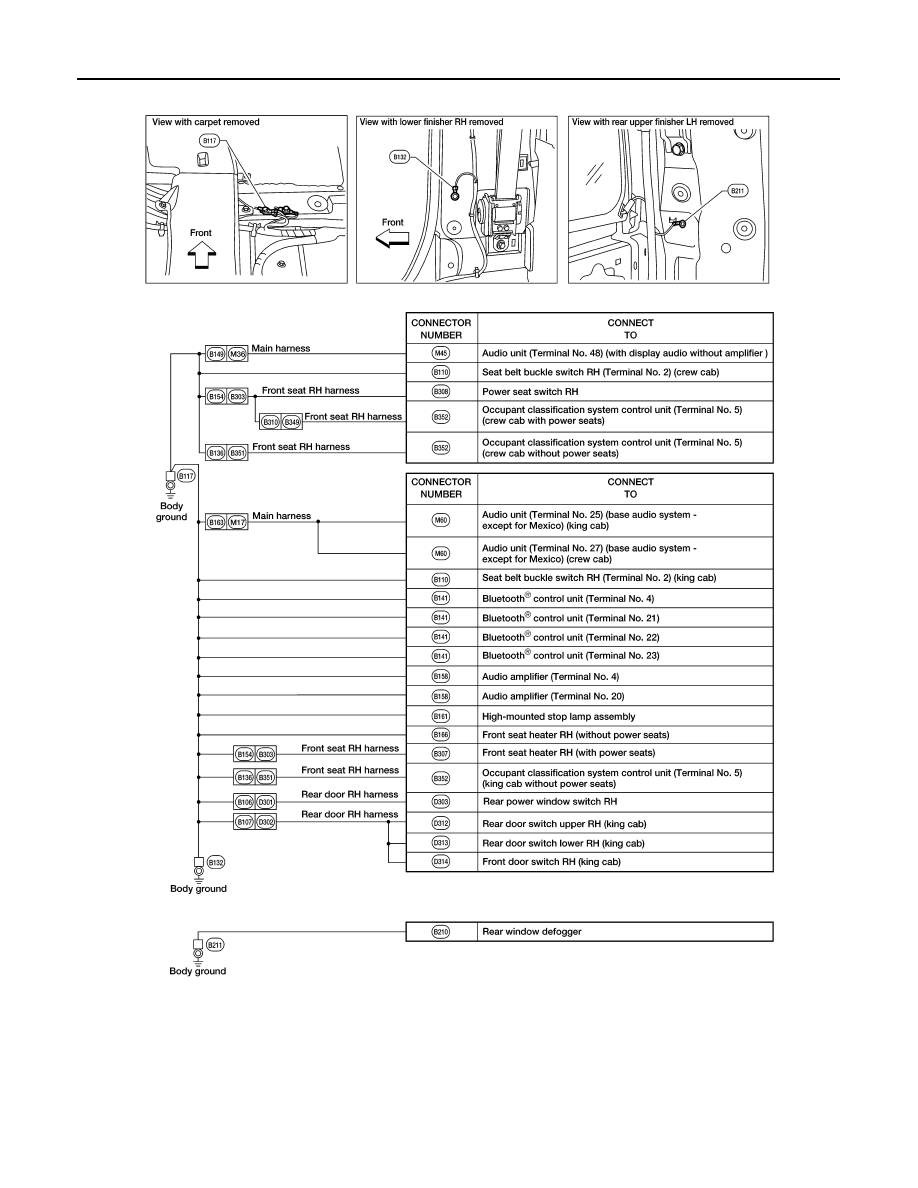

BODY HARNESS

ABMIA5556GB

PG-38

< WIRING DIAGRAM >

GROUND

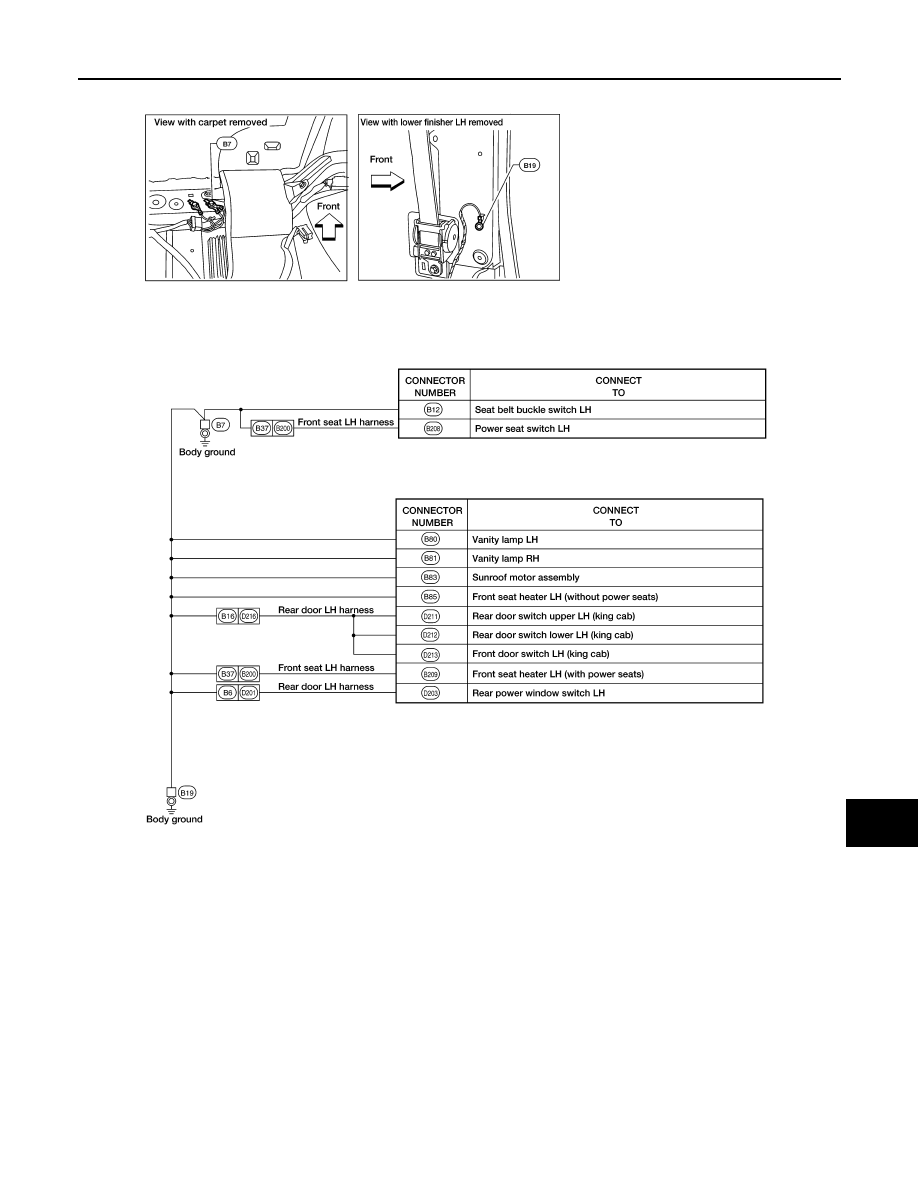

BODY NO. 2 HARNESS

ABMIA5557GB

PG

HARNESS

PG-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS

Harness Layout

INFOID:0000000009479162

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness and Console Sub-harness

• Engine Room Harness (RH View), Generator Sub-harness and

Trailer Tow Harness

• Engine Room Harness (Passenger Compartment)

• Engine Room Harness (LH View)

• Engine Control Harness (QR25DE Models) and Injector Sub-har-

ness

• Engine Control Harness (VQ40DE Models), Injector Sub-harness,

Ignition Coil Sub-harness and Knock Sensor Sub-harness

• Chassis Harness, Differential Lock Sub-harness, Trailer Sub-har-

ness and Tail Lamp Sub-harness, Rear sonar sub-harness, Rear view camera sub-harness

• Body Harness (King Cab Models) and Front Seat LH Harness

• Body Harness (Crew Cab Models) and Front Seat LH Harness

• Body No. 2 Harness (King Cab Models) and Front Seat RH Harness

• Body No. 2 Harness (Crew Cab Models) and Front Seat RH Harness

• Room Lamp Harness

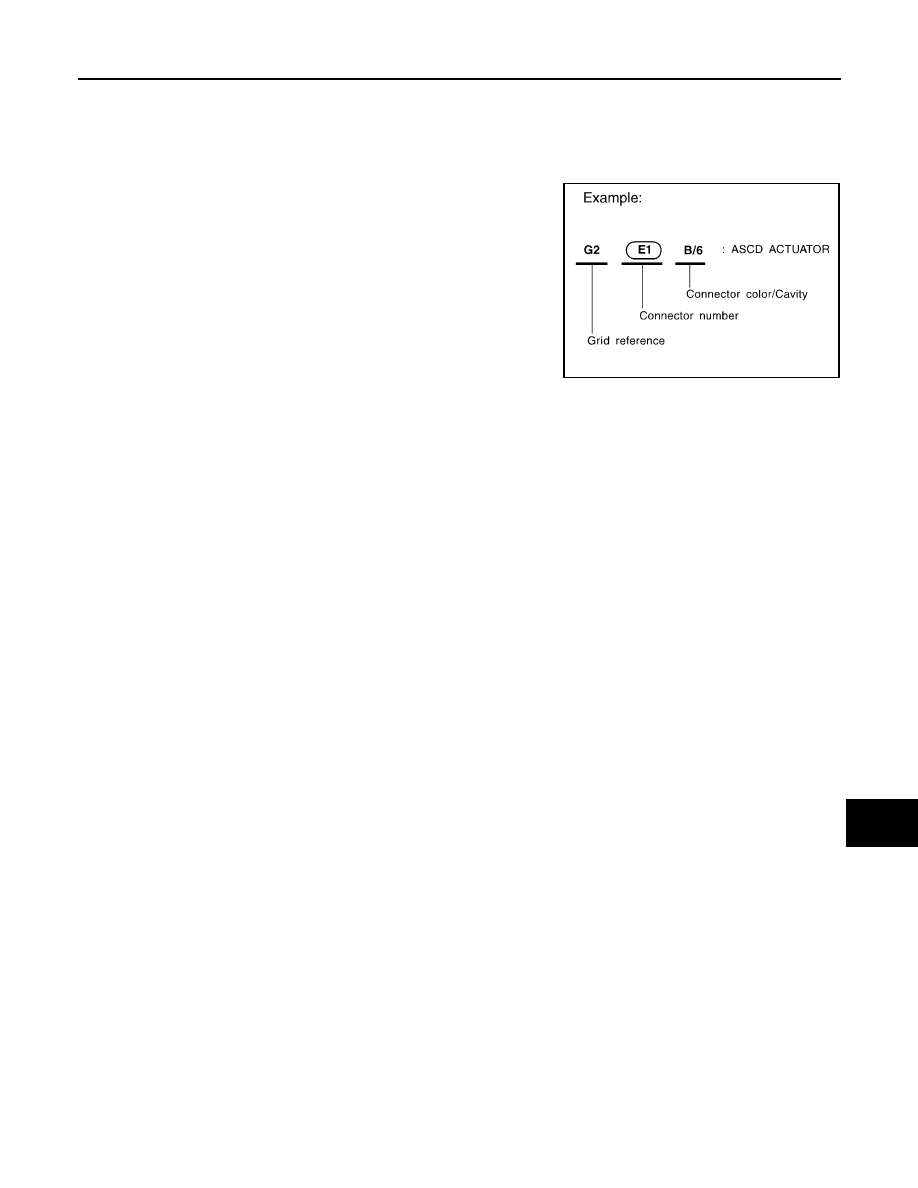

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line to the connector.

SEL252V
