Nissan Frontier. Manual - part 1038





PB-6

< UNIT REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

Removal and Installation

INFOID:0000000009478984

REMOVAL

1. Disconnect the return spring from the equalizer.
2. Remove the right and left rear cables from the equalizer.
3. Remove the front cable nuts from underneath the vehicle.
4. Remove the rear half of the center console. Refer to

IP-29, "Disassembly and Assembly"

.

5. Remove the four control lever assembly bolts, then remove the control lever assembly.
6. Remove the front cable grommet from the control lever assembly.
7. Remove the front cable to control lever assembly bolt.
8. Remove the adjusting nut and discard, then remove the front cable.

CAUTION:

Do not reuse the adjusting nut, use a new adjusting nut for installation.

9. Remove the rear disc rotors. Refer to

BR-40, "Removal and Installation of Brake Caliper and Disc Rotor"

.

10. Remove the left and right parking brake shoes, then disconnect the rear cables from the toggle levers.
11. Remove the left and right rear cable bolts and nuts, then remove the left and right rear cables.

INSTALLATION

Installation is in the reverse order of removal.

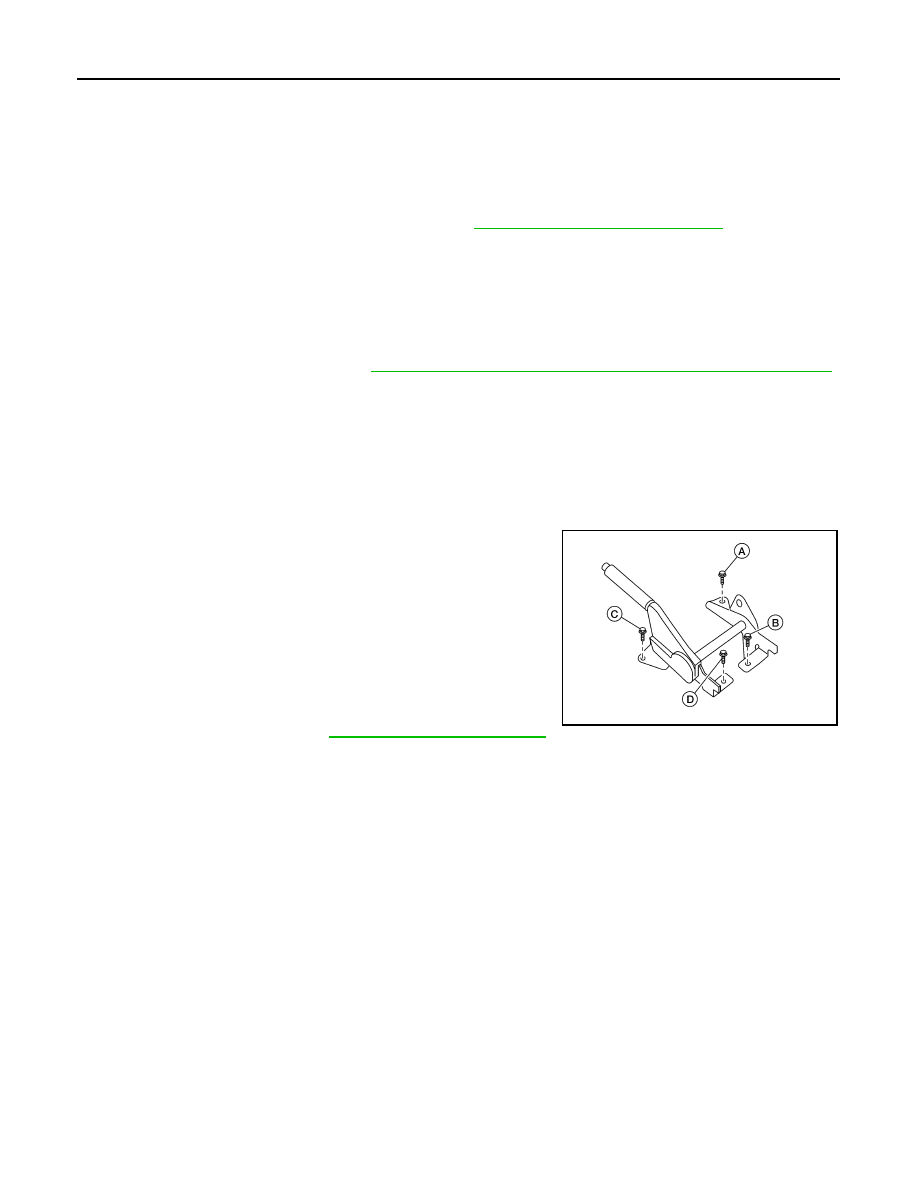

• The control lever assembly bolts must be installed in the following order:

1. Install and temporarily tighten the control lever assembly bolts

(A), (B) and (D).

2. Install and tighten the control lever assembly bolt (C) to specifi-

cation.

3. Install and tighten the control lever assembly bolt (D) to specifi-

cation.

4. Install and tighten the control lever assembly bolt (A) to specifi-

cation.

5. Install and tighten the control lever assembly bolt (B) to specifi-

cation.

• Adjust the parking brake. Refer to

PB-10, "Parking Brake Control"

.

CAUTION:

• Do not reuse the adjusting nut, use a new adjusting nut for installation.

• Install the control lever assembly bolts in the specified order and pattern.

Control lever assembly bolt

: 12.7 N·m (1.3 kg-m, 9 ft-lb)

ALFIA0166ZZ

PARKING BRAKE SHOE

PB-7

< UNIT REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

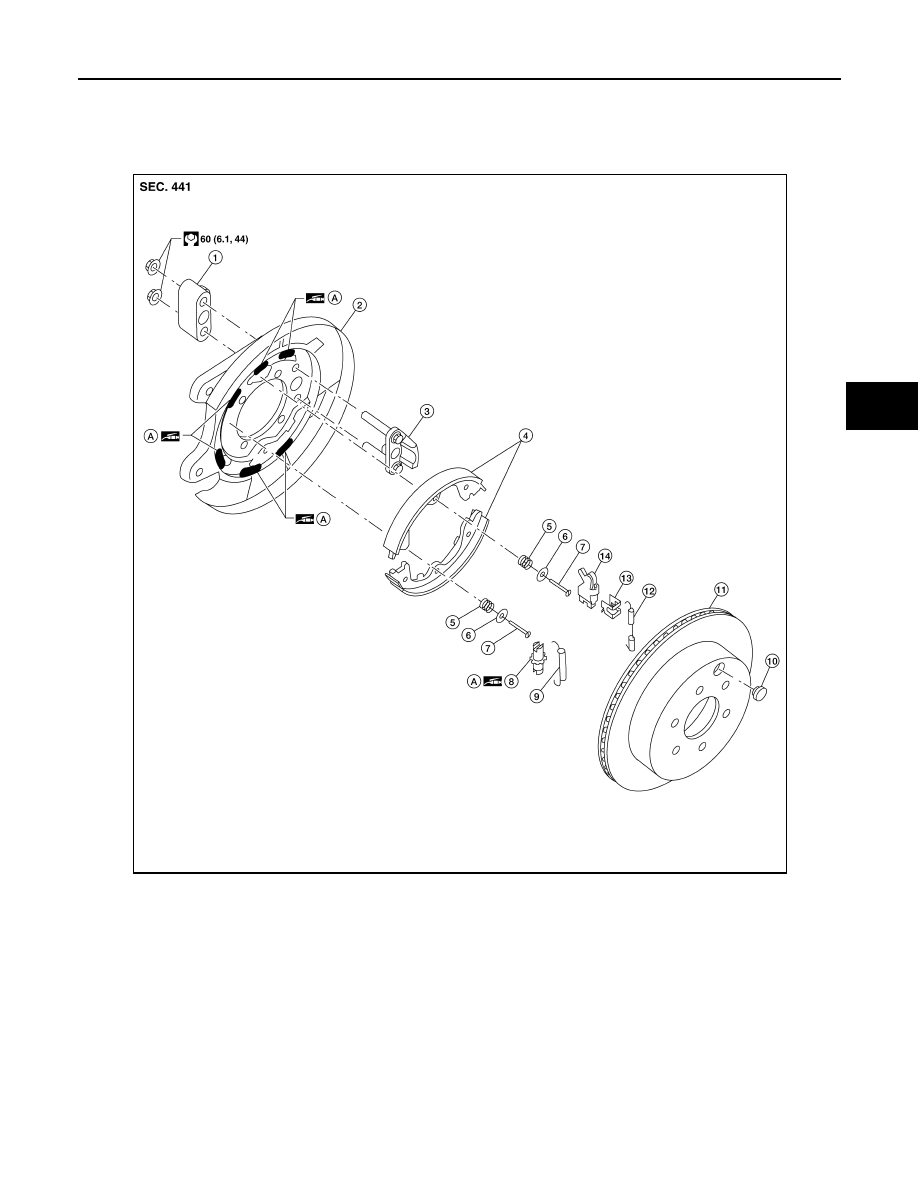

PARKING BRAKE SHOE

Component

INFOID:0000000009478985

Removal and Installation

INFOID:0000000009478986

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other

materials.

1.

Anchor block

2.

Back plate

3.

Anchor

4.

Shoes

5.

Shoe hold-down spring

6.

Retainer

7.

Shoe hold-down pin

8.

Adjuster

9.

Adjuster spring

10. Adjuster access plug

11. Disc rotor

12. Return spring

13. Pin retainer

14. Toggle lever

A.

PBC (Poly Butyl Cuprysil) grease or
equivalent

AWFIA0488GB

PB-8

< UNIT REMOVAL AND INSTALLATION >

PARKING BRAKE SHOE

NOTE:

Remove the disc rotor only with the parking brake lever completely disengaged.
1. Remove the rear disc rotor. Refer to

BR-40, "Removal and Installation of Brake Caliper and Disc Rotor"

.

2. Remove the adjuster and return springs.
3. Remove the adjuster.
4. Remove the shoe hold-down pins, retainers, shoe hold-down springs and shoes.
5. Remove pin retainer, then disconnect the parking brake cable from the toggle lever.
6. Remove back plate. Refer to

RAX-7, "Removal and Installation"

 (C200) or

RAX-19, "Removal and Instal-

lation"

 (M226).

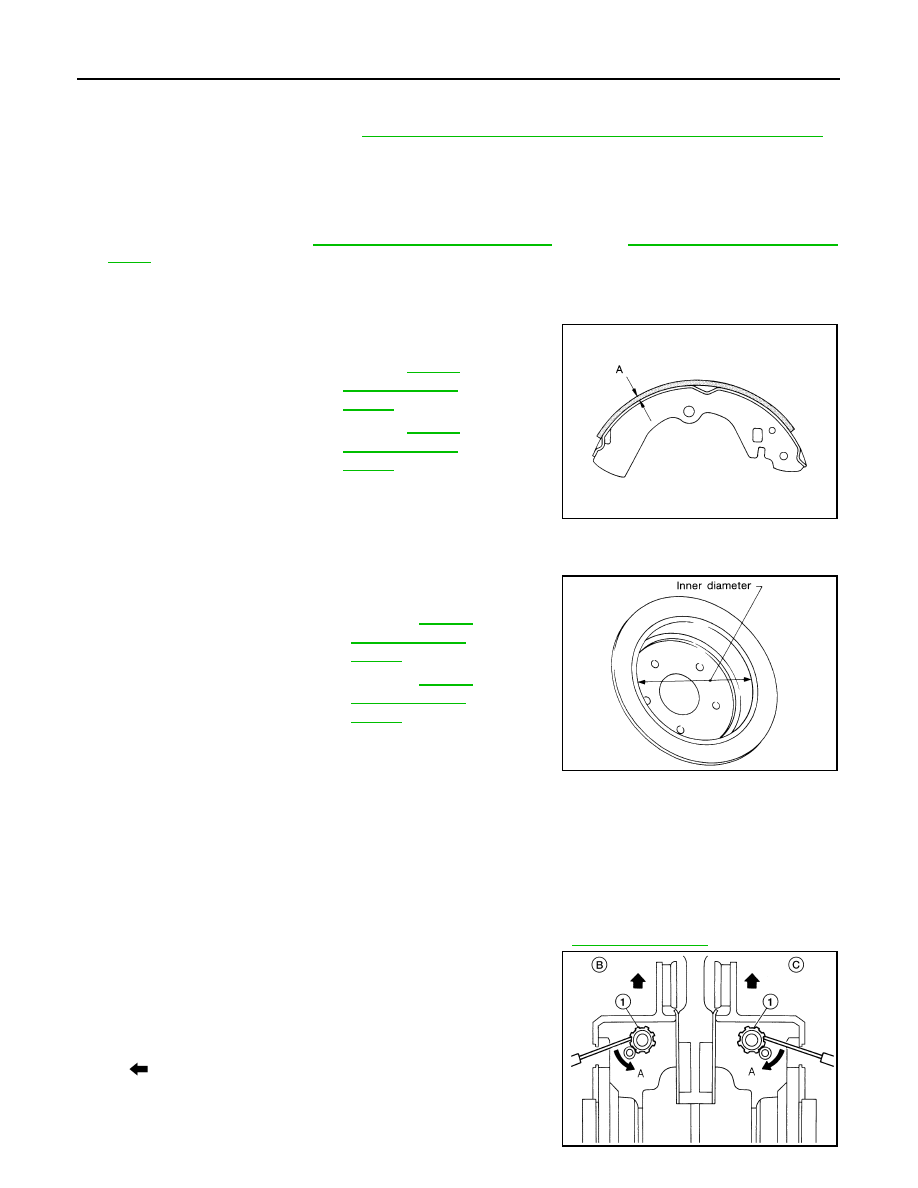

INSPECTION AFTER REMOVAL

Lining Thickness Inspection

• Check thickness of lining.

Drum Inner Diameter Inspection

• Check visually for cracks, corrosion, or damage inside drum.

• Measure drum inner diameter using suitable tool.

Other Inspections

• Check shoe sliding surface for excessive wear and damage.

• Check shoe hold-down pins for excessive wear and corrosion.

• Check adjuster and return springs for sagging.

• Check adjuster for rough operation.

• When disassembling adjuster, apply PBC (Poly Butyl Cuprysil) grease or equivalent to the adjuster threads.

INSTALLATION

Installation is in the reverse order of removal.

• Apply brake grease to the specified points during assembly. Refer to

PB-7, "Component"

.

• Install adjuster (1) so that threaded part expands when rotating it in

the direction shown (A) using a suitable tool.

• Shorten adjuster by rotating it in the opposite direction as shown

(A).

NOTE:

After replacing brake shoes or disc rotors, or if parking brake does

not function well, perform break-in operation as follows.

Standard thickness (A)

Refer to

PB-10,

"Parking Drum
Brake"

Wear limit thickness (A)

Refer to

PB-10,

"Parking Drum
Brake"

SBR021A

Standard inner diameter

 Refer to

PB-10,

"Parking Drum
Brake"

Wear limit of inner diameter  Refer to

PB-10,

"Parking Drum
Brake"

SBR768A

B: Left

C: Right

: Front

ALFIA0173GB

PARKING BRAKE SHOE

PB-9

< UNIT REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

1. Adjust parking brake lever stroke. Refer to

PB-4, "On-Vehicle Service"

.

2. Perform parking brake burnishing operation by driving the vehicle forward under the following conditions:

CAUTION:

• To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after

every break-in operation.

• Do not perform excessive break-in operations, because it may cause uneven or early wear of lin-

ing.

3. After burnishing operation, check parking brake lever stroke. Readjust if it is now longer than the specified

stroke. Refer to

PB-4, "On-Vehicle Service"

.

• Vehicle speed 40 +10, -0 km/h (25 +6, -0 MPH) set (forward)
• Parking brake operating force 196 +49, -0 N (20.0 +5.0, -0 kg-f, 44.1 +11.0, -0 lb-ft) set
• Apply time 10 +5, -0 sec.
