MWI-88

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010106218

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

MWI

PREPARATION

MWI-89

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009480399

Tool name

Description

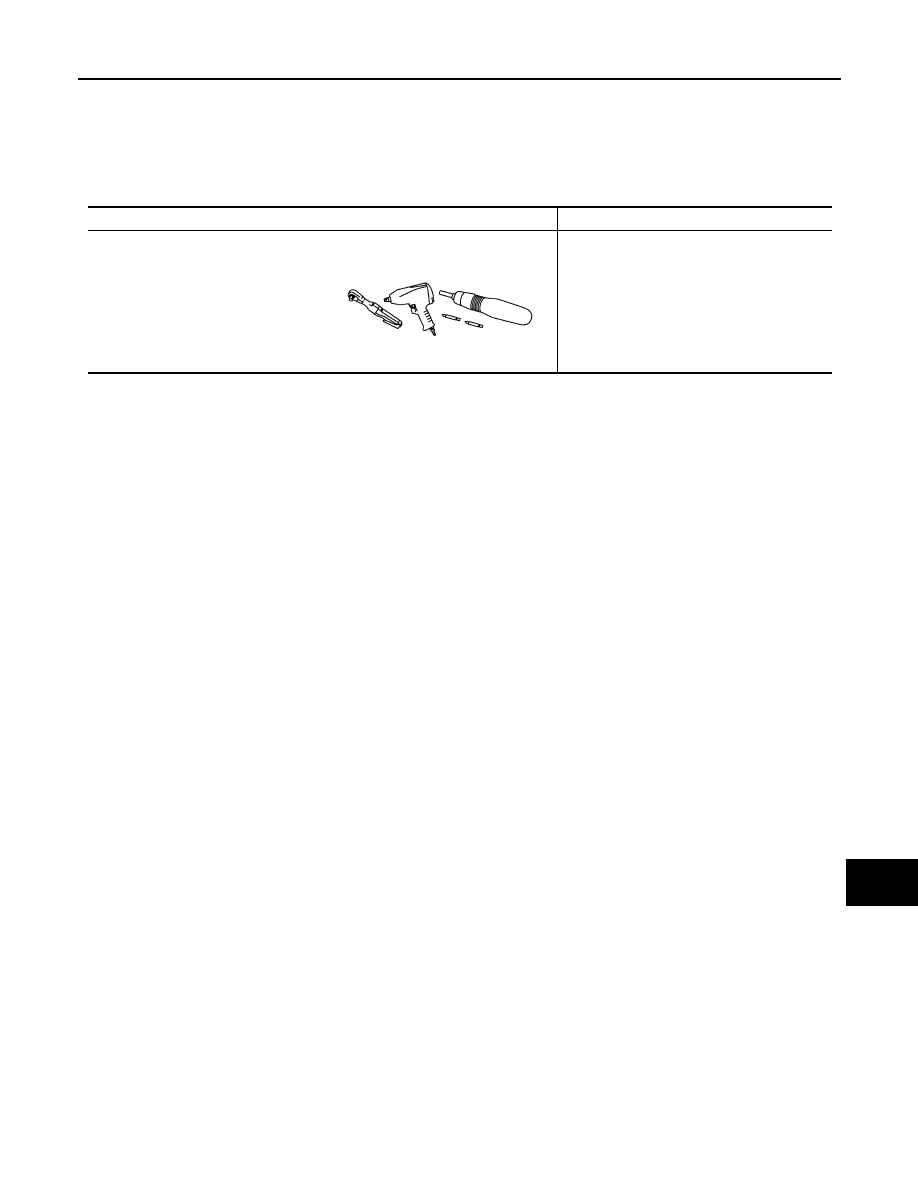

Power tool

Loosening nuts, screws and bolts

PIIB1407E

MWI-90

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000009480400

1. Remove the cluster lid A. Refer to

IP-17, "Removal and Installation"

2. Remove the combination meter, using a power tool.
3. Disconnect the harness connectors from the combination meter.

INSTALLATION

Installation is in the reverse order of removal.

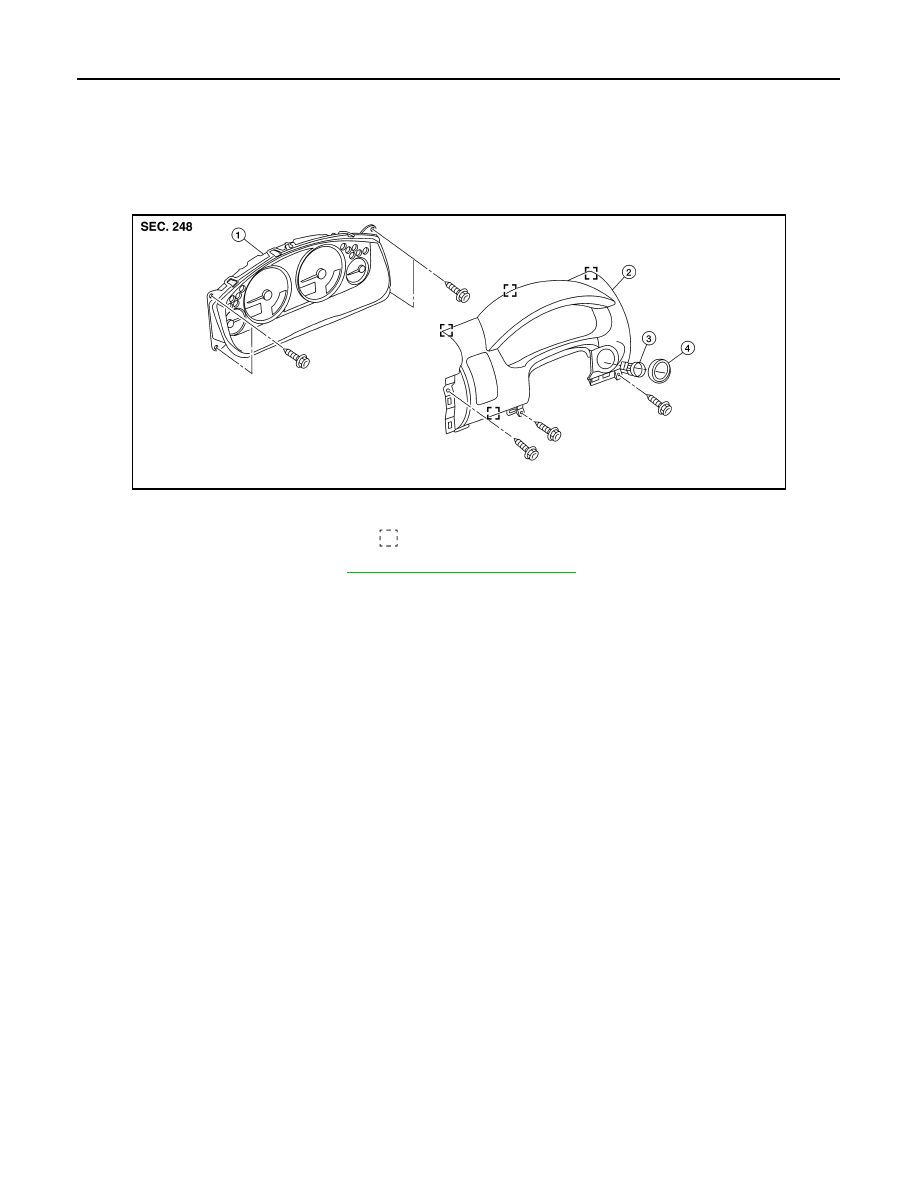

AWJIA1007ZZ

1.

Combination meter

2.

Cluster lid A

3. Ignition key lamp assembly

4.

Steering lock escutcheon

Metal clip

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

REMOVAL AND INSTALLATION ................

4

PARKING BRAKE SYSTEM ...............................

4

On-Vehicle Service  ...................................................

4

UNIT REMOVAL AND INSTALLATION .......

5

PARKING BRAKE CONTROL ...........................

5

Component ...............................................................

5

Removal and Installation  ..........................................

6

PARKING BRAKE SHOE  ..................................

7

Component ...............................................................

7

Removal and Installation  ..........................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

10

Parking Drum Brake  ................................................

10

Parking Brake Control  .............................................

10
