Nissan Frontier. Manual - part 89





AV-348

< REMOVAL AND INSTALLATION >

[NAVIGATION]

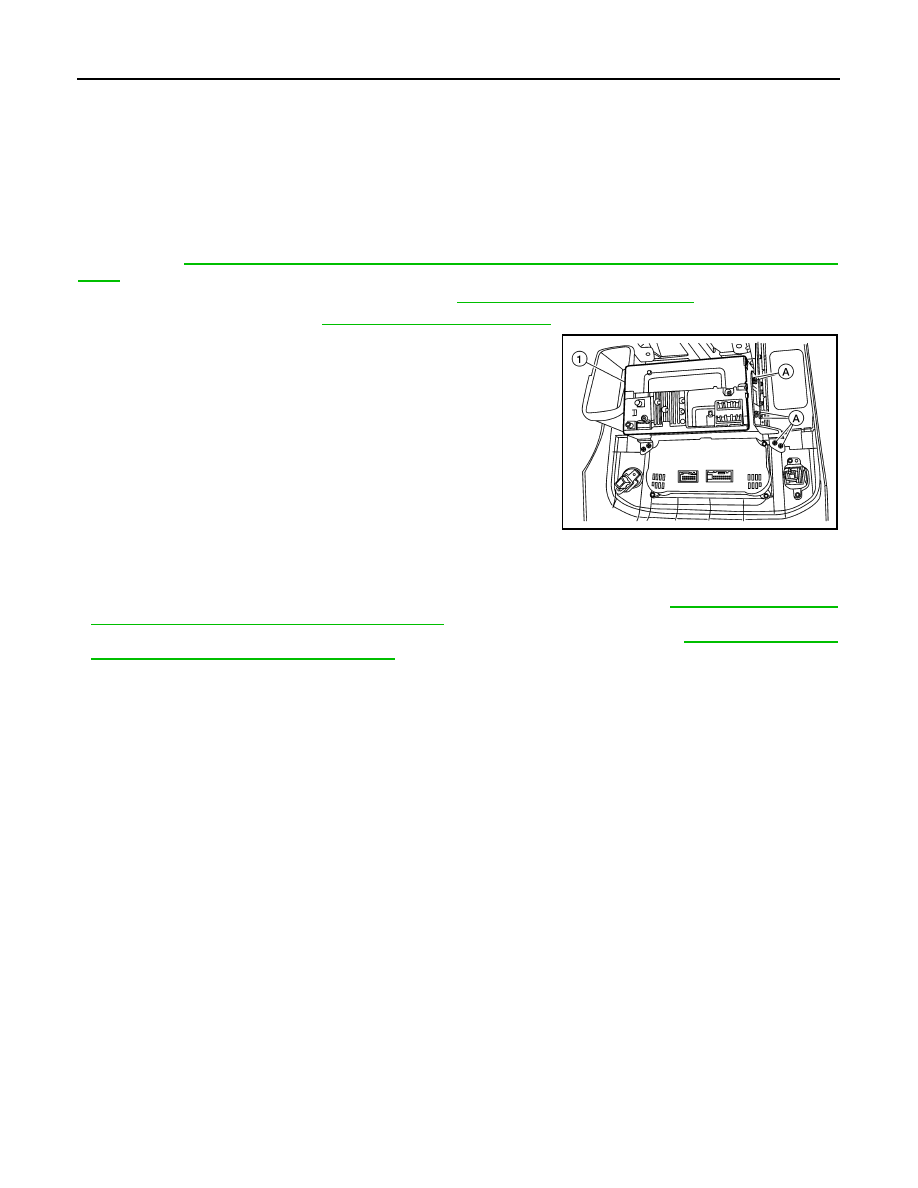

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000009482252

REMOVAL

CAUTION:

Before replacing AV control unit, perform "READ CONFIGURATION" to save current vehicle specifica-

tion. Refer to

AV-283, "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Proce-

dure"

.

1. Disconnect the negative battery terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

3. Remove the screws (A) from the bracket.
4. Remove the audio unit (1) from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing AV control unit, perform "WRITE CONFIGURATION". Refer to

AV-285, "CONFIGURA-

TION (AV CONTROL UNIT) : Configuration List"

.

• When replacing AV control unit, the AV control unit must be registered. Refer to

AV-285, "REGISTRA-

TION (AV CONTROL UNIT) : Description"

.

ALNIA2930ZZ

AV

AUDIO AMP.

AV-349

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

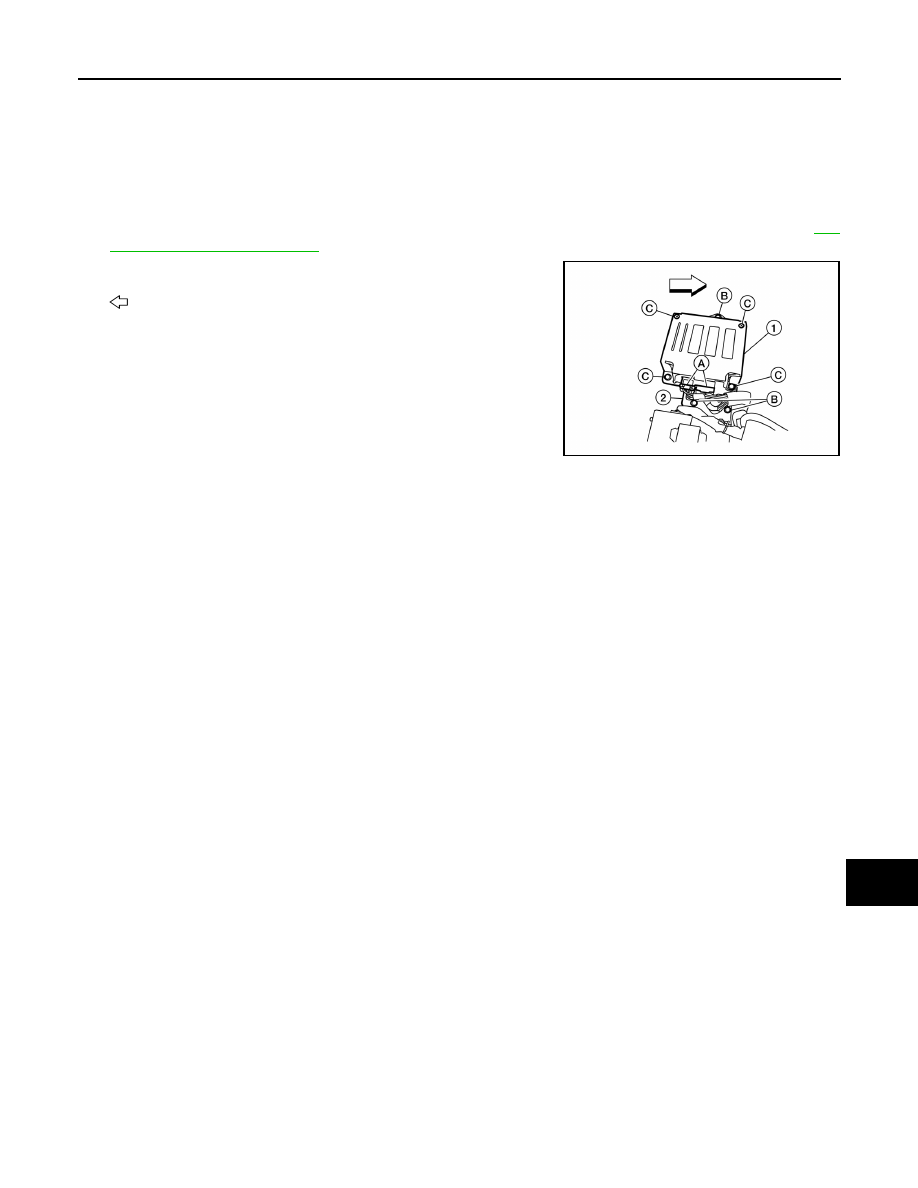

AUDIO AMP.

Removal and Installation

INFOID:0000000009482253

REMOVAL

NOTE:

Do not remove the RH front seat from the vehicle.
1. Remove the RH front seat bolts, disconnect the harness connectors from the RH front seat. Refer to

SE-

32, "Removal and Installation"

2. Tilt the RH front seat back to access the audio amp. (1) and

remove the audio amp. kick shield screws (C).

: Front

3. Disconnect the harness connectors (A) from the audio amp. and

remove the audio amp. (1) from the bracket (2).

4. Remove the audio amp. bracket screws (B) and bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1248ZZ

AV-350

< REMOVAL AND INSTALLATION >

[NAVIGATION]

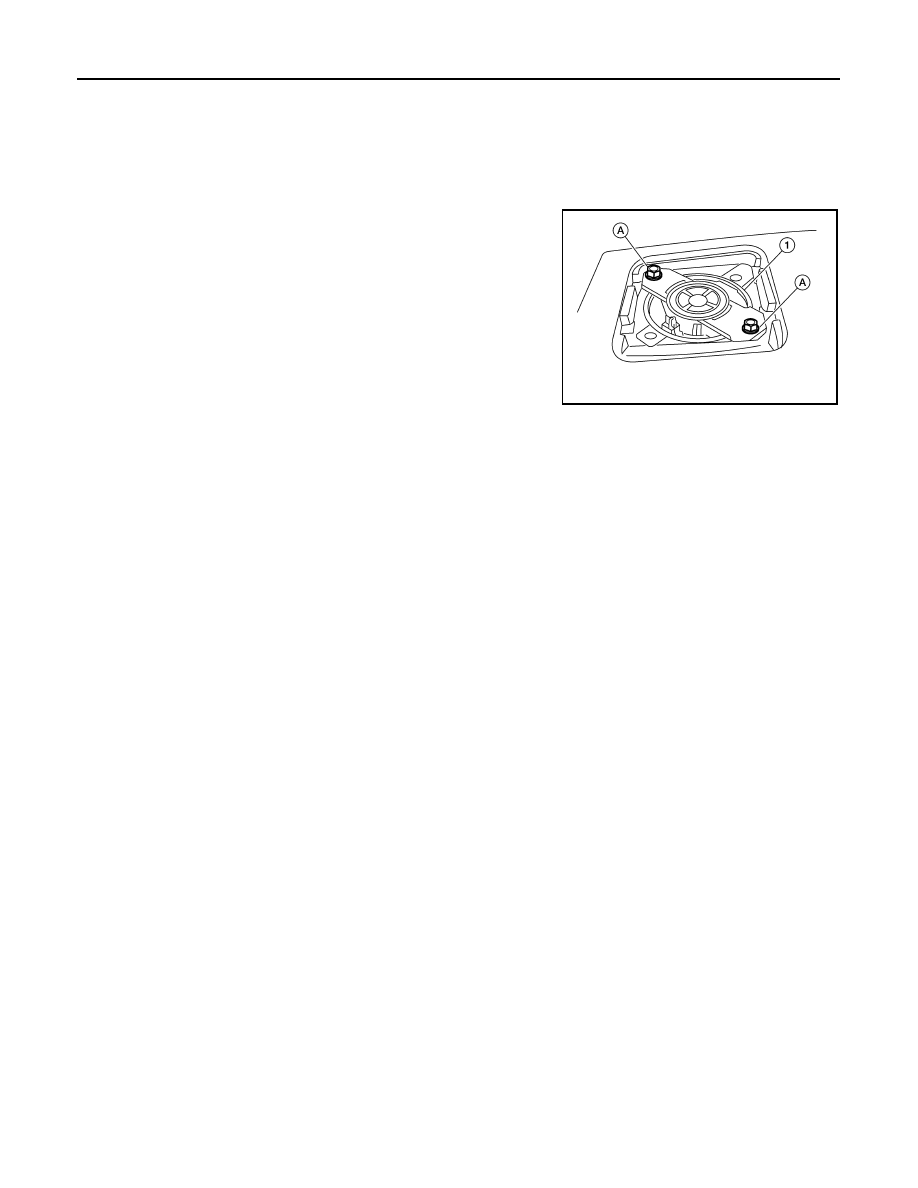

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000009482254

REMOVAL

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter (1), then disconnect the harness con-

nector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ

AV

FRONT DOOR SPEAKER

AV-351

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

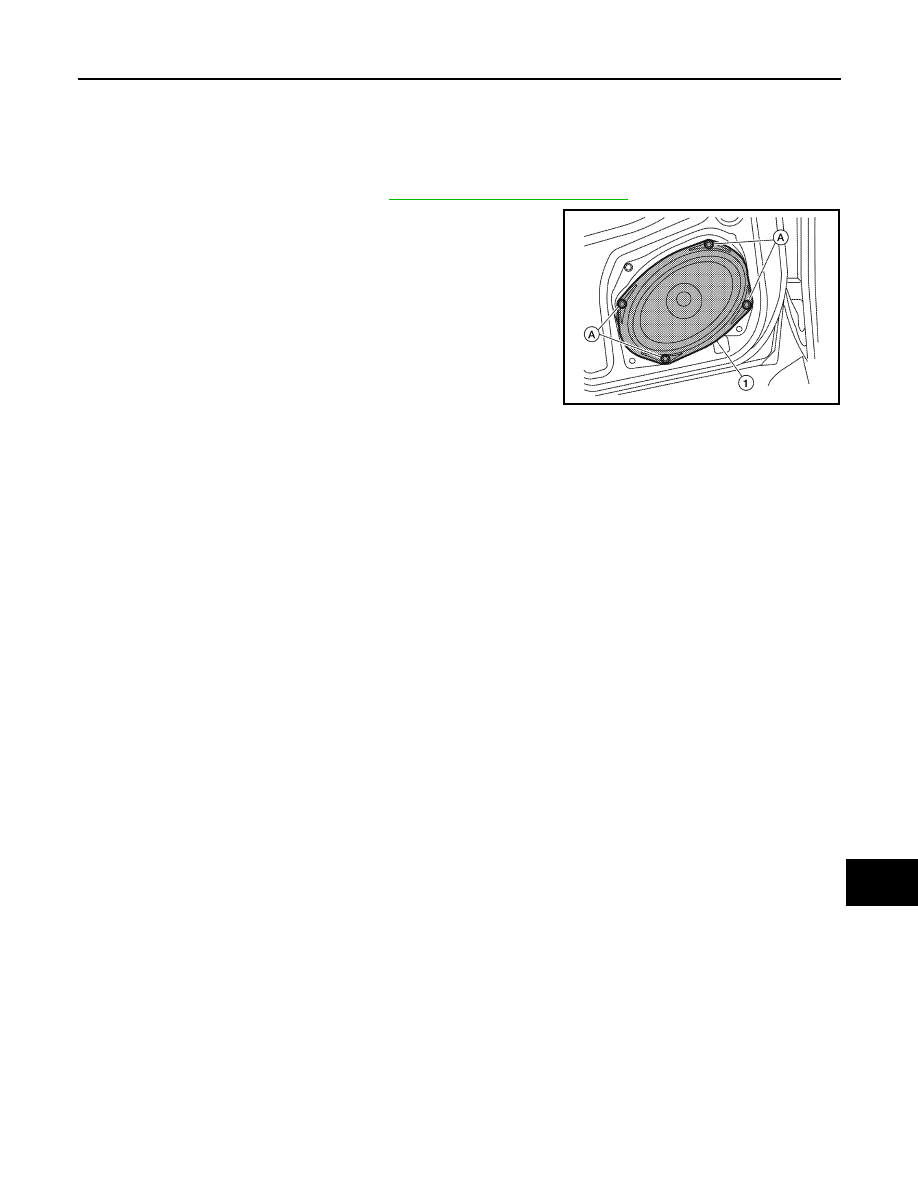

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009482255

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1) and disconnect the harness

connector from the front door speaker.

4. Remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ
