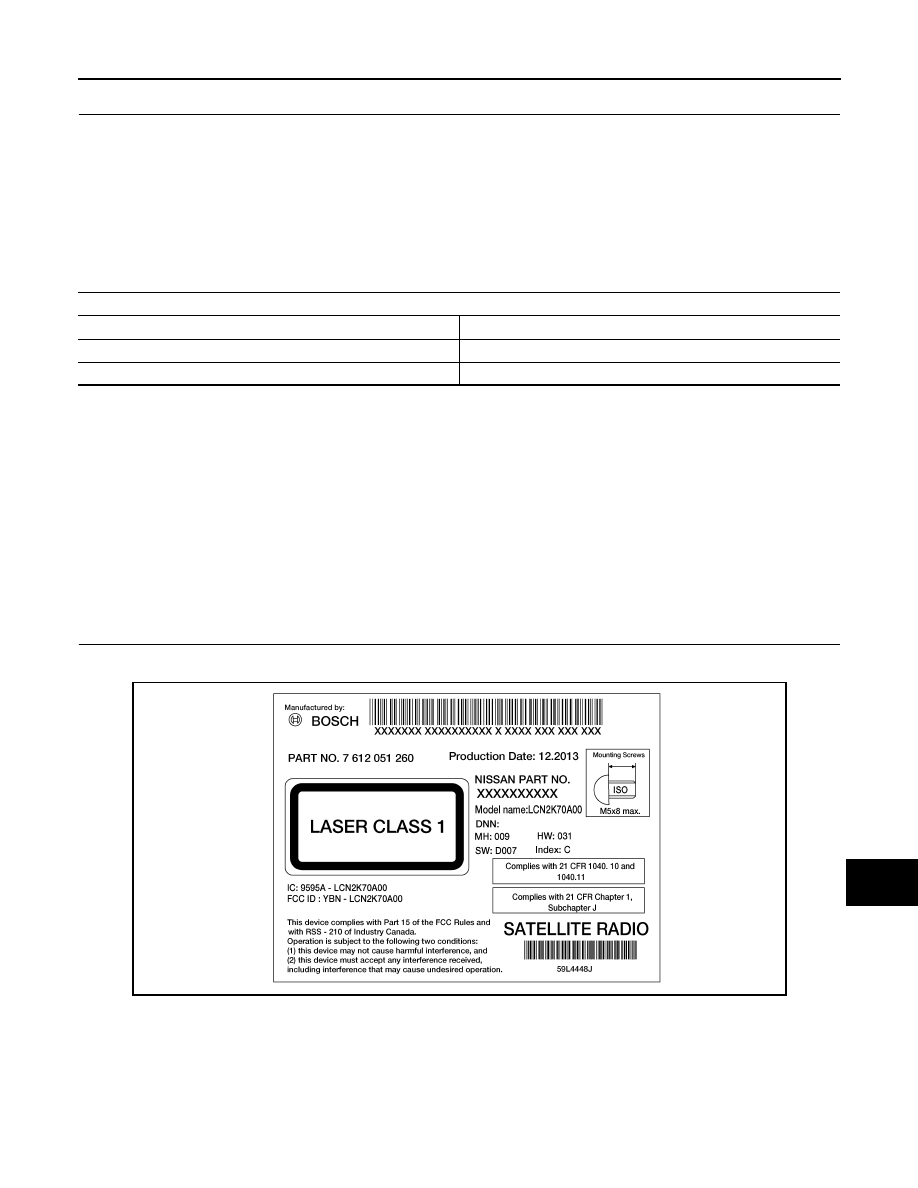

AV-284
< BASIC INSPECTION >
[NAVIGATION]
INSPECTION AND ADJUSTMENT
>> Work End.
CONFIGURATION (AV CONTROL UNIT)
CONFIGURATION (AV CONTROL UNIT) : Description
INFOID:0000000009482201
Vehicle specification needs to be written with CONSULT because it is not written after replacing AV control
unit.
Configuration has three functions as follows:
CAUTION:
• When replacing AV control unit, you must perform “Select Saved Data List” or "After Replace ECU"
with CONSULT.
• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.
• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “Select Saved Data List” or "After Replace ECU" except for new AV control unit.
CONFIGURATION (AV CONTROL UNIT) : Work Procedure
INFOID:0000000009482202
1.
WRITING MODE SELECTION
CONSULT
Select “Reprogramming, Configuration” of AV control unit.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.
PERFORM “SAVED DATA LIST”
CONSULT
Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select
applicable file from the “Save Data List” and press “Confirm”.
>> Work End.
3.
PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”
CONSULT
1. Select “After Replace ECU” or “Manual Configuration”.
2. Identify the correct model and configuration list. Refer to
AV-285, "CONFIGURATION (AV CONTROL
3. Confirm and/or change setting value for each item.
CAUTION:
Thoroughly read and understand the vehicle specification. ECU control may not operate normally
if the setting is not correct.
4. Select “Next”.
CAUTION:
Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-
figuration of brand new AV control unit is same as the desirable configuration. If not, configuration
which is set automatically by selecting vehicle model can not be memorized.
5. When "Completed", select "End".
>> GO TO 4.
Function
Description
"Before Replace ECU"
• Reads the vehicle configuration of current AV control unit.
• Saves the read vehicle configuration.
"After Replace ECU"
Writes the vehicle configuration with manual selection.
"Select Saved Data List"
Writes the vehicle configuration with saved data.
