AV-280

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

ABNIA5610GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-281

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009482198

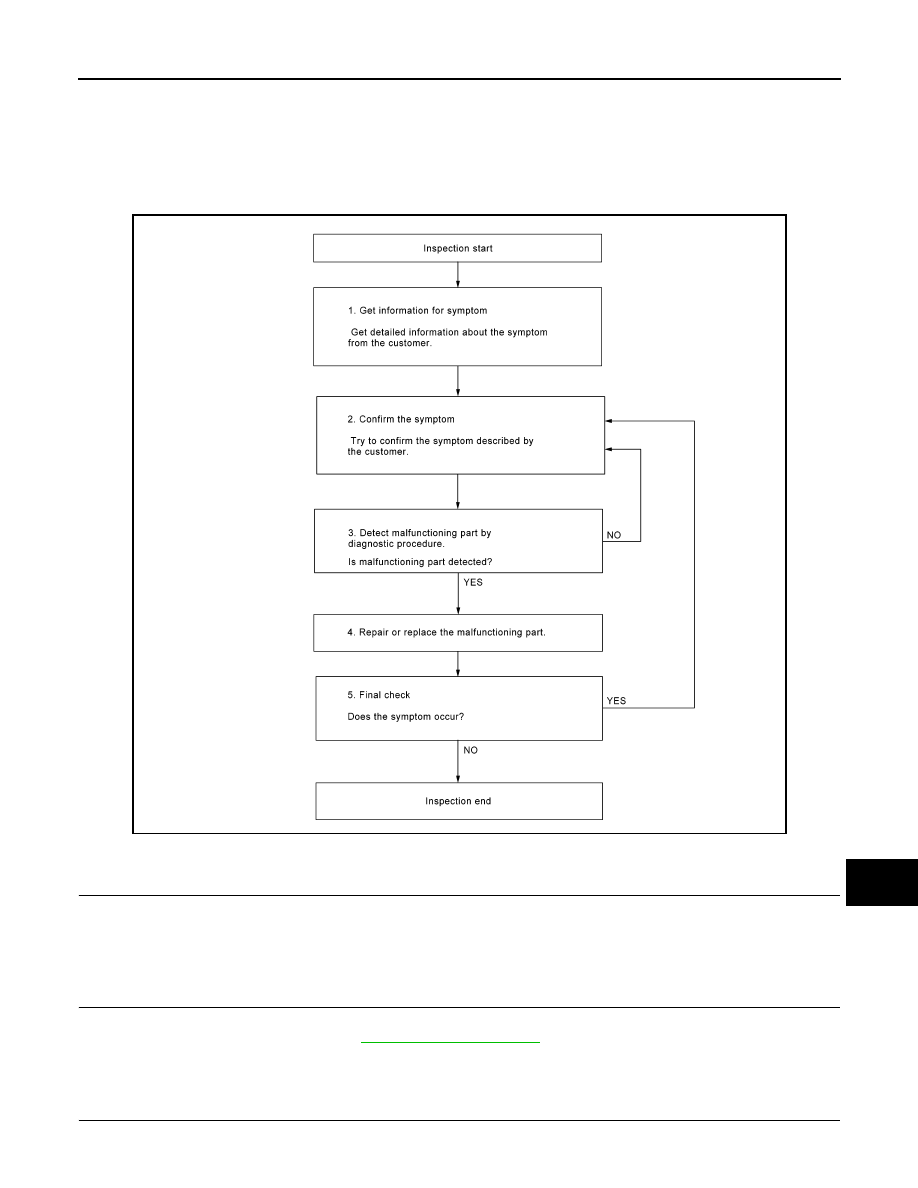

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected. Refer to

AV-331, "Symptom Table"

.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB

AV-282

< BASIC INSPECTION >

[NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2

AV

INSPECTION AND ADJUSTMENT

AV-283

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Description

INFOID:0000000009482199

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before

replacement.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” with CONSULT.

• Complete the procedure of “After Replace ECU” in order.

• If you set incorrect “After Replace ECU”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Procedure

INFOID:0000000009482200

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-348, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

AV-284, "CONFIGURATION (AV CONTROL UNIT) : Work Procedure"

.

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

AV-284, "CONFIGURATION (AV CONTROL UNIT) : Work Pro-

cedure"

.

>> GO TO 4.

4.

REGISTER AV CONTROL UNIT

Perform AV control unit registration. Refer to

AV-285, "REGISTRATION (AV CONTROL UNIT) : Work Proce-

dure"

.

>> GO TO 5.

5.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines) are normal.
