DIAGNOSIS SYSTEM (AUDIO UNIT)

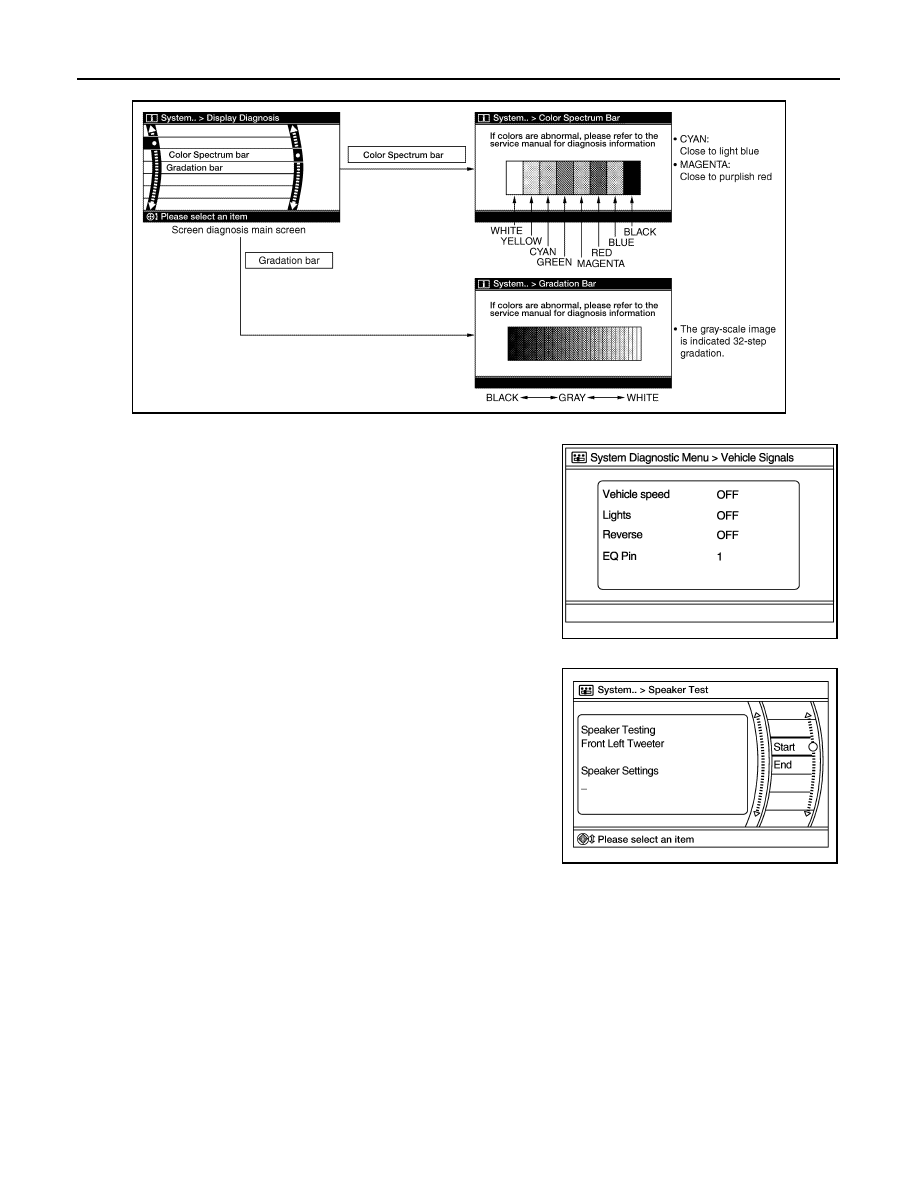

Display Diagnosis

Vehicle Signals

A comparison check can be made of each actual vehicle signal and

the signals recognized by the system.

Speaker Test

Select Speaker Test to display the Speaker Diagnosis screen. Press

Start to generate a test tone in a speaker. Press Start again to gener-

ate a test tone in the next speaker. Press End to stop the test tones.

Error History

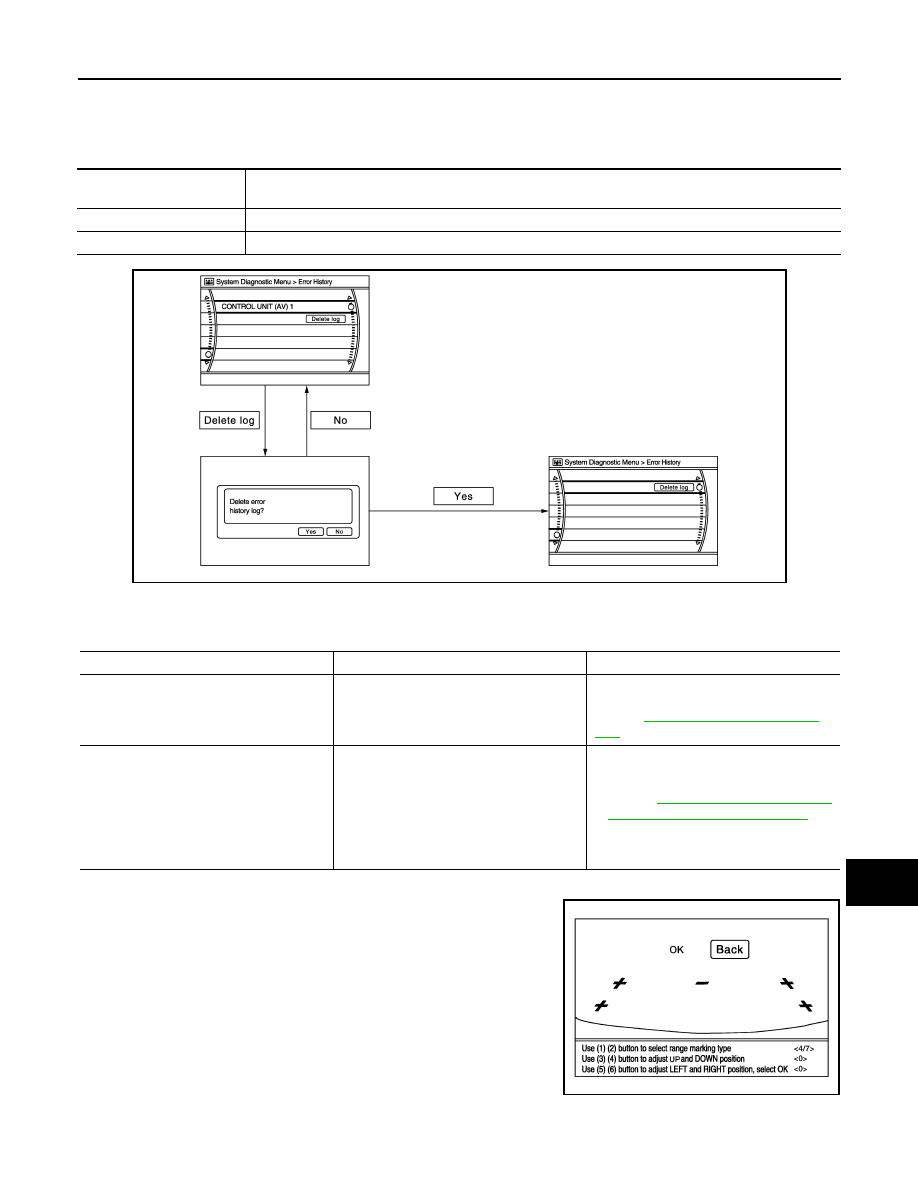

The self diagnosis results are judged depending on whether any error occurs from when Self Diagnosis is

selected until the self diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned

ON and then no error has occurred until the self diagnosis start. Check the Error Record to detect any error

that may have occurred before the self diagnosis start because of this situation.

The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending

on the error item.

Count up method A

• The counter is set to 40 if an error occurs. 1 is subtracted from the counter if the condition is normal at a next

ignition ON cycle.

• The counter lower limit is 1. The counter can be reset (no error record display) with the Delete log switch.

Count up method B
