AV-88

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

AUDIO ANTENNA

AUDIO ANTENNA

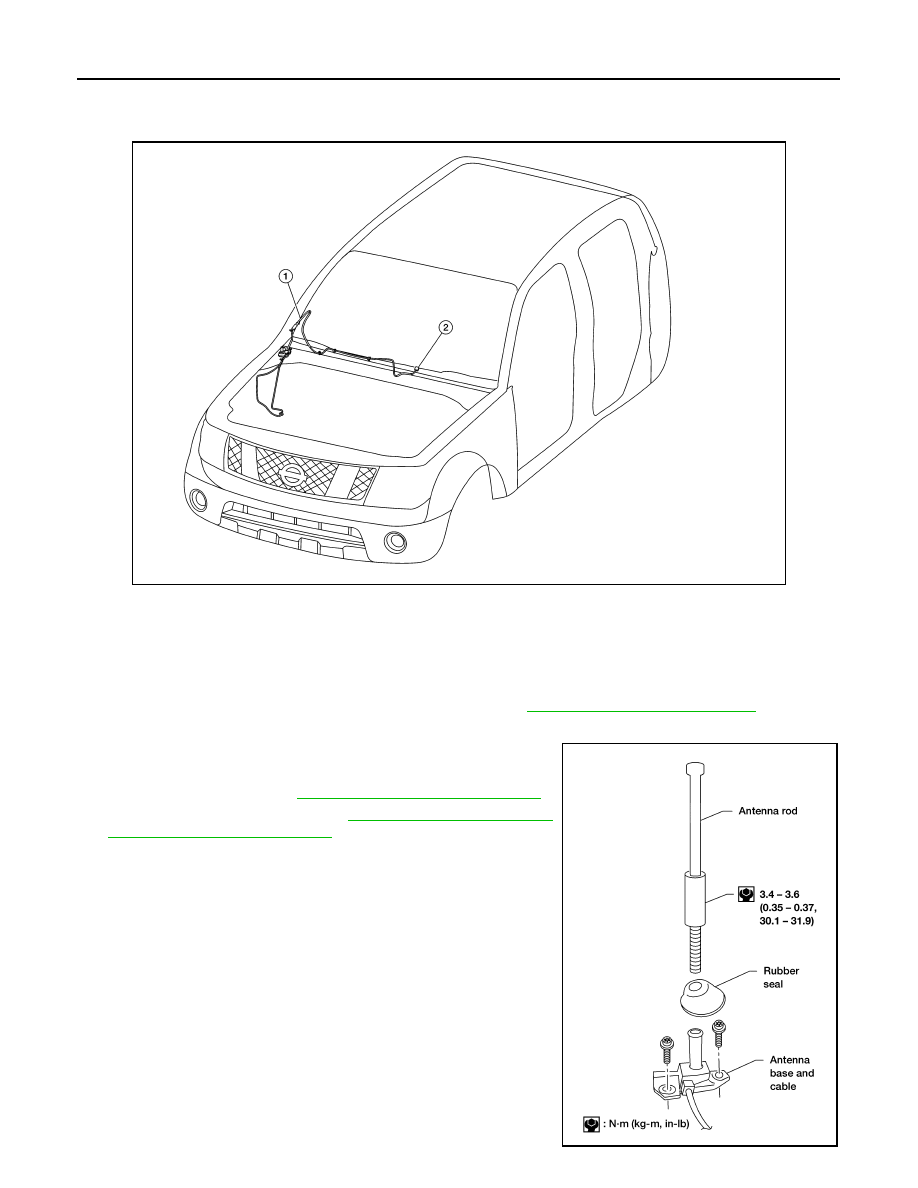

Location of Antenna

INFOID:0000000010227936

Removal and Installation

INFOID:0000000010227937

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-24, "Removal and Installation"

.

2. Disconnect audio antenna cable from antenna feeder.
3. Remove antenna rod.
4. Remove rubber seal.
5. Remove cowl top. Refer to

EXT-24, "Removal and Installation"

.

6. Remove fender protector. Refer to

EXT-27, "Removal and Instal-

lation of Front Fender Protector"

.

7. Remove antenna base bolts.
8. Remove antenna base and cable.

AWNIA2927ZZ

1.

Coaxial antenna feeder

2.

Coaxial connector

AEL610C

AV

AUDIO ANTENNA

AV-89

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Always properly tighten the antenna rod during installation or the antenna rod may bend or break dur-

ing vehicle operation.

AV-90

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

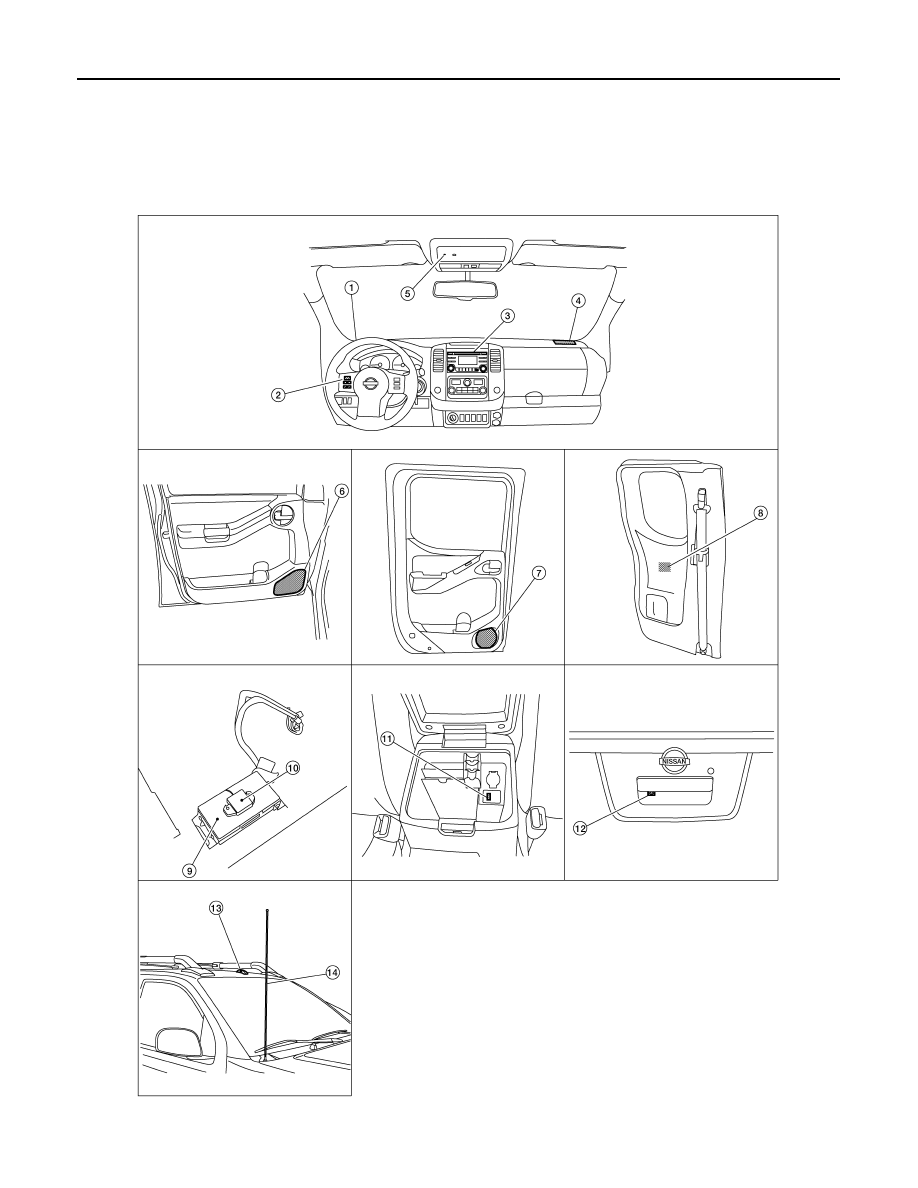

Component Parts Location

INFOID:0000000009482099

AWNIA2917ZZ

AV

COMPONENT PARTS

AV-91

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000009482100

1.

Front tweeter LH M109

2.

Steering wheel audio control switches 3.

Audio unit M41, M44, M45, M64

4.

Front tweeter RH M111

5.

Microphone R8

6.

Front door speaker LH D12
Front door speaker RH D112

7.

Rear door speaker LH D207 (crew
cab)
Rear door speaker RH D307 (crew
cab)

8.

Rear door speaker LH B76 (king cab)
Rear door speaker RH B160 (king cab)

9.

Bluetooth

®

 control unit B141, B142,

B143 (Underneath passenger seat)

10. Bluetooth

®

 antenna

11. USB interface M214

12. Rear view camera C251

13. Satellite antenna

14. Rod antenna

Part name

Description

Audio unit

• Controls audio, USB connection, AUX IN connection, satellite radio and rear view

camera functions.

• Display unit is built in to audio unit.

Front door speakers

Outputs high, mid and low range audio signals from audio unit.

Rear door speakers

Front tweeters

Steering wheel audio control switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to Bluetooth

®

 control unit.

• Bluetooth

®

 control unit outputs steering switch signal to audio unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to Bluetooth

®

 control unit.

• Power is supplied from Bluetooth

®

 control unit.

Bluetooth

®

 control unit

• Inputs TEL voice signal from Bluetooth

®

 antenna and outputs it to audio unit.

• Controlled via AV communication by audio unit.

Bluetooth

®

 antenna

Receives TEL voice signal and outputs it to Bluetooth

®

 control unit.

USB interface

USB sound and data input signals are transmitted to audio unit.

Rear view camera

• Outputs image of vehicle rear to audio unit.
• Power is supplied from audio unit.

Satellite antenna

Satellite radio signal is received and transmitted to audio unit.

Rod antenna

AM/FM signal is received and transmitted to the audio unit.
