AV-84

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000010227932

REMOVAL

1. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

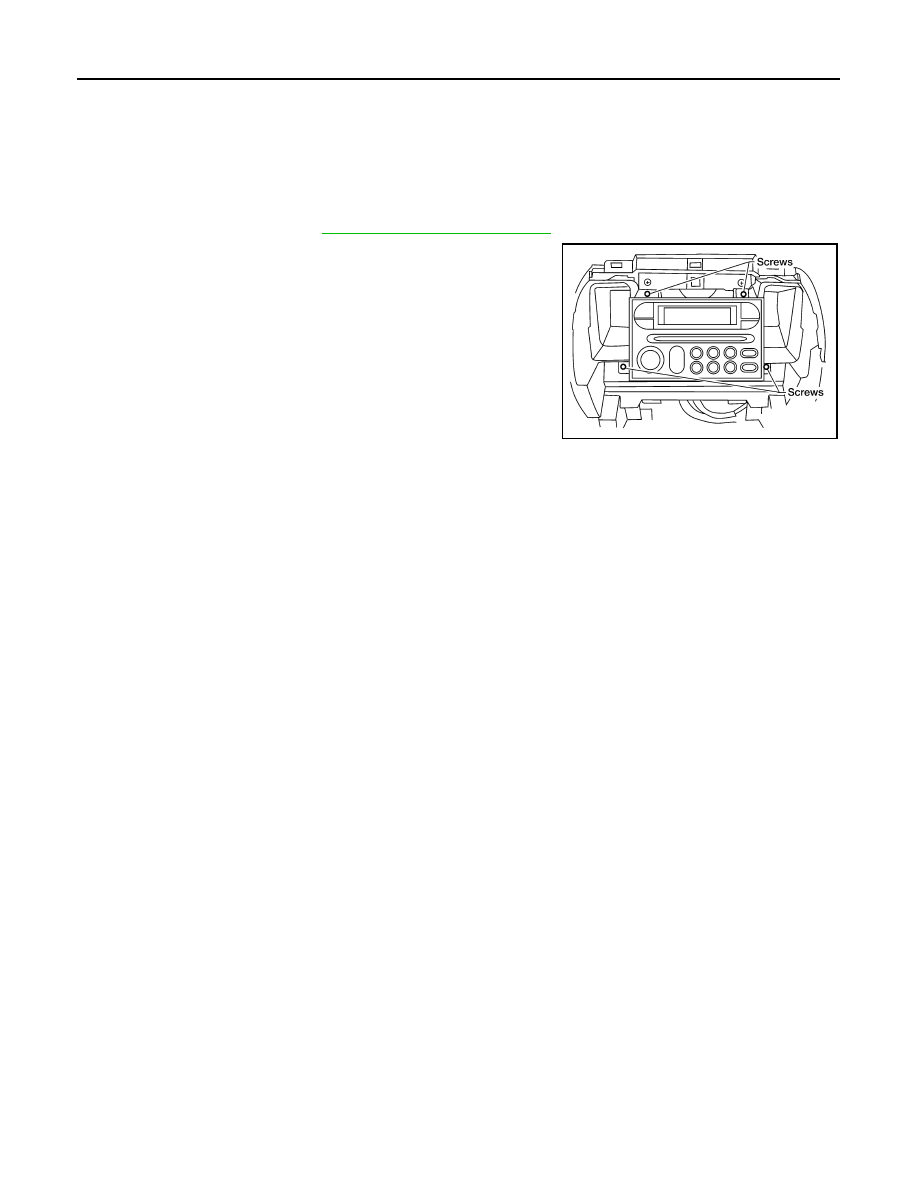

2. Remove the audio control unit screws using power tools.
3. Pull out the audio unit from the instrument panel and disconnect

the harness connector from the audio unit.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0582E

AV

FRONT TWEETER

AV-85

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000010227933

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.
1. Remove the front tweeter grille.

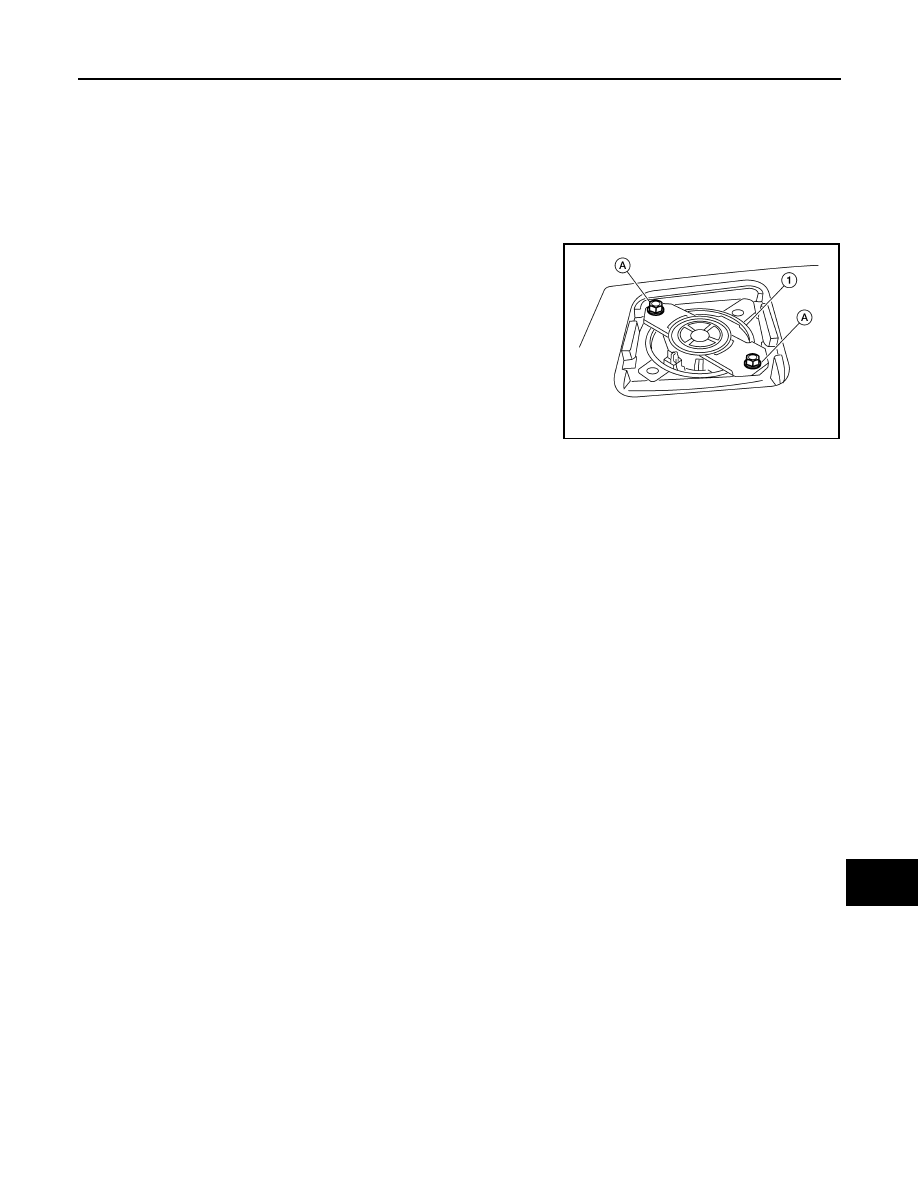

2. Remove the front tweeter screws (A).
3. Pull out the front tweeter (1), then disconnect the harness con-

nector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ

AV-86

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010227934

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

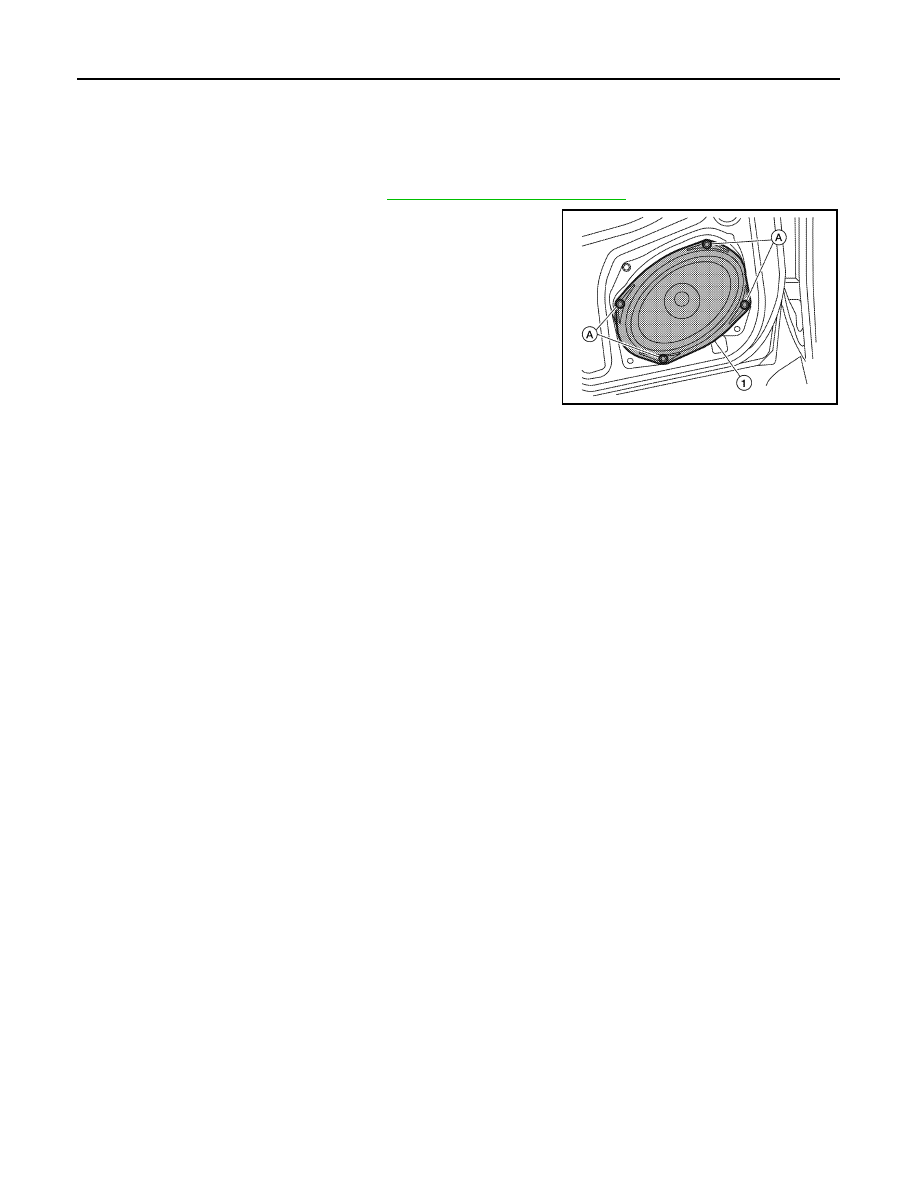

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1).
4. Disconnect the harness connector from the front door speaker

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-87

< REMOVAL AND INSTALLATION >

[BASE AUDIO (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010227935

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

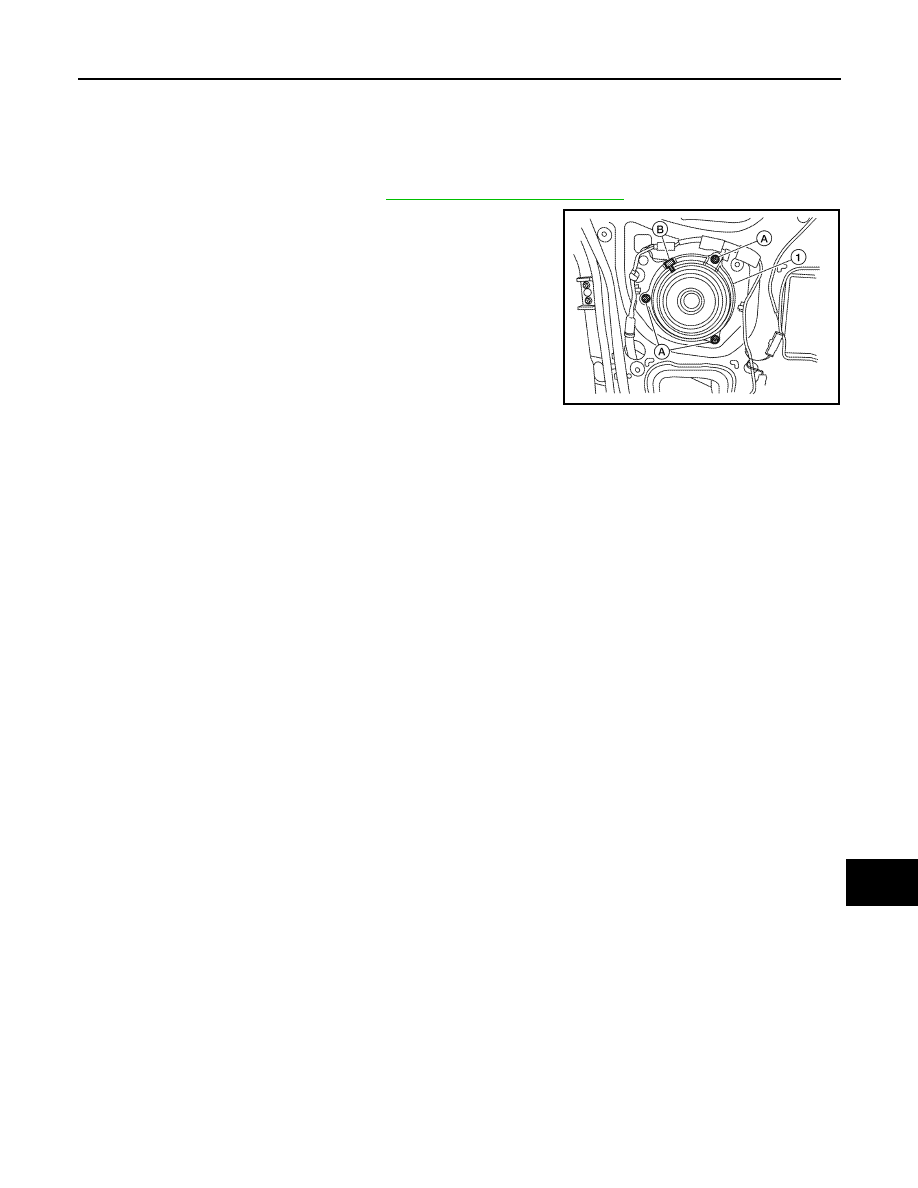

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ
