AV-48

< PREPARATION >

[BASE AUDIO (EXCEPT MEXICO)]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009482091

The actual shape of the tools may differ from those of illustrated here.

Commercial Service Tools

INFOID:0000000009482092

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

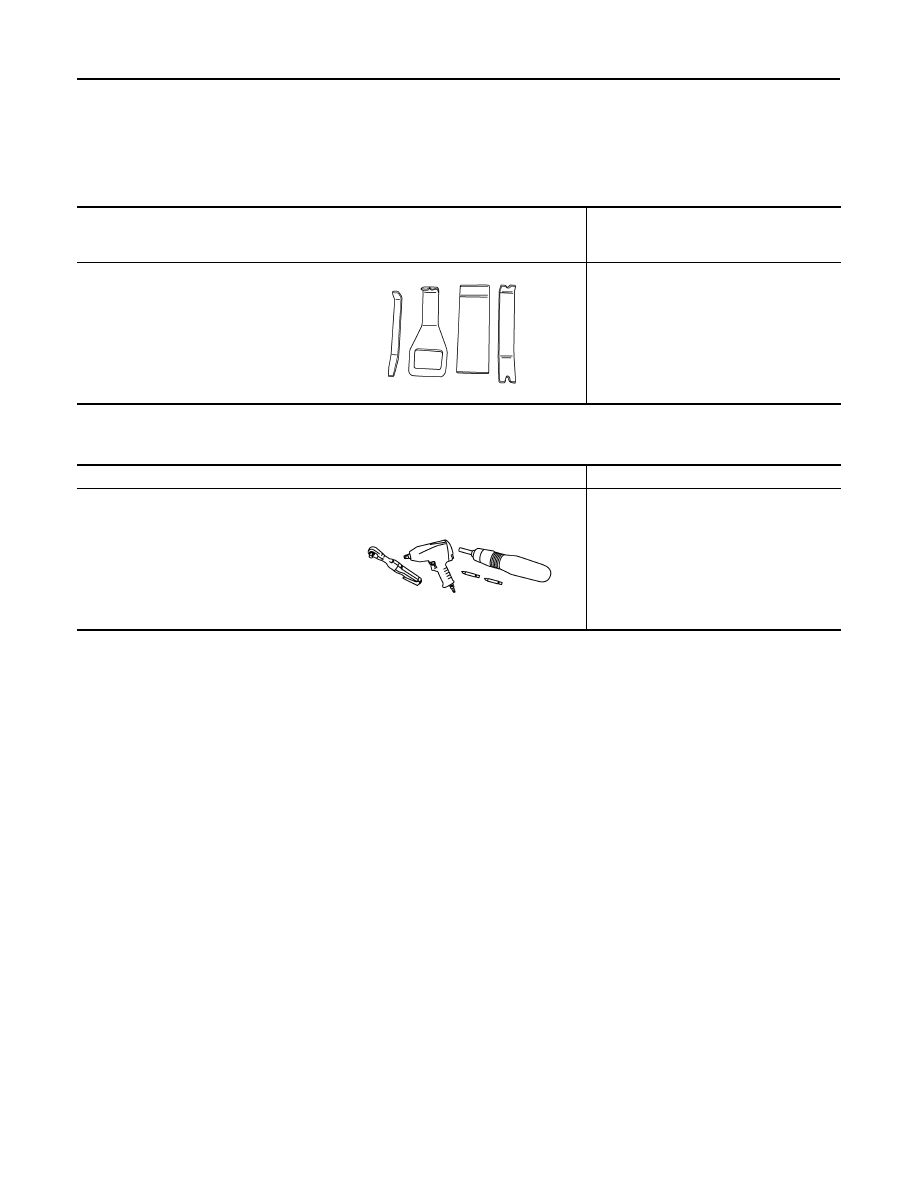

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV

AUDIO UNIT

AV-49

< REMOVAL AND INSTALLATION >

[BASE AUDIO (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000009482093

REMOVAL

1. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

2. Remove the audio control unit screws using power tools.
3. Pull out the audio unit from the instrument panel and disconnect

the harness connector from the audio unit.

INSTALLATION

Installation is in the reverse order of removal.

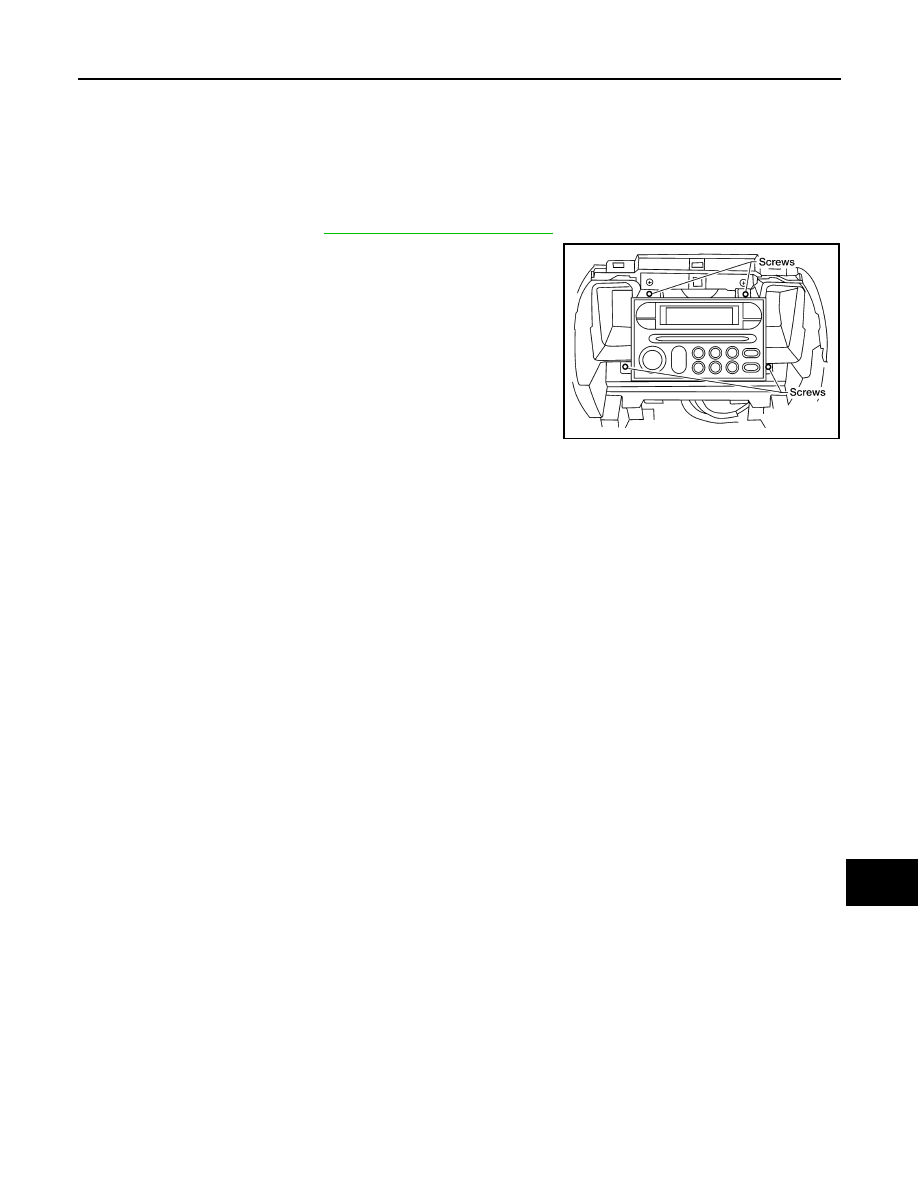

LKIA0582E

AV-50

< REMOVAL AND INSTALLATION >

[BASE AUDIO (EXCEPT MEXICO)]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000009482094

REMOVAL

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter (1), then disconnect the harness con-

nector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

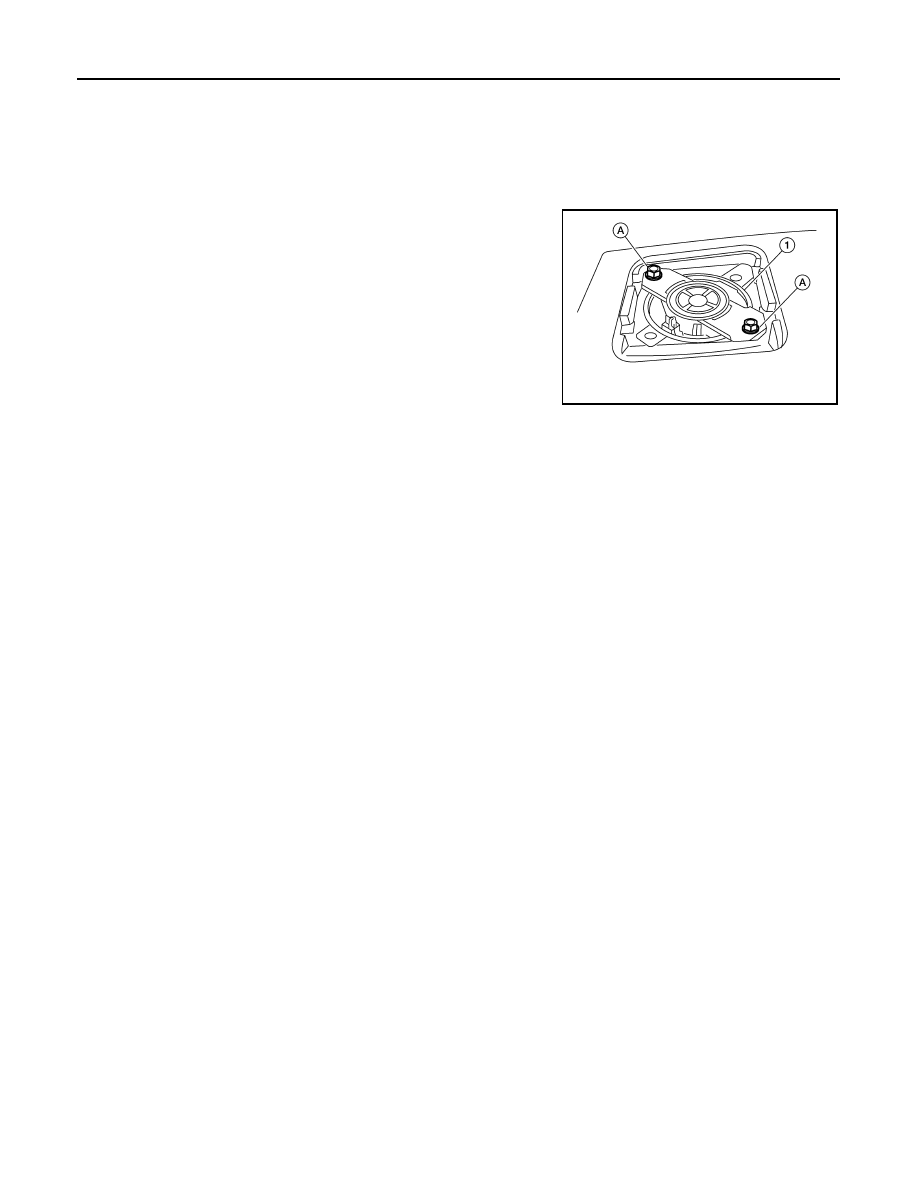

ALNIA1074ZZ

AV

FRONT DOOR SPEAKER

AV-51

< REMOVAL AND INSTALLATION >

[BASE AUDIO (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009482095

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1).
4. Disconnect the harness connector from the front door speaker

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

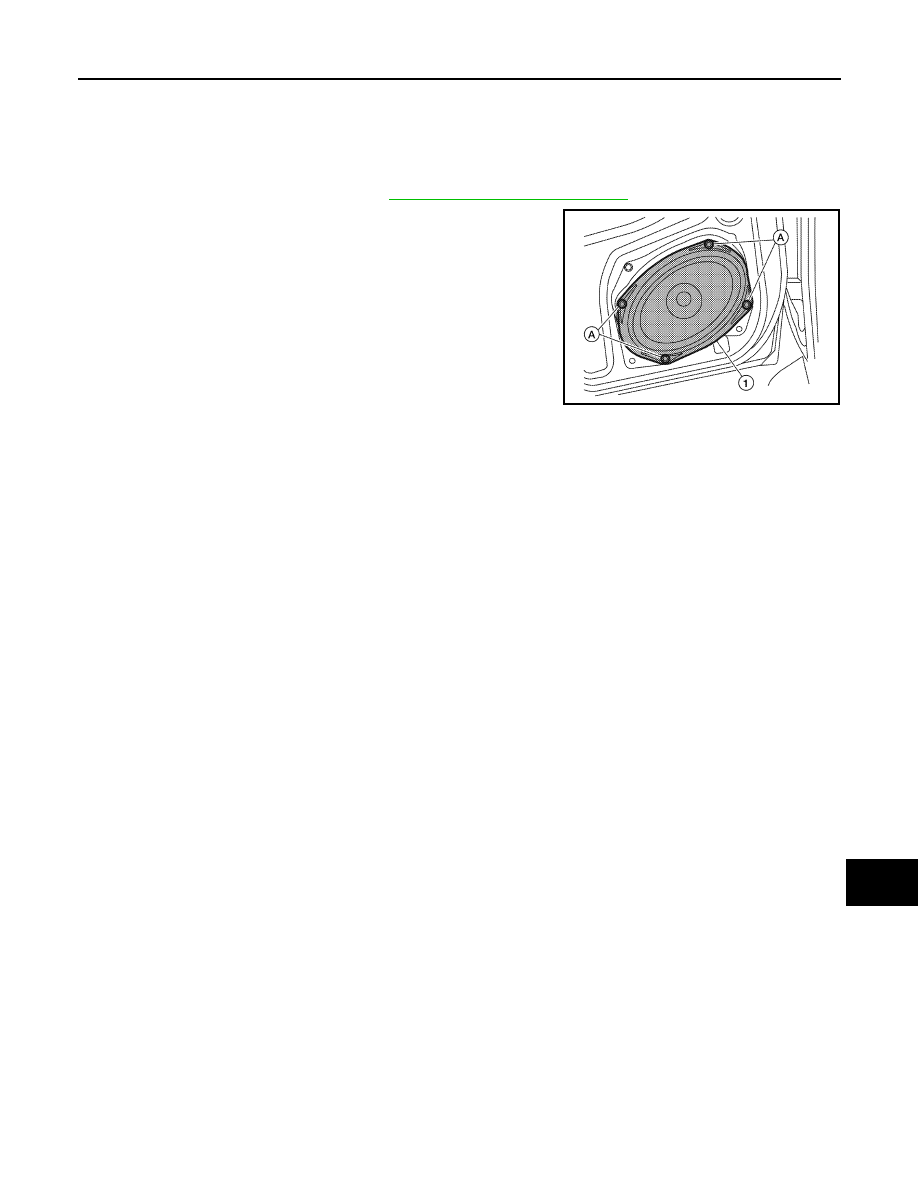

ALNIA0347ZZ
