WW-44

< DTC/CIRCUIT DIAGNOSIS >

WASHER MOTOR CIRCUIT

5.

 CHECK WIPER AND WASHER SWITCH

Check wiper and washer switch. Refer to

WW-45, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace front washer motor. Refer to

WW-62, "Removal and Installation"

.

NO

>> Replace wiper and washer switch. Refer to

WW-63, "Removal and Installation"

.

WASHER SWITCH

WW-45

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

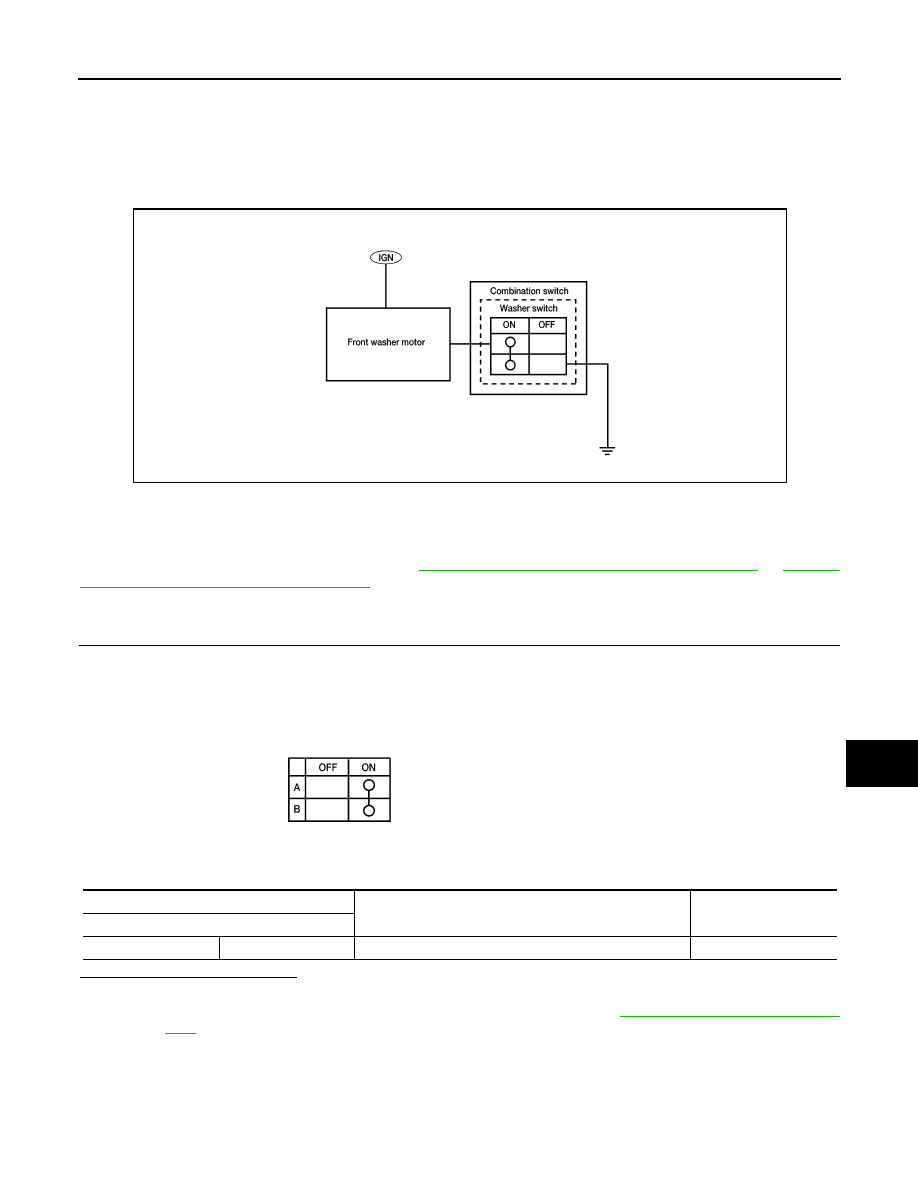

WASHER SWITCH

Description

INFOID:0000000009756095

• Washer switch is integrated with combination switch (wiper and washer switch).

• Combination switch (wiper and washer switch) supplies ground and fuse # 6 supplies power for the front

washer motor to operate.

Component Inspection

INFOID:0000000009756096

Regarding Wiring Diagram information, refer to

WW-24, "Wiring Diagram - With Intelligent Key"

 or

WW-29,

"Wiring Diagram - Without Intelligent Key"

.

1.

 CHECK WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch (wiper and washer switch) connector M28.

3. Check continuity between the combination switch (wiper and washer switch) terminals.

Is the inspection result normal?

YES

>> Washer switch is normal.

NO

>> Replace combination switch (wiper and washer switch). Refer to

WW-63, "Removal and Installa-

tion"

.

AWLIA2070GB

A: Terminal 1
B: Terminal 6

ALLIA0546GB

Combination switch (wiper and washer switch)

Condition

Continuity

Terminal

1

6

Washer switch ON

Yes

WW-46

< SYMPTOM DIAGNOSIS >

WIPER AND WASHER SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

WIPER AND WASHER SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009756097

CAUTION:

Perform the self-diagnosis with CONSULT before performing the diagnosis by symptom. Perform the

diagnosis by DTC if DTC is detected.

Symptom

Probable malfunction location

Inspection item

Front wiper does not
operate

HI only

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

• IPDM  E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper motor (HI) circuit
Refer to

WW-39, "Compo-

nent Function Check"

.

Front wiper request signal
• BCM
• IPDM  E/R

IPDM E/R
Data monitor “FR WIP REQ”

LO and INT

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

• IPDM  E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper motor (LO) circuit
Refer to

WW-37, "Compo-

nent Function Check"

.

Front wiper request signal
• BCM
• IPDM  E/R

IPDM E/R
Data monitor “FR WIP REQ”

INT only

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

Front wiper request signal
• BCM
• IPDM  E/R

IPDM E/R
Data monitor “FR WIP REQ”

HI, LO, and INT

SYMPTOM DIAGNOSIS
Refer to

WW-48, "Diagnosis Procedure"

.

WIPER AND WASHER SYSTEM SYMPTOMS

WW-47

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Front wiper does not
stop

HI only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor “FR WIP REQ”

IPDM E/R

—

LO only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor “FR WIP REQ”

IPDM E/R

—

INT only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
refer to

WW-8, "System De-

scription"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor “FR WIP REQ”

Front wiper does not
operate normally

Intermittent adjustment
cannot be performed.

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

BCM

—

Intermittent control
linked with vehicle
speed cannot be per-
formed.

Check the vehicle speed detection wiper setting.
Refer to

WW-12, "WIPER : CONSULT Function (BCM - WIPER)"

 (with Intelligent

Key
system) or

WW-14, "WIPER : CONSULT Function (BCM - WIPER)"

 (without Intel-

ligent Key system).

Wiper is not linked to
the washer operation.

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

BCM

—

Does not return to stop
position (Repeatedly
operates for 10 sec-
onds and then stops for
20 seconds. After that,
it stops the operation.

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper auto stop signal
circuit
Refer to:

WW-41, "Compo-

nent Function Check"

.

Front washer motor
does not operate.

Front washer motor
does not operate when
washing the windshield.

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

WW-8, "System De-

scription"

.

• Harness between combination switch (wiper

and washer switch) and front washer motor

• Front washer motor

Front washer motor circuit
Refer to

WW-43, "Diagnosis

Procedure"

.

Symptom

Probable malfunction location

Inspection item
