P1586 G SENSOR

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning parts.

6.

CHECK G SENSOR

1. Remove G sensor. Refer to

TM-265, "Removal and Installation"

.

2. Connect the all connectors.

3. Turn ignition switch ON.

4. Check voltage between TCM connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace G sensor. Refer to

TM-265, "Removal and Installation"

.

7.

CALIBRATION OF G SENSOR (PART 2)

With CONSULT

1. Install G sensor. Refer to

TM-265, "Removal and Installation"

.

2. Select “Self Diagnostic Results” in “TRANSMISSION”.

3. Touch “Erase”.

>> Perform “CALIBRATION OF G SENSOR”. Refer to

TM-147, "Work Procedure"

.

8.

CHECK SENSOR POWER SUPPLY CIRCUIT (PART 1)

1. Turn ignition switch OFF.

2. Disconnect TCM connector.

3. Check continuity between TCM harness connector terminal and G sensor harness connector terminal.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace malfunctioning parts.

9.

CHECK SENSOR POWER SUPPLY CIRCUIT (PART 2)

Check continuity between TCM harness connector terminal and ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace malfunctioning parts.

: Direction of gravitational force

+

-

Test  condition

Voltage

(Approx.)

TCM

Connector

Terminal

F23

14

Ground

: Vertical (

−1G)

1.17 V

: Horizontal

2.5 V

: Vertical (1G)

3.83 V

SCIA8343J

TCM

G sensor

Continuity

Connector

Terminal

Connector

Terminal

F23

26

B89

3

Existed

TCM

—

Continuity

Connector

Terminal

F23

26

Ground

Not existed

P1588 G SENSOR

TM-221

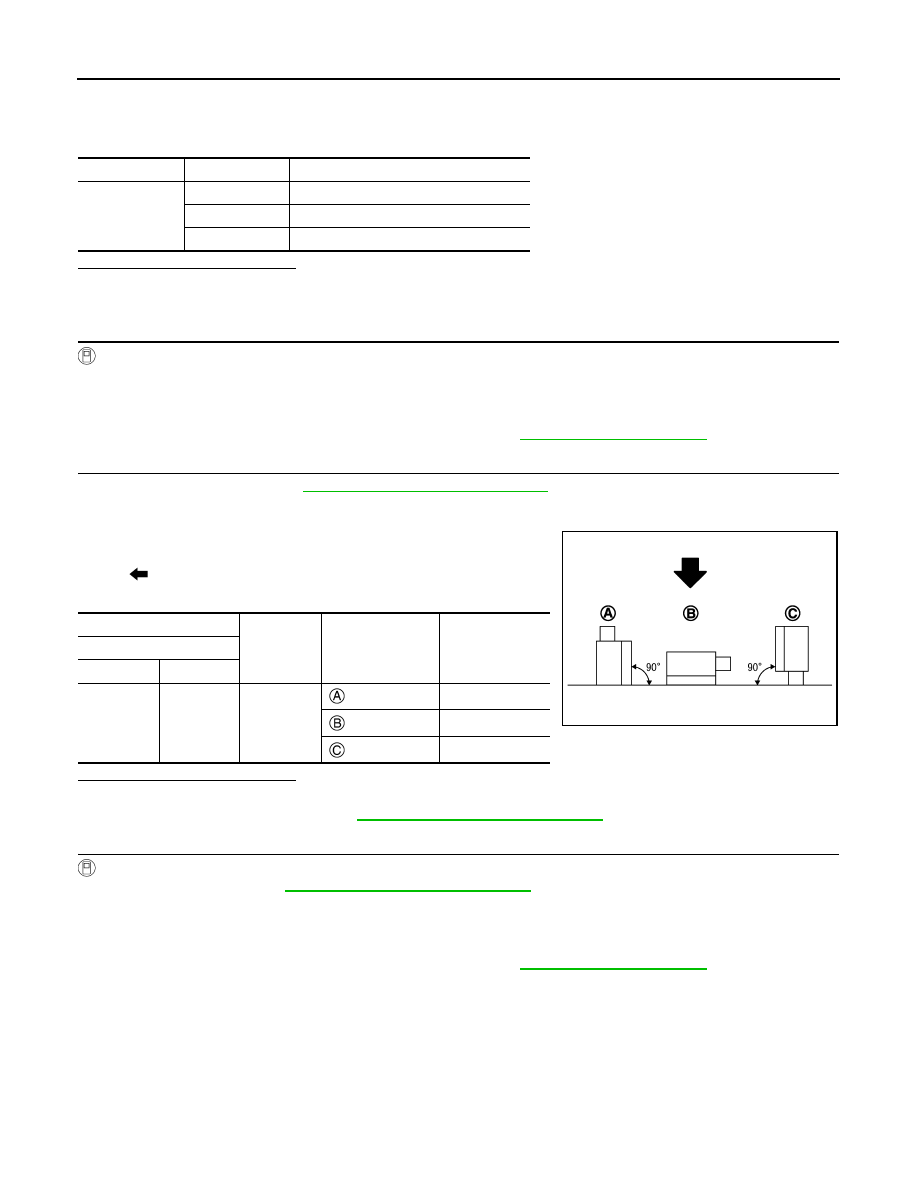

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P1588 G SENSOR

DTC Logic

INFOID:0000000009759470

DTC DETECTION LOGIC

NOTE:

DC stands for “DRIVING CYCLE” and indicates a series of driving cycle of “Ignition switch OFF

→ ON → driv-

ing

→ OFF”.

DTC CONFIRMATION PROCEDURE

CAUTION:

Be careful of the driving speed.

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at

least 10 seconds, then perform the next test.

>> GO TO 2.

2.

CHECK DTC DETECTION

With CONSULT

1. Start the engine.

2. Select “Data Monitor” in “TRANSMISSION”.

3. Select “G SPEED”.

4. Drive the vehicle.

5. Maintain the following conditions for 8 seconds or more.

6. Stop the vehicle.

CAUTION:

Never stop the engine.

7. Repeat steps 4 through 6.

8. Check the DTC.
Is “P1588” detected?

YES

>> Go to

TM-221, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009759471

1.

CHECK G SENSOR SIGNAL

With CONSULT

1. Park the vehicle on a level surface.

2. Turn ignition switch ON.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

Possible causes

P1588

G Sensor
(Gravity Sensor Circuit)

When the following diagnosis conditions are
satisfied and the detection conditions are sat-
isfied twice in the same DC:
• Diagnosis condition (1 second or more)
- The rate of change in G sensor detection

value (mV): Between

−15 and +15 inclusive

• Detection condition
- The rate of change in acceleration/deceler-

ation stays 0.2677 m/s

2

 (0.0273 G) or more/

−0.2677 m/s

2

 (

−0.0273 G) or less at least for

5 seconds or more.

G sensor

Selector lever

: “D” position

G SPEED

: 0.05 G or more

TM-222

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

P1588 G SENSOR

3. Select “Data Monitor” in “TRANSMISSION”.

4. Select “G SEN SLOPE”.

5. Swing the vehicle and check if the value varies between

−40.45% and 40.45%.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CALIBRATION OF G SENSOR (PART 1)

With CONSULT

1. Select “Self Diagnostic Results” in “TRANSMISSION”.

2. Touch “Erase”.

>> Perform “CALIBRATION OF G SENSOR”. Refer to

TM-147, "Work Procedure"

.

3.

CHECK G SENSOR

1. Remove G sensor. Refer to

TM-265, "Removal and Installation"

.

2. Connect the all connectors.

3. Turn ignition switch ON.

4. Check voltage between TCM connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace G sensor. Refer to

TM-265, "Removal and Installation"

.

4.

CALIBRATION OF G SENSOR (PART 2)

With CONSULT

1. Install G sensor. Refer to

TM-265, "Removal and Installation"

.

2. Select “Self Diagnostic Results” in “TRANSMISSION”.

3. Touch “Erase”.

>> Perform “CALIBRATION OF G SENSOR”. Refer to

TM-147, "Work Procedure"

.

Monitor item

Condition

Standard

G SEN SLOPE

Flat road

0%

Uphill

Positive value (maximum 40.45%)

Downhill

Negative value (Minimum

−40.45%)

: Direction of gravitational force

+

-

Test  condition

Voltage

(Approx.)

TCM

Connector

Terminal

F23

14

Ground

: Vertical (

−1G)

1.17 V

: Horizontal

2.5 V

: Vertical (1G)

3.83 V

SCIA8343J

P2765 INPUT SPEED SENSOR B

TM-223

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P2765 INPUT SPEED SENSOR B

DTC Logic

INFOID:0000000009759472

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CAUTION:

Be careful of the driving speed.

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at

least 10 seconds, then perform the next test.

>> GO TO 2.

2.

CHECK DTC DETECTION

1. Start the engine.

2. Drive the vehicle.

3. Maintain the following conditions for 10 seconds or more.

4. Stop the vehicle.

5. Check the first trip DTC.
Is “P2765” detected?

YES

>> Go to

TM-223, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009759473

1.

CHECK SECONDARY SPEED SENSOR POWER CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect secondary speed sensor connector.

3. Turn ignition switch ON.

4. Check voltage between secondary speed sensor harness connector terminal and ground.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

Possible causes

P2765

INPUT SPEED SENSOR B
(Input/Turbine Speed Sensor
B Circuit)

The secondary speed sensor value is less
than 150 rpm continuously for 5 seconds or
more under the following diagnosis conditions:
• Diagnosis conditions
- Primary pulley speed: 1,000 rpm or more
- TCM power supply voltage: More than 11 V

• Harness or connector

(Secondary speed sensor circuit is
open or shorted)

• Secondary speed sensor

The secondary pulley speed sensor value is
240 rpm or less continuously for 500 msec or
more under the following diagnosis conditions:
• Diagnosis condition
- 10-msec-ago secondary pulley speed:

1,000 rpm or more

- TCM power supply voltage: More than 11 V

Selector lever

: “D” position

Vehicle speed

: 55 km/h (34 MPH) or more

+

-

Voltage

Secondary speed sensor

Connector

Terminal

F30

3

Ground

10 – 16 V
