PUSH-BUTTON IGNITION SWITCH

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000009756791

REMOVAL

1. Remove the NATS antenna amp. Refer to

SEC-135, "Removal and Installation"

.

2. Using a suitable tool release the pawls and remove the push-button ignition switch from instrument fin-

isher B.

INSTALLATION

Installation is in the reverse order of removal.

PRECAUTIONS

SEC-137

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009756792

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

SEC-138

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

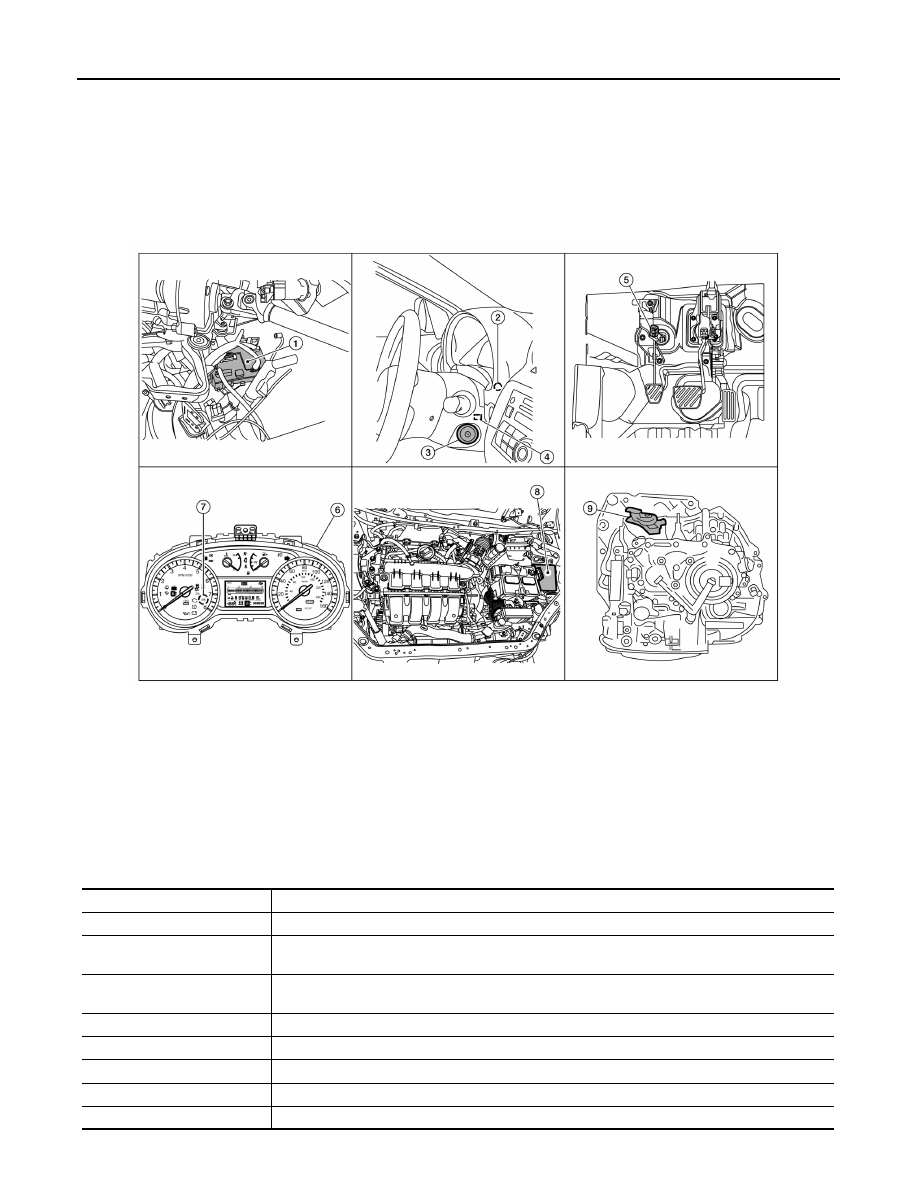

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS : Component Parts Location

INFOID:0000000009756793

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS : Component Description

INFOID:0000000009756794

1.

BCM
(view with instrument panel removed)

2.

Dongle unit (Canada only)
(behind instrument panel LH)

3.

Ignition switch

4.

NATS antenna amp.
(inside steering column)

5.

Clutch interlock switch
(M/T models)

6.

Combination meter

7.

Security indicator lamp

8.

IPDM E/R

9.

Transmission range switch
(CVT models)

ALKIA2963ZZ

Item

Function

BCM

Verifies the received signal from the ignition key ID, then informs ECM whether to allow engine start.

Transmission range switch
(CVT models)

Detects whether the shift lever is in park.

Clutch interlock switch (M/T
models)

Detects whether the clutch pedal is depressed.

Dongle unit (Canada only)

Sends ID verification signal to the BCM.

Starter relay

Supplies battery voltage to the starter motor when enabled.

NATS antenna amp.

Detects the ignition key presence in the ignition key cylinder.

Security indicator

Indicates the status of the security system.

IPDM E/R

Supplies battery voltage from integrated starter relay to the starter motor.

COMPONENT PARTS

SEC-139

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

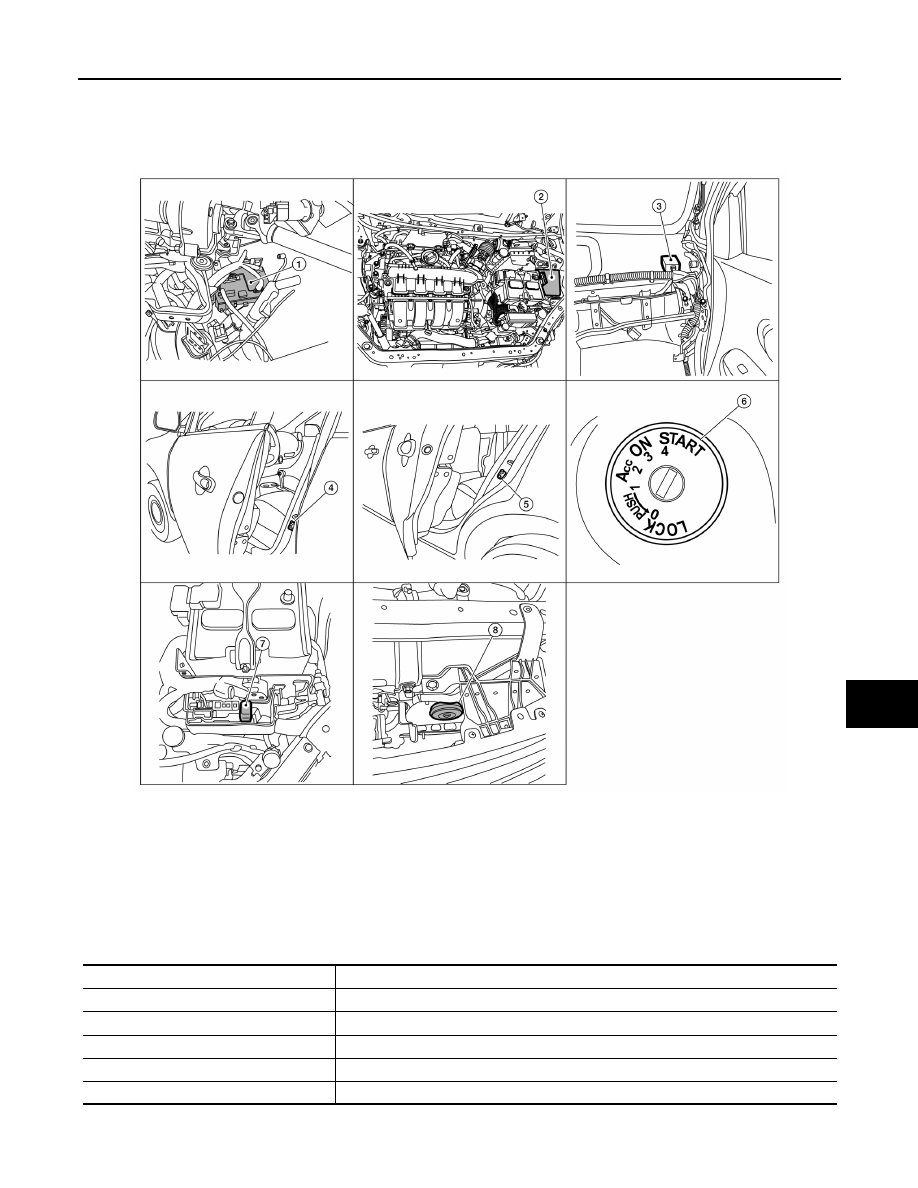

VEHICLE SECURITY SYSTEM : Component Parts Location

INFOID:0000000009756795

VEHICLE SECURITY SYSTEM : Component Description

INFOID:0000000009756796

1.

BCM
(view with instrument panel removed)

2.

IPDM E/R

3.

Remote keyless entry receiver
(view with instrument panel removed)

4.

Front door switch LH
(RH similar)

5.

Rear door switch LH
(RH similar)

6.

Key switch

7.

Horn relay

8.

Horn

ALKIA2953ZZ

Item

Function

BCM

Controls the door lock function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door switch

Input door open/close condition to BCM.

Key switch

Input key switch condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the keyfob, and then transmits to BCM.
