RF-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000010287594

DATA MONITOR

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

BCM (BODY CONTROL MODULE)

RF-11

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009756127

ECU

Reference

BCM

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

RF-12

< ECU DIAGNOSIS INFORMATION >

MOONROOF MOTOR ASSEMBLY

MOONROOF MOTOR ASSEMBLY

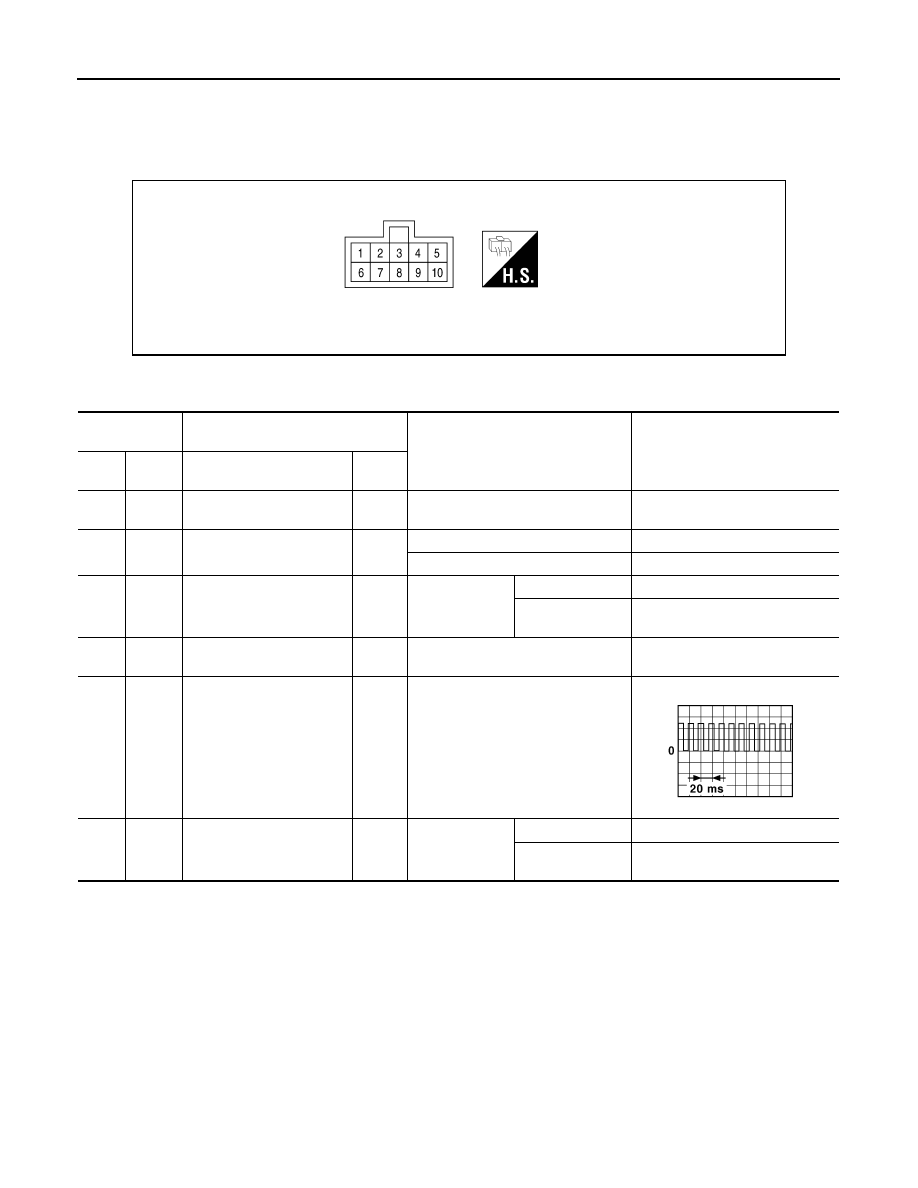

Reference Value

INFOID:0000000009756128

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA1980ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground Ground

—

—

0 – 3

3

(SB)

Ground Ignition switch ON signal

Input

Ignition switch ON

Battery voltage

Other than the above

0 – 3

5

(R)

Ground

Moonroof switch (Tilt down/
slide open signal)

Input

Moonroof switch

Open position

0 – 3

Other than the
above

Battery voltage

6

(Y)

Ground Moonroof power supply

Input

—

Battery voltage

8

(V)

Ground

Vehicle speed signal (8-
pulse)

Input

Speedometer operated [When vehicle
speed is approx. 40 km/ h (25 MPH)]

10

(G)

Ground

Moonroof switch (Tilt up/
slide close signal)

Input

Moonroof switch

Close position

0 – 3

Other than the
above

Battery voltage

JSNIA0012GB

MOONROOF SYSTEM

RF-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

WIRING DIAGRAM

MOONROOF SYSTEM

Wiring Diagram

INFOID:0000000009756129

AAKWA0493GB
