RF-2

Component Inspection ............................................

25

DOOR SWITCH  .................................................

26

Component Function Check .................................

26

Diagnosis Procedure  ..............................................

26

Component Inspection ............................................

27

SYMPTOM DIAGNOSIS  .............................

28

MOONROOF DOES NOT OPERATE PROP-
ERLY ..................................................................

28

Diagnosis Procedure  ..............................................

28

AUTO OPERATION DOES NOT OPERATE .....

29

Diagnosis Procedure  ..............................................

29

MOONROOF DOES NOT OPERATE ANTI-
PINCH FUNCTION .............................................

30

Diagnosis Procedure  ..............................................

30

DOES NOT STOP FULLY-OPEN OR FULLY-
CLOSED POSITION  ..........................................

31

Diagnosis Procedure  ..............................................

31

RETAINED POWER OPERATION DOES NOT
OPERATE PROPERLY  .....................................

32

Diagnosis Procedure  ..............................................

32

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

33

Work Flow ...............................................................

33

Generic Squeak and Rattle Troubleshooting ..........

34

Diagnostic Worksheet .............................................

37

REMOVAL AND INSTALLATION ..............

39

GLASS LID  ........................................................

39

Exploded View  ........................................................

39

Removal and Installation .........................................

39

Adjustment ..............................................................

40

MOONROOF MOTOR ASSEMBLY  ..................

41

Exploded View  ........................................................

41

Removal and Installation .........................................

41

MOONROOF UNIT ASSEMBLY  .......................

43

Inspection ................................................................

43

Exploded View  ........................................................

45

Removal and Installation .........................................

45

SUNSHADE .......................................................

47

Exploded View  ........................................................

47

Removal and Installation .........................................

47

WIND DEFLECTOR ...........................................

49

Exploded View  ........................................................

49

Removal and Installation .........................................

49

MOONROOF SWITCH  ......................................

50

Removal and Installation .........................................

50

UNIT DISASSEMBLY AND ASSEMBLY ...

51

MOONROOF UNIT ASSEMBLY  .......................

51

Exploded View  ........................................................

51

Disassembly and Assembly  ....................................

52

PRECAUTIONS

RF-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010289542

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009756118

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

RF-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

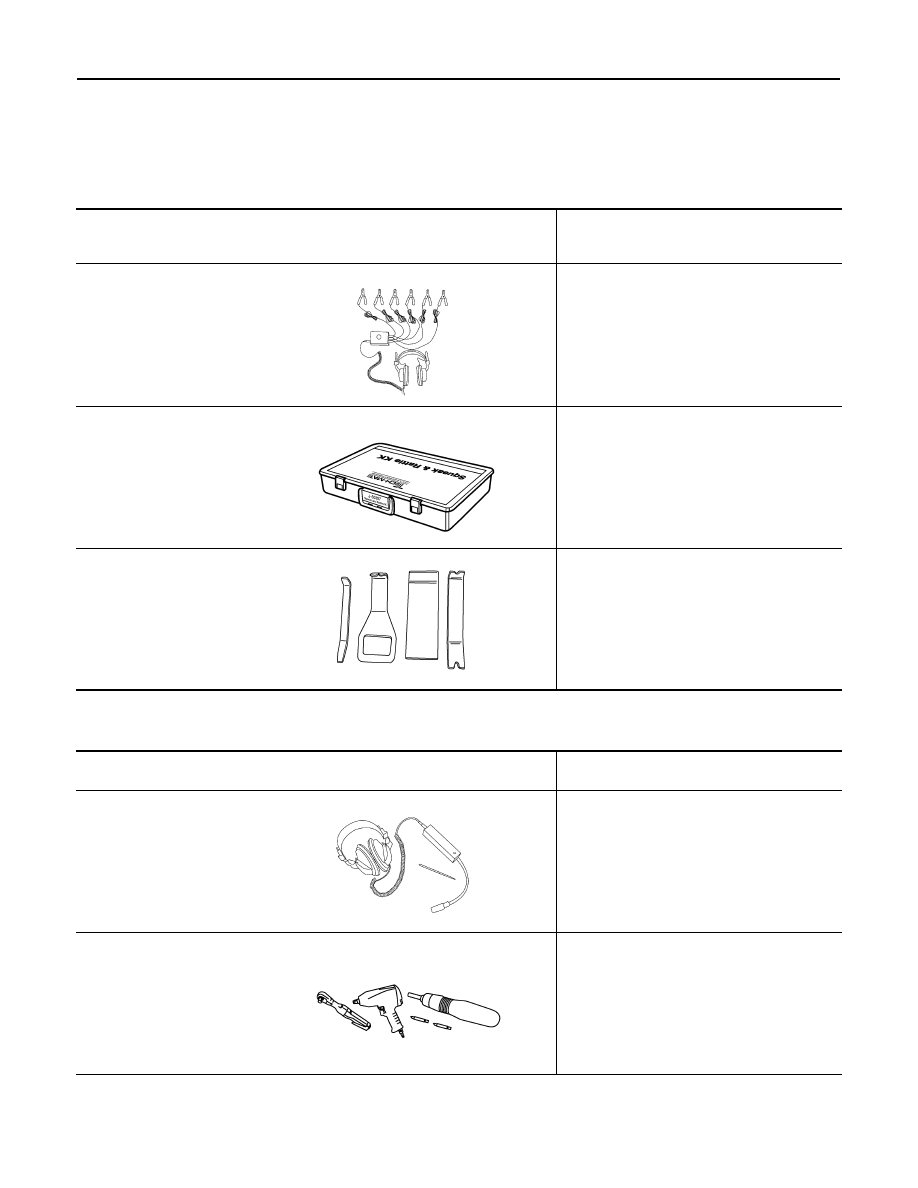

Special Service Tool

INFOID:0000000010289554

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010289555

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

( — )
Power Tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

COMPONENT PARTS

RF-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

MOONROOF

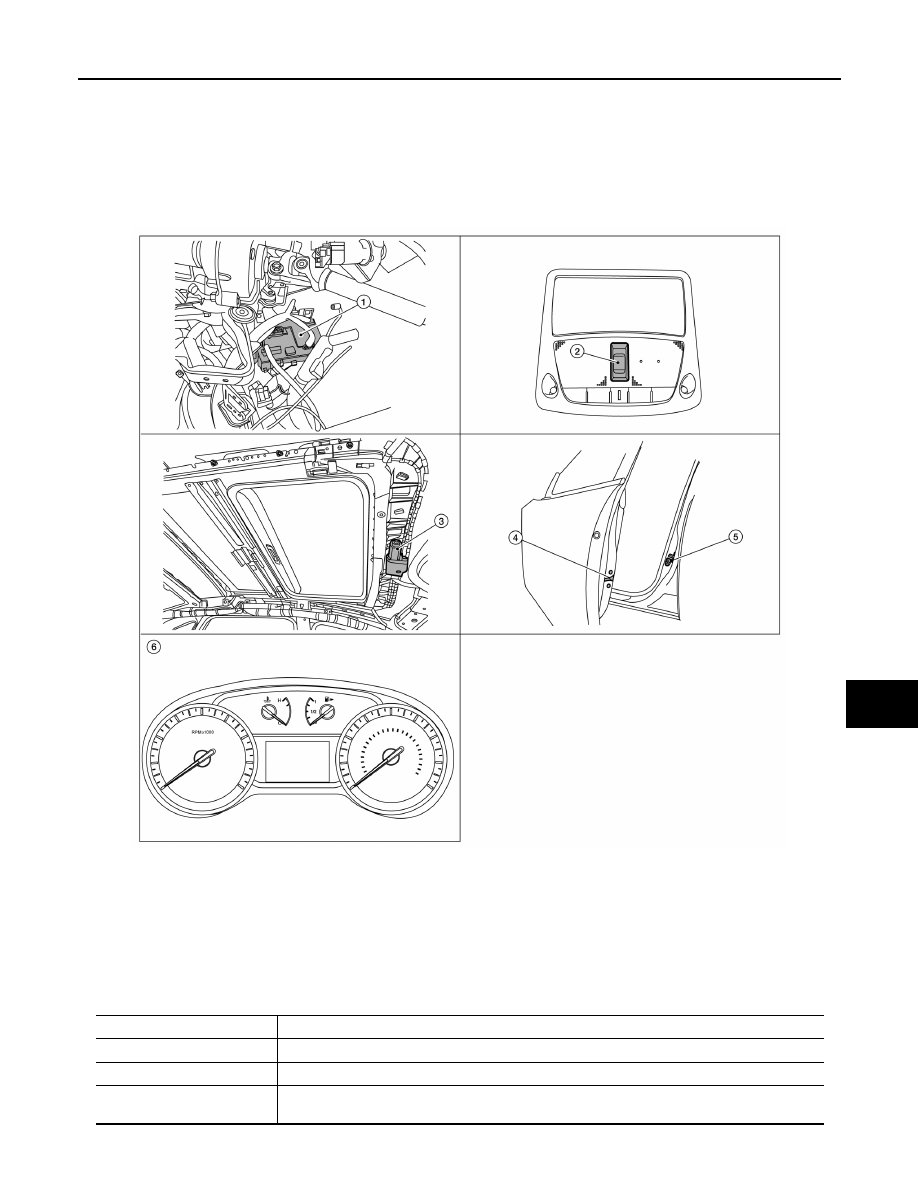

MOONROOF : Component Parts Location

INFOID:0000000009756121

MOONROOF : Component Description

INFOID:0000000009756122

AWKIA2057ZZ

1. BCM

(view under instrument panel, left side of
vehicle)

2. Moonroof switch

3. Moonroof motor assembly (view with

headliner removed)

4. Front door lock assembly LH (key cylinder

switch)

5. Front door switch LH (RH

similar)

6. Combination meter

Component

Function

BCM

Supplies the power supply to moonroof motor assembly.

Moonroof switch

Transmits tilt up/down & slides open/close operation signal to moonroof motor assembly.

Moonroof motor assembly

The moonroof motor and CPU are integrated into one unit that enables tilt up/down & slide open/
close by moonroof switch operation.
