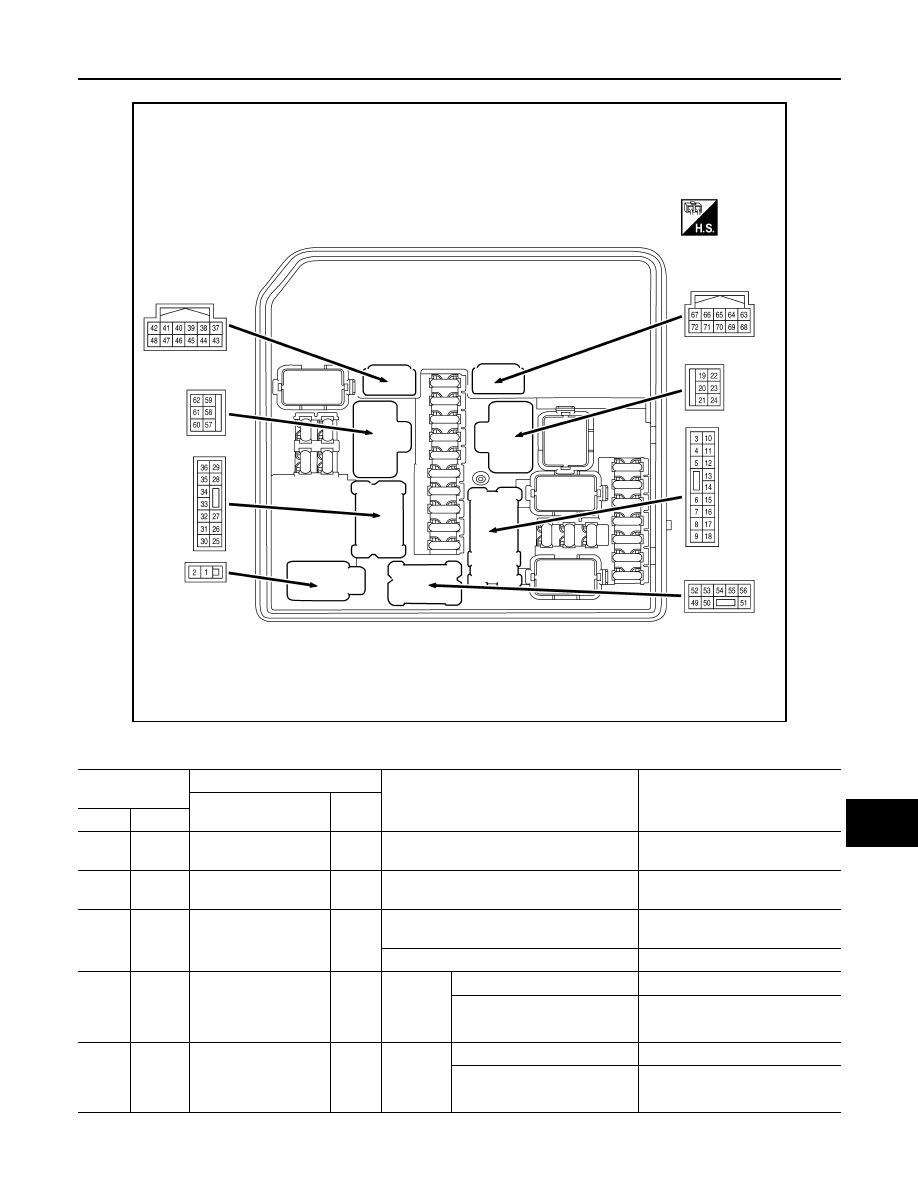

PCS IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PCS-13 < ECU DIAGNOSIS INFORMATION > [IPDM E/R (WITH I-KEY)] C D E F G H I J K L B A O P N ECU DIAGNOSIS INFORMATION IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE Reference Value INFOID:0000000009755813 VALUES ON THE DIAGNOSIS TOOL Monitor Item Condition Value/Status MOTOR FAN REQ Engine idle speed Changes depending on engine cool- 1/2/3/4 AC COMP REQ Engine running A/C switch OFF Off A/C switch ON On TAIL&CLR REQ Lighting switch OFF Off Lighting switch 1ST or 2ND On HL LO REQ Lighting switch OFF Off Lighting switch 2ND On HL HI REQ Lighting switch 2ND Lighting switch other than HI and Off Lighting switch HI or PASS On FR FOG REQ Lighting switch 2ND Front fog lamp switch OFF Off Front fog lamp switch ON On FR WIP REQ Ignition switch ON Front wiper switch OFF Stop Front wiper switch INT 1LOW Front wiper switch LO Low Front wiper switch HI Hi WIP AUTO STOP Ignition switch ON Front wiper stop position STOP P Any position other than front wiper ACT P WIP PROT Ignition switch ON Front wiper operates normally. Off Front wiper stops at fail-safe opera- BLOCK IGN RLY1 -REQ Ignition switch OFF or ACC Off Ignition switch ON On IGN RLY Ignition switch OFF or ACC Off Ignition switch ON On PUSH SW Release the push-button ignition switch Off Press the push-button ignition switch On INTER/NP SW Ignition switch ON Selector lever in any position other Off Release clutch pedal (M/T models) Selector lever in P or N position On Depress clutch pedal (M/T models) ST RLY CONT Ignition switch ON Off At engine cranking On |
