PB-6

< BASIC INSPECTION >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Adjustment - Drum Brake

INFOID:0000000009757406

If equipped with drum brakes, refer to

PB-11, "Inspection and Adjustment"

.

Adjustment - Disc Brake

INFOID:0000000009757407

1. Adjust parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

2. Perform parking brake break-in (drag on) operation by driving vehicle under the following conditions:

• Drive  forward

• Vehicle speed: Approx. 43 km/h (27 MPH) set (constant and forward)

• Parking brake operating force: 125 N (12.8 kg-f, 28.1 lb-f) set contact

• Time: Approx. 8 sec.

CAUTION:

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after

every break-in operation.

3. After the break-in procedure, check parking brake lever stroke.

CAUTION:

If it is out of the specification, adjust again. Refer to

PB-4, "Inspection and Adjustment"

.

PARKING BRAKE CONTROL

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

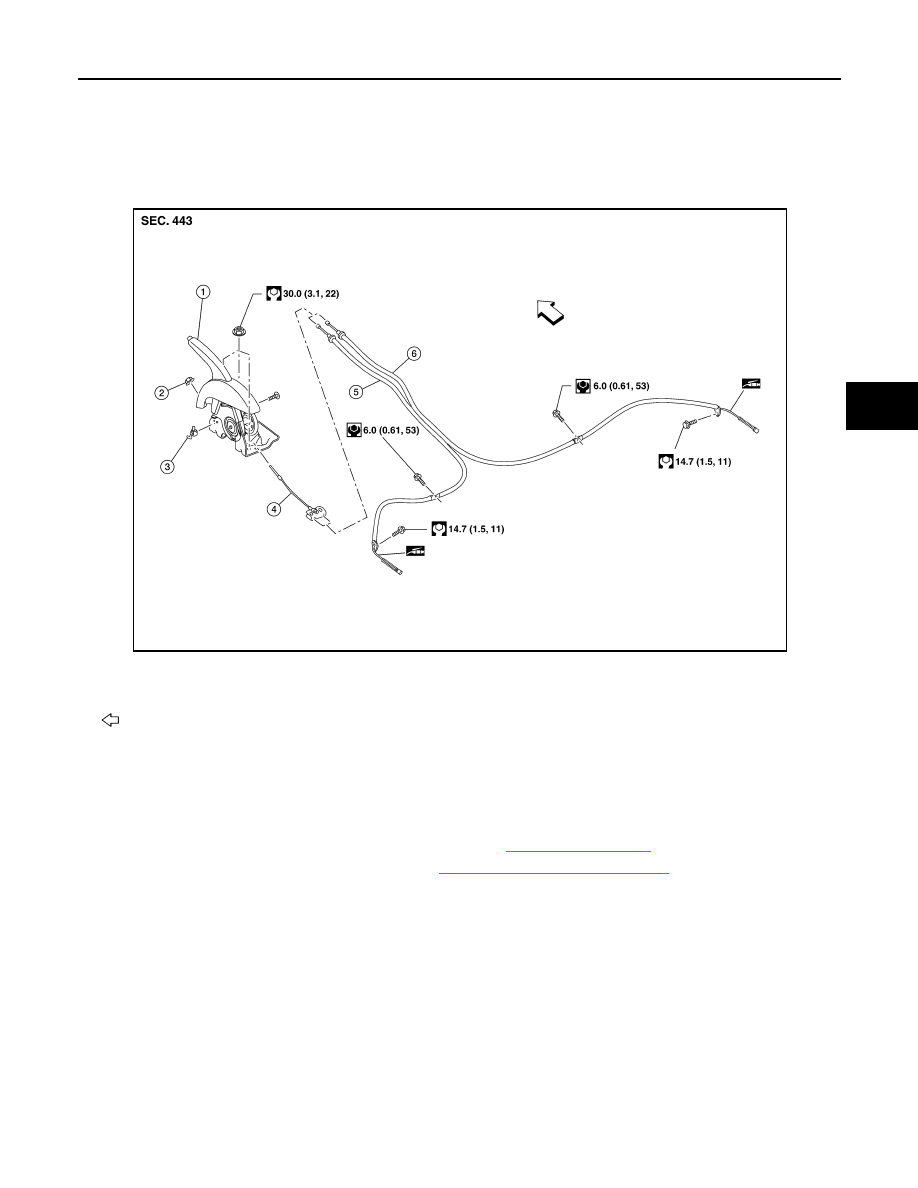

Exploded View

INFOID:0000000009757408

Removal and Installation

INFOID:0000000009757409

REMOVAL

Parking Brake Control

1. Remove rear wheels and tires using power tool. Refer to

WT-47, "Adjustment"

.

2. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

3. Disconnect the parking brake switch harness connector.
4. Remove adjusting nut and loosen front parking brake cable.
5. Remove the parking brake lever assembly.

Rear Parking Brake Cable

1.

Parking brake lever assembly

2.

Adjusting nut

3.

Parking brake switch

4.

Front parking brake cable

5.

Rear parking brake cable (LH)

6.

Rear parking brake cable (RH)

Front

AWFIA0968ZZ

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

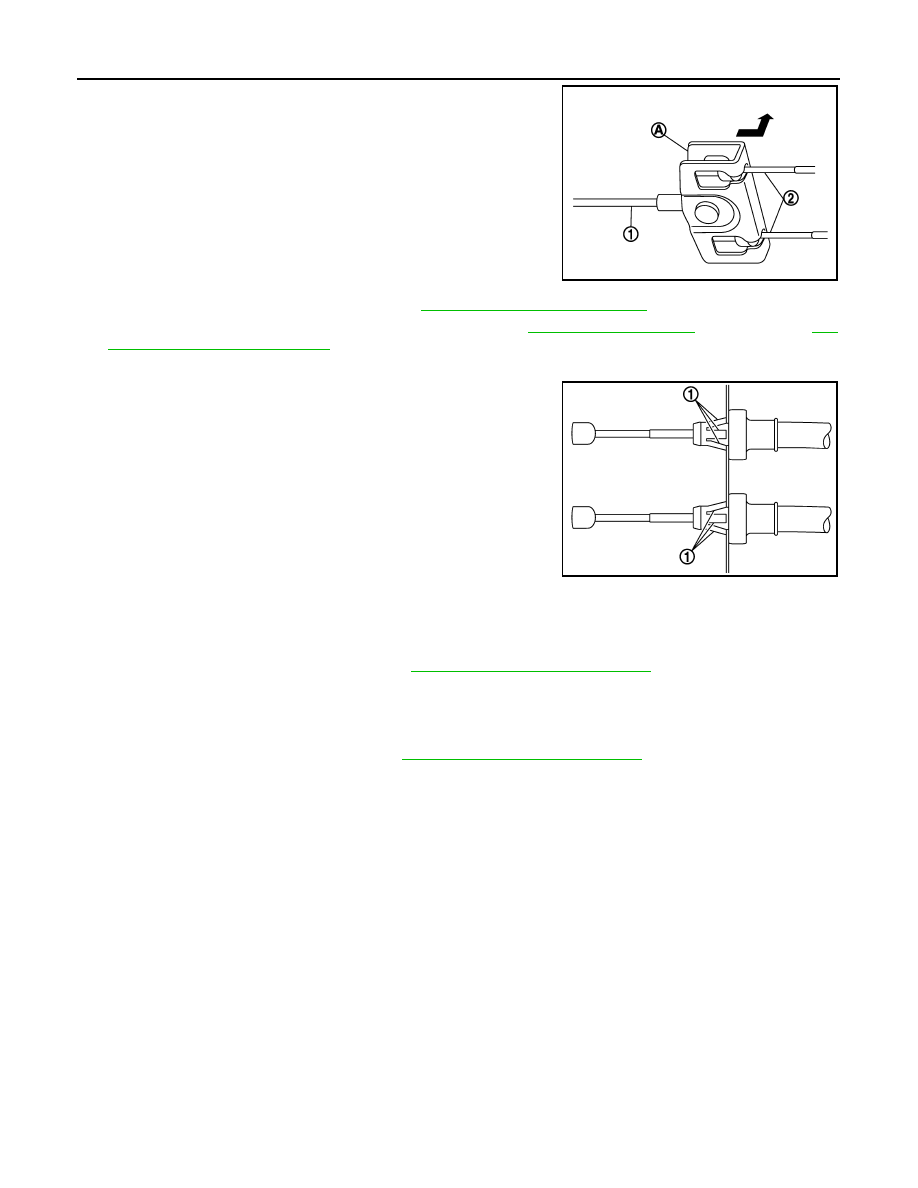

1. Pull equalizer (A) of the front parking brake cable (1) in a rear-

ward direction and then push upward to remove each rear park-

ing brake cable (2)

2. Remove sub muffler and heat plate. Refer to

EX-5, "Removal and Installation"

.

3. Remove rear parking brake cable from toggle lever. Refer to

BR-42, "Exploded View"

 (drum brake) or

PB-

9, "Exploded View - Disc Brake"

 (disc brake).

4. Remove rear parking brake cable bolts.
5. Press the pawl (1) to remove each rear parking brake cable from

the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse adjusting nut.

• Perform adjustment after installation. Refer to

PB-4, "Inspection and Adjustment"

.

Adjustment

INFOID:0000000009757410

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

JPFIB0129ZZ

JPFIB0130ZZ

PARKING BRAKE SHOE

PB-9

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SHOE

Removal and Installation - Drum Brake

INFOID:0000000009757411

If equipped with drum brakes, refer to

BR-42, "Removal and Installation"

.

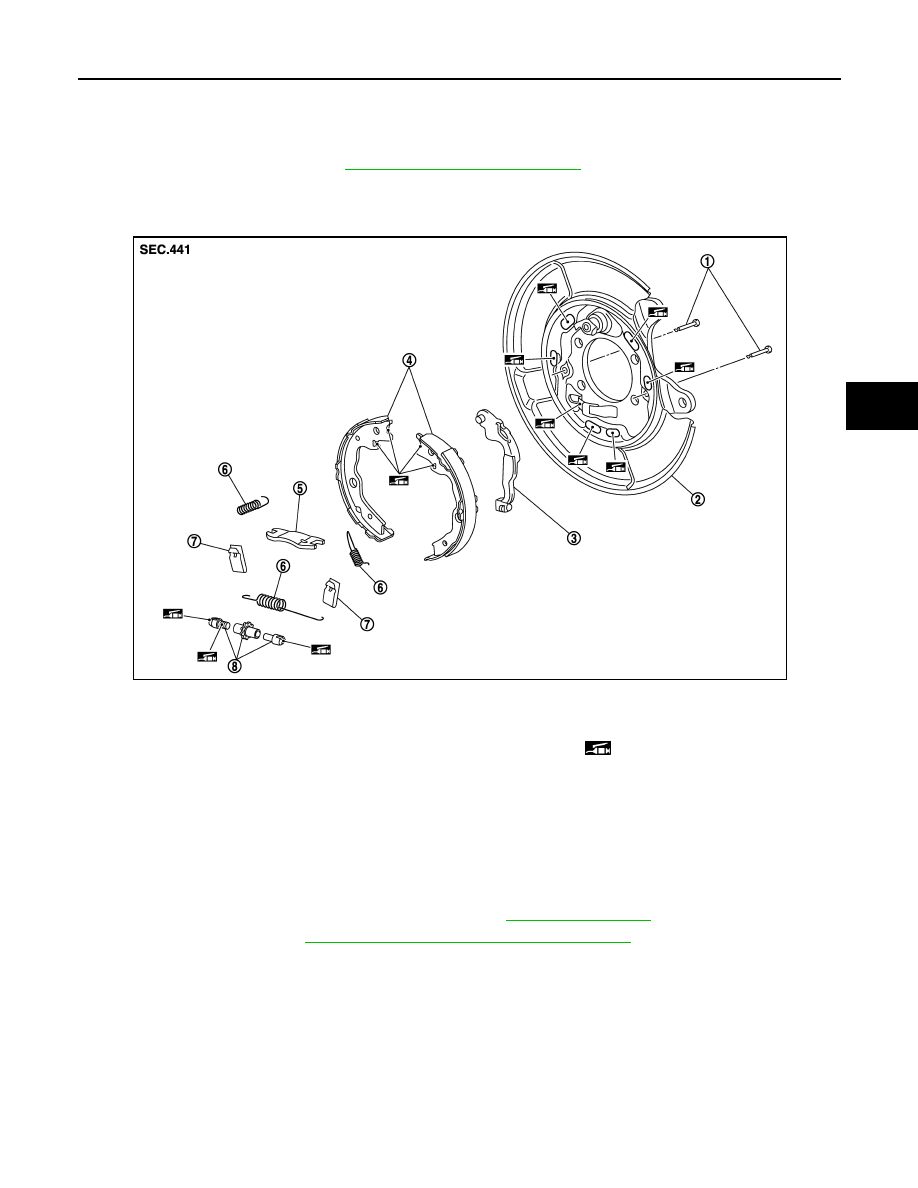

Exploded View - Disc Brake

INFOID:0000000009757412

Removal and Installation - Disc Brake

INFOID:0000000009757413

REMOVAL

WARNING:

Clean dust on the parking brake shoes with a vacuum dust collector to minimize the hazard of air

borne particles or other materials.
1. Remove rear wheels and tires using power tool. Refer to

WT-47, "Adjustment"

.

2. Remove disc rotor. Refer to

RAX-7, "Removal and Installation - Disc brake"

.

CAUTION:

Parking brake must be completely released before removing rotor.

1.

Anti-rattle pin

2.

Back plate

3.

Toggle lever

4.

Parking brake shoe

5.

Brake strut

6.

Return spring

7.

Spring

8.

Adjuster

Apply PBC (Poly Butyl Cuprysil)
grease or silicone based grease

JPFIB0086ZZ
