MIR-16

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

REMOVAL AND INSTALLATION

INSIDE MIRROR

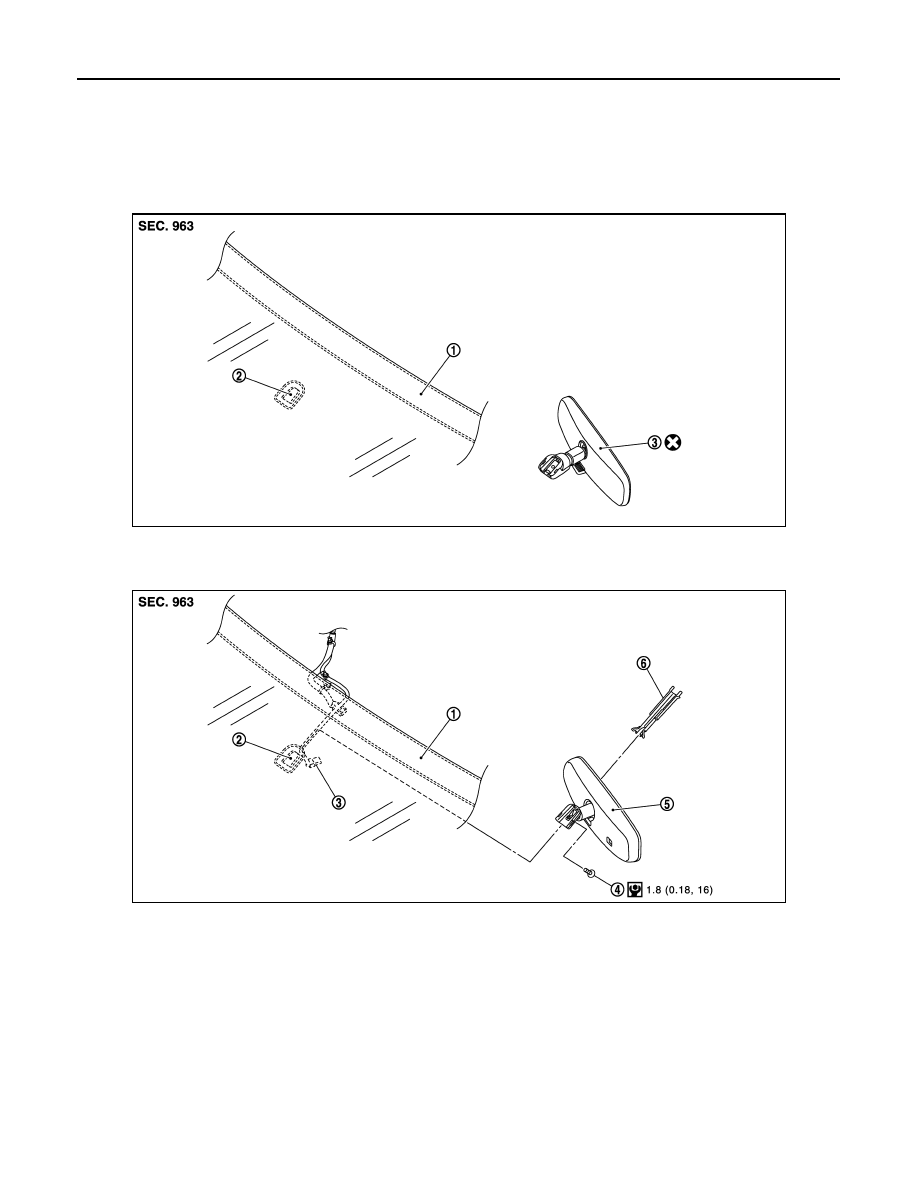

Exploded View

INFOID:0000000009757794

Manual MIrror

Auto Anti-dazzle Mirror

Removal and Installation

INFOID:0000000009757795

MANUAL MIRROR

Removal

JMLIA0400ZZ

1.

Windshield glass

2.

Inside mirror base

3.

Inside mirror assembly

JMLIA0177GB

1.

Windshield glass

2.

Inside mirror base

3.

Harness connector

4.

Mirror screw

5.

Inside mirror assembly

6.

Inside mirror cover

INSIDE MIRROR

MIR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

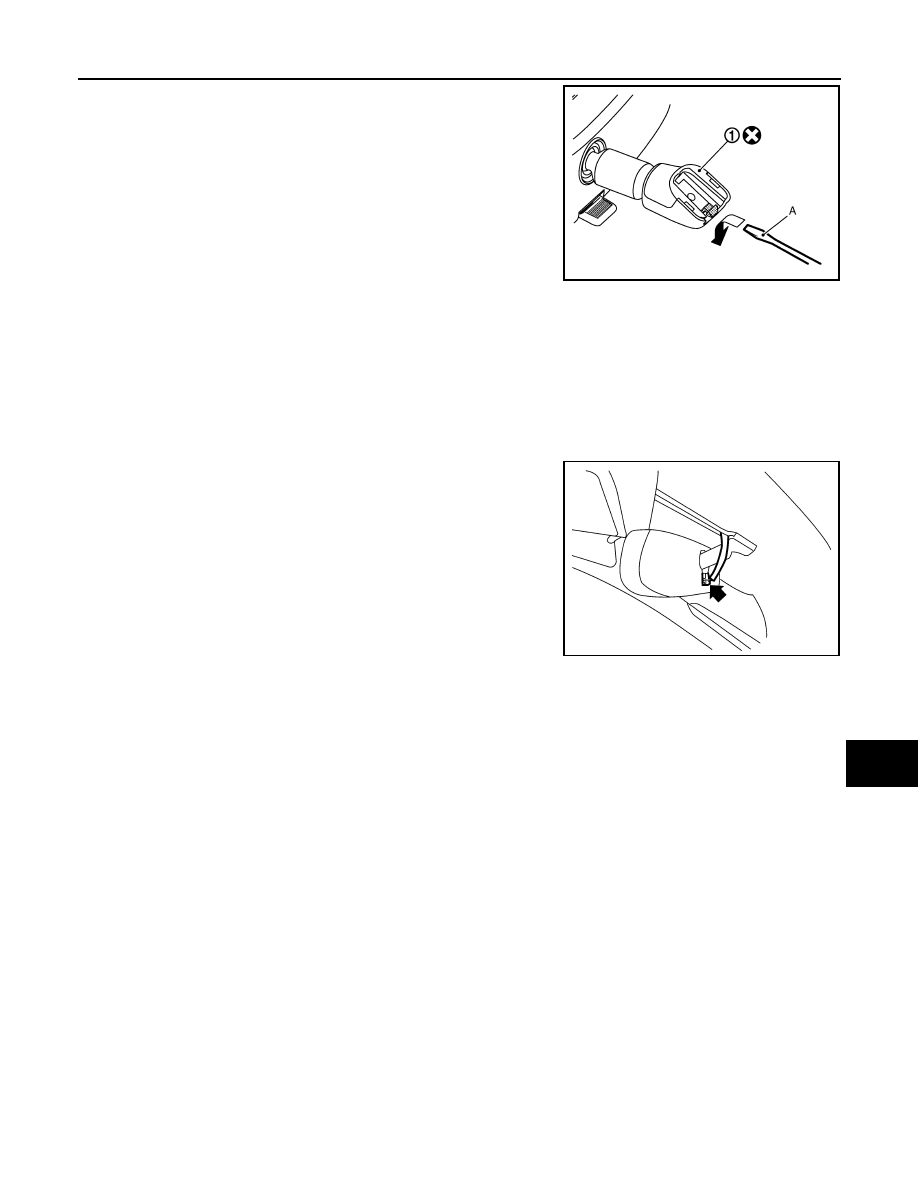

1. Insert a suitable tool (A) under the inside mirror (1).
2. Slide the inside mirror upward while pushing down on the pawl.

CAUTION:

• Do not reuse the inside mirror disassembled from inside mir-

ror base.

• Do not use excessive force to remove the inside mirror.

• Wrap a suitable tool with a shop cloth to avoid damage to the

windshield glass.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing the inside mirror on the mirror base, be sure to push the pawl until it is tightly con-

nected to the mirror base.

AUTO ANTI-DAZZLE MIRROR

Removal

1. Remove the mirror screw from the mirror base.
2. Disconnect the harness connector from the mirror.

3. Slide the mirror upward to remove.

Installation

Installation is in the reverse order of removal.

JMLIA0055ZZ

ALKIA0069GB

MIR-18

< REMOVAL AND INSTALLATION >

DOOR MIRROR

DOOR MIRROR

Exploded View

INFOID:0000000009757796

DOOR MIRROR ASSEMBLY
DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000009757797

REMOVAL

CAUTION:

Be careful not to scratch or damage the door mirror body when removing.
1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Disconnect door mirror harness connector.
3. Remove door mirror nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

GLASS MIRROR
GLASS MIRROR : Removal and Installation

INFOID:0000000009757798

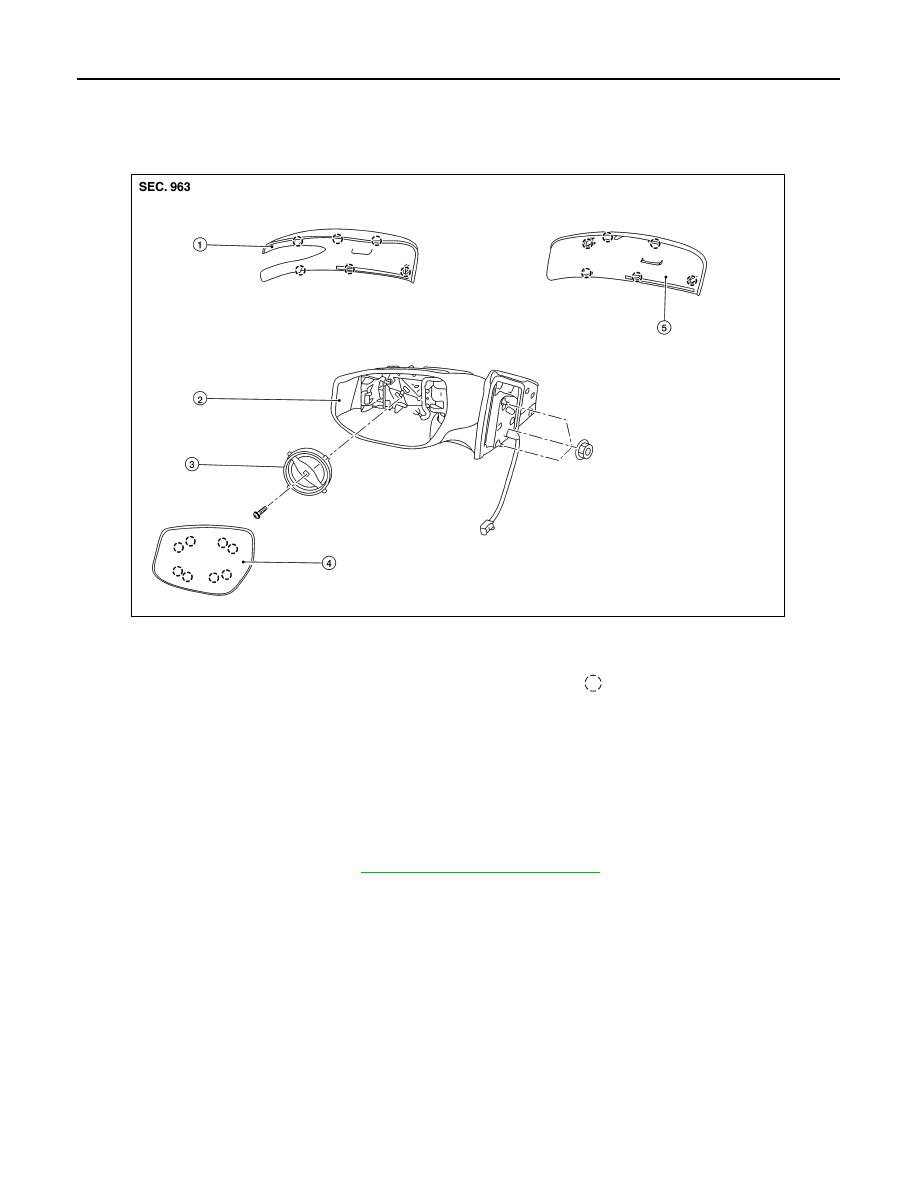

REMOVAL

1. Door mirror cover

(with side turn signal lamp)

2. Door mirror housing

3. Door mirror actuator

4. Glass mirror

5. Door mirror cover

(without side turn signal lamp)

: Pawl

AWLIA2044ZZ
