Nissan Sentra. Manual - part 580





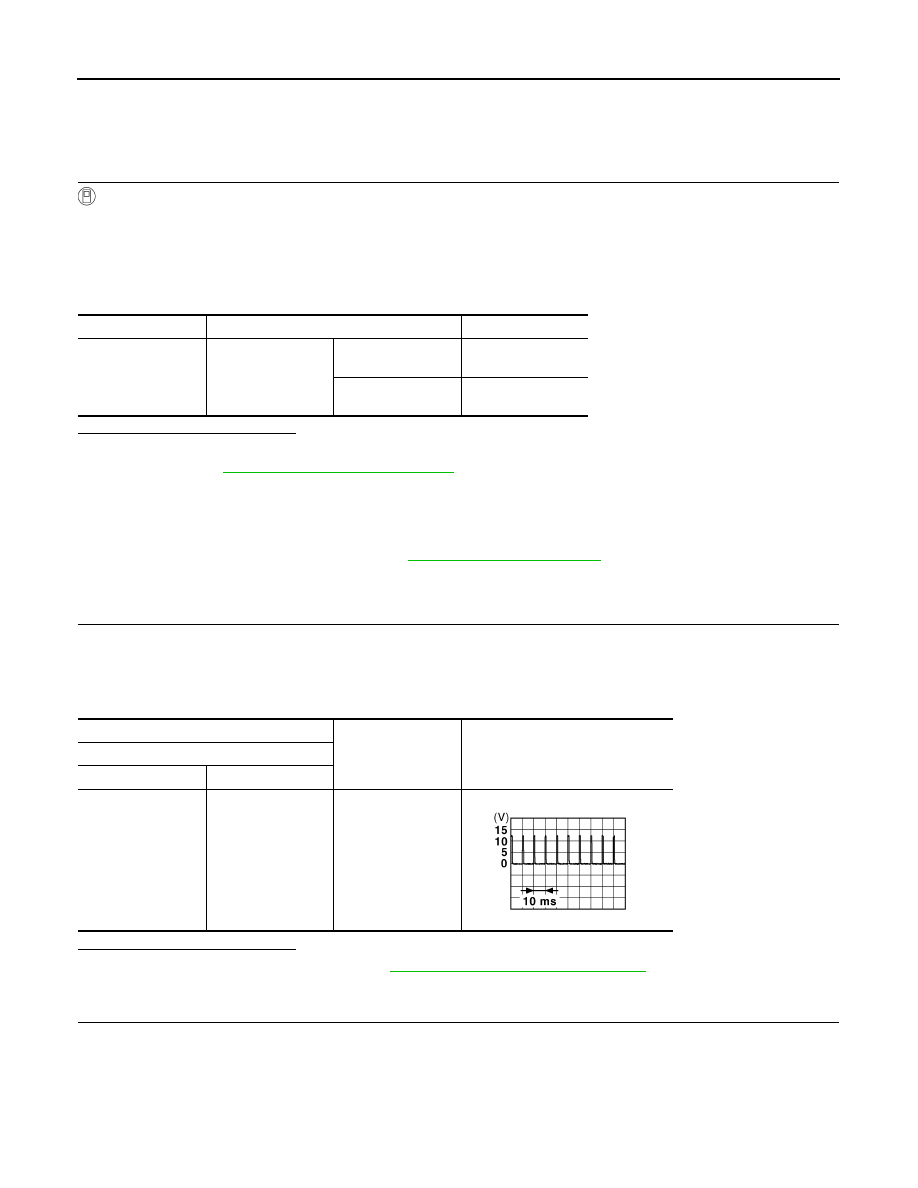

HAC-168

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

A/C ON SIGNAL

A/C ON SIGNAL

Component Function Check

INFOID:0000000009757757

1.

CHECK A/C ON SIGNAL

With CONSULT

1. Turn ignition switch ON.

2. Operate blower motor.

3. Select “AIR CONDITIONER” of “BCM” using CONSULT.

4. Select “AIR COND SW” in “DATA MONITOR” mode.

5. Check A/C ON signal when the A/C switch is operated.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

HAC-168, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009757758

Regarding Wiring Diagram information, refer to

HAC-145, "Wiring Diagram"

.

1.

CHECK A/C ON SIGNAL

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Turn ignition switch ON.

4. Check output waveform between A/C auto amp. harness connector and ground with using oscilloscope.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-189, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK A/C ON SIGNAL CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between A/C auto amp. harness connector and BCM harness connector.

Monitor item

Condition

Status

AIR COND SW

A/C switch

ON (A/C indicator:
ON)

On

OFF (A/C indicator:
OFF)

Off

+

Output waveform

A/C auto amp.

Connector

Terminal

M33

15

Ground

JPMIA0012GB

A/C ON SIGNAL

HAC-169

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK A/C ON SIGNAL CIRCUIT FOR SHORT

Check continuity between A/C auto amp. harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-73, "Removal and Installation"

 (with Intelligent Key system) or

BCS-

126, "Removal and Installation"

 (without Intelligent Key system).

NO

>> Repair harness or connector.

A/C auto amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M33

15

M21 (without Intelligent Key system)

27

Yes

M84 (with Intelligent Key system)

A/C auto amp.

Continuity

Connector

Terminal

M33

15

Ground

No

HAC-170

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

INTAKE SENSOR

INTAKE SENSOR

Diagnosis Procedure

INFOID:0000000009757759

Regarding Wiring Diagram information, refer to

HAC-145, "Wiring Diagram"

.

1.

CHECK INTAKE SENSOR POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect intake sensor connector.

3. Turn ignition switch ON.

4. Check voltage between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK INTAKE SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Check intake sensor. Refer to

HAC-171, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-189, "Removal and Installation"

.

NO

>> Replace intake sensor. Refer to

HAC-190, "Removal and Installation"

.

4.

CHECK INTAKE SENSOR POWER SUPPLY CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK INTAKE SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

Check continuity between intake sensor harness connector and ground.

+

Voltage

(Approx.)

Intake sensor

Connector

Terminal

M68

1

Ground

5 V

Intake sensor

Continuity

Connector

Terminal

M68

2

Ground

Yes

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M68

1

M33

3

Yes

INTAKE SENSOR

HAC-171

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair harness or connector.

6.

CHECK INTAKE SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO VOLTAGE

1. Turn ignition switch ON.

2. Check voltage between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-189, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000009757760

1.

CHECK INTAKE SENSOR

1. Turn ignition switch OFF.

2. Disconnect intake sensor connector.

3. Check resistance between intake sensor terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace intake sensor. Refer to

HAC-190, "Removal and Installation"

.

Intake sensor

Continuity

Connector

Terminal

M68

1

Ground

No

+

Voltage

(Approx.)

Intake sensor

Connector

Terminal

M68

1

Ground

0 V

Terminal

Condition

Resistance: k

Temperature:

°C (°F)

1

2

−15 (5)

17.73

−10 (14)

13.46

−5 (23)

10.33

0 (32)

8.00

5 (41)

6.25

10 (50)

4.93

15 (59)

3.92

20 (68)

3.14

25 (77)

2.54

30 (86)

2.06

35 (95)

1.69

40 (104)

1.39

45 (113)

1.15
