Nissan Sentra. Manual - part 565

HAC-108

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000009757706

REMOVAL

1. Release the defroster grille (LH). Refer to

VTL-9, "SIDE DEFROSTER GRILLE : Removal and Installa-

tion"

.

2. Disconnect the harness connector from the sunload sensor.
3. Release the sunload sensor pawls using a suitable tool, then remove the sunload sensor.

INSTALLATION

Installation is in the reverse order of removal.

INTAKE SENSOR

HAC-109

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000009757707

The intake sensor is serviced as an assembly with the heating and cooling unit assembly. Refer to

HA-43,

"HEATING AND COOLING UNIT ASSEMBLY : Removal and Installation"

.

HAC-110

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009757708

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Remove the core support upper. Refer to

HA-39, "Exploded View"

.

3. Disconnect the harness connector from the refrigerant pressure sensor.

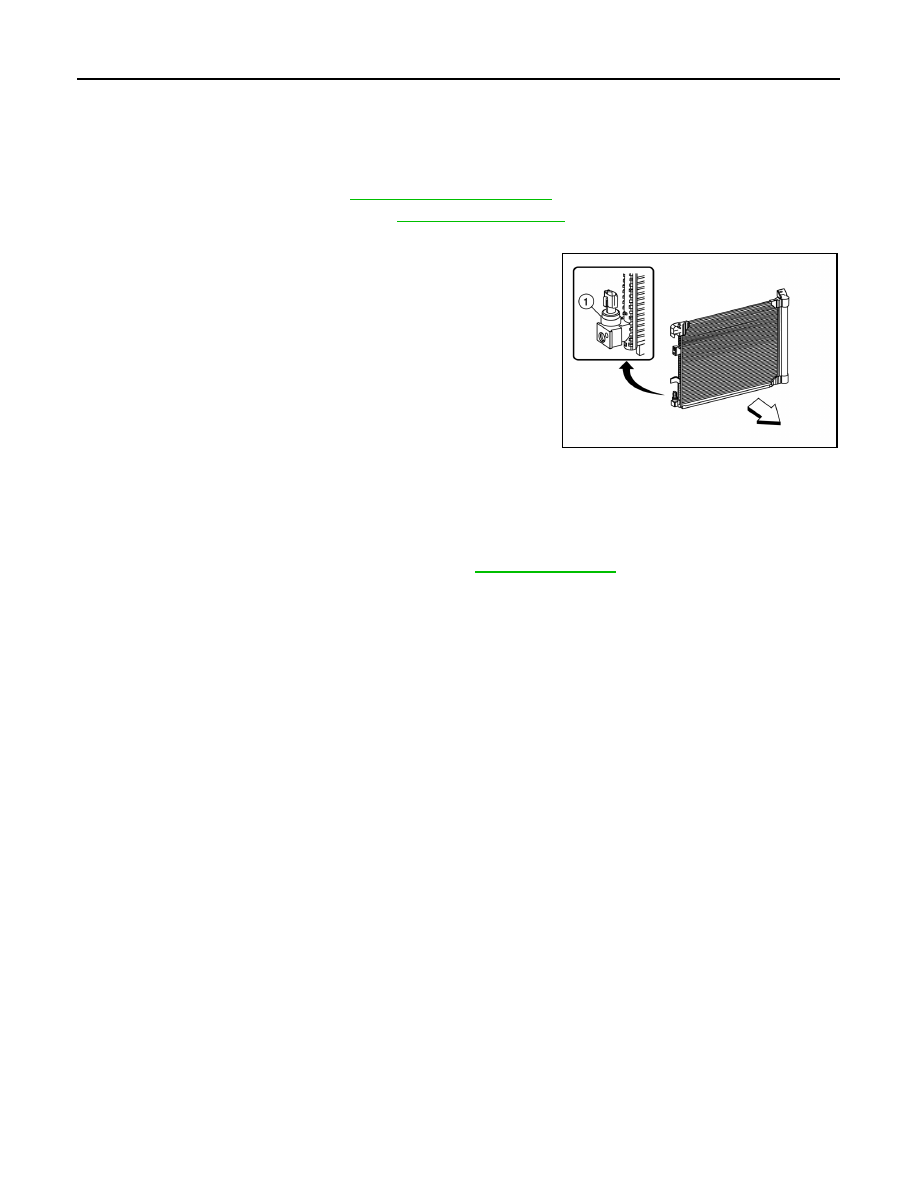

4. Remove the refrigerant pressure sensor (1).

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor

with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to the O-ring of the refrigerant pressure sensor for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0669ZZ

DOOR MOTOR

HAC-111

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

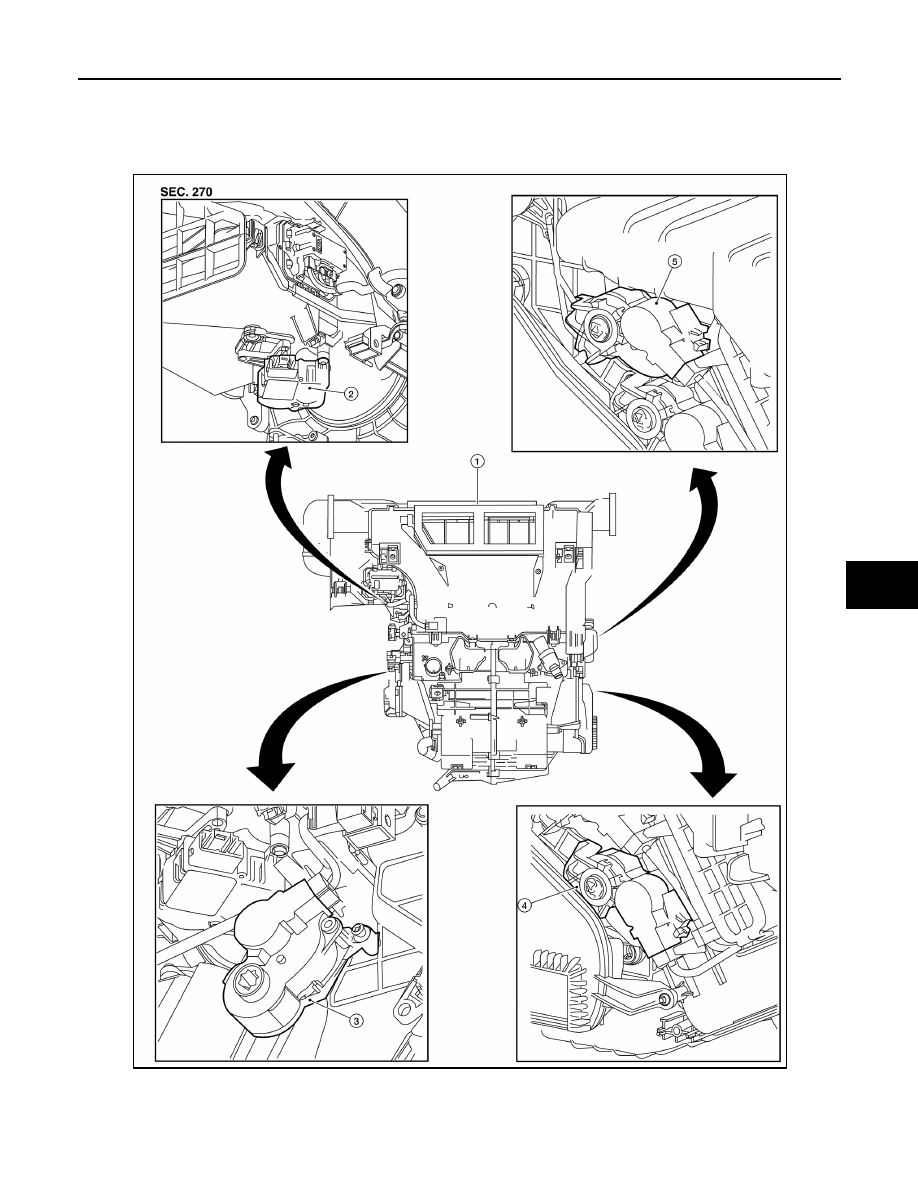

DOOR MOTOR

Exploded View

INFOID:0000000009757709

1.

Heating and cooling unit assembly

2.

Intake door motor

3.

Mode door motor

4.

Air mix door motor LH

5.

Air mix door motor RH

ALIIA0646ZZ
