HAC-104

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

A/C SWITCH ASSEMBLY

REMOVAL AND INSTALLATION

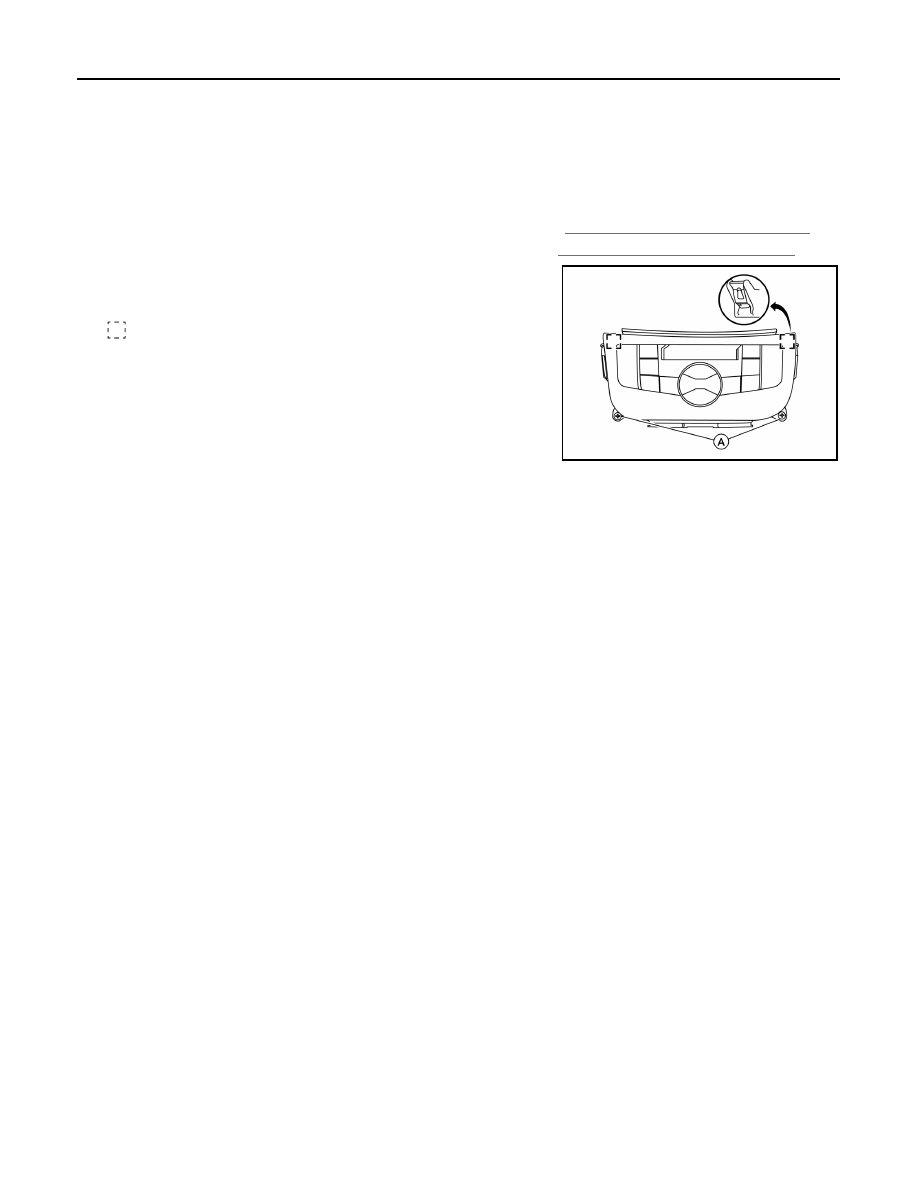

A/C SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000009757701

REMOVAL

1. Remove the CVT shift selector finisher (CVT: RE0F11A). Refer to

TM-253, "Removal and Installation"

.

2. Remove the MT shift selector finisher (6MT: RS6F94R). Refer to

TM-22, "Removal and Installation"

.

3. Remove the A/C switch assembly screws (A).
4. Release the A/C switch assembly metal clips using a suitable

tool.

: Metal clip

5. Disconnect the harness connectors from the A/C switch assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0664ZZ

A/C AUTO AMP.

HAC-105

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

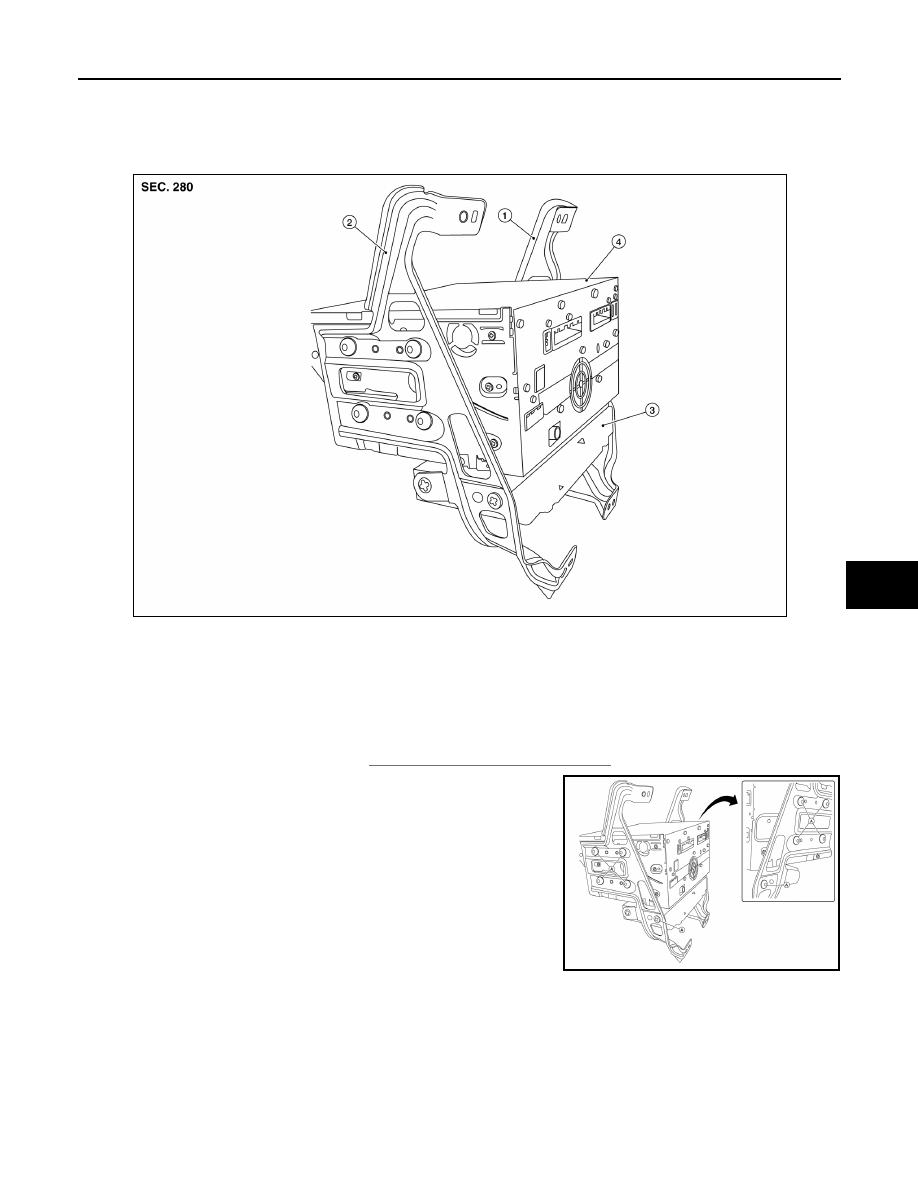

A/C AUTO AMP.

Exploded View

INFOID:0000000009757702

Removal and Installation

INFOID:0000000009757703

REMOVAL

1. Remove the AV control unit. Refer to

AV-406, "Removal and Installation"

.

2. Remove the AV control unit bracket screws (A).

3. Remove the A/C auto amp.

INSTALLATION

Installation is in the reverse order of removal.

1.

AV control unit bracket (LH)

2.

AV control unit bracket (RH)

3.

A/C auto amp.

4.

AV control unit

ALIIA0666ZZ

ALIIA0667ZZ

HAC-106

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

AMBIENT SENSOR

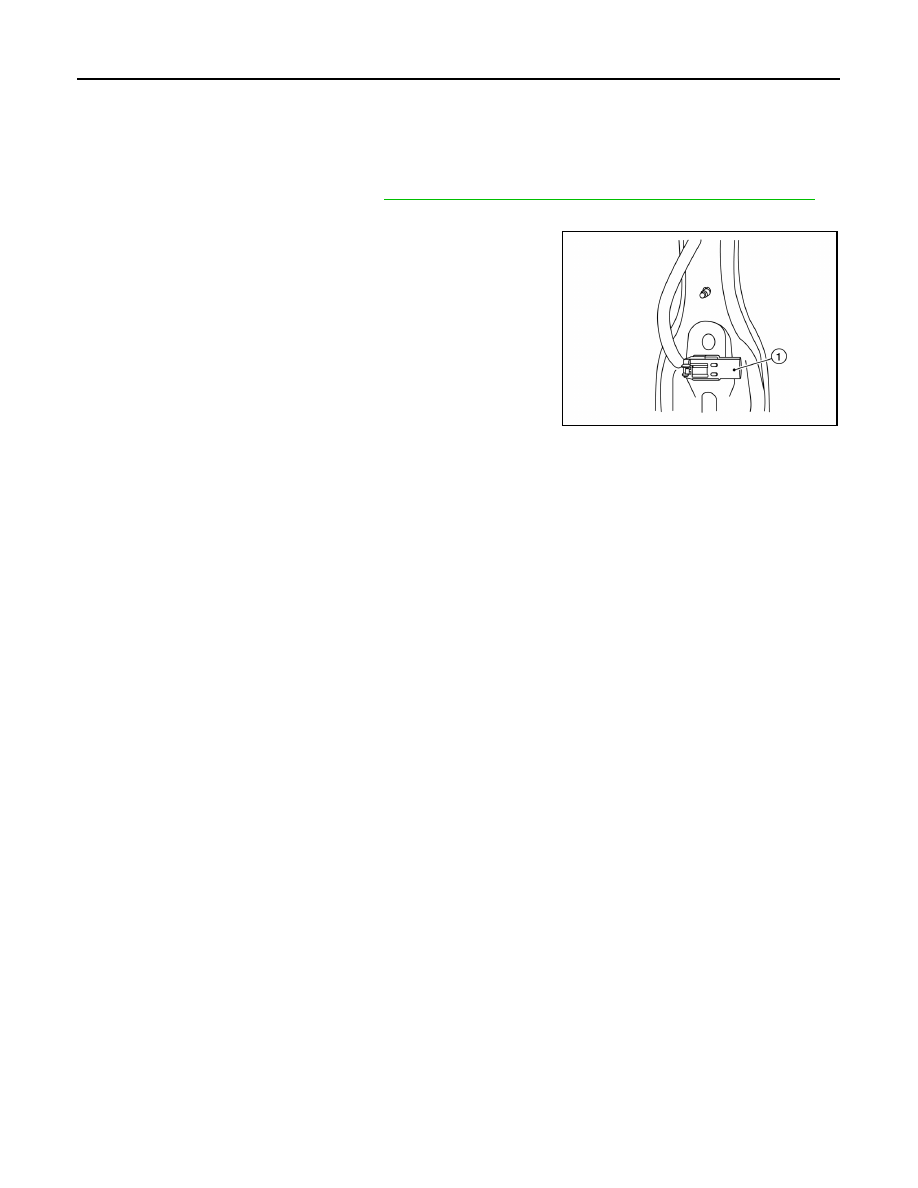

AMBIENT SENSOR

Removal and Installation

INFOID:0000000009757704

REMOVAL

1. Remove the front under cover. Refer to

EXT-30, "FRONT UNDER COVER : Removal and Installation"

.

2. Disconnect the harness connector from the ambient sensor.
3. Release the ambient sensor clip, then remove the ambient sen-

sor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0668ZZ

IN-VEHICLE SENSOR

HAC-107

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

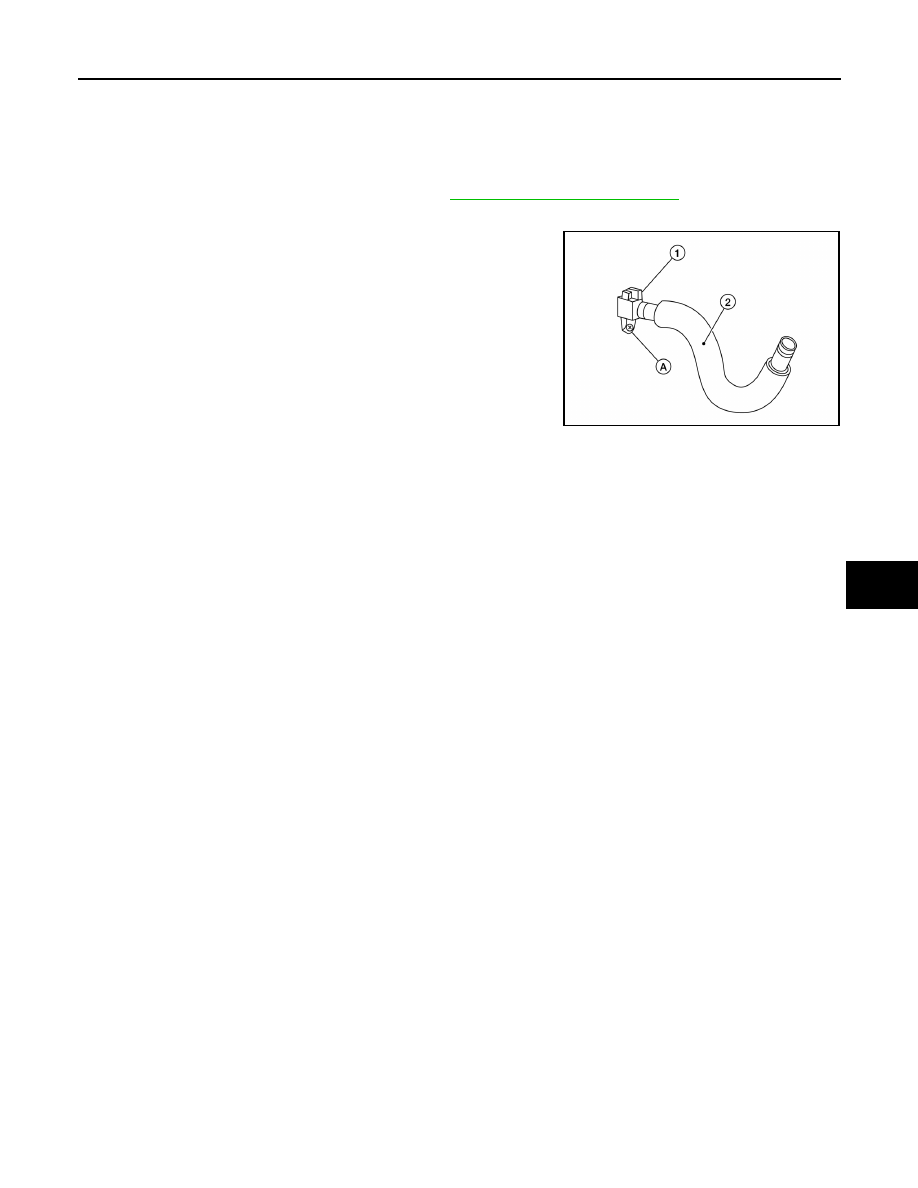

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009757705

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Disconnect the harness connector from the in-vehicle sensor.
3. Disconnect the aspirator hose (2) from the in-vehicle sensor.
4. Remove the in-vehicle sensor screw (A) and the in-vehicle sen-

sor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0665ZZ
