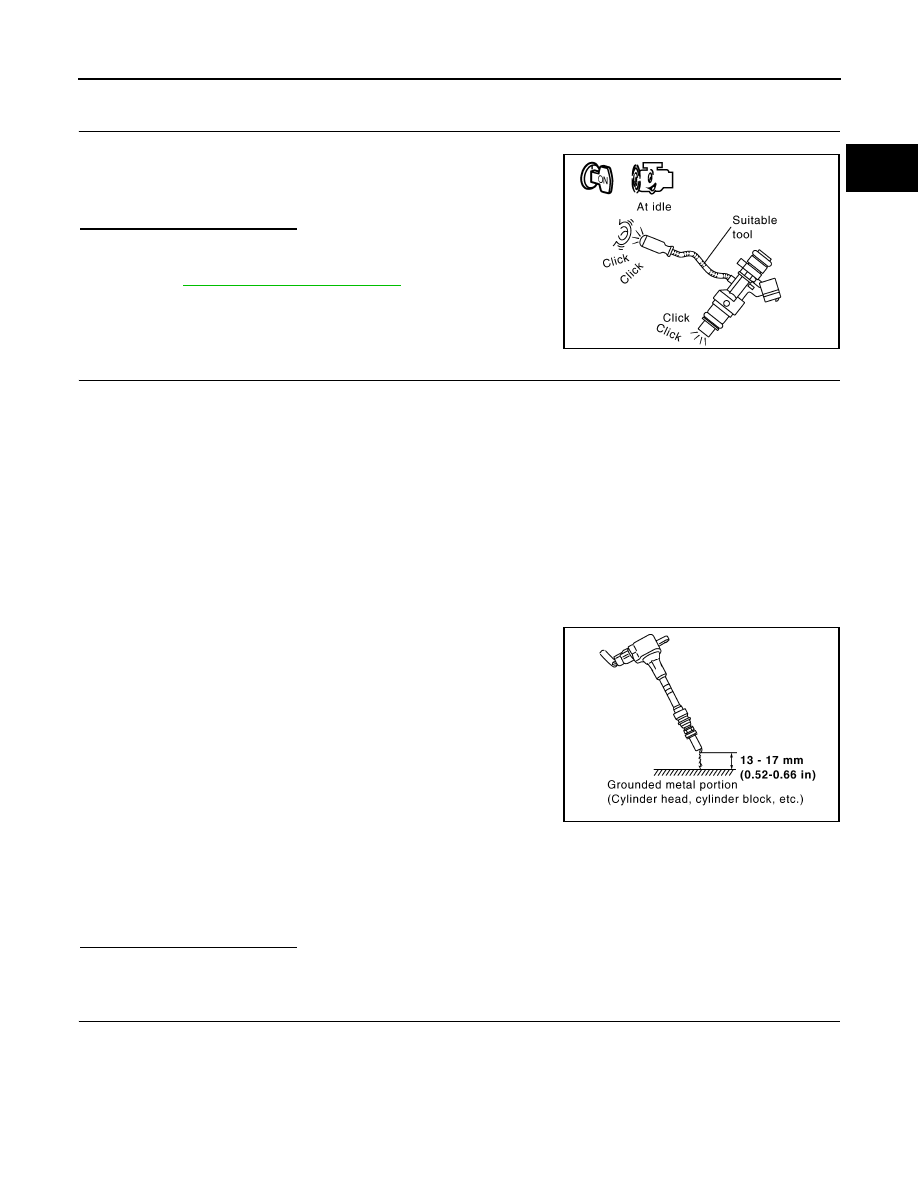

EC-268 < DTC/CIRCUIT DIAGNOSIS > [MRA8DE] P0222, P0223 TP SENSOR Component Inspection (TP Sensor) INFOID:0000000009758518 1. CHECK THROTTLE POSITION SENSOR 1. Turn ignition switch OFF. 2. Reconnect all harness connectors disconnected. 3. Perform “ Throttle Valve Closed Position Learning”. Refer to 4. Turn ignition switch ON. 5. Set selector lever to D (CVT) or 1st (M/T) position. 6. Check the voltage between ECM harness connector terminals as per the following conditions. Is the inspection result normal? YES >> INSPECTION END NO >> Replace electric throttle control actuator. Refer to EM-27, "Removal and Installation" ECM Condition Voltage Connec- tor + − Terminal F25 77 78 Accelerator Fully released Less than 4.75 V Fully depressed More than 0.36 V 79 Fully released More than 0.36 V Fully depressed Less than 4.75 V |
