DLK-312

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

2. Loosen the front door hinge to body bolts. Move the door forward or backward as necessary until within

specifications provided.

3. Tighten the hinge to body bolts to specified torque.

4. Install the front fender. Refer to

DLK-159, "Removal and Installation"

.

SURFACE HEIGHT ADJUSTMENT

1. Loosen the front door hinge nuts (A).
2. Move the top and/or bottom of the door (1) in or out as neces-

sary until it is within specifications provided.

3. Tighten the front door hinge nuts to specified torque.

CAUTION:

• Check front door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

• After adjusting, apply touch-up paint (body color) to the head of front door hinge bolts and nuts.

• If the clearance measurements cannot be corrected by adjusting the front door assembly, adjust the

following as necessary.

- Front fender: Refer to

DLK-160, "Adjustment"

.

- Rear door: Refer to

DLK-169, "DOOR ASSEMBLY : Adjustment"

.

DOOR STRIKER ADJUSTMENT

Adjust front door assembly striker so that it becomes parallel with door lock insertion direction.

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009756630

REMOVAL

1. Remove front door assembly (2). Refer to

DLK-309, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove bolt (A) and door hinge (1).

Front door hinge bolts

22.0 N·m (2.2 kg-m, 16 ft-lb)

Front door hinge nuts

28.0 N·m (2.9 kg-m, 21 ft-
lb)

ALKIA2705ZZ

FRONT DOOR

DLK-313

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Remove door hinge bolts (B) and remove hinge (1).

INSTALLATION

Installation is in the reverse order of removal.

Tighten front door hinge bolts to specified torque.

DLK-164, "DOOR ASSEMBLY : Adjustment"

CAUTION:

• Apply anticorrosive agent onto the front door hinge mating surface.

• After installation, check front door open/close, lock/unlock operation.

• After installation, perform the front door adjustment procedure. Refer to

DLK-311, "DOOR ASSEM-

BLY : Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009756631

REMOVAL

1. Fully close the front door glass.
2. Remove front door speaker. Refer to

AV-60, "Removal and Installation"

 (BASE AUDIO),

AV-205,

"Removal and Installation"

 (DISPLAY AUDIO WITH BOSE),

AV-124, "Removal and Installation"

 (DIS-

PLAY AUDIO WITHOUT BOSE)

AV-408, "Removal and Installation"

 (NAVIGATION WITH BOSE) and

AV-

300, "Removal and Installation"

 (NAVIGATION WITHOUT BOSE).

3. Remove door check link bolt from body.
4. Remove door check link bolts on door panel.
5. Remove door check link (1) through the hole in door panel (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check front door open/close, lock/unlock operation.

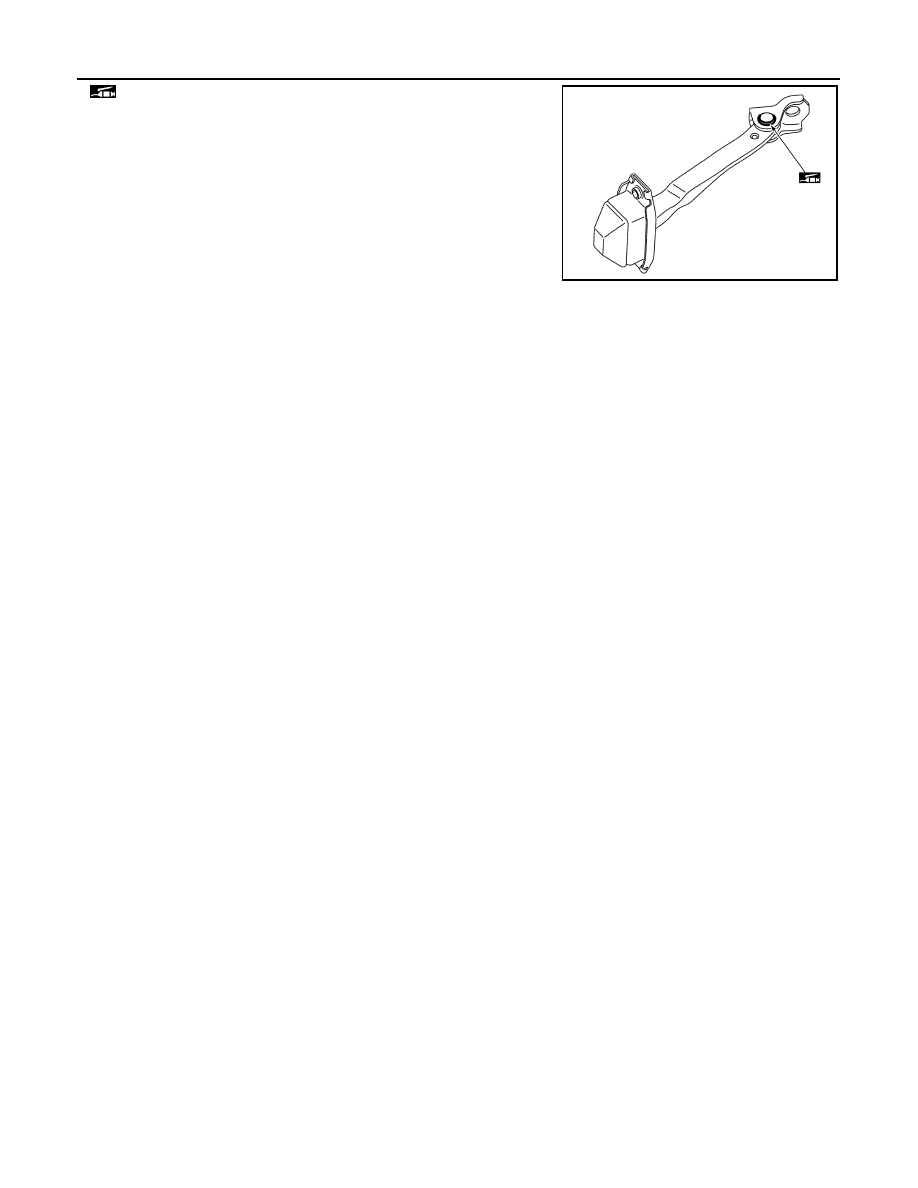

• Check front door check link rotating point for poor lubrication. If necessary, apply a suitable multi-

purpose grease.

ALKIA2708ZZ

JMKIA8073ZZ

DLK-314

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

: Grease

JMKIA8074ZZ

REAR DOOR

DLK-315

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009756632

CAUTION:

• Use two people when removing or installing the rear door assembly due to its heavy weight.

• When removing and installing rear door assembly, support rear door with a suitable tool.

REMOVAL

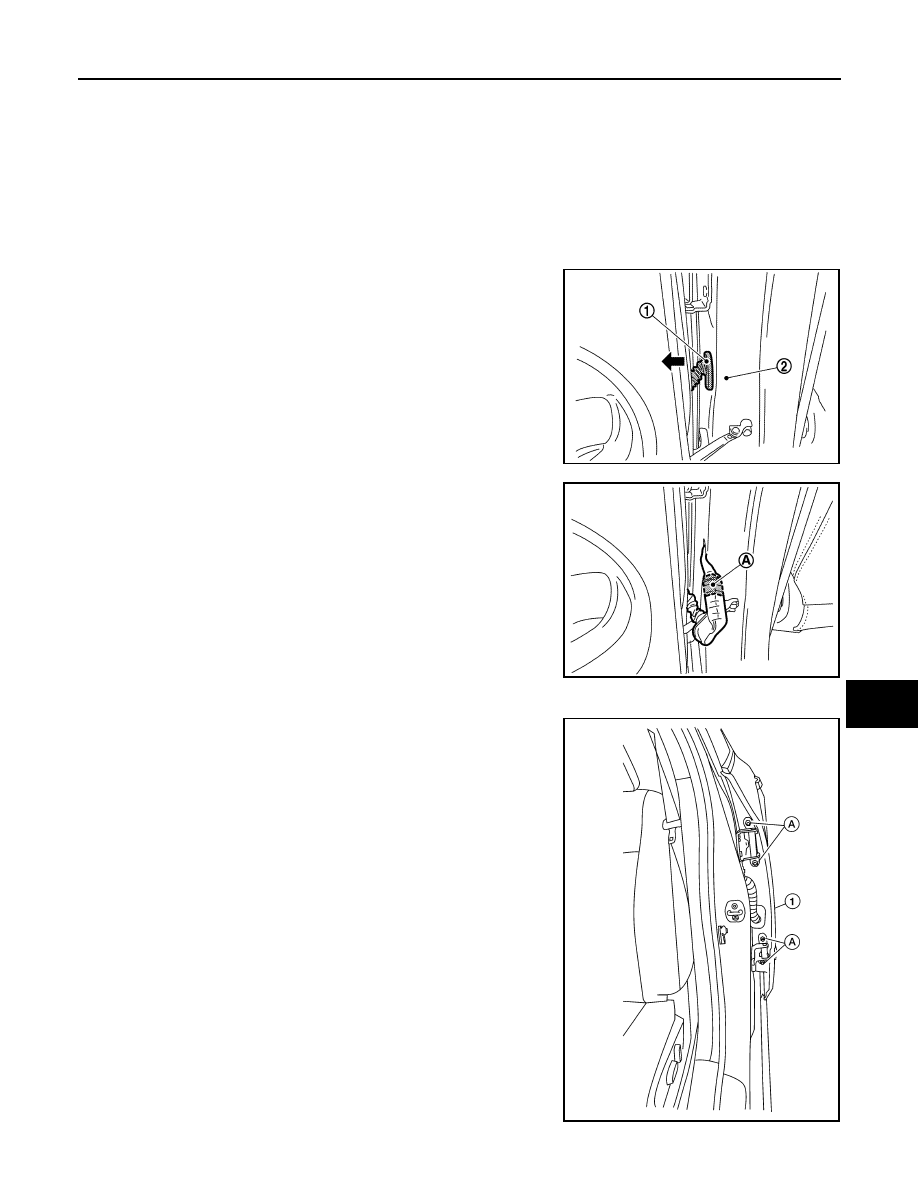

1. Remove rear door assembly harness grommet (LH) (1) then pull

out door harness from body (2).

2. Disconnect the harness connector (A) from the door harness.

3. Remove the check link bolt from the body.
4. Remove rear door assembly hinge nuts (A) (door side) and the

door assembly (1).

JMKIA8083ZZ

JMKIA8084ZZ

ALKIA2710ZZ
