RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000009756623

Removal and Installation

INFOID:0000000009756624

REMOVAL

CAUTION:

Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.
1. Disconnect the battery negative and positive terminals then wait at least three minutes. Refer to

PG-50,

"Removal and Installation (Battery)"

.

2. Remove crash zone sensor. Refer to

SR-25, "Removal and Installation"

.

3. Remove radiator. Refer to

CO-15, "Removal and Installation"

.

4. Remove the condenser (if equipped). Refer to

HA-39, "CONDENSER : Removal and Installation"

.

5. Remove the horns. Refer to

HRN-6, "Removal and Installation"

.

6. Remove air guides (LH/RH).
7. Remove the hood lock support bolts and hood lock support.
8. Remove the core support lower stay bolts and core support lower stay.
9. Remove the core support lower bolts and core support lower.
10. Remove the core support side member nuts and bolts and remove the core support side member, if nec-

essary.

INSTALLATION

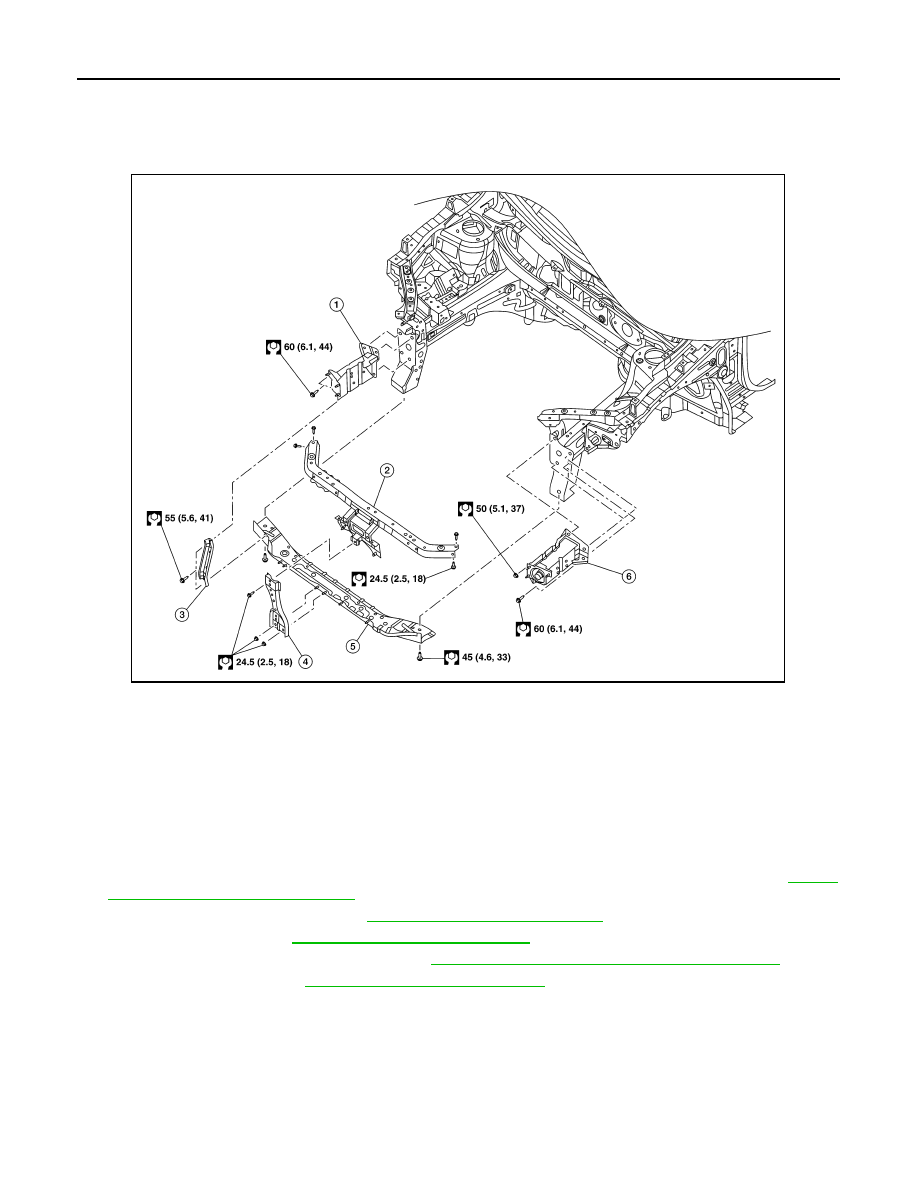

1. Core support side member (RH)

2.

Core support upper

3.

Core support lower stay

4. Hood lock support

5.

Core support lower

6.

Core support side member (LH)

ALKIA2894ZZ

RADIATOR CORE SUPPORT

DLK-305

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Installation is in the reverse order of removal.

Tighten bolts to specification. Refer to

DLK-157, "Exploded View"

.

CAUTION:

After installation, perform hood fitting adjustment. Refer to

DLK-150, "HOOD ASSEMBLY : Adjust-

ment"

.

DLK-306

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000009756625

Removal and Installation

INFOID:0000000009756626

REMOVAL

1. Remove the front combination lamp. Ref to

EXL-119, "Removal and Installation"

.

2. Remove the front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove the front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation -

Front Fender Protector"

.

4. Remove the front fender bolts and the front fender.

CAUTION:

Use shop cloths to protect the body from being damaged during removal and installation.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, perform fender adjustment procedure. Refer to

DLK-307, "Adjustment"

.

1.

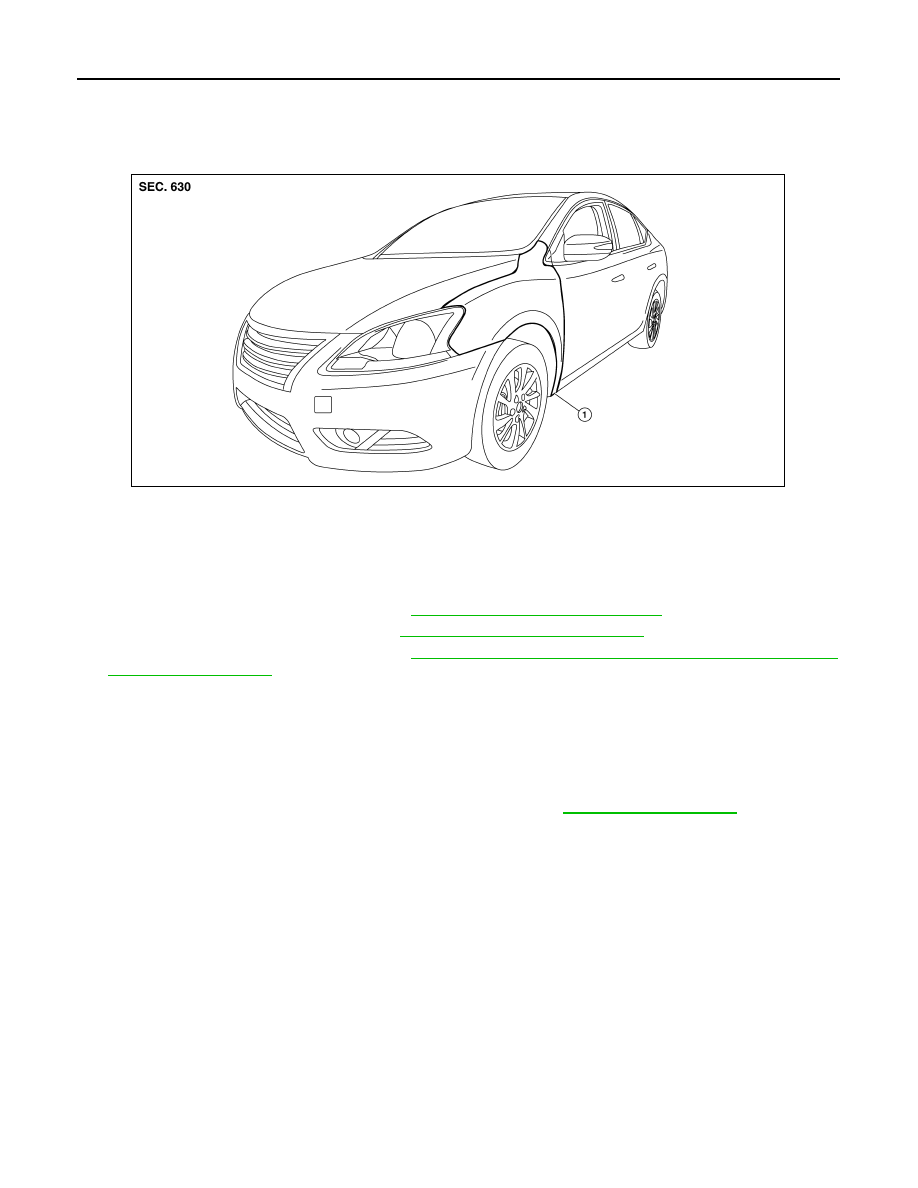

Front fender

ALKIA2918ZZ

FRONT FENDER

DLK-307

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Adjustment

INFOID:0000000009756627

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dures.

Unit: mm (in)

Adjustment

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove the front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation -

Front Fender Protector"

.

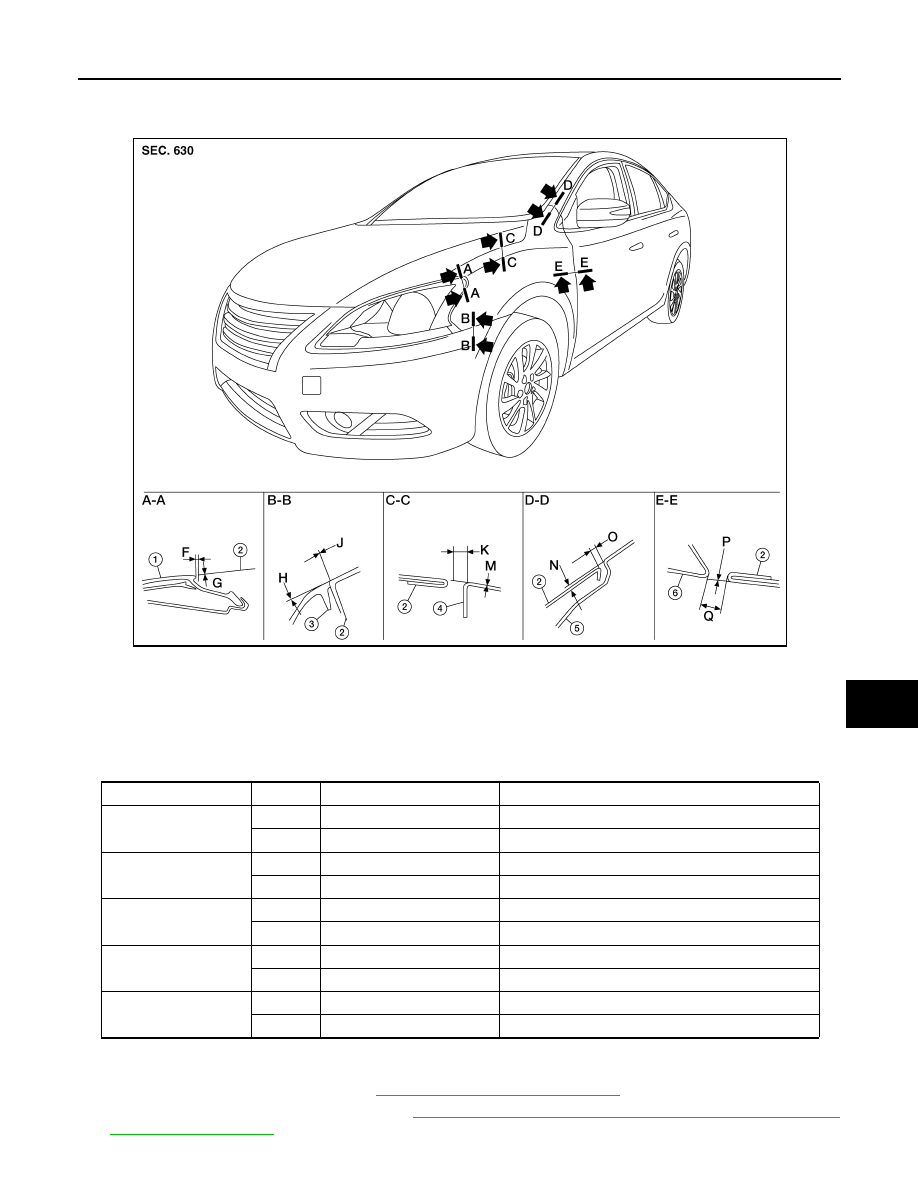

1.

Front combination lamp assembly

2.

Fender

3.

Front bumper fascia

4.

Hood assembly

5.

Body side outer

6.

Front door

Section

Item

Measurement

Standard

A – A

F

Clearance

1.5 +1.2, -1.0 (0.06 + 0.05, -0.04)

G

Surface height

3.9

± 1.2 (0.15 ± 0.05)

B – B

H

Surface height

0.7

± 1.0 (0.03 ± 0.04)

J

Clearance

0.0

± 1.0 (0.00 ± 0.04)

C – C

K

Clearance

3.7

± 1.0 (0.15 ± 0.04)

M

Surface height

0.0

± 1.0 (0.00 ± 0.04)

D – D

N

Surface height

0.0

± 1.0 (0.00 ± 0.04)

O

Clearance

3.0

± 1.0 (0.12 ± 0.04)

E – E

P

Surface height

—

Q

Clearance

—

ALKIA3331ZZ
