FUEL FILLER LID OPENER

5. Remove rear seat bolster (LH). Refer to

SE-24, "Removal and Installation - Rear Seat Bolster"

.

6. Remove trunk side finisher (LH). Refer to

INT-43, "TRUNK SIDE FINISHER : Removal and Installation"

.

7. Remove fuel filler lid opener cable (1) from fuel filler lid lock assembly. Refer to

DLK-192, "FUEL FILLER

LID LOCK : Removal and Installation"

.

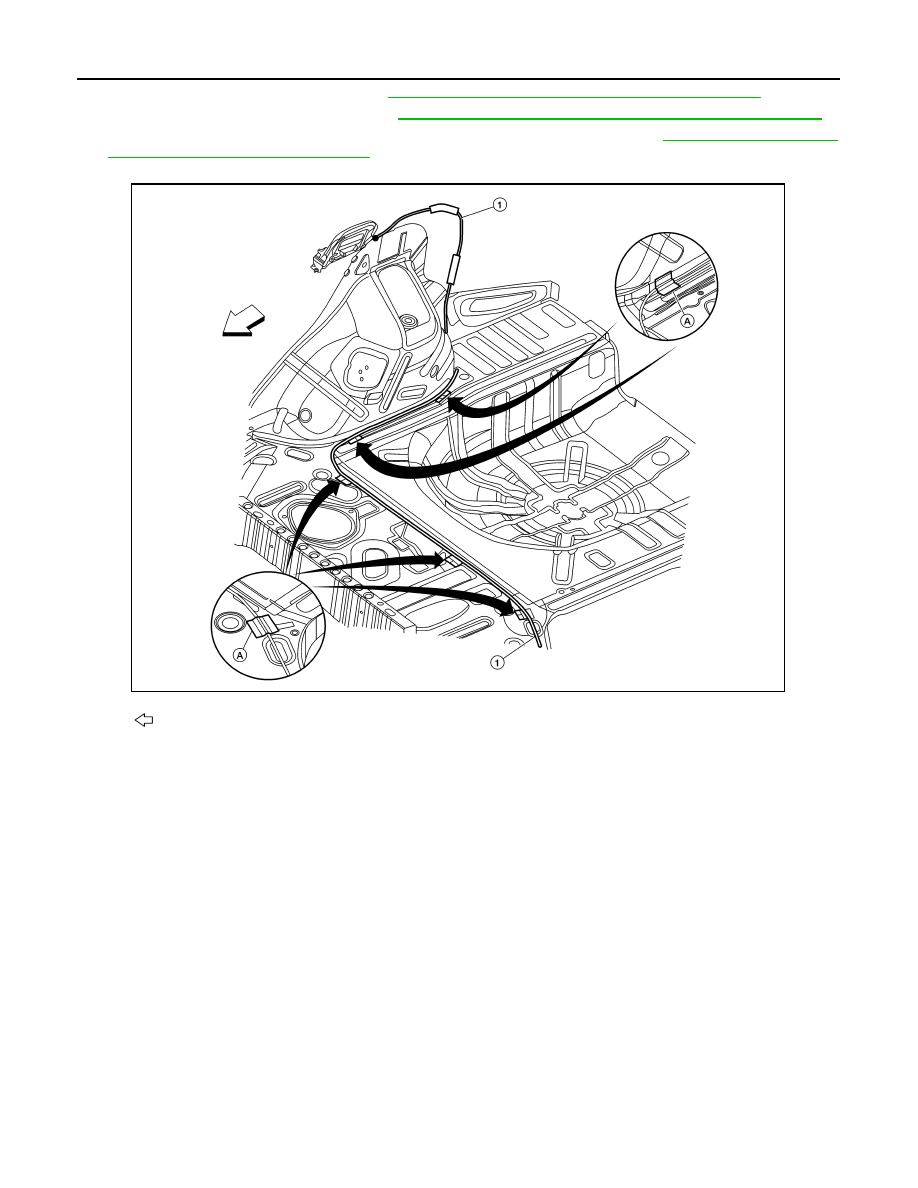

8. Remove each cable protector (A), then remove fuel filler lid opener cable (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID LOCK
FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000009756505

REMOVAL

1. Fully open fuel filler lid.

Front

ALKIA2931ZZ

FUEL FILLER LID OPENER

DLK-193

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

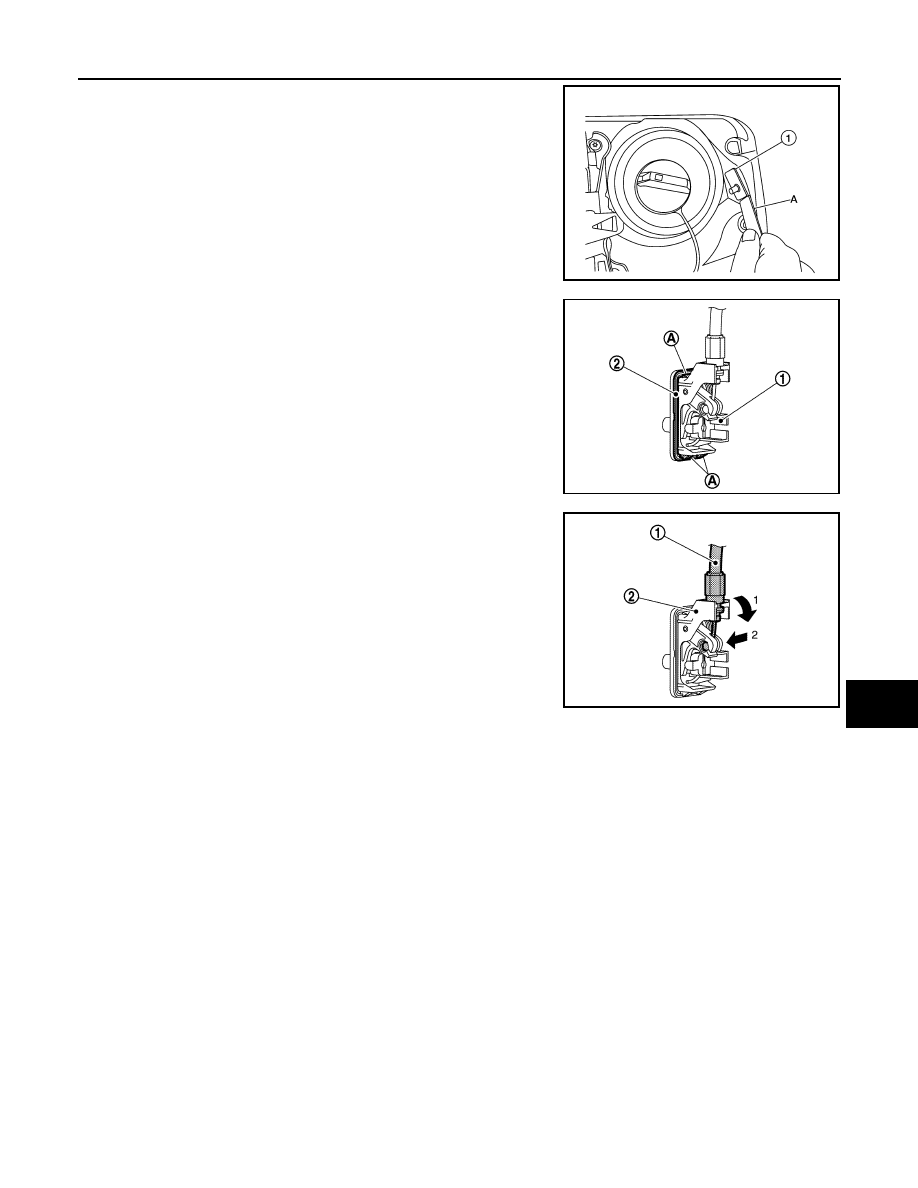

2. Insert a suitable tool (A) as shown into bottom of fuel filler lock

assembly(1).

3. Release upper and lower pawls (A) using a suitable tool and

remove fuel filler lid lock assembly (1).

CAUTION:

Be careful not to damage gasket (2) when removing.

4. Disconnect fuel filler lid opener cable (1) by pulling downward

and then sliding cable end to the side to remove from fuel filler

lid lock assembly (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

ALKIA2731ZZ

JMKIA8138ZZ

JMKIA8139ZZ

DLK-194

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Removal and Installation

INFOID:0000000009756507

REMOVAL

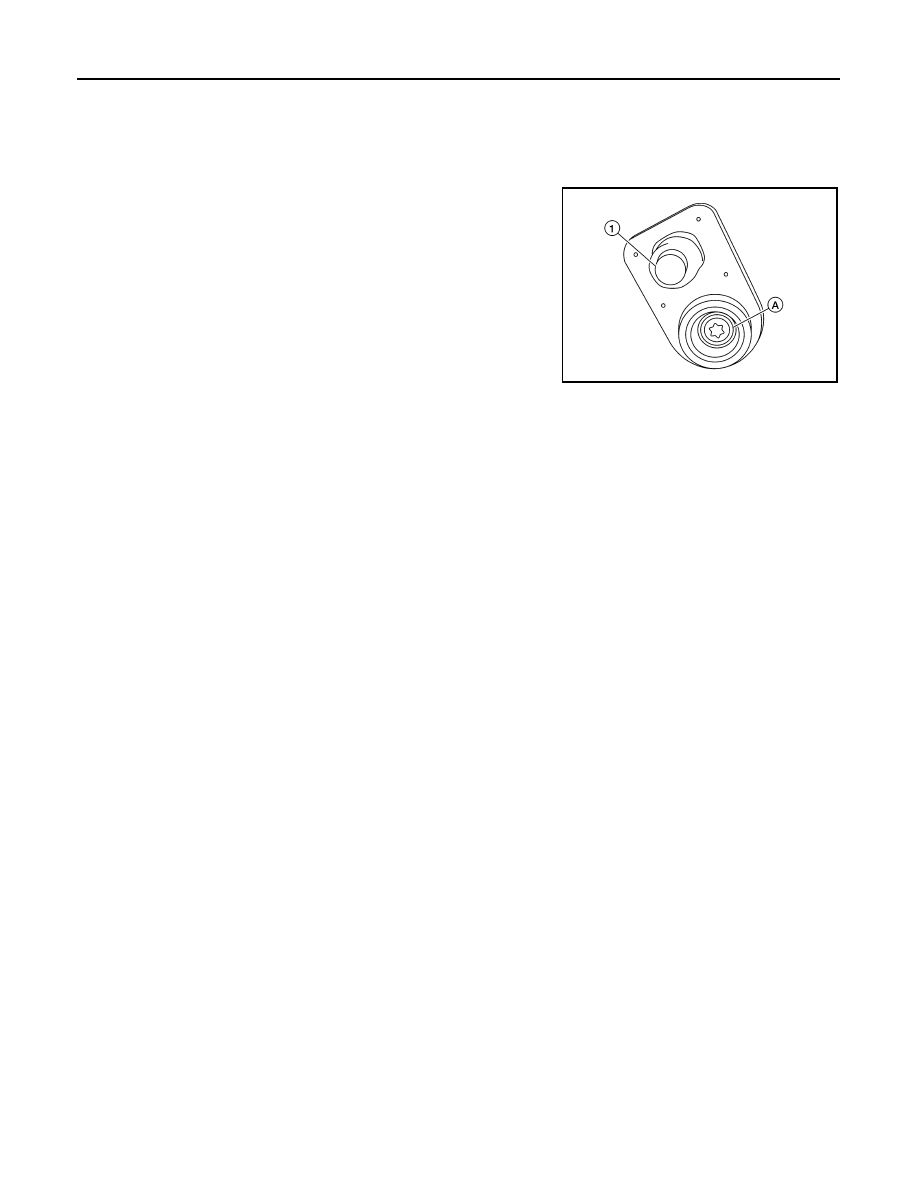

1. Remove the door switch screw (A).
2. Disconnect the harness connector from the door switch (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2930ZZ

INSIDE KEY ANTENNA

DLK-195

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

CONSOLE
CONSOLE : Removal and Installation

INFOID:0000000009756508

REMOVAL

1. Remove the shift selector finisher. Refer to

IP-17, "Removal and

Installation"

.

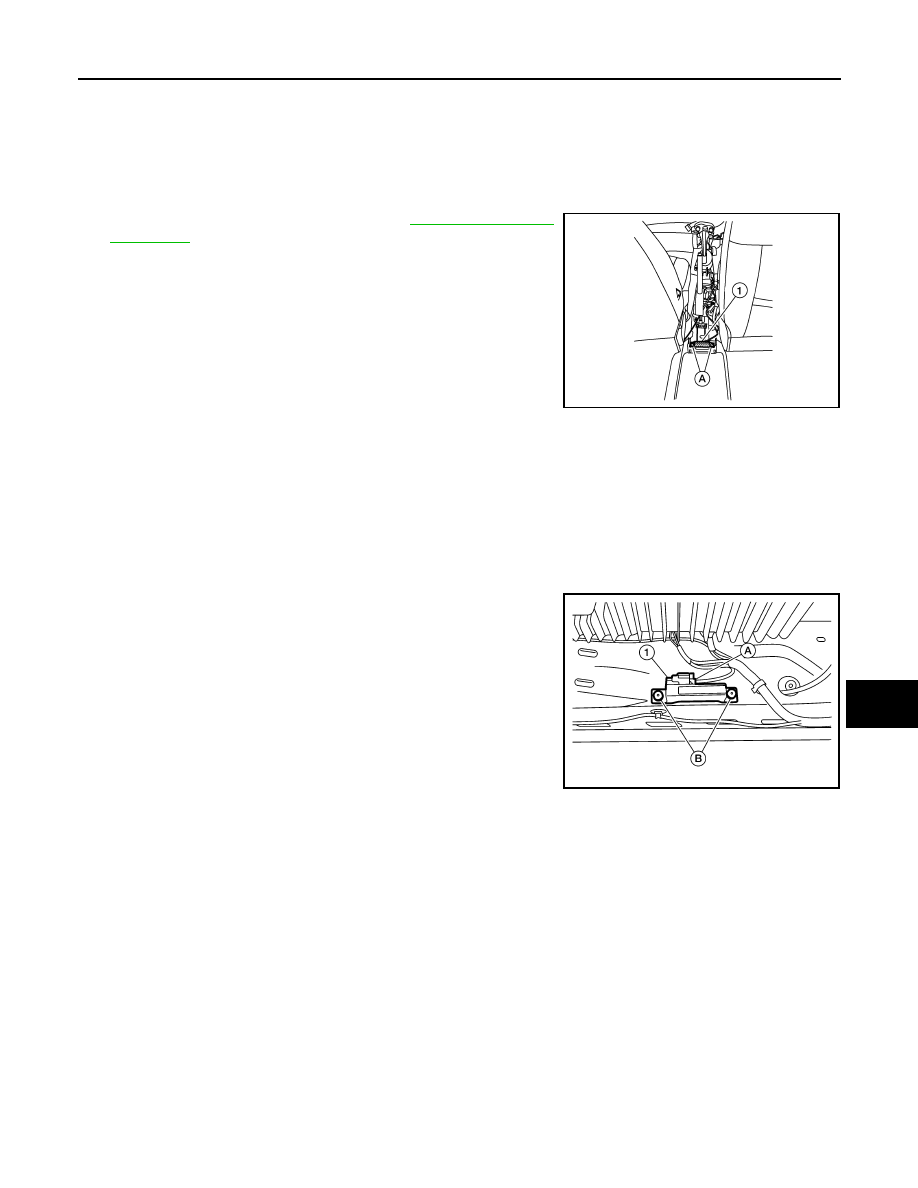

2. Remove the inside key antenna (console) screws (A) and inside

key antenna (console) (1).

INSTALLATION

Installation is in the reverse order of removal.

LUGGAGE ROOM
LUGGAGE ROOM : Removal and Installation

INFOID:0000000009756509

REMOVAL

1. Disconnect the harness connector (A) from the inside key

antenna (luggage room) (1).

2. Remove the inside key antenna (luggage room) clips (B), and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3455ZZ

ALKIA2721ZZ
