DLK-140

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK OPERATION WARNING DOES NOT OPERATE

DOOR LOCK OPERATION WARNING DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000009756458

1.

CHECK DOOR LOCK FUNCTION

Check door lock function.
Does door lock/unlock using door request switch?

YES

>> GO TO 2.

NO

>> Refer to

DLK-121, "Diagnosis Procedure"

.

2.

CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to

DLK-91, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-73, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

KEY ID WARNING DOES NOT OPERATE

DLK-141

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY ID WARNING DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000009756459

1.

CHECK DTC WITH BCM

Check that DTC is not detected with BCM
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform trouble diagnosis relevant to DTC indicated.

2.

CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Perform trouble diagnosis relevant to DTC indicated.

3.

CHECK INTELLIGENT KEY

Check Intelligent Key.

Refer to

DLK-106, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK INSIDE KEY ANTENNA

Check inside key antenna.

• Instrument center: Refer to

DLK-72, "DTC Logic"

.

• Console: Refer to

DLK-75, "DTC Logic"

.

• Trunk room: Refer to

DLK-78, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CHECK KEY WARNING LAMP

Check key warning lamp.

Refer to

DLK-107, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace the malfunctioning parts.

6.

REPLACE BCM

1. Replace BCM. Refer to

BCS-73, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

DLK-142

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

PANIC ALARM FUNCTION DOES NOT OPERATE

PANIC ALARM FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000009756460

1.

CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.
Does door lock/unlock with Intelligent Key button?

YES

>> GO TO 2.

NO

>> Refer to

DLK-124, "Diagnosis Procedure"

.

2.

CHECK HORN OPERATION

1. Select IPDM E/R using CONSULT.

2. Select HORN in ACTIVE TEST mode.

3. Touch On to check that it works normally.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK PANIC ALARM SET SETTING IN WORK SUPPORT

1. Select INTELLIGENT KEY of BCM.

2. Select PANIC ALARM SET in WORK SUPPORT mode.

3. Check PANIC ALARM SET setting in WORK SUPPORT.

Refer to

BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Set MODE 1 or MODE 3 in PANIC ALARM SET

4.

REPLACE BCM

1. Replace BCM. Refer to

BCS-73, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-143

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SQUEAK AND RATTLE TROUBLE DIAGNOSES

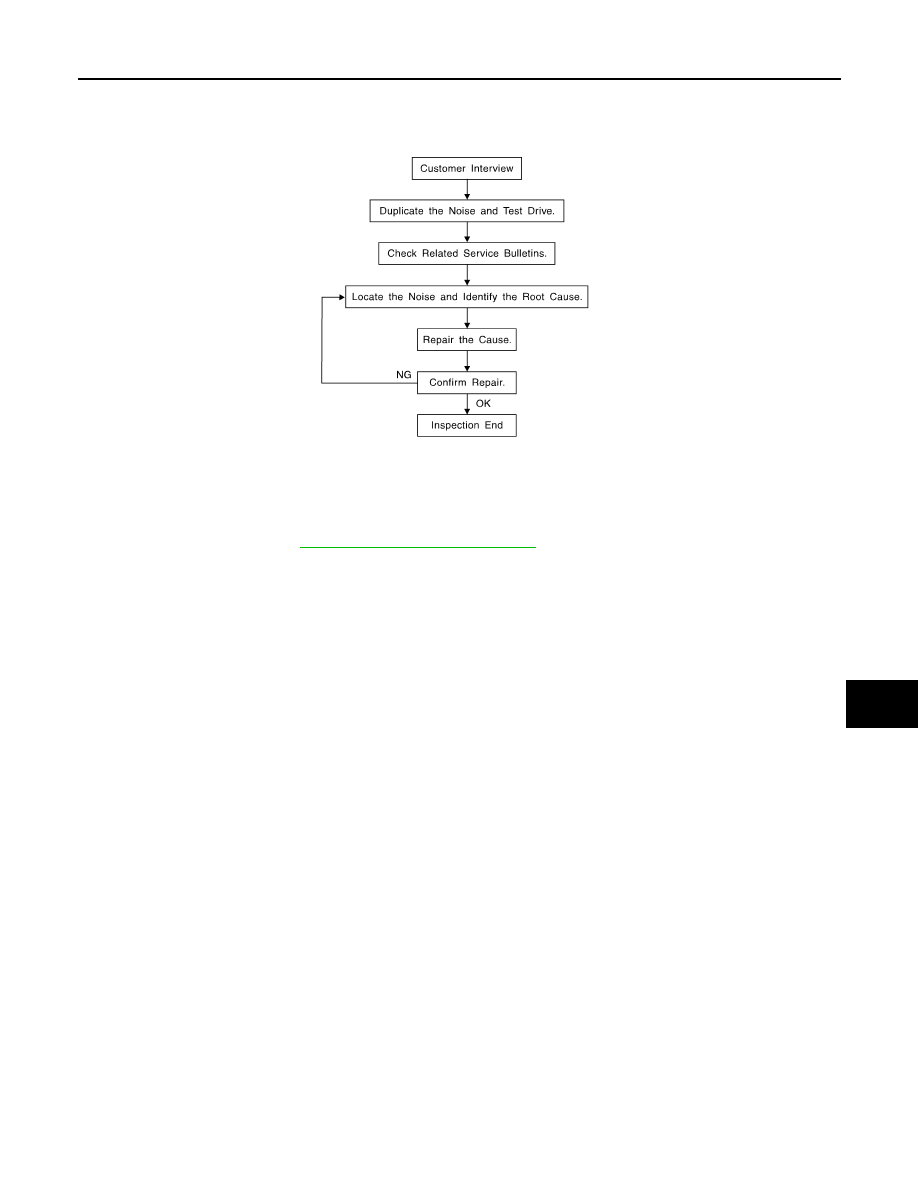

Work Flow

INFOID:0000000010291104

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-

nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

customer's comments; refer to

DLK-147, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.

• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by test driving the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when

defining the noise.

• Squeak —(Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces

= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.

• Creak—(Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-

dent on materials/often brought on by activity.

• Rattle—(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing

clip or fastener/incorrect clearance.

• Knock —(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick—(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver

action or road conditions.

• Thump—(Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz—(Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on

the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to

duplicate the same conditions when you confirm the repair.

SBT842
