List of ECU Reference

INFOID:0000000009756363

ECU

Reference

BCM

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

POWER DOOR LOCK SYSTEM

DLK-41

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

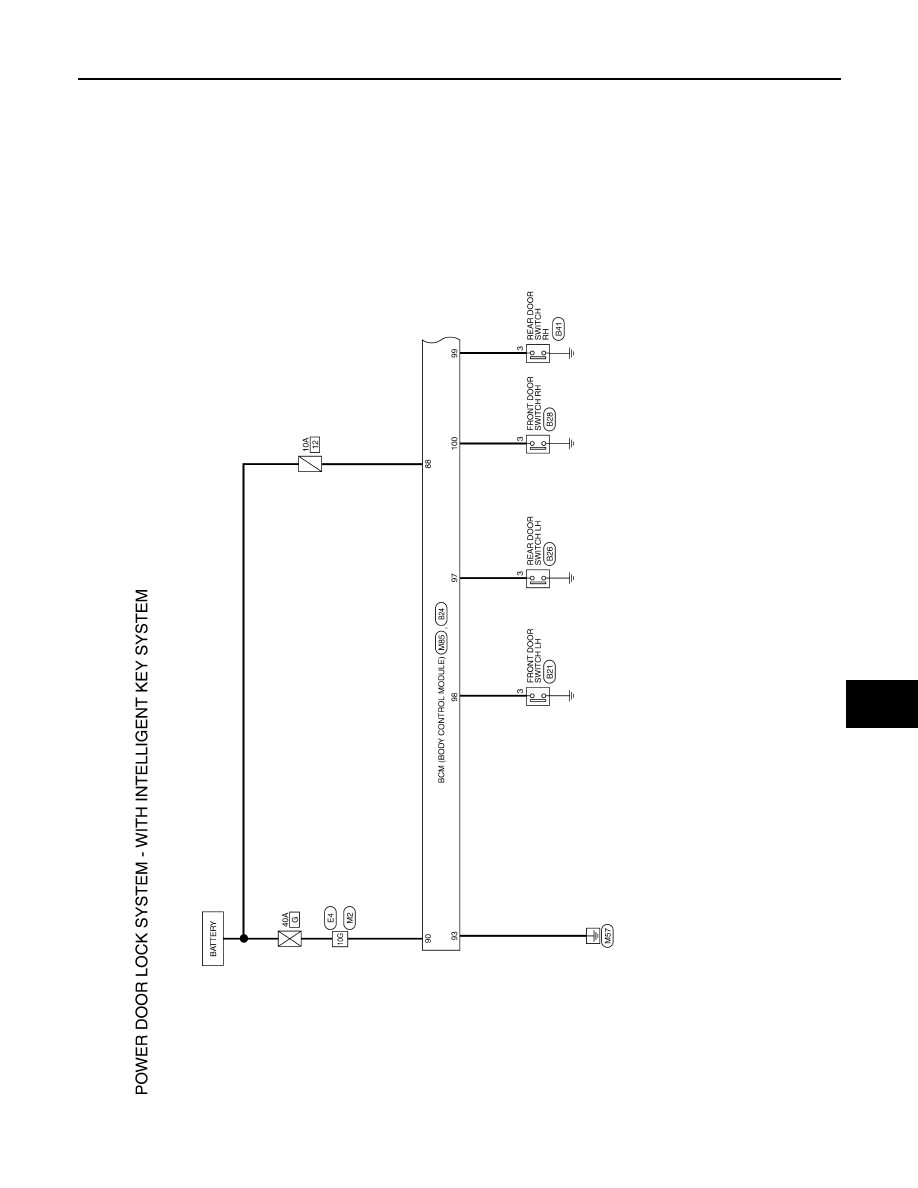

WIRING DIAGRAM

POWER DOOR LOCK SYSTEM

Wiring Diagram

INFOID:0000000009756364

AAKWA0529GB

DLK-42

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

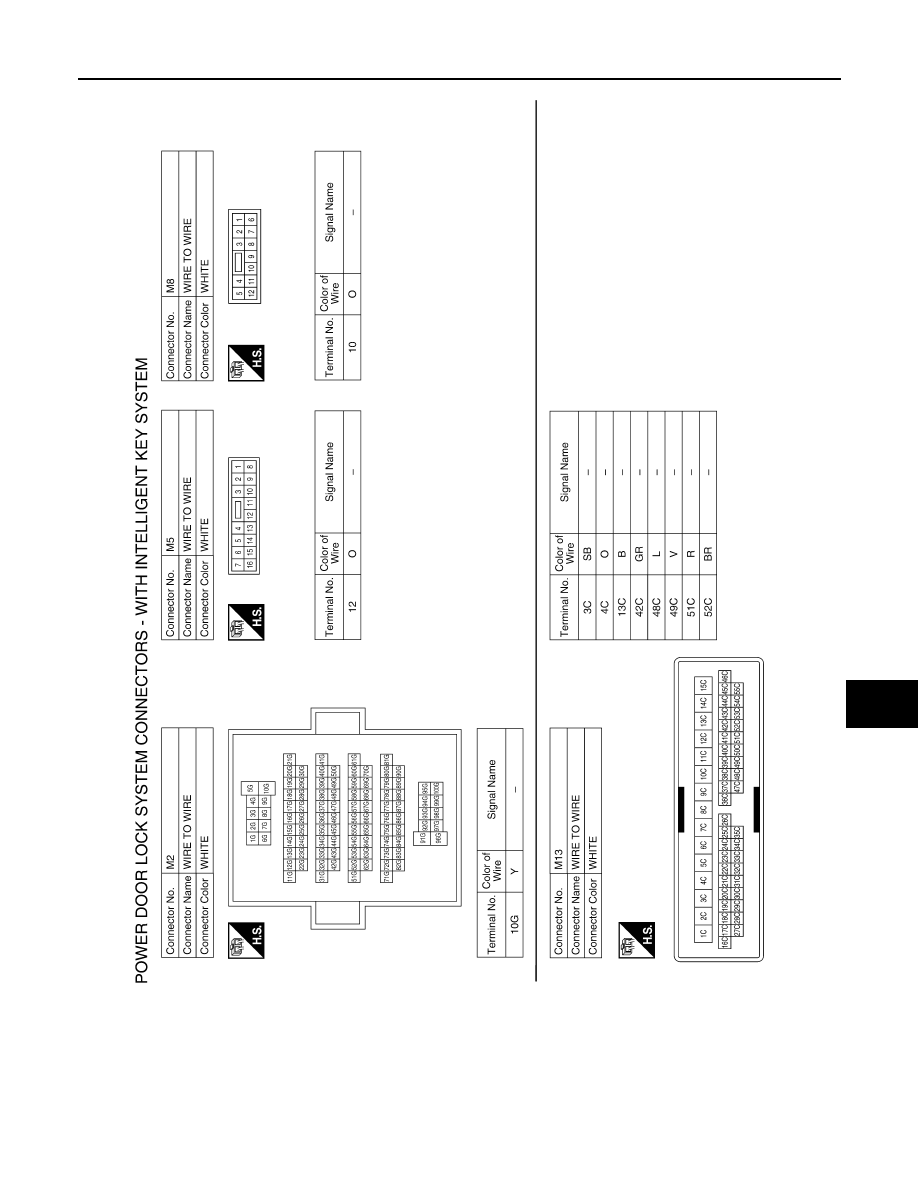

POWER DOOR LOCK SYSTEM

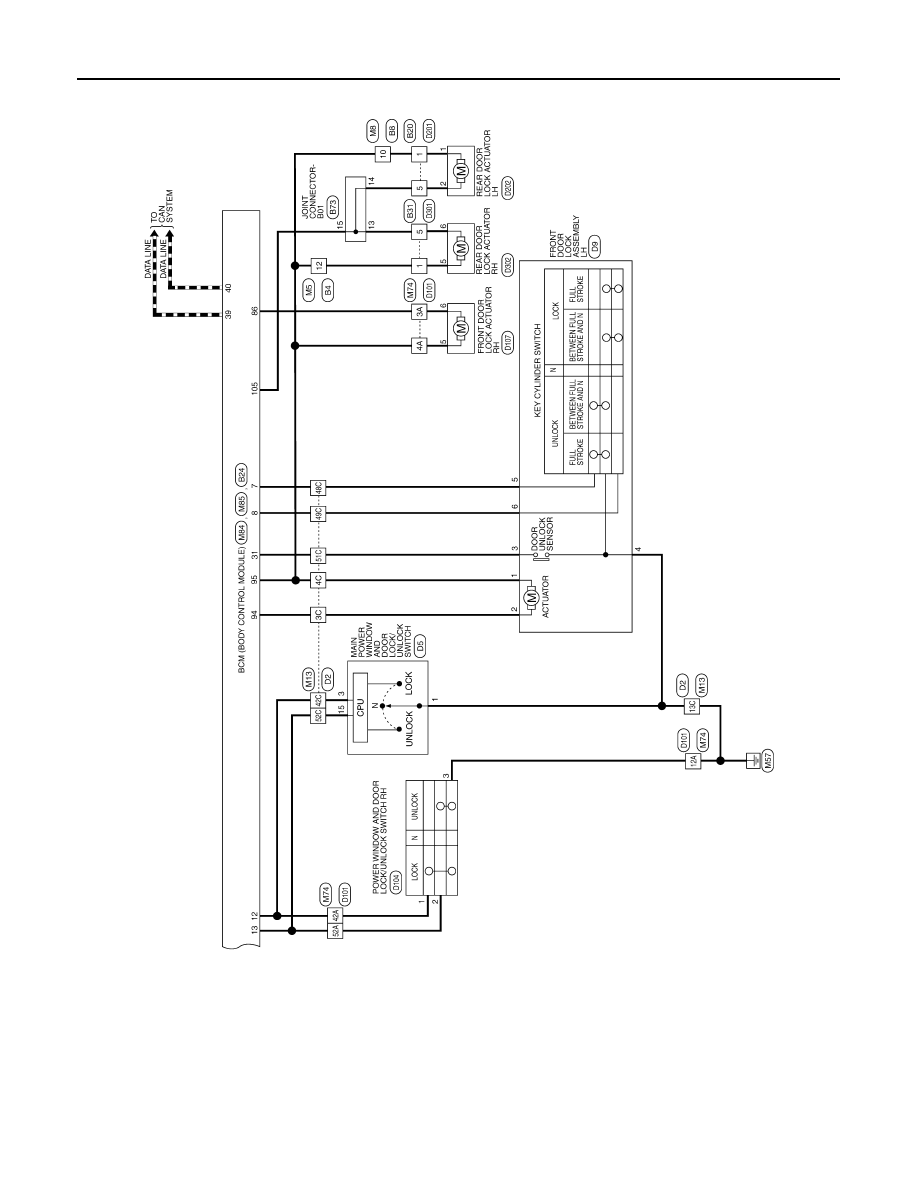

ABKWA2378GB
