Nissan Sentra. Manual - part 227

DLK-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000009756351

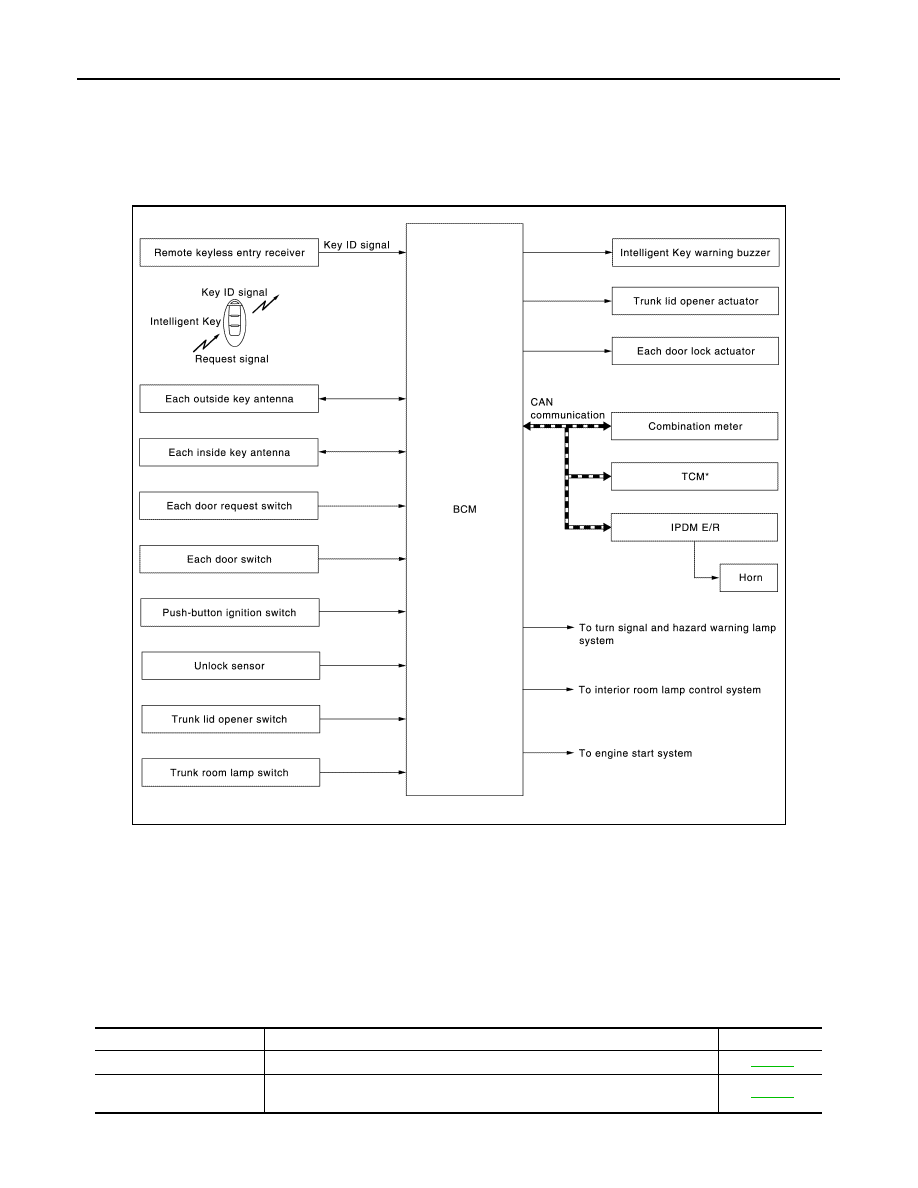

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

NOTE:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIA7941GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-25

Trunk open

The trunk lid can be opened by carrying the Intelligent Key and pressing the
trunk lid opener switch

DLK-27

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK FUNCTION
DOOR LOCK FUNCTION : System Description

INFOID:0000000009756352

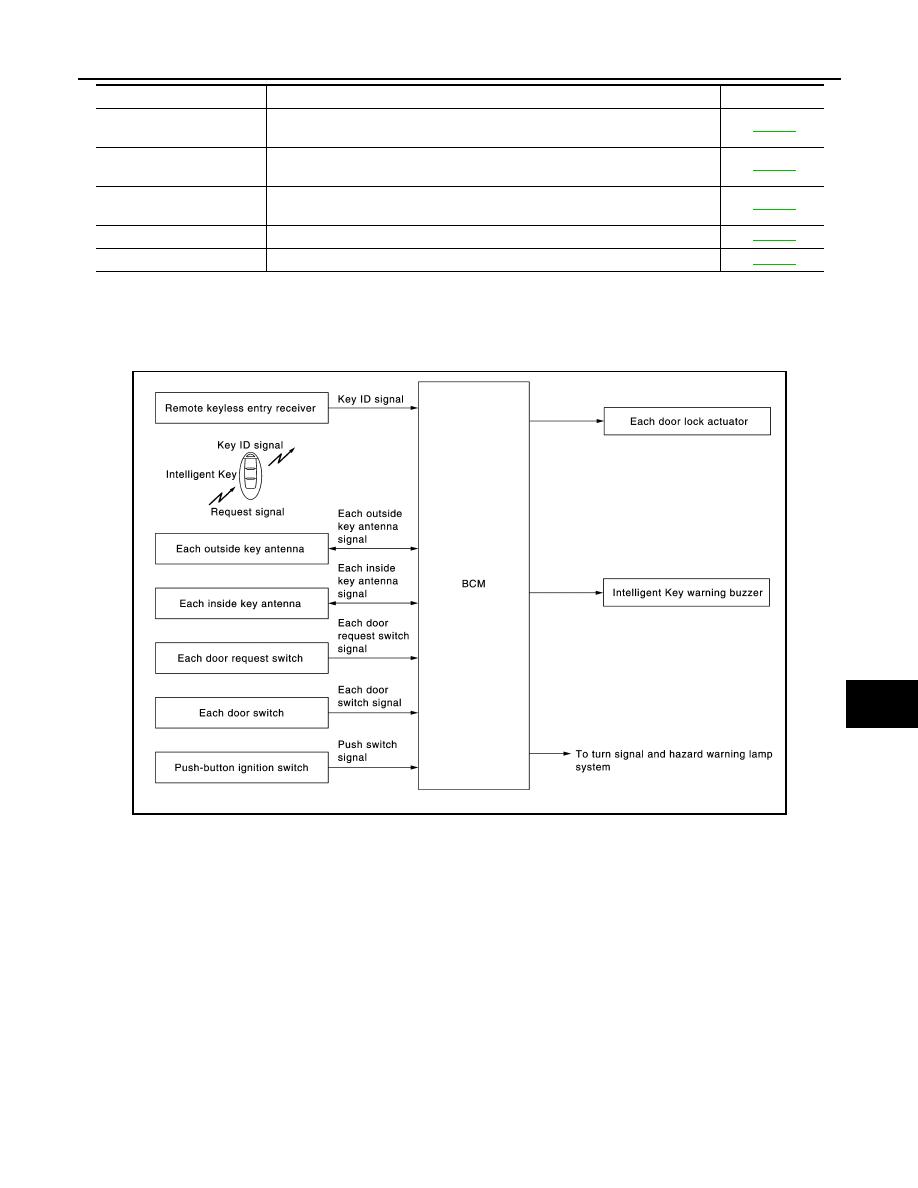

SYSTEM DIAGRAM

DOOR REQUEST SWITCH OPERATION

When pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-

gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM transmits door lock/unlock signal and operates each door lock actuator. At the same time, BCM blinks

hazard warning lamp (lock: 1 time, unlock: 2 times) and sounds Intelligent Key buzzer (lock: 1 time, unlock:

2 times) as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated.

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the
Intelligent Key

DLK-28

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-30

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-31

Engine start

The engine can be turned on while carrying the Intelligent Key

DLK-24

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

DLK-22

Function

Description

Refer

JMKIA6137GB

DLK-26

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

Door lock function can be changed using “LOCK/UNLOCK BY I-KEY” mode in “WORK SUPPORT”. Refer to

DLK-36, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

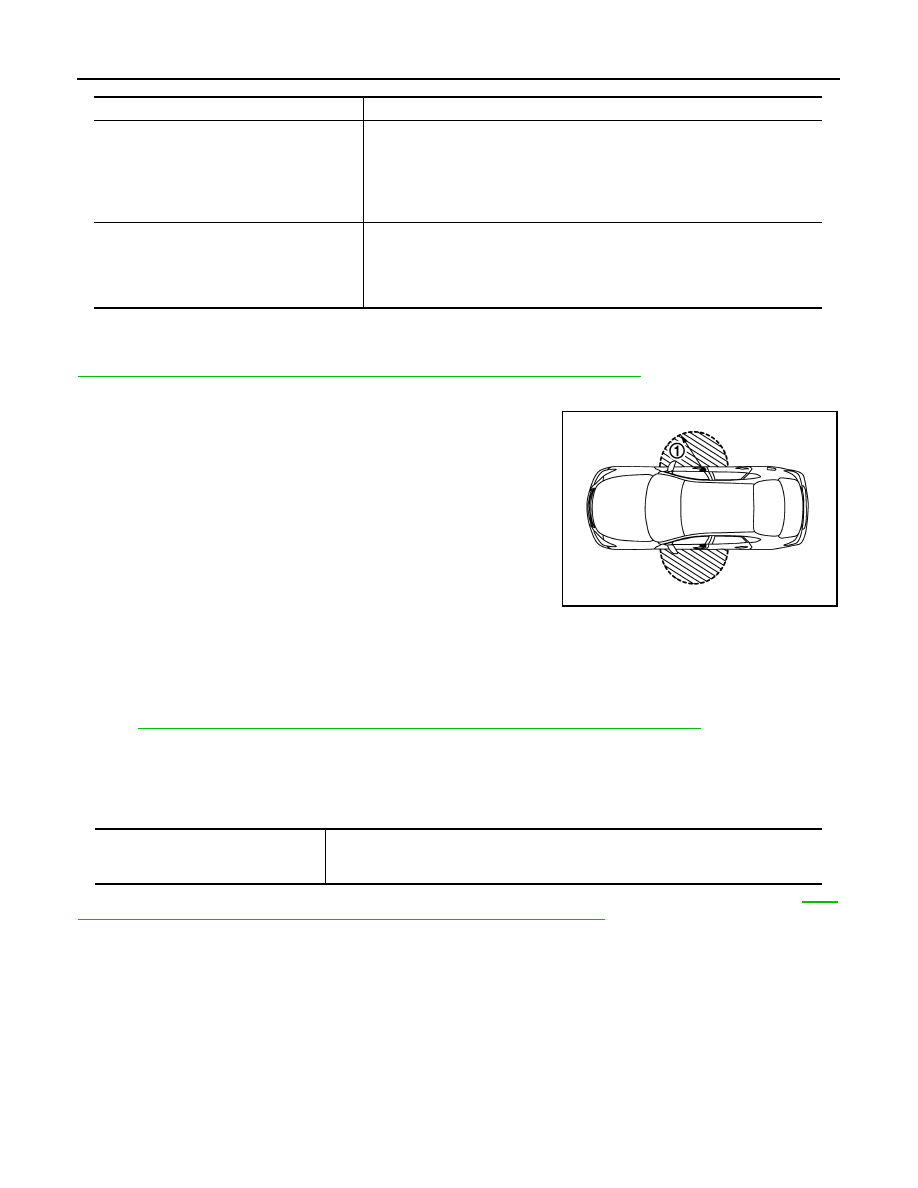

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver, passenger door handles (1). However, this operating range

depends on the ambient conditions.

HAZARD AND BUZZER REMINDER FUNCTION

For the operation check, BCM blinks hazard warning lamps (lock: 1 time, unlock: 2 times) and sounds Intelli-

gent Key warning buzzer (lock: 1 time, unlock: 2 times) when door lock or unlock operates by operation of

each door request switch.

How to Change Hazard and Buzzer Reminder Mode

Refer to

DLK-36, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing

the following operation, all doors are automatically locked. However, operation check function does not acti-

vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

36, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Each request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the LOCK or OFF position
• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area
• P position warning is not activated

Unlock

• All doors are closed
• Ignition switch is in the LOCK or OFF position
• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4881ZZ

Operating condition

• Door switch is ON (door is open)
• BCM receives lock signal
• Push switch is pressed

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK OPEN FUNCTION
TRUNK OPEN FUNCTION : System Description

INFOID:0000000009756353

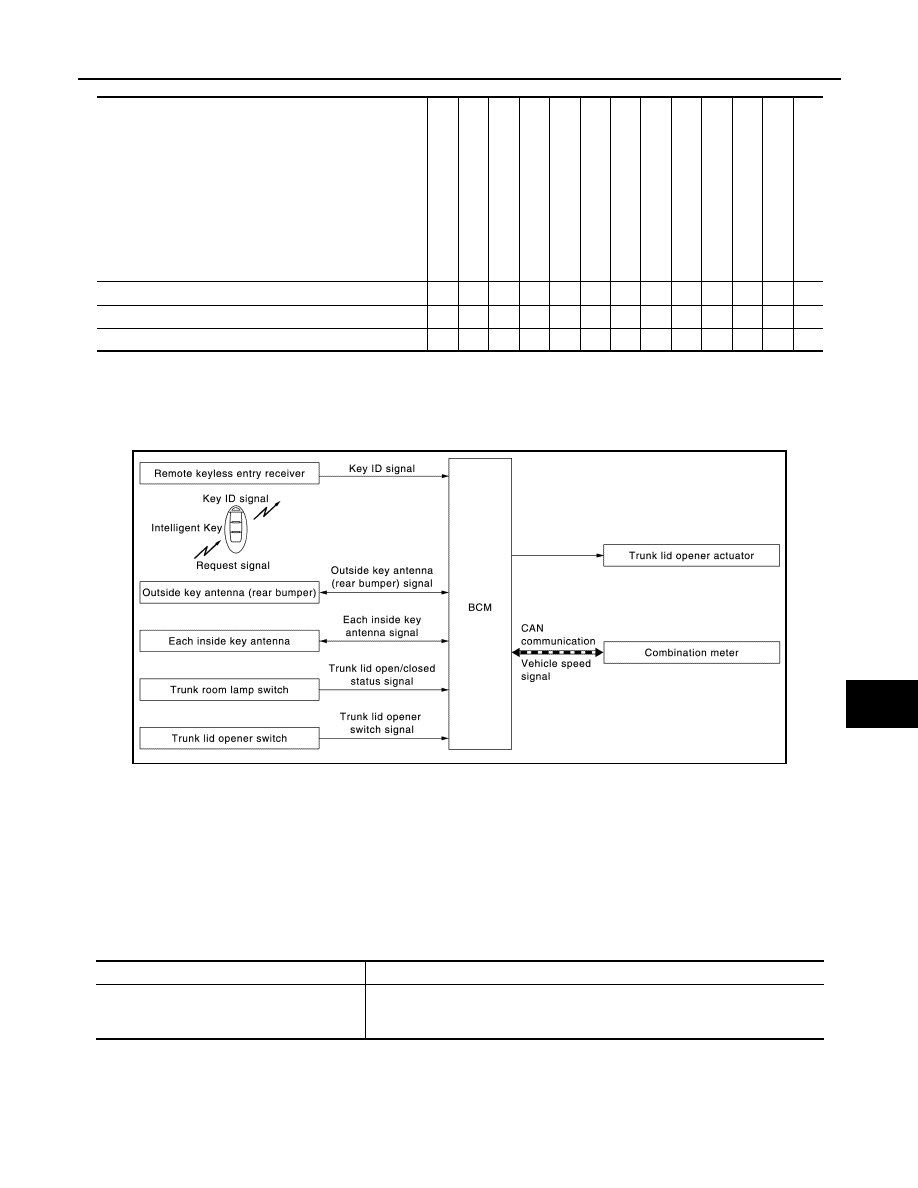

System Diagram

TRUNK LID OPENER OPERATION

• When the BCM detects that trunk lid opener switch is pressed, it starts the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. Then, checks that

the Intelligent Key is near the trunk lid.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

OPERATION CONDITION

If the following conditions are satisfied, the trunk lid can be opened.

OUTSIDE KEY ANTENNA DETECTION AREA

Door lock function

In

te

llige

nt

 Key

Re

mo

te

 ke

yl

es

s en

try rec

ei

ve

r

Do

or swit

ch

Do

or requ

es

t swit

ch

Do

or loc

k ac

tu

ato

r

In

si

de

 ke

y an

ten

n

a

Out

si

de ke

y a

n

ten

n

a

In

te

llige

nt

 Key

 wa

rnin

g

bu

zz

er

CAN co

mm

un

ic

ati

on

 s

ys

tem

BC

M

Hazard w

a

rning

lamp

P

us

h-b

utt

on ig

nit

ion

 s

w

itc

h

Combination meter

Door lock/unlock function

×

×

×

×

×

×

×

×

Hazard and buzzer reminder function

×

×

×

×

×

Auto door lock function

×

×

×

×

×

×

×

×

JMKIA7942GB

Trunk lid open function

Operation condition

Trunk open operation

• Vehicle speed is less than 5 km/h (3 MPH)
• Intelligent Key is within outside key antenna (rear bumper) detection area
• Trunk lid is closed
