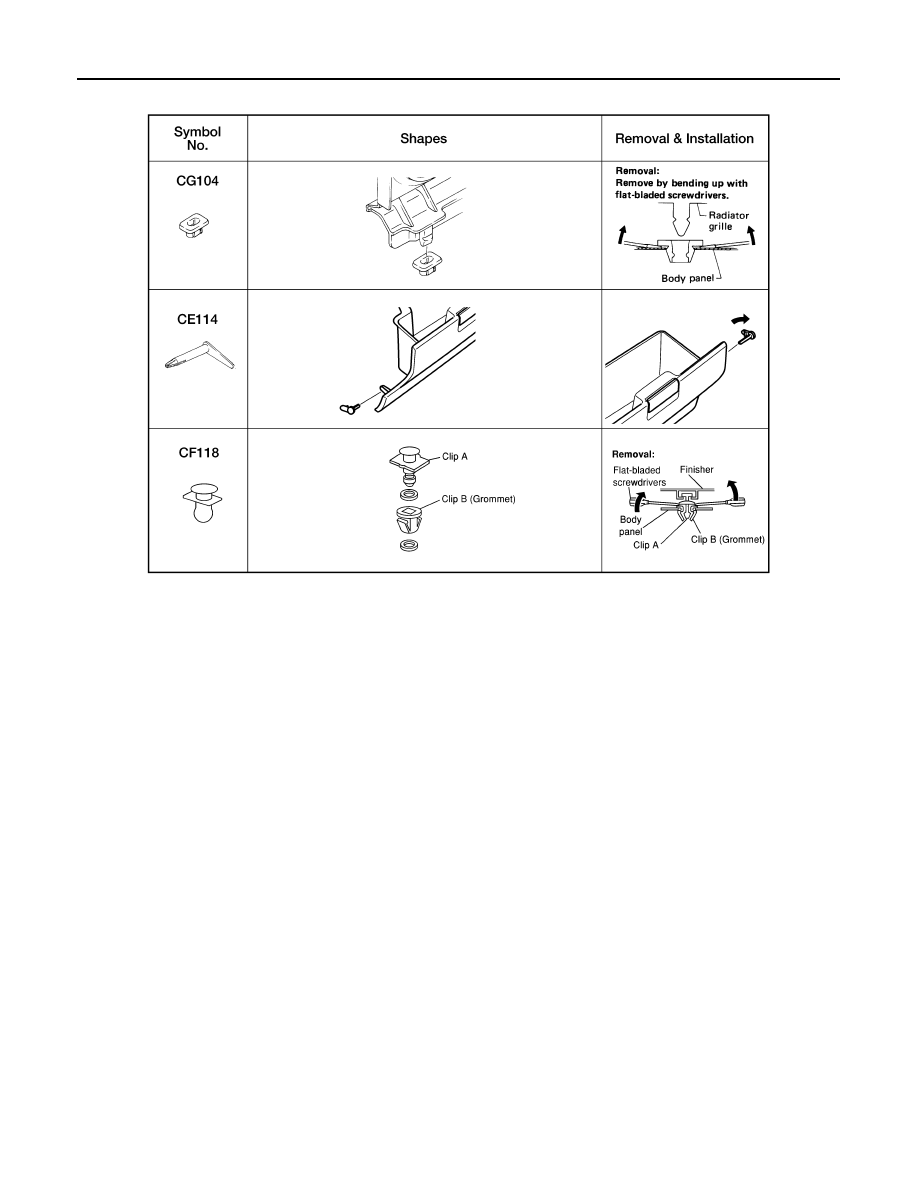

CLIP LIST

ALJIA0564GB

COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER DOOR LOCK SYSTEM

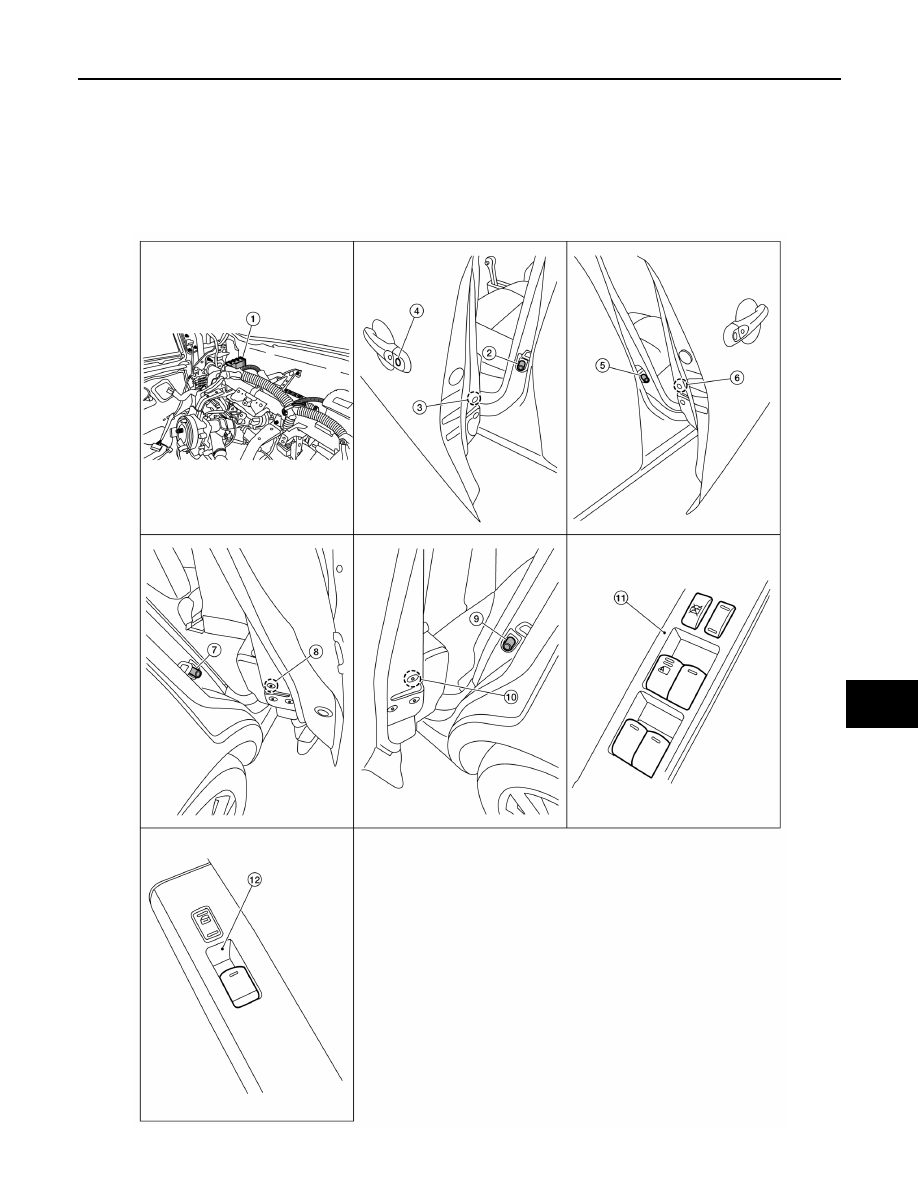

POWER DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000009756343

ALKIA2839ZZ

DLK-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

POWER DOOR LOCK SYSTEM : Component Description

INFOID:0000000009756344

INTELLIGENT KEY SYSTEM

1.

BCM (view with instrument panel  re-
moved)

2.

Front door switch LH

3.

Front door lock actuator LH

4.

Front door lock assembly LH

5.

Front door switch RH

6.

Front door lock actuator RH

7.

 Rear door switch RH

8.

Rear door lock actuator RH

9.

Rear door lock switch LH

10. Rear door lock actuator LH

11. Main power window and door lock/

unlock switch

12. Power window and door lock/unlock

switch RH

Item

Function

BCM

Controls the door lock system

Door switch

Inputs door open/close condition to BCM

Door lock and unlock switch

• Detects if door lock and unlock switch is press/release
• Integrated in the main power window and door lock/unlock switch and  power window and

door lock/unlock switch (RH)

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door

COMPONENT PARTS

DLK-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

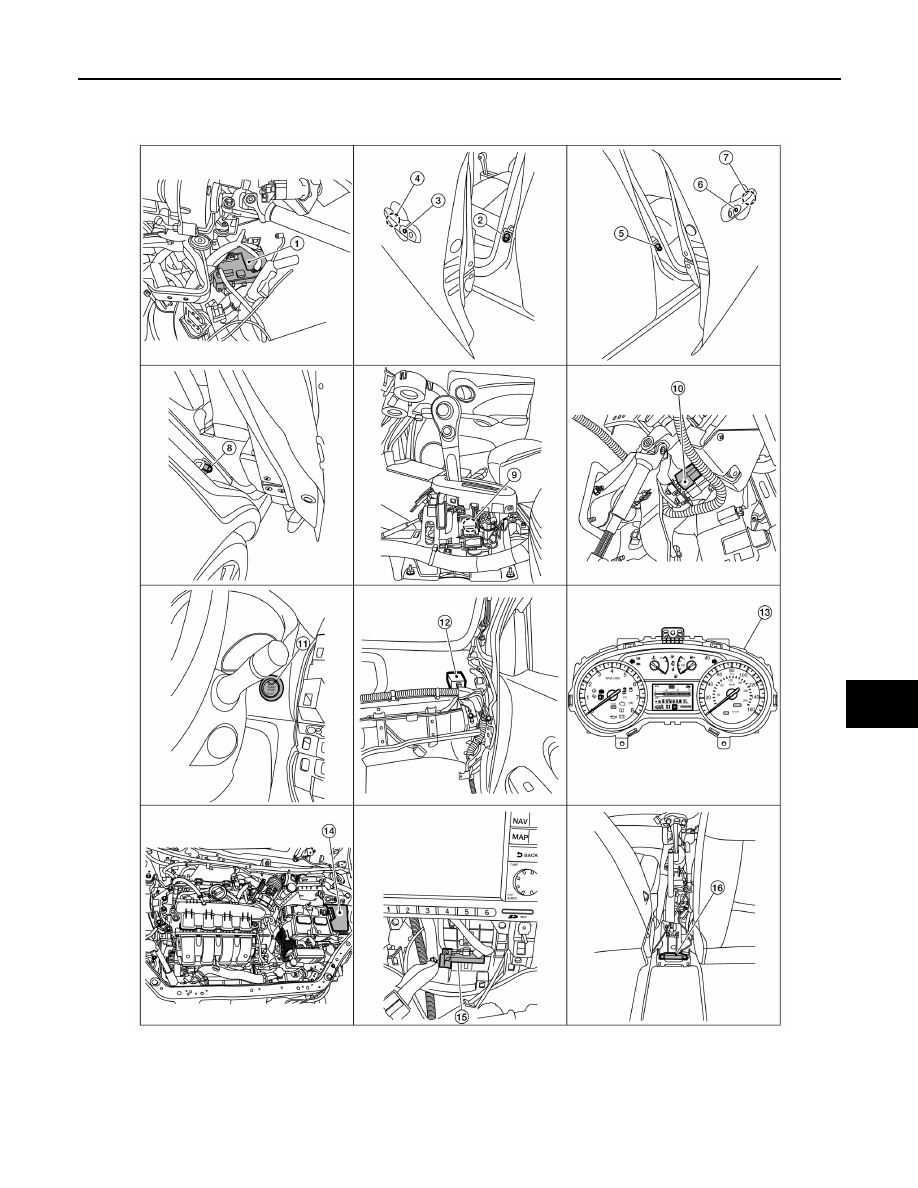

INTELLIGENT KEY SYSTEM : Component Parts Location

INFOID:0000000009756345

ALKIA2950ZZ
