CHG-12

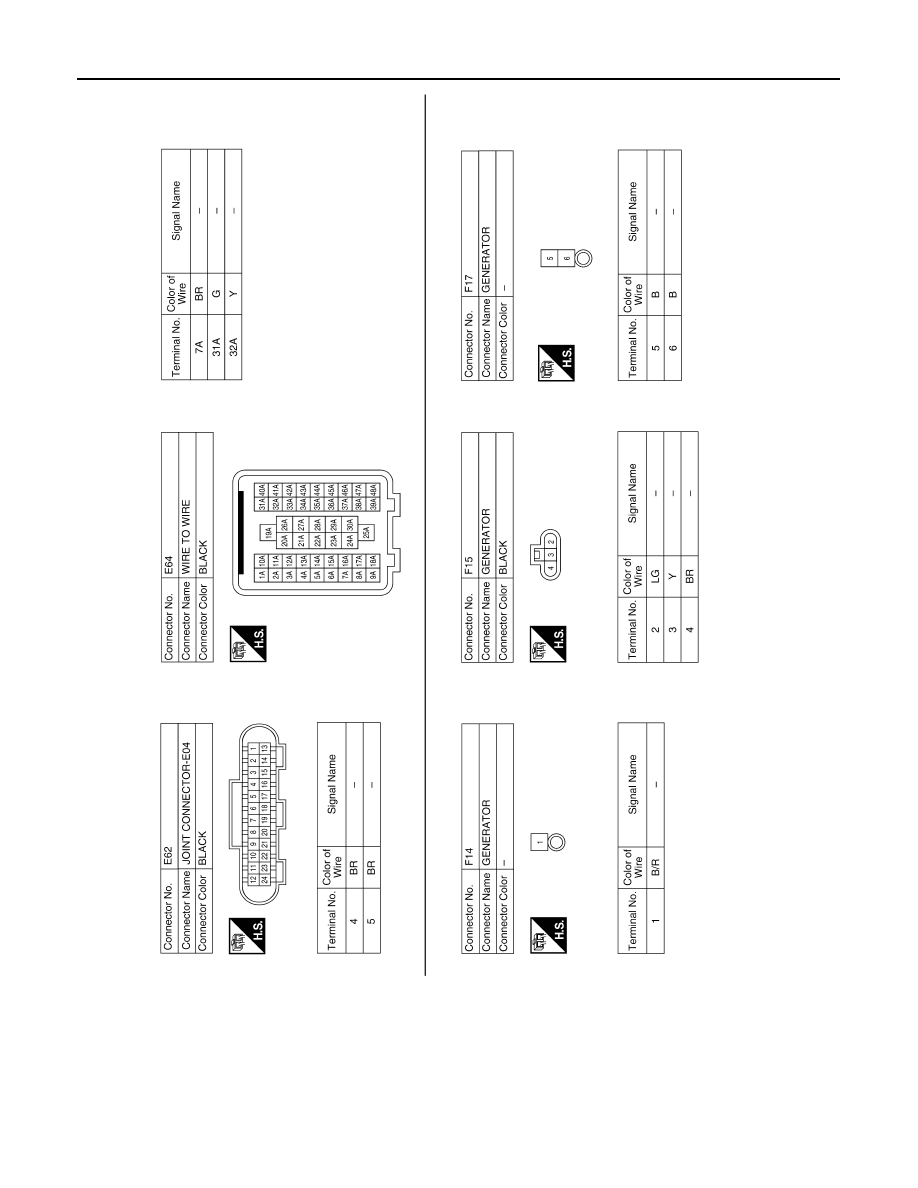

< WIRING DIAGRAM >

CHARGING SYSTEM

AAMIA1307GB

CHG

CHARGING SYSTEM

CHG-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4251GB

CHG-14

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow (With EXP-800 NI or GR8-1200 NI)

INFOID:0000000009755961

CHARGING SYSTEM DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI

To test the charging system, use the following special service tools:

• EXP-800 NI Battery and electrical diagnostic analyzer

• GR8-1200 NI Multitasking battery and electrical diagnostic station

NOTE:

Refer to the applicable Instruction Manual for proper charging system diagnosis procedures.

CHG

DIAGNOSIS AND REPAIR WORKFLOW

CHG-15

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

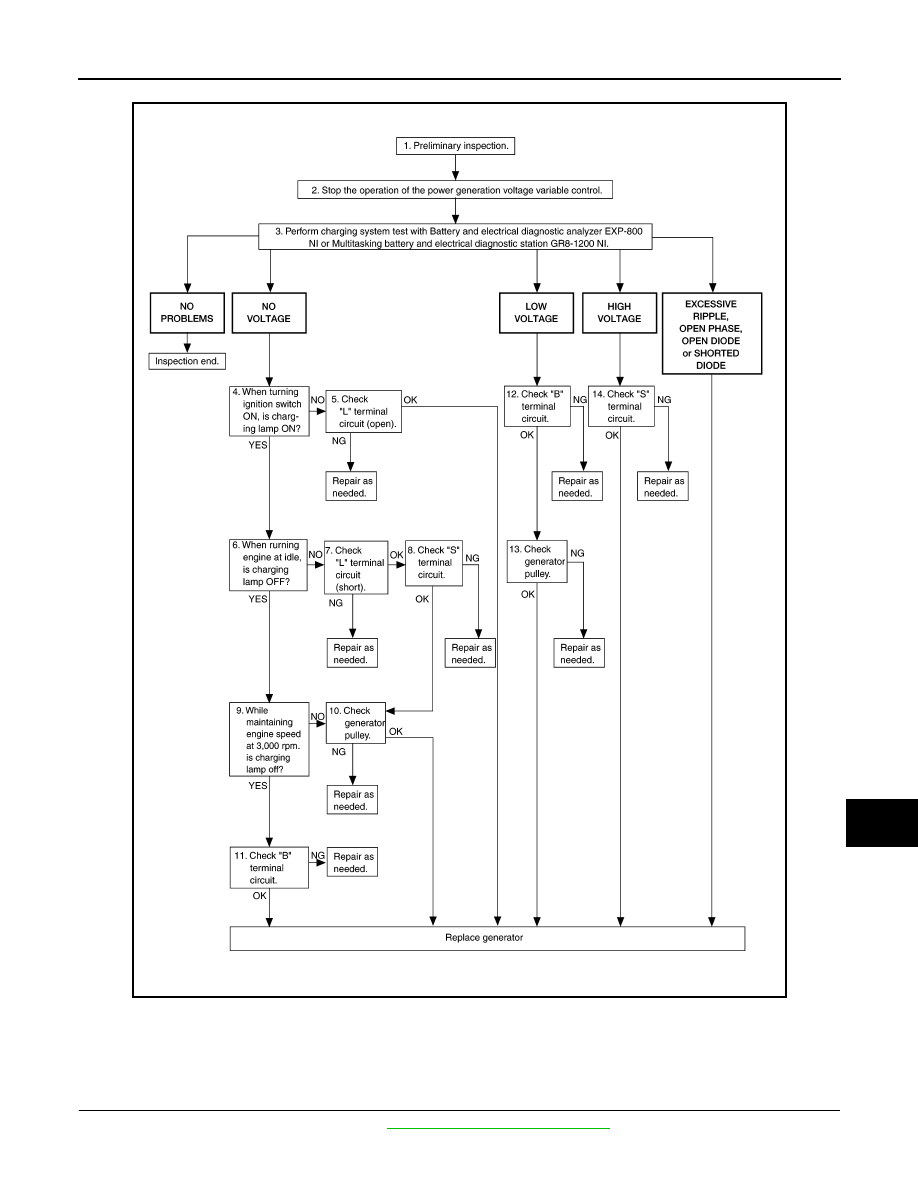

OVERALL SEQUENCE

DETAILED FLOW

NOTE:

To ensure a complete and thorough diagnosis, the battery, stater and generator test segments must be done

as a set from start to finish.

1.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-20, "Diagnosis Procedure"

.

AWMIA1283GB
