DIAGNOSIS AND REPAIR WORK FLOW

BRC-51

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009757829

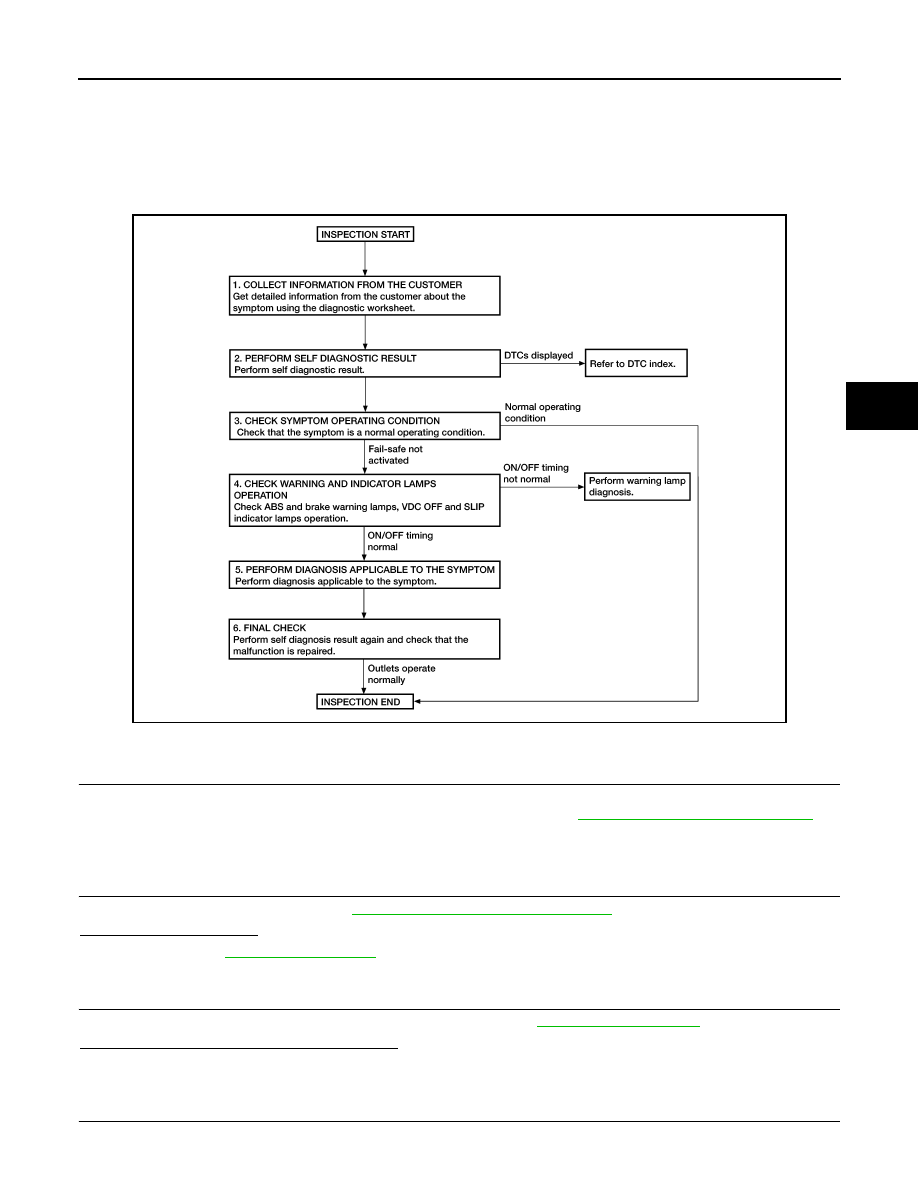

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT INFORMATION FROM THE CUSTOMER

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred) using the diagnostic worksheet. Refer to

BRC-52, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

PERFORM SELF DIAGNOSTIC RESULT

Perform self diagnostic result. Refer to

BRC-31, "CONSULT Function (ABS)"

.

Are any DTCs displayed?

YES

>> Refer to

BRC-43, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK SYMPTOM OPERATING CONDITION

Check that the symptom is a normal operating condition. Refer to

BRC-105, "Description"

.

Is the symptom a normal operating condition?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

CHECK WARNING AND INDICATOR LAMPS OPERATION

AWFIA0208GB

BRC-52

< BASIC INSPECTION >

[VDC/TCS/ABS]

DIAGNOSIS AND REPAIR WORK FLOW

Check ABS and brake warning lamps, and VDC OFF and SLIP indicator lamps operation. Refer to

MWI-8,

"METER SYSTEM : System Description"

.

Is ON/OFF timing normal?

YES

>> GO TO 5.

NO

>> Perform warning lamp diagnosis. Refer to

BRC-94, "Component Function Check"

 (ABS warning

lamp),

BRC-95, "Component Function Check"

 (brake warning lamp),

BRC-96, "Component Func-

tion Check"

 (VDC OFF indicator lamp) or

BRC-97, "Component Function Check"

 (SLIP indicator

lamp).

5.

PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM

Perform diagnosis applicable to the symptom. Refer to

BRC-98, "Symptom Table"

.

>> GO TO 6.

6.

FINAL CHECK

Perform self diagnostic result again, and check that the malfunction is repaired. After checking, erase the self

diagnosis memory. Refer to

BRC-31, "CONSULT Function (ABS)"

.

>> Inspection End.

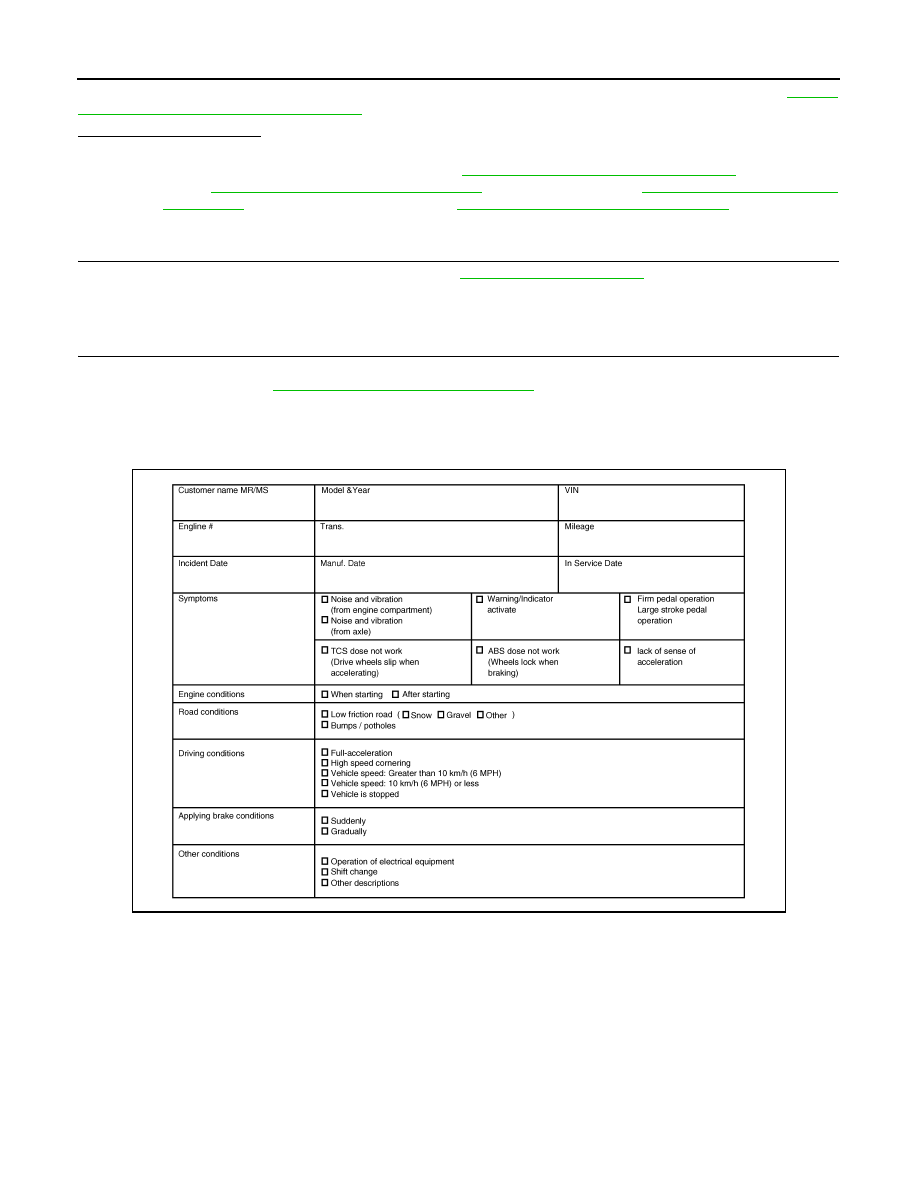

Diagnostic Work Sheet

INFOID:0000000009757830

AWFIA1029GB

ADDITIONAL SERVICE WHEN REPLACING ABS ACTUATOR AND ELECTRIC

UNIT (CONTROL UNIT)

BRC-53

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ADDITIONAL SERVICE WHEN REPLACING ABS ACTUATOR AND ELEC-
TRIC UNIT (CONTROL UNIT)

Description

INFOID:0000000009757831

When replacing the ABS actuator and electric unit (control unit), perform steering angle sensor neutral posi-

tion adjustment. Refer to

BRC-54, "Work Procedure"

.

BRC-54

< BASIC INSPECTION >

[VDC/TCS/ABS]

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Description

INFOID:0000000009757832

Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.

×: Required –: Not required

Work Procedure

INFOID:0000000009757833

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

CAUTION:

To adjust neutral position of steering angle sensor, make sure to use CONSULT.

(Adjustment cannot be done without CONSULT).

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2.

2.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

1. On the CONSULT screen, touch “WORK SUPPORT” and “ST ANG SEN ADJUSTMENT” in order.

2. Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle sensor.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3.

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0

±2.5°.

Is the steering angle within the specified range?

YES

>> GO TO 4.

NO

>> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

Situation

Adjustment of steering angle sensor neutral position

Removing/Installing ABS actuator and electric unit (control unit)

—

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

—

Tire rotation

—

Adjusting wheel alignment

×

Battery disconnection

×
