ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-43

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DTC Index

INFOID:0000000009757827

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-56, "DTC Logic"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-60, "DTC Logic"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-62, "DTC Logic"

C1110

CONTROLLER FAILURE

BRC-64, "DTC Logic"

C1111

PUMP MOTOR

BRC-65, "DTC Logic"

C1113

G SENSOR

BRC-67, "DTC Logic"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-68, "DTC Logic"

C1116

STOP LAMP SW

BRC-70, "DTC Logic"

C1120

FR LH IN ABS SOL

BRC-72, "DTC Logic"

C1121

FR LH OUT ABS SOL

BRC-74, "DTC Logic"

C1122

FR RH IN ABS SOL

BRC-72, "DTC Logic"

C1123

FR RH OUT ABS SOL

BRC-74, "DTC Logic"

C1124

RR LH IN ABS SOL

BRC-72, "DTC Logic"

C1125

RR LH OUT ABS SOL

BRC-74, "DTC Logic"

C1126

RR RH IN ABS SOL

BRC-72, "DTC Logic"

C1127

RR RH OUT ABS SOL

BRC-74, "DTC Logic"

C1130

ENGINE SIGNAL 1

BRC-76, "DTC Logic"

C1140

ACTUATOR RLY

BRC-77, "DTC Logic"

C1142

PRESS SEN CIRCUIT

BRC-79, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-80, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-82, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-67, "DTC Logic"

C1146

SIDE G-SEN CIRCUIT

C1155

BR FLUID LEVEL LOW

BRC-83, "DTC Logic"

C1164

CV 1

BRC-85, "DTC Logic"

C1165

CV 2

C1166

SV 1

C1167

SV 2

C1170

VARIANT CORDING

BRC-64, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-87, "DTC Logic"

U1002

SYSTEM COMM(CAN)

BRC-88, "DTC Logic"

U1010

CONTROL UNIT(CAN)

BRC-88, "DTC Logic"

BRC-44

< WIRING DIAGRAM >

[VDC/TCS/ABS]

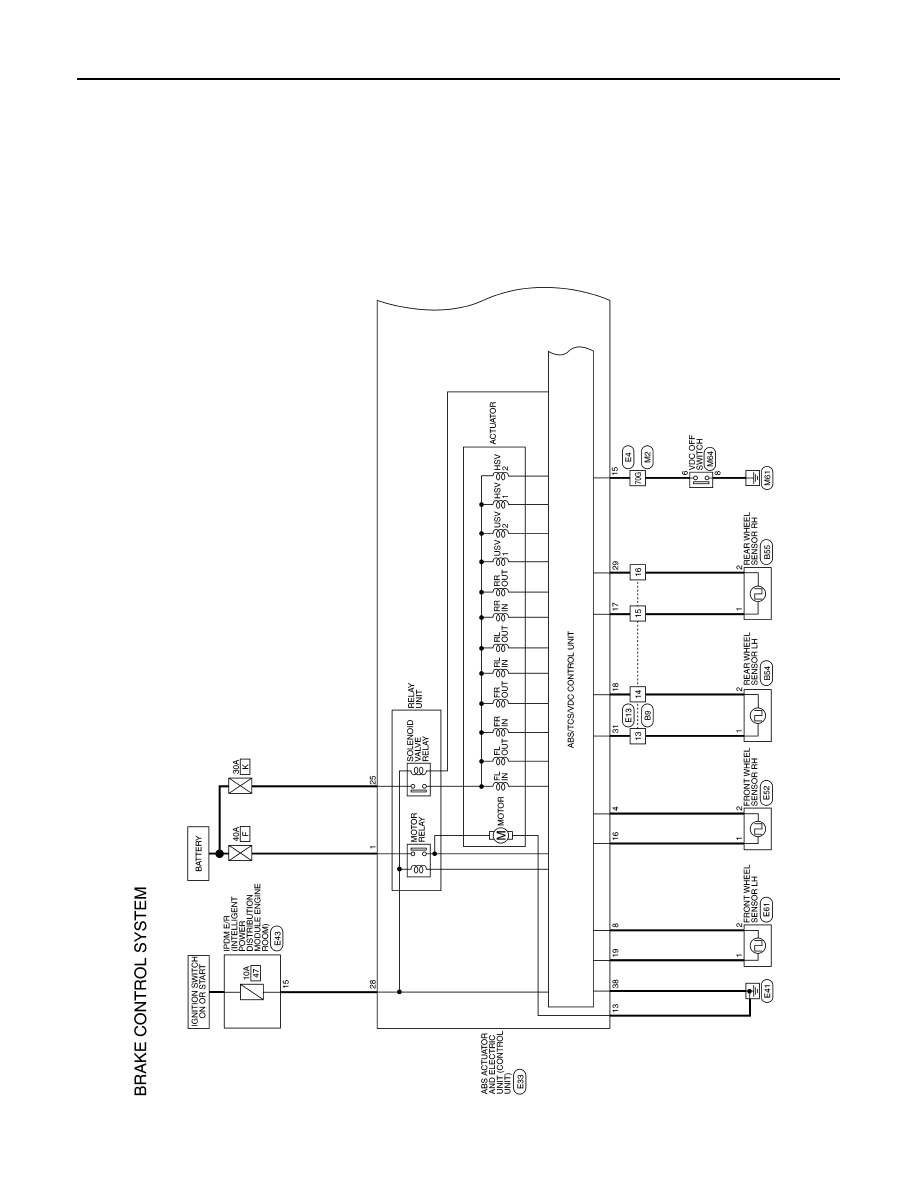

BRAKE CONTROL SYSTEM

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000009757828

ABFWA0387GB

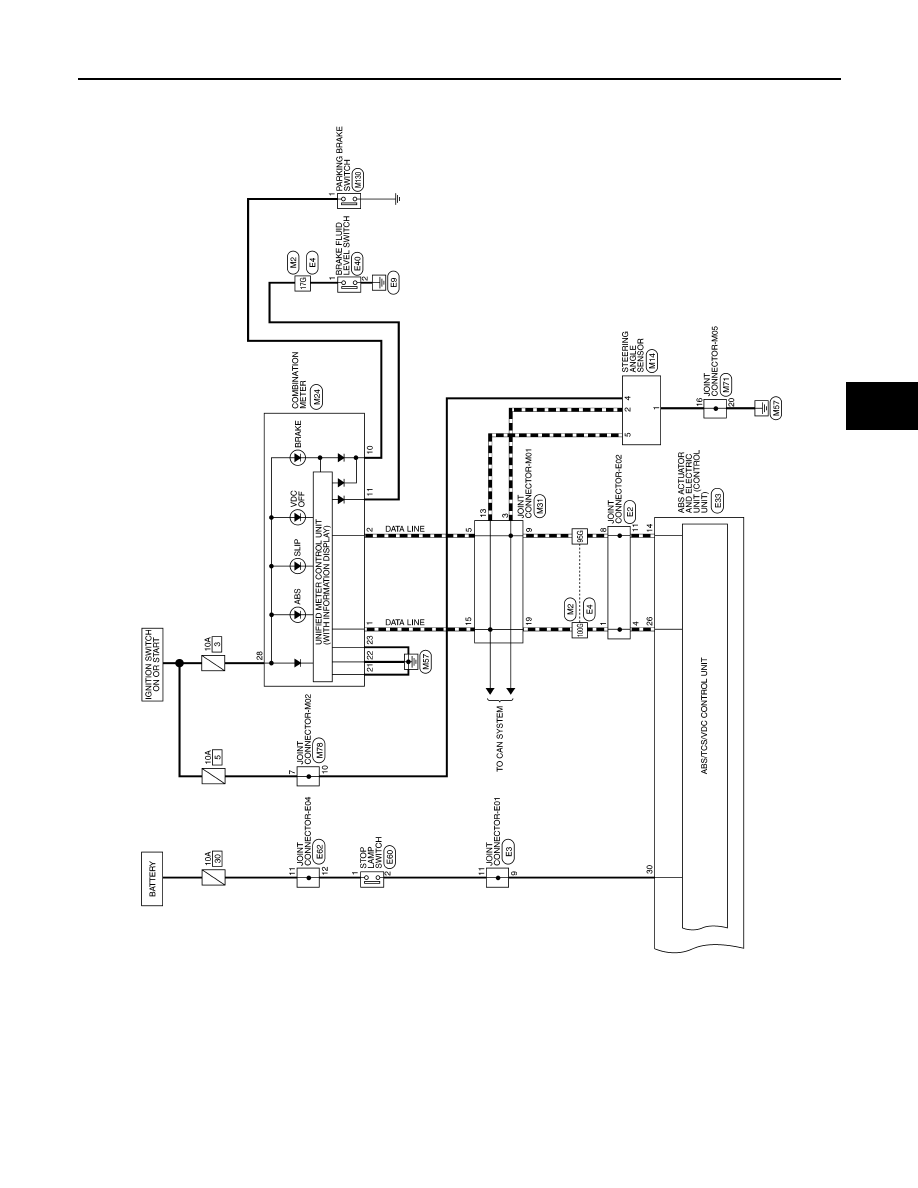

BRAKE CONTROL SYSTEM

BRC-45

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFWA0388GB

BRC-46

< WIRING DIAGRAM >

[VDC/TCS/ABS]

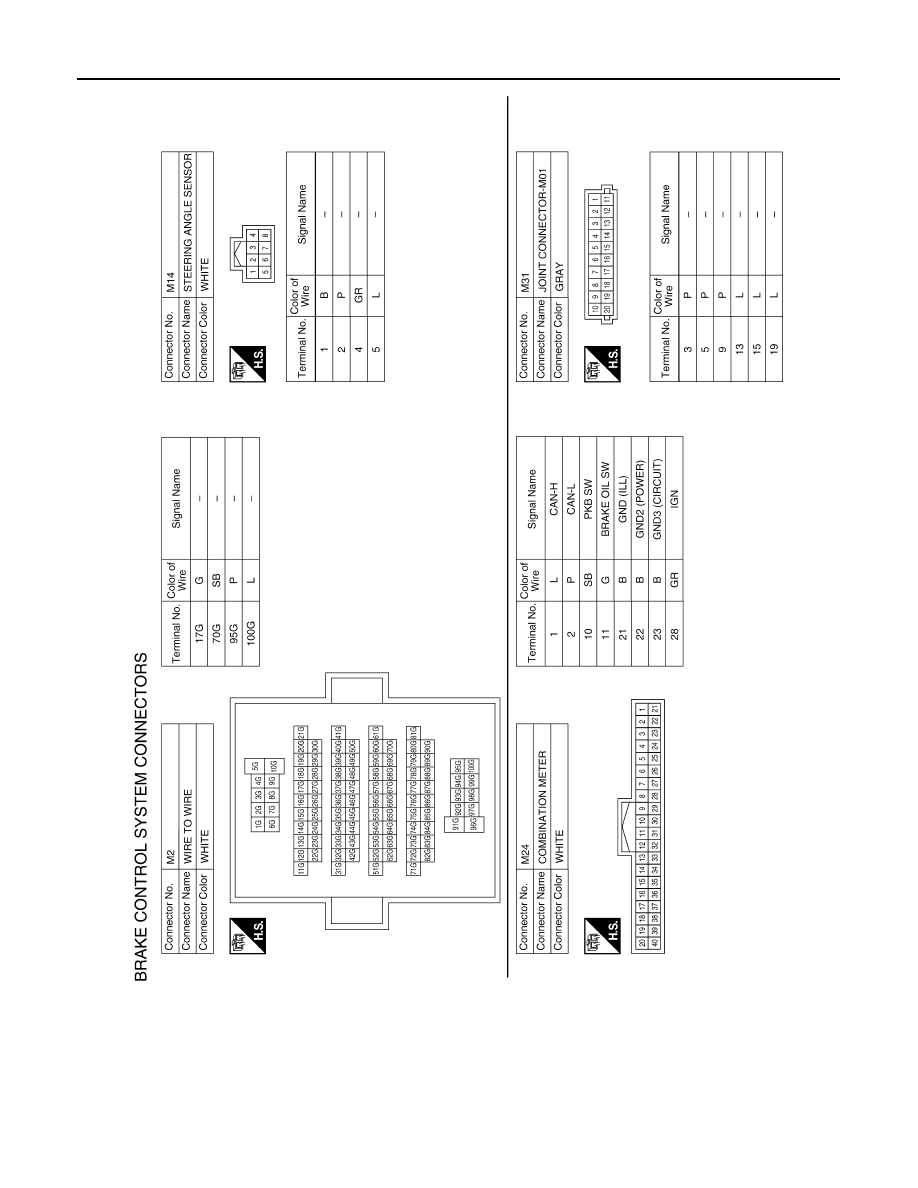

BRAKE CONTROL SYSTEM

AAFIA0143GB
