BR-22

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

REMOVAL AND INSTALLATION

BRAKE PEDAL

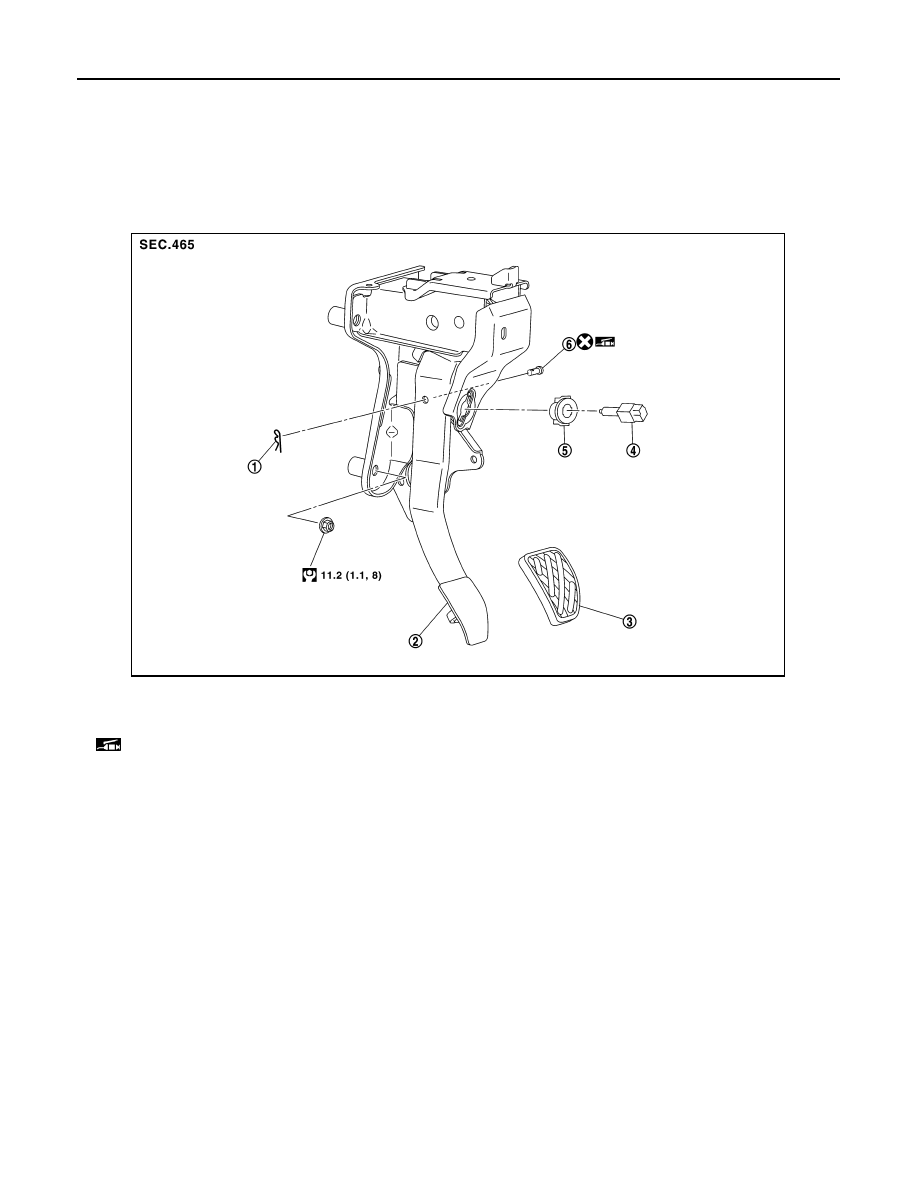

Exploded View

INFOID:0000000009756001

WITHOUT BRAKE PEDAL POSITION SWITCH

WITH BRAKE PEDAL POSITION SWITCH

1.

Snap pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Clevis pin

Apply multi-purpose grease.

AWFIA0971ZZ

BRAKE PEDAL

BR-23

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

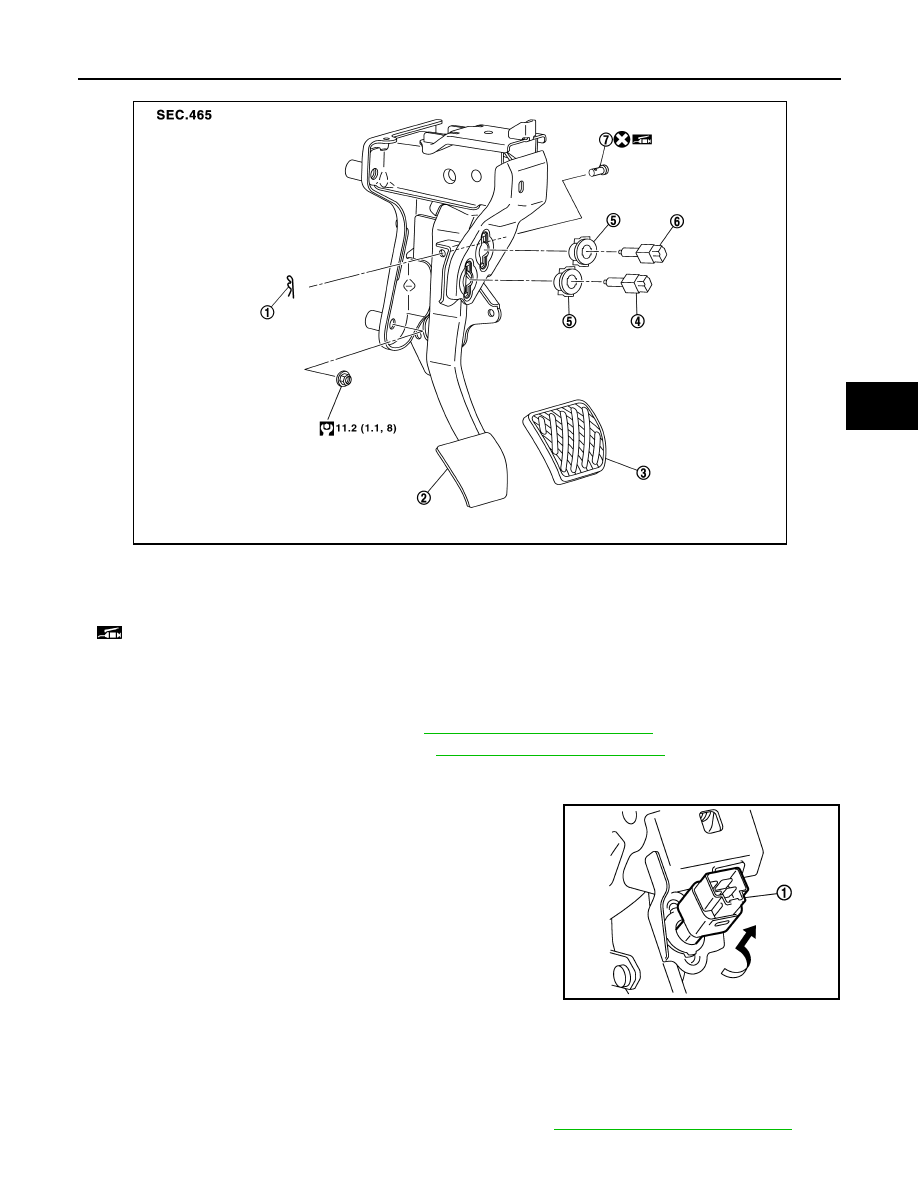

Removal and Installation

INFOID:0000000009756002

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Remove steering column lower cover. Refer to

IP-16, "Removal and Installation"

.

3. Disconnect the harness connectors from the brake pedal position switch (if equipped) and the stop lamp

switch.

4. Rotate the stop lamp switch and the brake pedal position switch

(if equipped) (1) counter clockwise to remove.

5. Disconnect the accelerator pedal harness connector and harness clip.
6. Remove snap pin and clevis pin from clevis on brake booster.
7. Remove the brake pedal assembly.

CAUTION:

Secure the brake booster and brake master cylinder to avoid damage to components.

8. Remove accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

1.

Snap pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Brake pedal position switch

5.

Clip

6.

Stop lamp switch

7.

Clevis pin
Apply multi-purpose grease.

AWFIA0972ZZ

JPFIA0815ZZ

BR-24

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

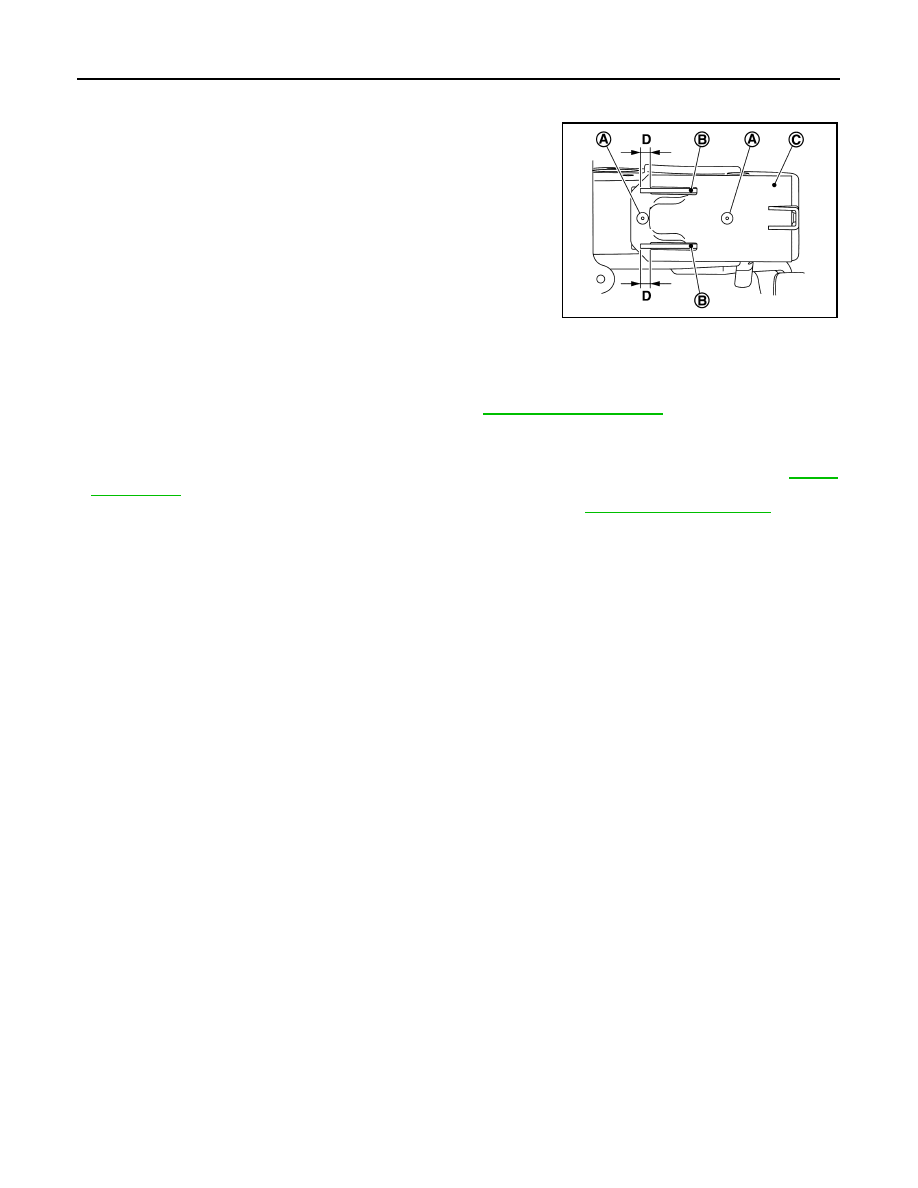

INSPECTION AFTER REMOVAL

Check for the following items and replace the brake pedal assembly, if necessary.

• Check the brake pedal upper rivet (A) for damage or wear.

• Check the brake pedal for bend, damage, and cracks on the

welded parts.

• Check the lapping length (D) of sub-bracket (B) and slide plate (C).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the clevis pin.

• Install the clevis pin in the proper direction. Refer to

BR-22, "Exploded View"

.

• Apply multi-purpose grease to the clevis pin and the mating faces, if necessary.

ADJUSTMENT AFTER INSTALLATION

• Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Refer to

BR-15,

"Adjustment"

.

• Perform the release position learning of the accelerator pedal. Refer to

EC-138, "Work Procedure"

.

Lapping length (D)

: 6.5 mm (0.256 in) or more

JSFIA0459ZZ

BRAKE PIPING

BR-25

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE PIPING

FRONT

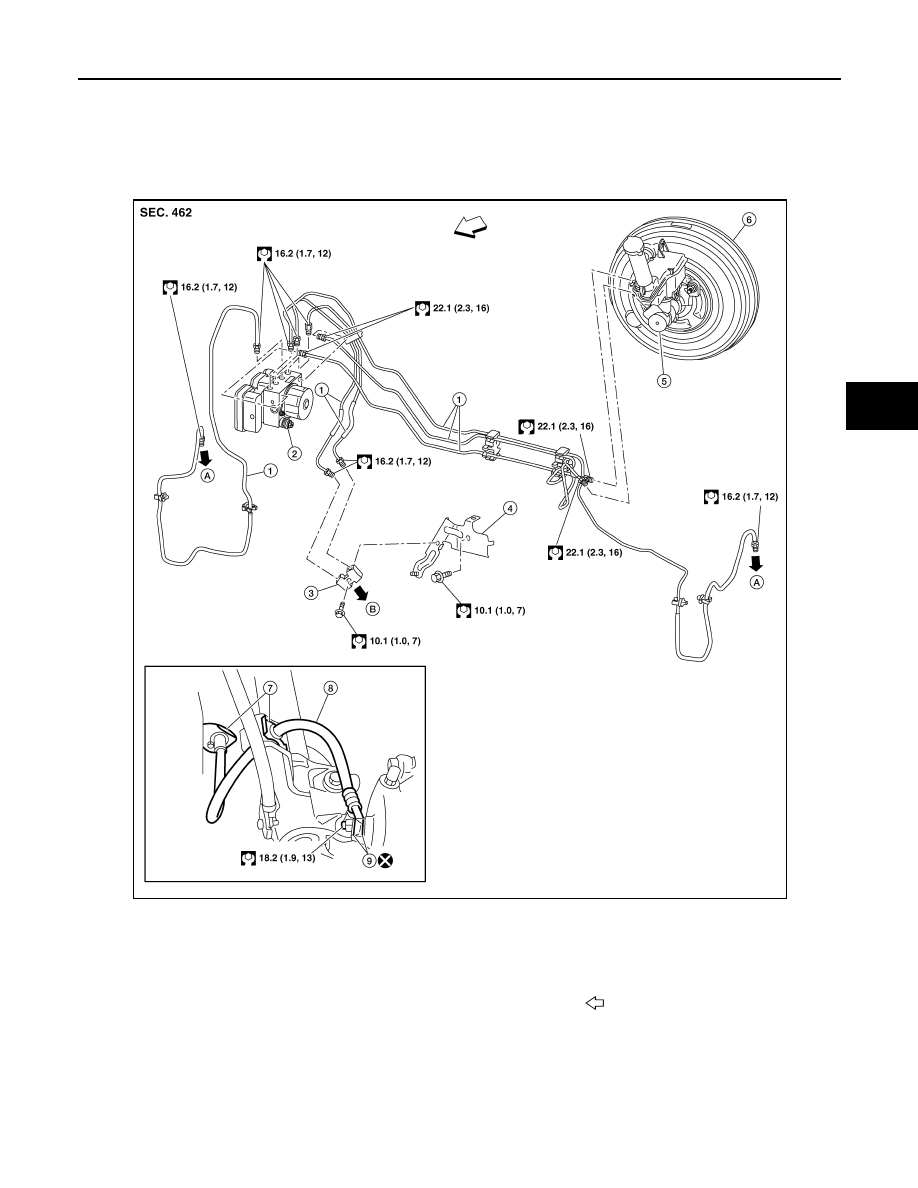

FRONT : Exploded View

INFOID:0000000009756003

1.

Brake tube

2.

ABS actuator and electric unit (con-
trol unit)

3.

Connector

4.

Connector bracket

5.

Master cylinder assembly

6.

Brake booster

7.

Lock plate

8.

Brake hose

9.

Copper sealing washer

A.

To front brake hose

B.

To rear brake pipe

Front

AWFIA1071ZZ
