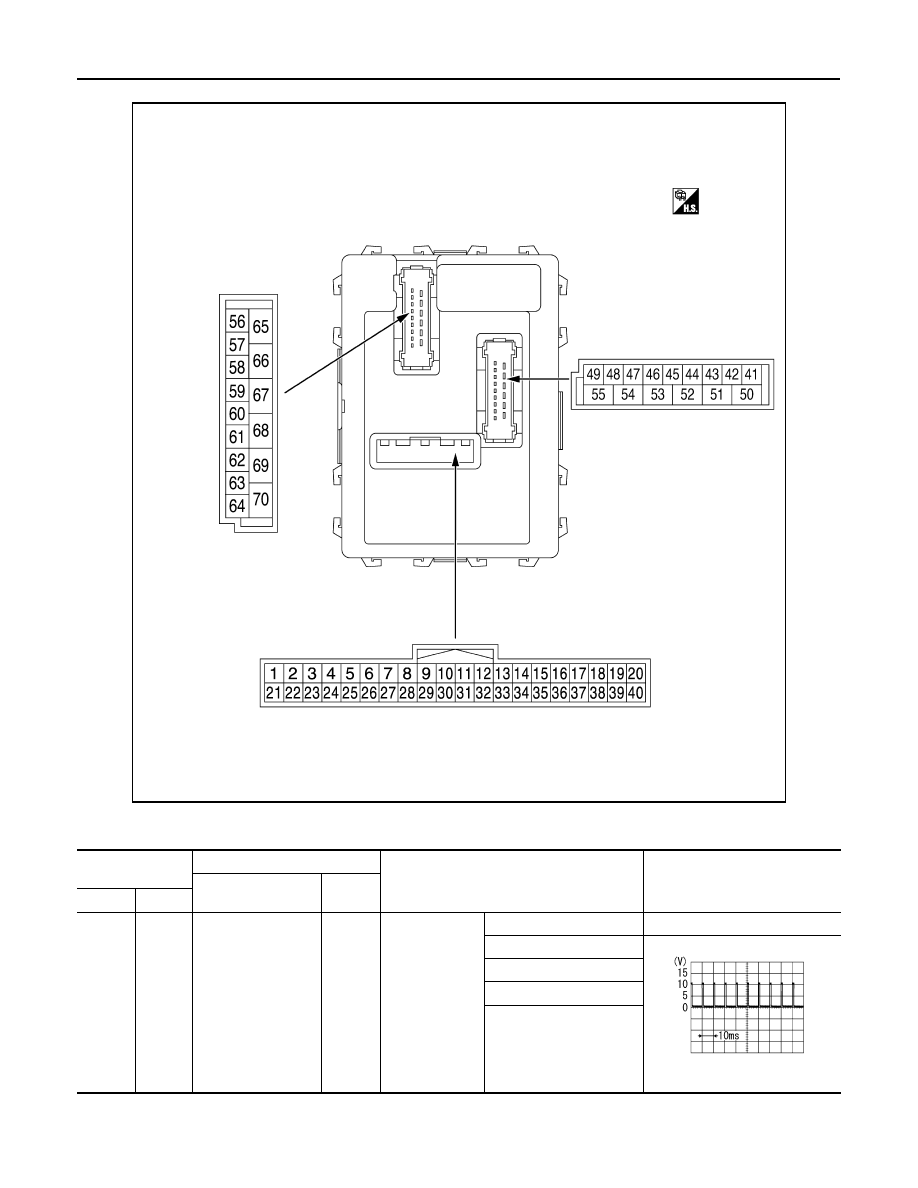

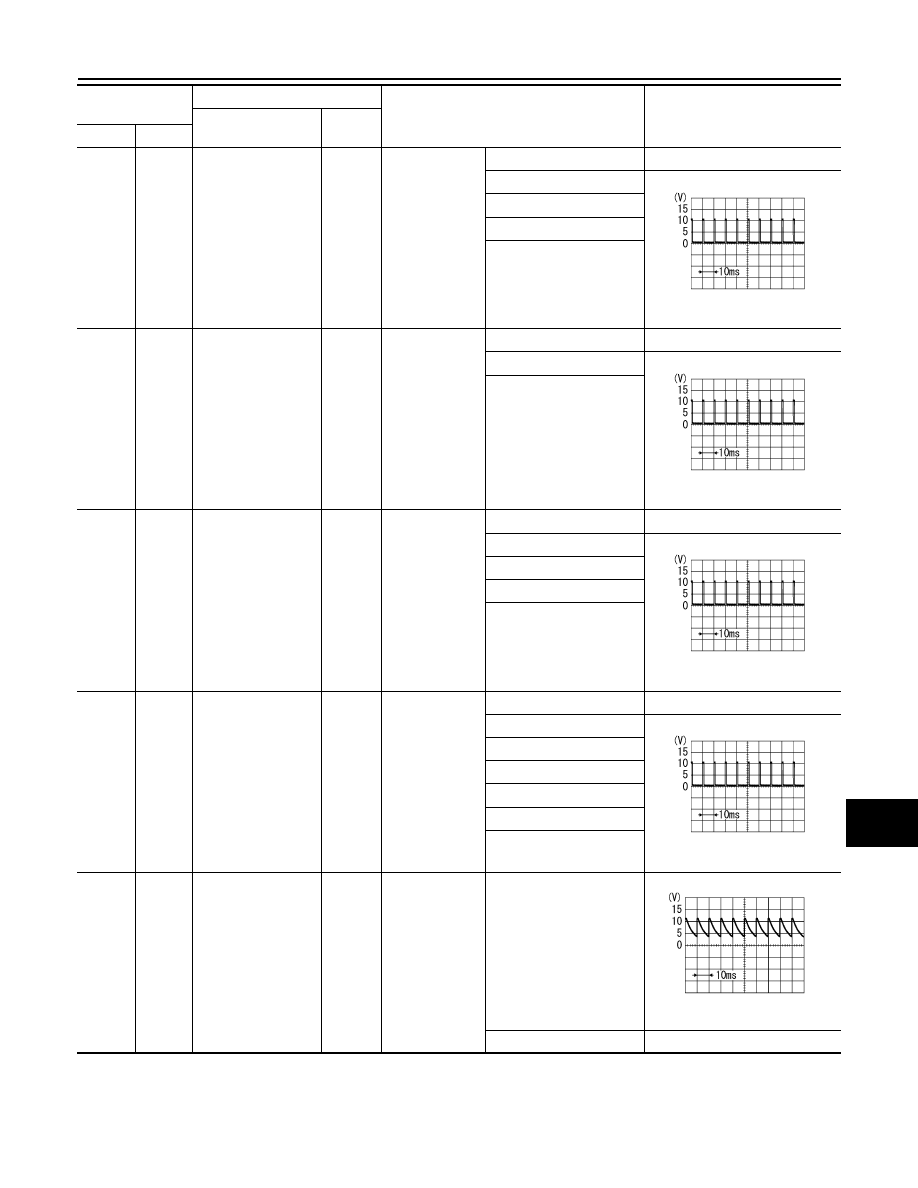

BCS-98 < ECU DIAGNOSIS INFORMATION > [WITHOUT INTELLIGENT KEY SYSTEM] BCM FAN ON SIG Blower fan OFF Off Blower fan ON On FR FOG SW Front fog lamp switch OFF Off Front fog lamp switch ON On FR WASHER SW Front washer switch OFF Off Front washer switch ON On FR WIPER LOW Front wiper switch OFF Off Front wiper switch LO On FR WIPER HI Front wiper switch OFF Off Front wiper switch HI On FR WIPER INT Front wiper switch OFF Off Front wiper switch INT On FR WIPER STOP Any position other than front wiper stop position Off Front wiper stop position On HAZARD SW Hazard switch OFF Off Hazard switch ON On HEAD LAMP SW 1 Lighting switch OFF Off Lighting switch 1ST On HEAD LAMP SW 2 Lighting switch OFF Off Lighting switch 2ND On HI BEAM SW Lighting switch OFF Off Lighting switch HI On ID REGST FL1 ID registration of front left tire incomplete Yet ID registration of front left tire complete Done ID REGST FR1 ID registration of front right tire incomplete Yet ID registration of front right tire complete Done ID REGST RL1 ID registration of rear left tire incomplete Yet ID registration of rear left tire complete Done ID REGST RR1 ID registration of rear right tire incomplete Yet ID registration of rear right tire complete Done IGN ON SW Ignition switch OFF or ACC Off Ignition switch ON On IGN SW CAN Ignition switch OFF or ACC Off Ignition switch ON On INT VOLUME Intermittent wiper position 1 - 7 KEY CYL LK-SW Key cylinder switch in N position Off Key cylinder switch in LOCK position On KEY CYL UN-SW Key cylinder switch in N position Off Key cylinder switch in UNLOCK position On KEY ON SW Key removed from ignition key cylinder Off Key inserted into ignition key cylinder On KEYLESS LOCK LOCK button of keyfob not pressed Off LOCK button of keyfob pressed On Monitor Item Condition Value/Status |
