Nissan Leaf. Manual - part 997

PCS

POWER SWITCH

PCS-71

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

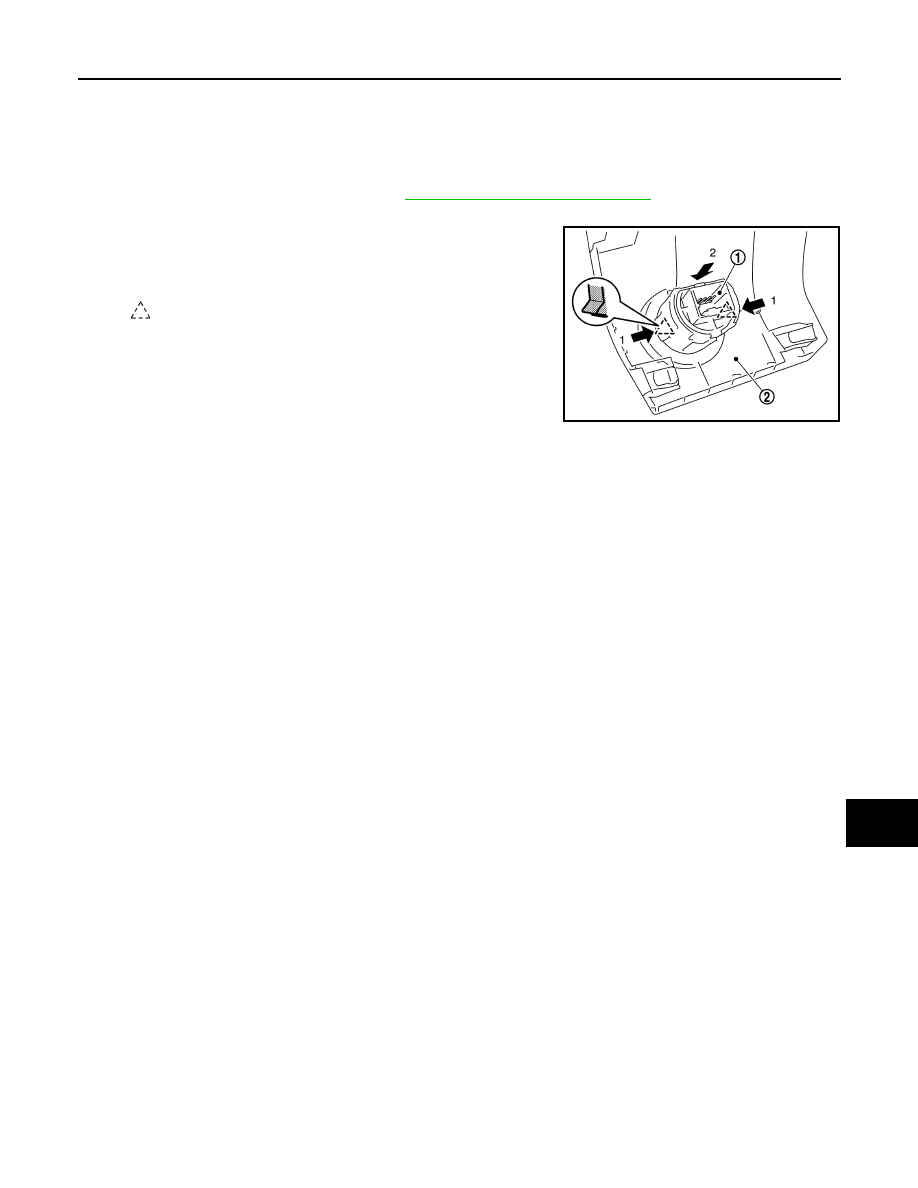

POWER SWITCH

Removal and Installation

INFOID:0000000010120344

REMOVAL

1. Remove the NATS antenna amp. Refer to

PCS-70, "Removal and Installation"

.

2. Remove the power switch (1).

1. Disengage the power switch fixing pawls.

2. Press the power switch to remove it from instrument lower

panel (LH) (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA8654ZZ

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Technicians Using Medical Electric

......

3

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

3

High Voltage Precautions ..........................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

Precaution for Removing 12V Battery .......................

6

PREPARATION ............................................

7

PREPARATION ...................................................

7

Special Service Tools ................................................

7

SYSTEM DESCRIPTION  ..............................

8

COMPONENT PARTS  ........................................

8

Circuit Breaker  ..........................................................

8

12V Battery  ...............................................................

8

Harness Connector  ...................................................

8

Standardized Relay .................................................

12

WIRING DIAGRAM ......................................

15

POWER SUPPLY ROUTING CIRCUIT ..............

15

Wiring Diagram — Battery Power Supply — ...........

15

Wiring Diagram — Accessory Power Supply —  .....

23

Wiring Diagram—On Power Supply—  ....................

26

Fuse ........................................................................

34

Fusible Link  .............................................................

34

GROUND ............................................................

35

Ground Distribution  .................................................

35

HARNESS ..........................................................

49

Harness Layout  .......................................................

49

ELECTRICAL UNITS LOCATION ......................

69

Electrical Units Location ..........................................

69

HARNESS CONNECTOR  .................................

73

Description ...............................................................

73

STANDARDIZED RELAY  .................................

76

Description ...............................................................

76

FUSE BLOCK - JUNCTION BOX (J/B)  ............

78

Terminal Arrangement .............................................

78

FUSE, FUSIBLE LINK AND RELAY BOX ........

79

Terminal Arrangement .............................................

79

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

82

IPDM E/R Terminal Arrangement ............................

82

BASIC INSPECTION  ...................................

83

12V BATTERY INSPECTION  ...........................

83

How to Handle 12V Battery  .....................................

83

Work Flow ................................................................

83

ADDITIONAL SERVICE WHEN REMOVING
12V BATTERY NEGATIVE TERMINAL  ...........

86

Special Repair Requirement ....................................

86

FUSE INSPECTION  ..........................................

87

How To Check  .........................................................

87

FUSIBLE LINK INSPECTION  ...........................

88

How To Check  .........................................................

88

REMOVAL AND INSTALLATION ...............

89

12V BATTERY  ..................................................

89

Exploded View .........................................................

89

Removal and Installation  .........................................

89

BATTERY TRAY  ...............................................

91

Exploded View .........................................................

91

Removal and Installation  .........................................

91

BATTERY TERMINAL WITH FUSIBLE LINK ...

92

PG-2

Exploded View ........................................................

92

Removal and Installation  ........................................

92

BATTERY CURRENT SENSOR ........................

93

Exploded View ........................................................

93

Removal and Installation  ........................................

93

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

94

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

94

12V Battery  .............................................................

94

PG

PRECAUTIONS

PG-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Technicians Using Medical Electric

INFOID:0000000010119351

OPERATION PROHIBITION

WARNING:

• Parts with strong magnet is used in this vehicle.

• Technicians using a medical electric device such as pacemaker must never perform operation on the

vehicle, as magnetic field can affect the device function by approaching to such parts.

NORMAL CHARGE PRECAUTION

WARNING:

• If a technician uses a medical electric device such as an implantable cardiac pacemaker or an

implantable cardioverter defibrillator, the possible effects on the devices must be checked with the

device manufacturer before starting the charge operation.

• As radiated electromagnetic wave generated by PDM (Power Delivery Module) at normal charge

operation may affect medical electric devices, a technician using a medical electric device such as

implantable cardiac pacemaker or an implantable cardioverter defibrillator must not approach motor

room [PDM (Power Delivery Module)] at the hood-opened condition during normal charge operation.

PRECAUTION AT TELEMATICS SYSTEM OPERATION

WARNING:

• If a technician uses implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD),

avoid the device implanted part from approaching within approximately 220 mm (8.66 in) from inte-

rior/exterior antenna.

• The electromagnetic wave of TCU might affect the function of the implantable cardiac pacemaker or

the implantable cardioverter defibrillator (ICD), when using the service, etc.

• If a technician uses other medical electric devices than implantable cardiac pacemaker or implant-

able cardioverter defibrillator (ICD), the electromagnetic wave of TCU might affect the function of the

device. The possible effects on the devices must be checked with the device manufacturer before

TCU use.

PRECAUTION AT INTELLIGENT KEY SYSTEM OPERATION

WARNING:

• If a technician uses implantable cardiac pacemaker or implantable cardioverter defibrillator (ICD),

avoid the device implanted part from approaching within approximately 220 mm (8.66 in) from inte-

rior/exterior antenna.

• The electromagnetic wave of Intelligent Key might affect the function of the implantable cardiac

pacemaker or the implantable cardioverter defibrillator (ICD), at door operation, at each request

switch operation, or at engine starting.

• If a technician uses other medical electric devices than implantable cardiac pacemaker or implant-

able cardioverter defibrillator (ICD), the electromagnetic wave of Intelligent Key might affect the

function of the device. The possible effects on the devices must be checked with the device manu-

facturer before Intelligent Key use.

Point to Be Checked Before Starting Maintenance Work

INFOID:0000000010119352

The high voltage system may starts automatically. It is required to check that the timer air conditioner

and timer charge (during EVSE connection) are not set before starting maintenance work.

NOTE:

If the timer air conditioner or timer charge (during EVSE connection) is set, the high voltage system starts

automatically even when the power switch is in OFF state.

High Voltage Precautions

INFOID:0000000010119353

WARNING:

• Because hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of elec-

tric shock, electric leakage, or similar accidents if the high voltage component and vehicle are han-
