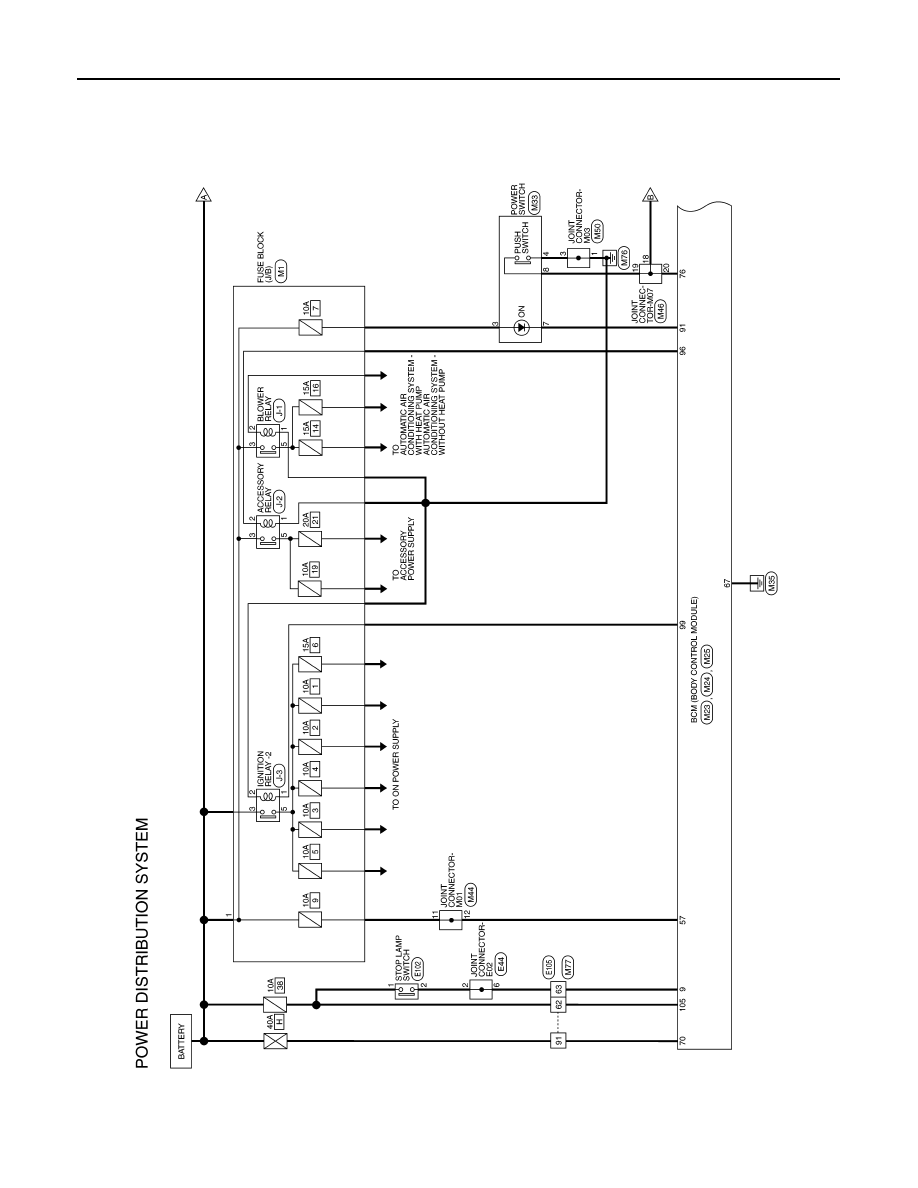

[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
WORK SUPPORT
LCD
B&P N
This test is able to check combination meter traction motor start information.
B&P I
ID NG
This test is able to check combination meter key ID warning information.
ROTAT
This item is displayed, but is not used.
SFT P
INSRT
BATT
This test is able to check combination meter Intelligent Key low battery warning
information.
NO KY
This item is displayed, but is not used.
OUTKEY
This test is able to check combination meter take away warning information.
LK WN
This test is able to check combination meter OFF position warning information.
Off
—
BATTERY SAVER
This test is able to check interior room lamp battery saver operation [Off/On].
ENGINE SW ILLUMI
This test is able to check power switch illumination operation [Off/On].
PUSH SWITCH INDICATOR
This test is able to check power switch ACC/ON indicator operation [Off/On].
TRUNK/BACK DOOR
This test is able to check back door opener actuator operation [Open].
INT LAMP
This test is able to check interior room lamp operation [Off/On].
INDICATOR
This test is able to check combination meter warning lamp operation [Off/KEY ON/KEY IND].
FLASHER
This test is able to check security hazard lamp operation [RH/LH/Off].
OUTSIDE BUZZER
This test is able to check Intelligent Key warning buzzer operation [On/Off].
HORN
This test is able to check horn operation [On].
Test Item
Description
Support Item
Setting
Description
LOCK/UNLOCK BY I-KEY
On*
Door lock/unlock function from request switch ON.
Off
Door lock/unlock function from request switch OFF.
ANTI KEY LOCK IN-FUNCTI
On*
Key reminder function ON.
Off
Key reminder function OFF.
ANS BACK I-KEY UNLOCK
On*
Buzzer reminder function when doors are unlocked with request
switch ON.
Off
Buzzer reminder function when doors are unlocked with request
switch OFF.
ANS BACK I-KEY LOCK
Horn Chirp
Horn chirp reminder function when doors are locked with request
switch.
Buzzer*
Buzzer reminder function when doors are locked with request switch.
Off
No reminder function when doors are locked with request switch.
HORN WITH KEYLESS LOCK
On*
Horn reminder function when doors are locked with Intelligent Key
ON.
Off
Horn reminder function when doors are locked with Intelligent Key
OFF.
HAZARD ANSWER BACK
Lock/Unlock*
Horn reminder function when doors are locked or unlocked with re-
quest switch or Intelligent Key.
Unlock Only
Horn reminder function when doors are unlocked with request switch
or Intelligent Key.
Lock Only
Horn reminder function when doors are locked with request switch or
Intelligent Key.
Off
Horn reminder function when doors are locked or unlocked with re-
quest switch or Intelligent Key OFF.
