Nissan Leaf. Manual - part 960

MWI

SYSTEM

MWI-43

< SYSTEM DESCRIPTION >

Other 1, Other 2, Other 3 (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays an other warning

on the information display by an interrupt:

• The combination meter judges showing/hiding of “other warning”, according to the signals below:

Meter Illumination Level Indication

When receiving the following signals, the combination meter causes an interrupt on the information display to

indicate an illumination level:

TIMER STATUS REMINDER DISPLAY

• The combination meter receives the next charge time signal, next departure time signal or next pre-A/C time

signal when the power switch is READY and displays the timer charging after the power switch is turned

OFF.

• Pressing the

switch (enter switch) changes the displayed item in the following sequence:

Timer charging ON/OFF, timer A/C ON/OFF

→ Next charge start time / end time → Charging time → Timer

A/C start time

• If no switches are operated for 10 seconds, the display screen turns OFF.

• The combination meter judges showing/hiding of the “timer status reminder display” according to the signals

below.

WARNING CHECK INDICATION

• The combination meter can cause an interrupt on the information display to indicate a warning, based on

signals received from each unit and switch.

• The indicated warning can be checked with “WARNING” during the satisfaction of an interrupt indication

condition for each warning.

Warning Display Items

• Door open warning

• Electric shift warning

• Power limitation warning

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Operating condition

Power switch

Mileage

More than value set in “SETTING”

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Signal name

Signal path

Power switch ON signal

—

Illumination control switch signal

Meter control switch

Combination meter

Signal name

Signal path

Next charge time signal

VCM

Combination

meter

Next departure time signal

Next pre-A/C time signal

MWI-44

< SYSTEM DESCRIPTION >

SYSTEM

• Li-ion battery low charge warning

• Take away warning (push start display)

• Intelligent Key system warning

SETTING

Warning indication timing and time can be set.

Target Amount of Charge (Without Navigation)

Allows the user to set the target amount of charge at 100 % or 80 % of full charge.

Timer charge (Without Navigation)

The settings of timer charge ON/OFF and stop time can be adjusted arbitrarily.

NOTE:

• For further information about timer charge, refer to

MWI-30, "TIMER CHARGE AND A/C-HEATER TIMER

(CLIMATE CTRL. TIMER) (WITHOUT NAVIGATION) : System Description"

• For models with navigation system, settings can be performed on the AV control unit display. When the AV

control unit is removed, the settings screen of timer charge may be displayed on the information display.

A/C-heater timer (Climate Ctrl. Timer) (Without Navigation)

The settings of A/C-heater timer (Climate Ctrl. Timer) ON/OFF and estimated time of departure can be

adjusted arbitrarily.

NOTE:

• For further information about A/C-heater timer (Climate Ctrl. Timer), refer to

MWI-30, "TIMER CHARGE

AND A/C-HEATER TIMER (CLIMATE CTRL. TIMER) (WITHOUT NAVIGATION) : System Description"

• For models with navigation system, settings can be performed on the AV control unit display. When the AV

control unit is removed, the settings screen of A/C-heater timer (Climate Ctrl. Timer) may be displayed on

the information display.

Clock

Setting values for “Set clock”, and “24/12 Hr” can be adjusted to meet the user's needs.

Maintenance

Setting values for tire and other maintenance items can be adjusted to meet the user's needs.

Setting Item

Target amount
of charge

80%, 100%

Setting Item

Timer charge

The settings of ON/OFF and stop time can be ad-
justed arbitrarily.

Setting Item

A/C-heater timer
(Climate Ctrl. Timer)

The settings of ON/OFF and estimated time of de-
parture can be adjusted arbitrarily.

Setting item

Set clock

Adjusting the time

24/12 Hr

12 h, 24h

MWI

SYSTEM

MWI-45

< SYSTEM DESCRIPTION >

Alarms

Setting values for “Driver Alert”, and “Outside Temp” can be adjusted to meet the user's needs.

Units

Setting values for “TEMPERATURE” and “SPEED” items can be adjusted to meet the user's needs.

Language

Setting values for “Language” items can be adjusted to meet the user's needs.

Effects

Setting values for “Effects” items can be adjusted to meet the user's needs.

For the effects function, refer to

VSP-13, "START UP SOUND SYSTEM : System Description"

Factory

Allows the user to reset all settings other than the odometer.

Settings-reject Indication

• Regarding settings-reject indications, “SETTING CAN BE OPERATED WHEN STOPPED” is shown on the

information display when indication conditions are satisfied.

• When reaching 3.1 MPH (5 km/h) after accelerating from a stopping condition, a settings-reject indication is

displayed.

• When reaching less than 0.6 MPH (1 km/h) after decelerating from 3.1 MPH (5 km/h), a settings-reject indi-

cation is cancelled to allow settings.

Setting item

Setting range

Maintenance

Tire

No setting, 250 mile - 18,500 mile

(No setting, 500 km - 30,000 km)

Other 1

No setting, 250 mile - 18,500 mile

(No setting, 500 km - 30,000 km)

Other 2

No setting, 250 mile - 18,500 mile

(No setting, 500 km - 30,000 km)

Other 3

No setting, 250 mile - 18,500 mile

(No setting, 500 km - 30,000 km)

Setting item

Setting range

Setting unit

Alarms

Drive Alert

No setting, 0.5 h - 6 h

0.5 h

Outside Temp

ON/OFF

—

Setting item

TEMPERA-
TURE

Deg F

Deg C

SPEED

MPH, mile/kWh

km/h, km/kWh

Setting item

Language

English

Francais

Espanol

Setting item

Effects

Sound 1

Sound 2

Sound 3

OFF

MWI-46

< SYSTEM DESCRIPTION >

SYSTEM

• The combination meter judges a vehicle condition based on the following signals and displays a settings-

reject indication on the information display:

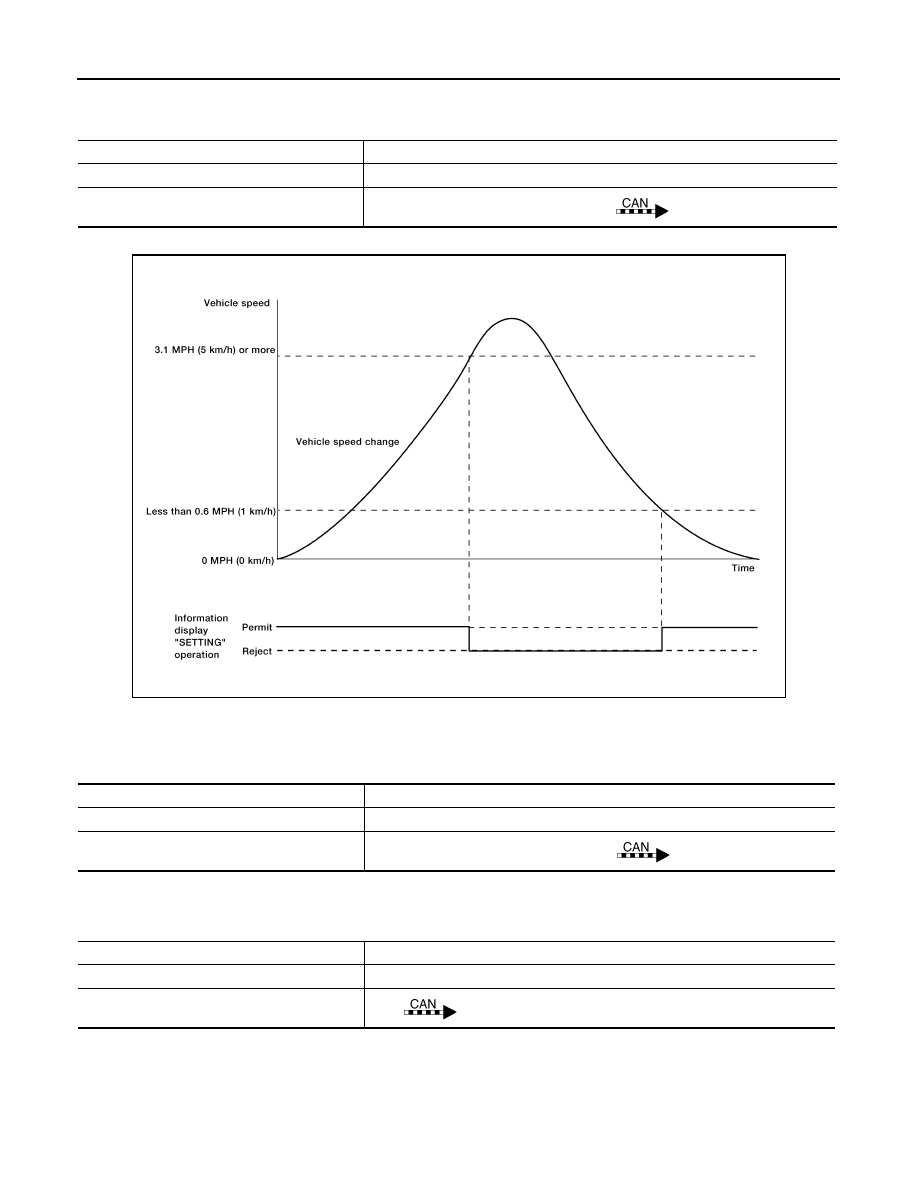

TIMING CHART

ODO/TRIP METER

The combination meter calculates mileage, based on the following signals and displays the mileage on the

information display:

SHIFT INDICATOR

The combination meter displays the shift position based on the signals below.

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination meter

AWNIA3461GB

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination meter

Signal name

Signal path

Power switch ON signal

—

Shift position signal

VCM

Combination

meter
