Nissan Leaf. Manual - part 958

MWI

SYSTEM

MWI-35

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INFORMATION DISPLAY
INFORMATION DISPLAY : System Description

INFOID:0000000010122402

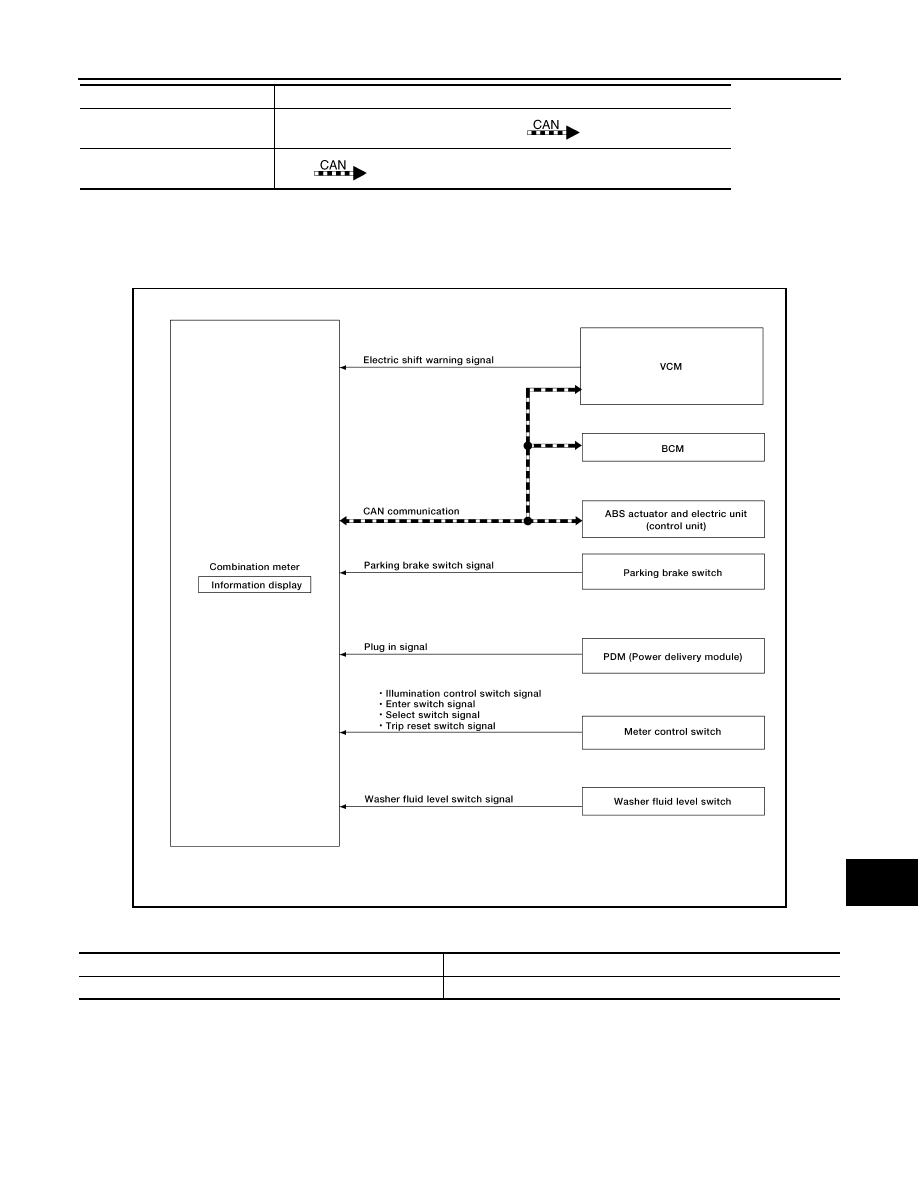

SYSTEM DIAGRAM

Combination Meter Input Signal (CAN Communication)

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

READY to drive indicator lamp
request signal

VCM

 Combination meter

Signal name

Signal path

AWNIA3458GB

Transmit unit

Signal name

ABS actuator and electric unit (control unit)

Vehicle speed signal

MWI-36

< SYSTEM DESCRIPTION >

SYSTEM

DESCRIPTION

• The information display is an LCD positioned inside the combination meter. It is used to inform the driver of a

variety of vehicle information.

• The combination meter receives the signals required to control the operation of the information display from

each unit, switch, and sensor.

• Based on the received signals, the combination meter displays the following information on the information

display:

- Odo/trip meter

- Shift indicator

- Trip computer

- Interrupt indication

- Warning check indication

- Setting

- Timer status remained display

- Charging time display

- Meter illumination control

- ASCD status display

• The information display screen is divided into sections (A) – (C),

and the items displayed in each section are different.

VCM

Ambient sensor signal

ASCD status signal

Remaining time to charge completion (200 V) signal

Remaining time to charge completion (100 V) signal

Electricity consumption signal

A/C consumption signal

Others consumption signal

Plug in warning display signal

Vehicle stop and parking brake operation request display signal

Electric shift warning lamp signal

Electric shift warning massage signal

Low battery charge warning lamp request signal

Power limitation cause signal

Next charge time signal

Next departure time signal

Next pre-A/C time signal

Shift position signal

BCM

Meter display signal

Door switch signal

Low tire pressure warning lamp signal

Buzzer output signal

Transmit unit

Signal name

Display

Display item

A

ASCD status display

JSNIA3677ZZ

MWI

SYSTEM

MWI-37

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:

If there are no items to display in display section (A), the items in display section (B) are displayed larger.

• Pressing the  switch (enter switch) changes the item displayed in display section (B) in the following

sequence:

“Charging time”

⇒ “Average electricity consumption/Current electricity consumption” ⇒ “Average vehicle

speed”

⇒ “Travel Distance/Travel Time” ⇒ “Setting” ⇒ “Warning”

ASCD STATUS DISPLAY

Based on the signals listed below, the combination meter displays the ASCD status.

For details, refer to

EVC-64, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description"

.

TRIP COMPUTER

Based on the signals received from each unit, switch, and sensor, the combination meter displays the items

shown below:

• Current electricity consumption

• Average electricity consumption

• Average vehicle speed

• Travel distance

• Travel time

Current Electricity Consumption

The combination meter calculates current electricity consumption based on the following signals, and the cal-

culated value is displayed on the information display:

NOTE:

• Current electricity consumption on the information display is updated approximately every 0.5 seconds.

• Current electricity consumption on the information display shows 0 kWh/miles (0 kWh/km) when vehicle

speed is 0 MPH (0 km/h).

Average Electricity Consumption

The combination meter calculates average electricity consumption based on the following signals, and the cal-

culated value is displayed on the information display:

B

Trip computer

Interrupt indication

Warning check indication

Setting

Timer status reminder display

Charging time display

Meter illumination control function

C

Odo/trip meter

Shift indicator

Display

Display item

Signal name

Signal path

ASCD status signal

VCM

 Combination meter

Signal name

Signal path

Power switch ON signal

—

Electricity consumption signal

VCM

 Combination meter

A/C consumption signal

Others consumption signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI-38

< SYSTEM DESCRIPTION >

SYSTEM

NOTE:

Average electricity consumption on the information display is updated approximately every 30 seconds.

Average Vehicle Speed

The combination meter calculates average vehicle speed based on the following signals, and the calculated

value is displayed on the information display:

NOTE:

• Average vehicle speed on the information display is updated approximately every 30 seconds.

• Soon after a reset or when the power switch is turned READY right after battery removal and installation, “

−

−−” is displayed until after a 30 seconds.

Travel Distance

The combination meter calculates mileage, based on the following signals and displays the mileage on the

information display:

Travel Time

The combination meter measures and displays travel time (power switch ON time).

CHARGING TIME DISPLAY

Based on the signals below, the combination meter displays the charge time.

INTERRUPT INDICATION

• The combination meter displays an interrupt regarding a warning, alert, and maintenance on the information

display, based on signals received from each unit and switch.

• When conditions are satisfied, the normal screen switches to a warning screen to display an interrupt.

Interrupt Display Items

Signal name

Signal path

Power switch ON signal

—

Electricity consumption signal

VCM

Combination

meter

A/C consumption signal

Others consumption signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Power switch ON signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Remaining time to charge completion (200 V) signal

VCM

Combination

meter

Remaining time to charge completion (100 V) signal
